Description

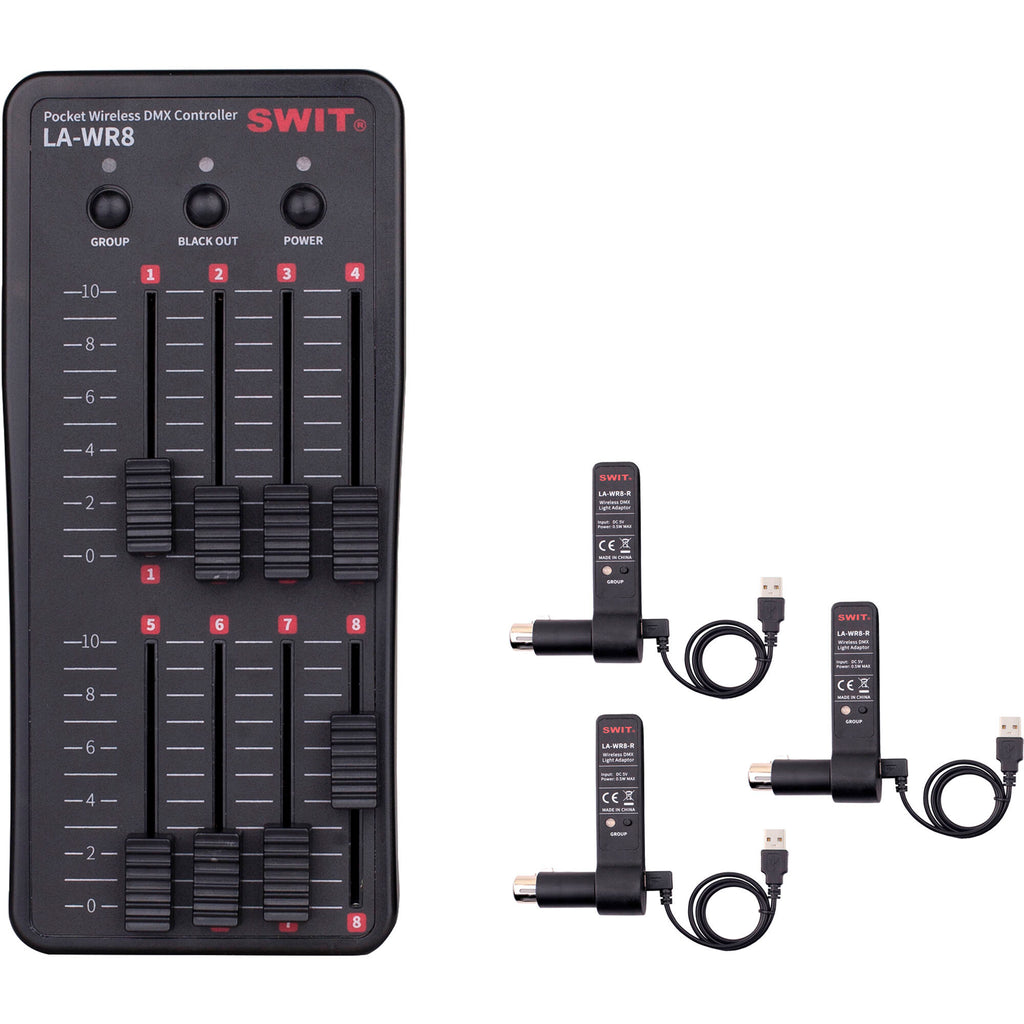

SWIT LA-WR8-KIT Overview
Take DMX wireless in the field with this SWIT Electronics Pocket Wireless DMX Controller Kit and leave all the extra DMX cabling home. With the three included light adapters, this kit makes an excellent tool for tweaking and adjusting three-point lighting setups in the field. This kit supports up to three fixtures, but with more wireless light adapters (not included), you can control additional fixtures for larger DMX controlled lighting setups.
The kit supports standard DMX512 protocols, allowing it to work with virtually any DMX enabled LED fixture that has USB a socket that can take the light adapter such as Skypanel, SWIT CL-60D, CL-120D, PL-E series, FL-C series. Additionally, the wireless kit allows you to control fixtures more than 1300' L.O.S. away from the controller/transmitter.

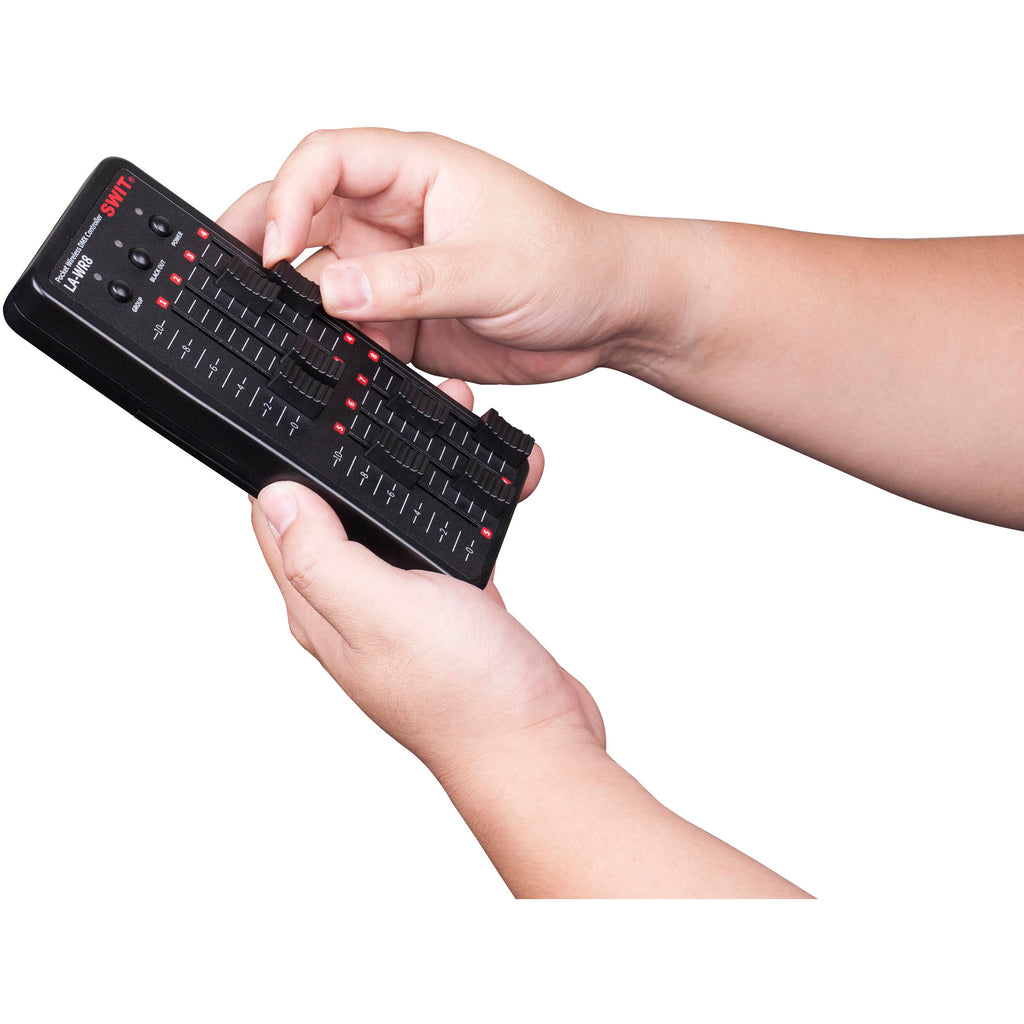

SWIT Pocket Wireless DMX Controller
Eliminate long DMX wiring cable runs for up to seven groups of light fixtures with the SWIT Electronics Pocket Wireless DMX Controller when the fixtures are connected by an optional wireless receiver. This portable DMX controller controls your fixtures wirelessly via 2.4 GHz or wired (requires optional USB to XLR cable). When using the wireless control with the optional receivers, it has a range of over 1300' line-of-sight, which saves you the headache of running all that cable.

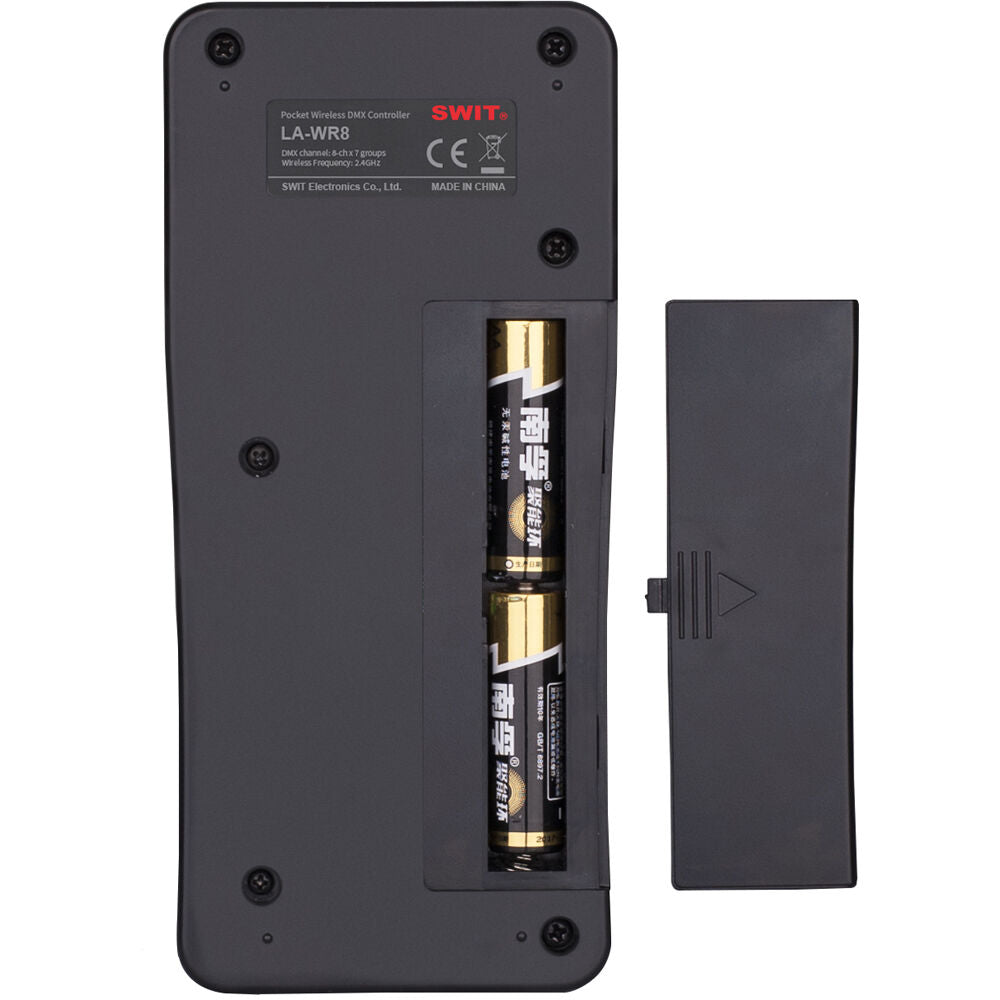

The unit features eight sliders for controlling up to eight channels per light fixture. You can create up to seven groups of lights, for a total of 56-channels. The controller powers from two AA batteries, which will run it for approximately four hours, and you can also power the unit via a micro-USB port using the included cable and USB power supply. To save power the unit enters sleep mode after one minute of inactivity.
2.4 GHz Wireless Quick Connect
Hard Wired DMX
8 Channel, 7 Groups DMX512 Control
Power
SWIT Light Adapter

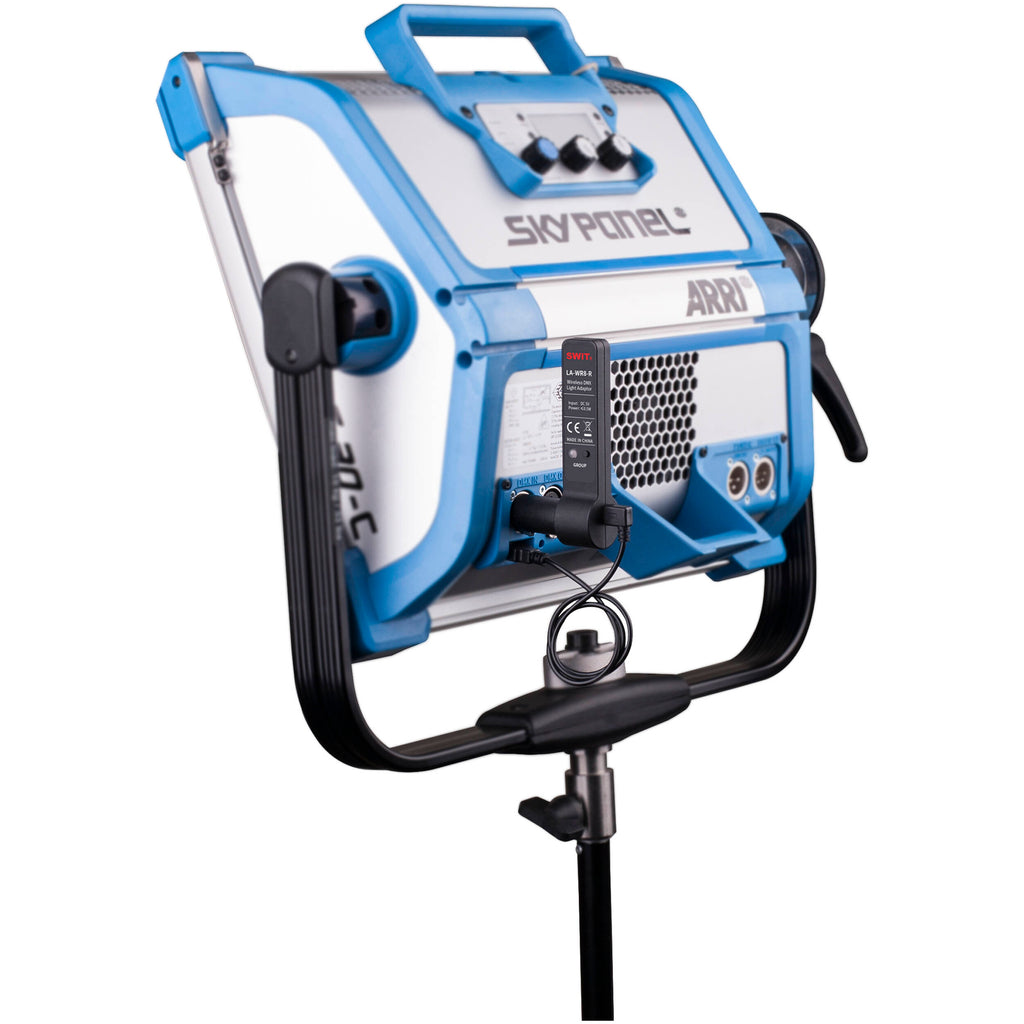

For professional lights such as the Skypanel, SWIT PL-E series, and FL-C series that have a USB socket on the light, the USB-powered Light Adapter from SWIT operates on the 2.4 GHz frequency at distances up to 1312' line of sight to control the lights.
Benefits
- 2.4 GHz wireless; quick connection
- 1312' line-of-sight transmission distance
- Compatible with all standard 5-pin DMX port lights
- Powered by USB
In the Box
- SWIT Pocket Wireless DMX Controller
- USB to Micro-USB Cable
- Limited 2-Year Warranty
- 3 x SWIT Light Adapter
- Micro-USB Power Cable
- Limited 1-Year Warranty
Not in the Box
- Essential Batteries (Not Included)
SWIT Pocket Wireless DMX Controller Specs
| DMX 512 Protocol | Channels: 8 Channels per Fixture: 8 GROUP Number: 7 |
| Signal Output | Wireless: 2.4 GHz USB Type-A |
| Connectors | USB 1 x Type-A 1 x Micro-USB |
| Wireless Transmission | 1312.34' / 400 m |
| Power | Supply 2 x AA Batteries 5 VDC (Through Micro-USB Socket) Consumption 1 W Output 1 x USB Type-A |
| Dimensions | 7.24 x 3.31 x 1.22" / 184 x 84 x 31 mm |
| Weight | 9.67 oz / 274 g (Without Batteries) |
| Package Weight | 1.555 lb |
| Box Dimensions (LxWxH) | 10.7 x 5.3 x 3.1" |
SWIT Light Adapter Specs
| Ports | 1 x USB Type-A Male |
| Channels | 0 (ArtNet) |
| Cooling System | Passive |
| Wireless Range | 1312.3' / 400 m |
| Frequency | 2.4 GHz |
| Power Consumption | 0.5 W |
| DC Input Power | 5 VDC |
| IP Rating | None |
| Rack Mount | Yes |
| Dimensions | 4.3 x 2.8 x 0.5" / 110.0 x 70.0 x 12.0 mm |
| Weight | 16.9 oz / 479 g |
| Package Weight | 0.18 lb |
| Box Dimensions (LxWxH) | 4.8 x 3 x 1.4" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
