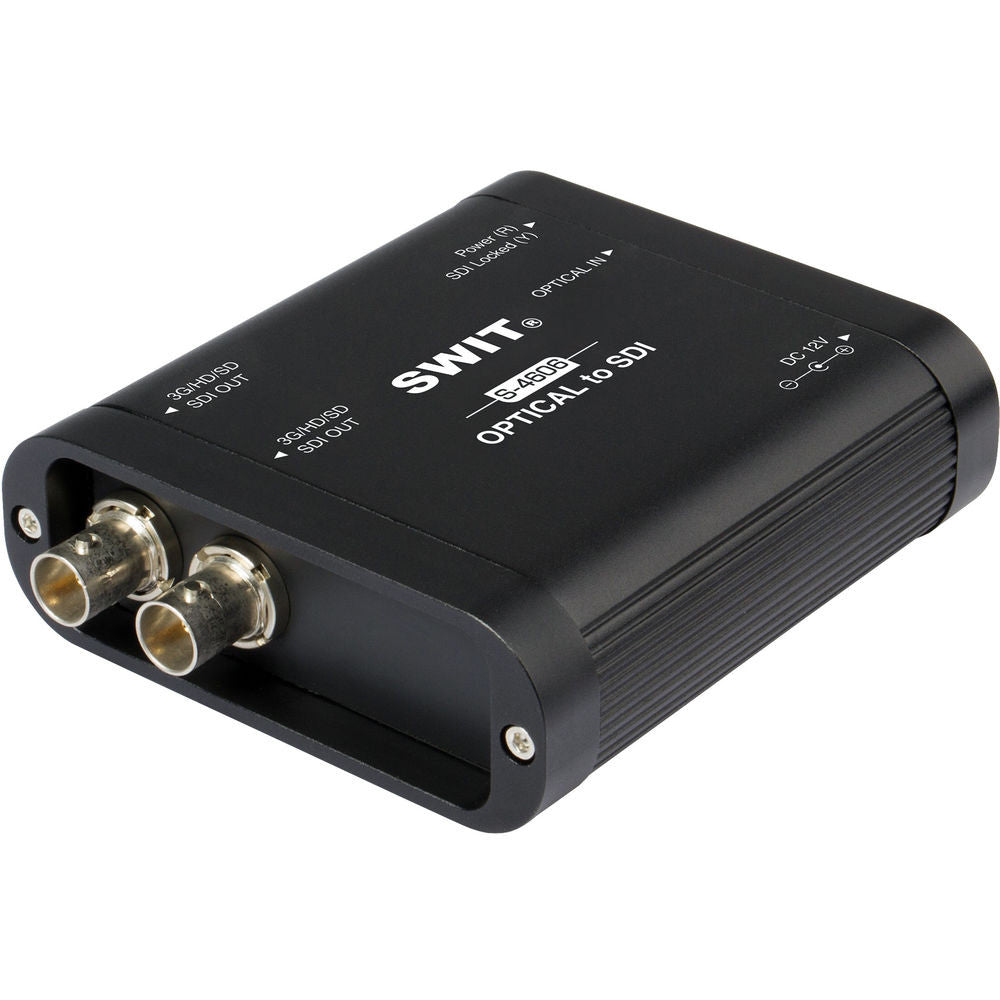

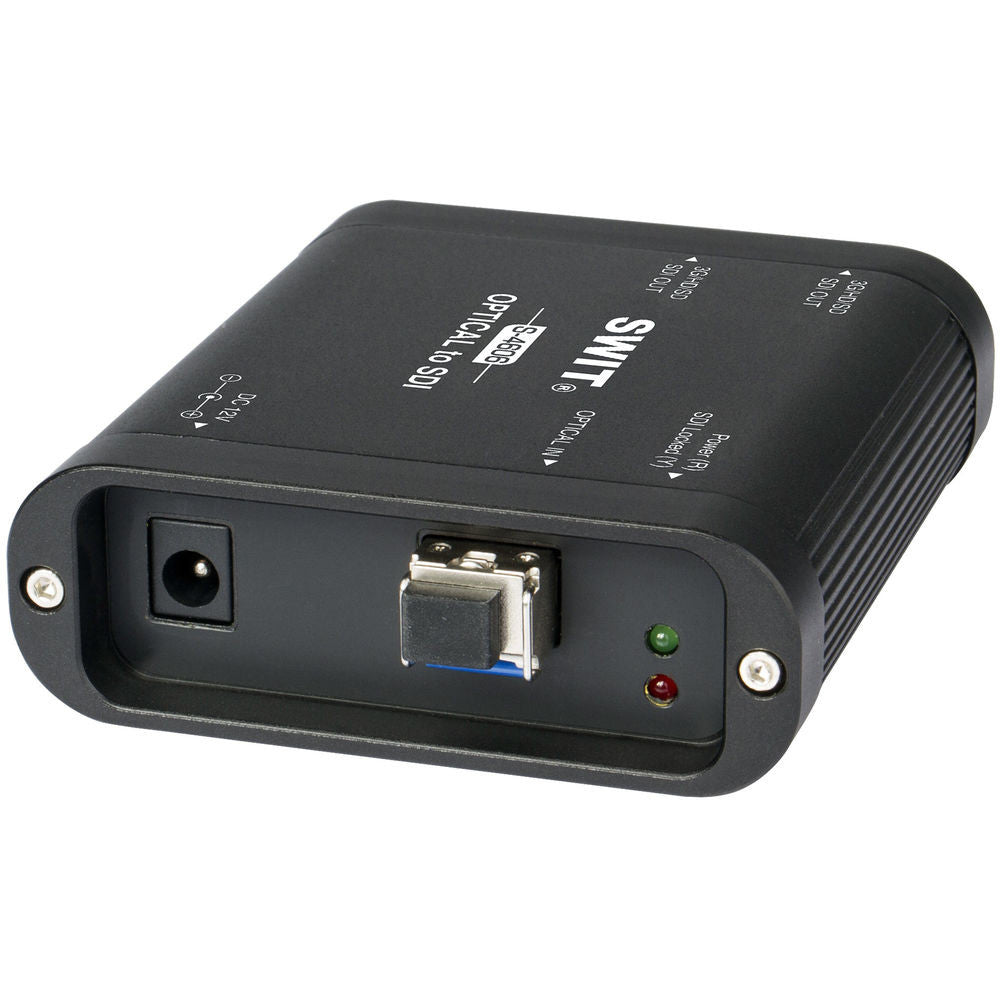

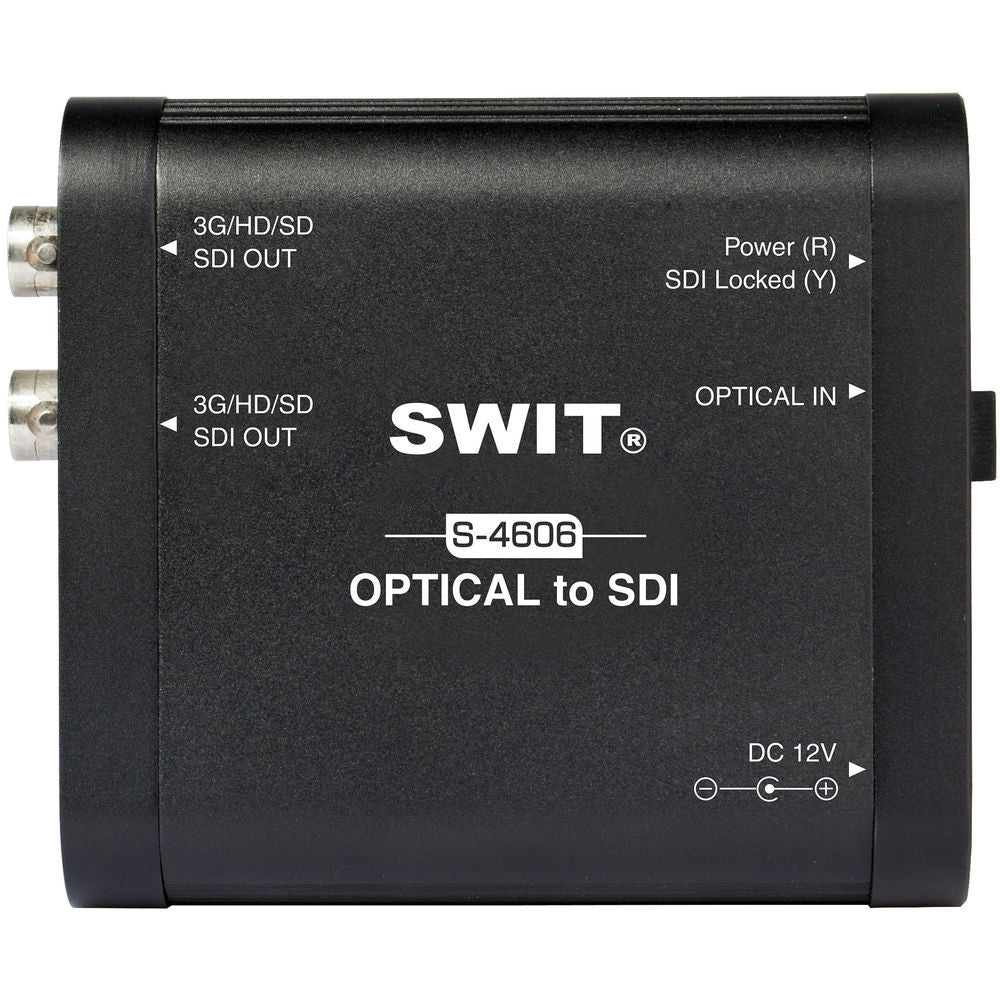

Provided by third party: The S-4606 is a portable Optical fiber to 3G/HD/SD-SDI converter. The single-mode fiber ensures max 20 km reliable transmission, and support hot swap of optical module. The S-4606 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing.
- Key Features
-
- Portable Optical Fiber to 3G/HD/SD-SDI converter
- Single-mode Optical fiber, LC connector
- Support hot swap of optical module
- Power/SDI input status indicator
- Heavy duty aluminum housing

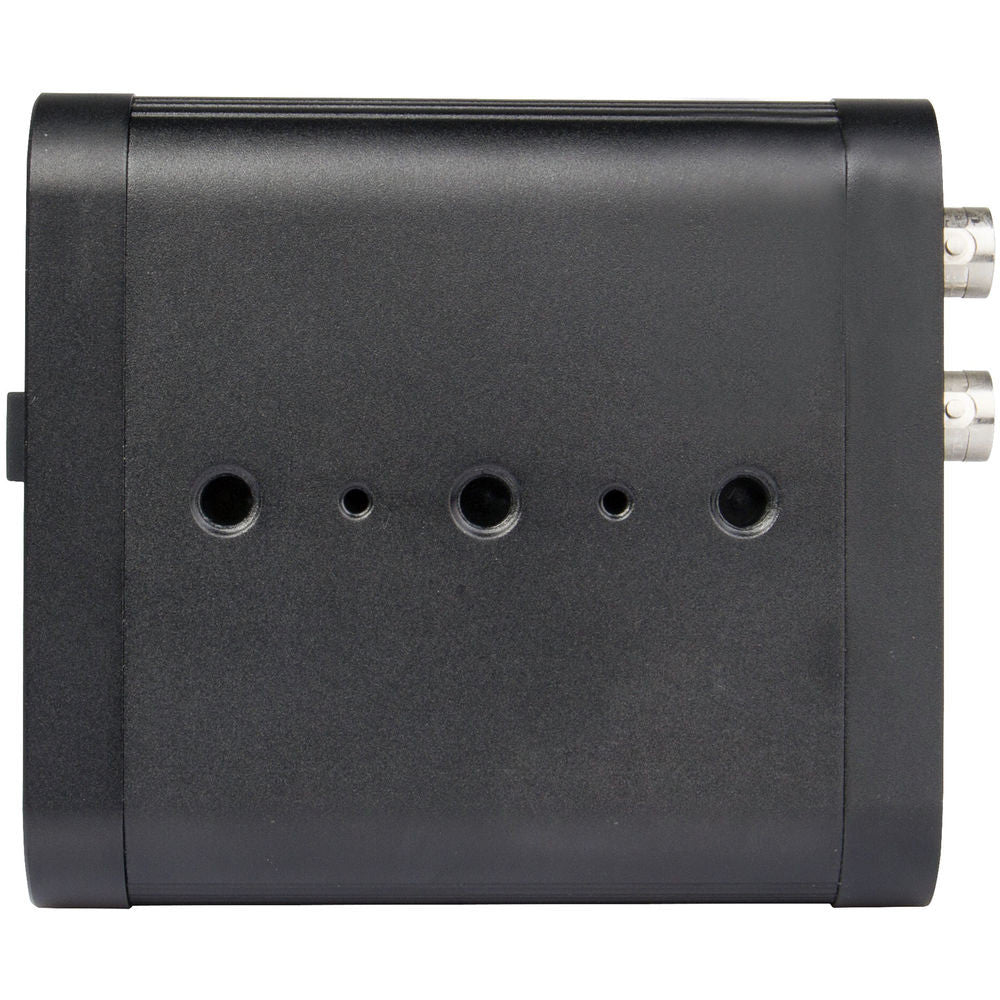

- Bottom screw threads for installing
| General |
| Type | 3G-SDI/HD-SDI/SDI optical to electrical converter |
| Width | 3.9 in |
| Depth | 3.3 in |
| Height | 1.1 in |
| Weight | 7.76 oz |
| Power |
| Low Voltage Power | DC 6 - 18 V |
| Terminals |
| Terminals | (1) x 3G HD-SDI input (optical) - LC
(2) x 3G HD-SDI output - BNC
(1) x DC power input |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% |
