Description

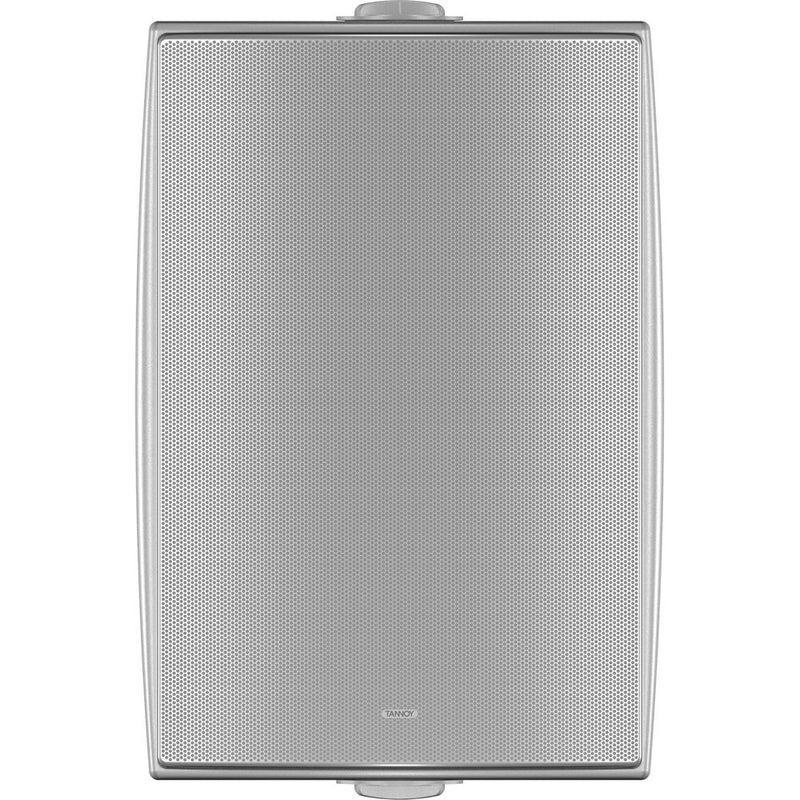

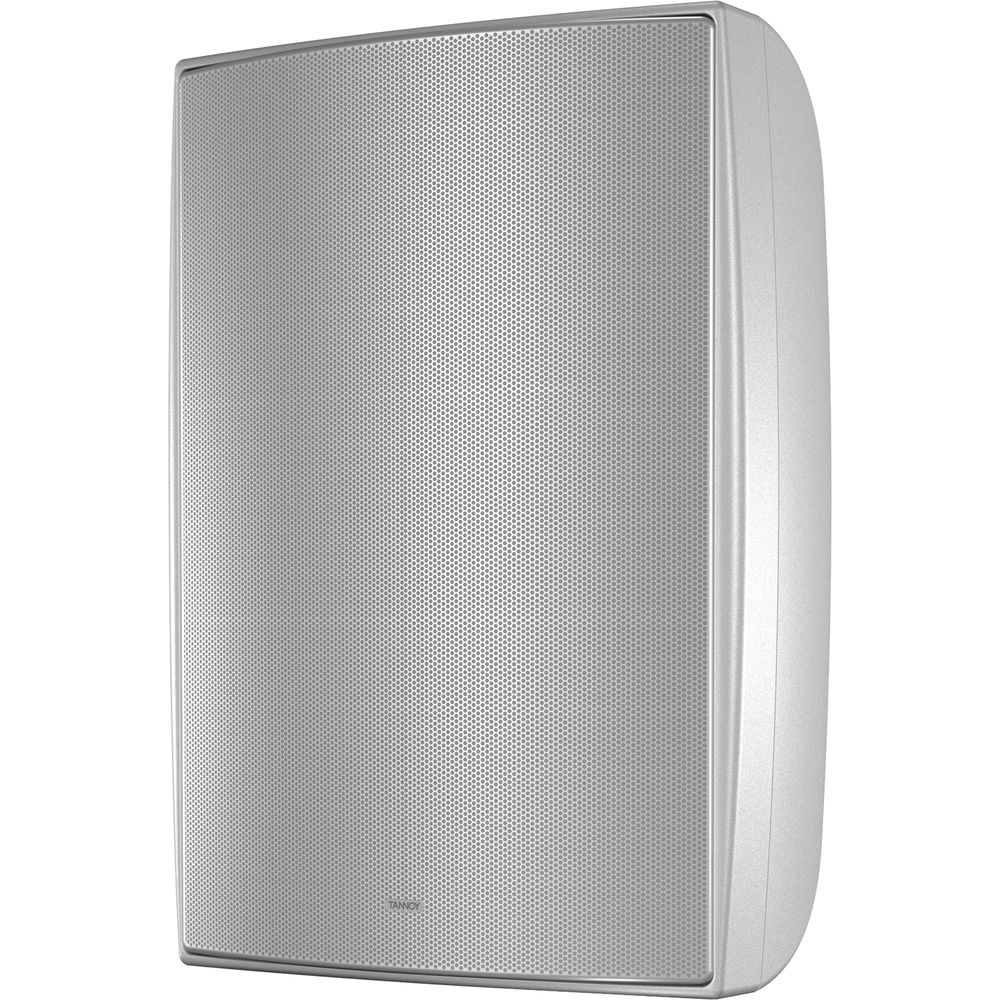

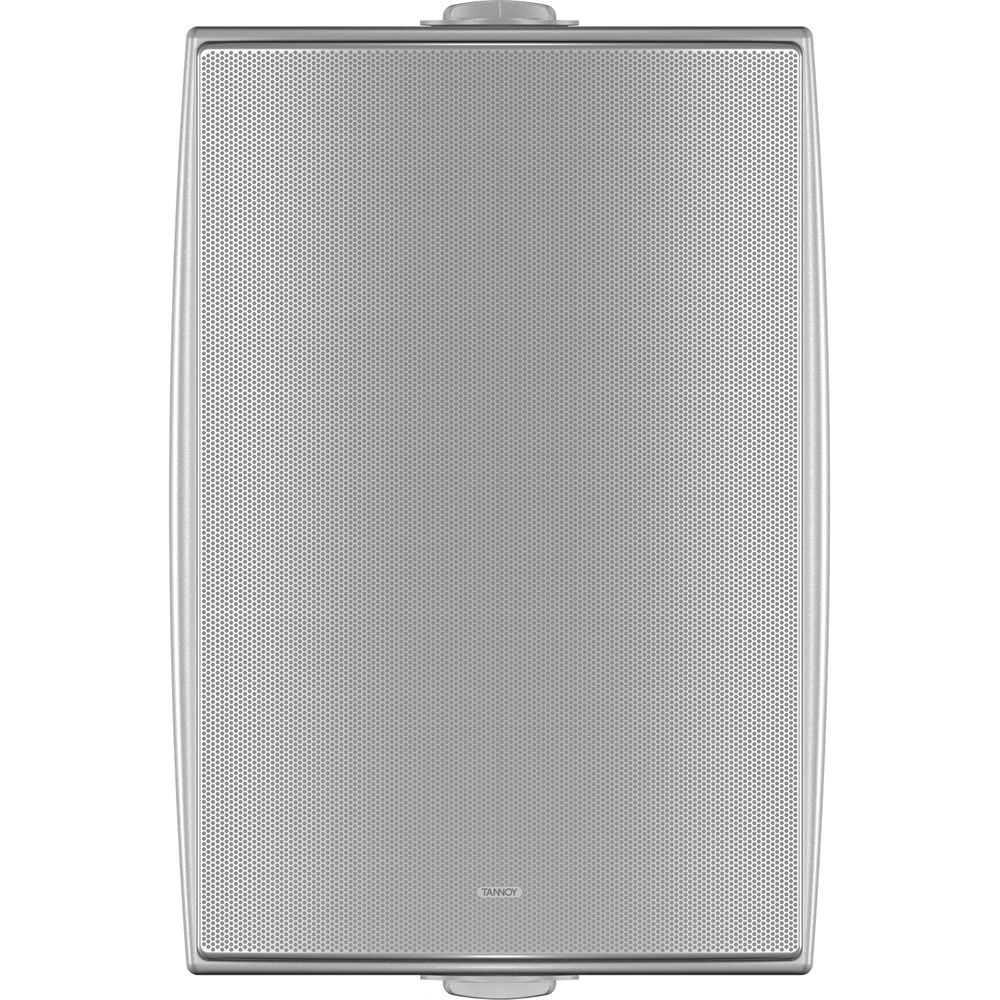

Tannoy DVS8 Overview
System installers in need of an all-weather speaker with an inspiring acoustic performance will be impressed with the Tannoy 8" Coaxial Surface-Mount Loudspeaker with Transformer, a pair of white sound reinforcement speakers well suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retails stores, as well as corporate AV, residential developments, and houses of worship.

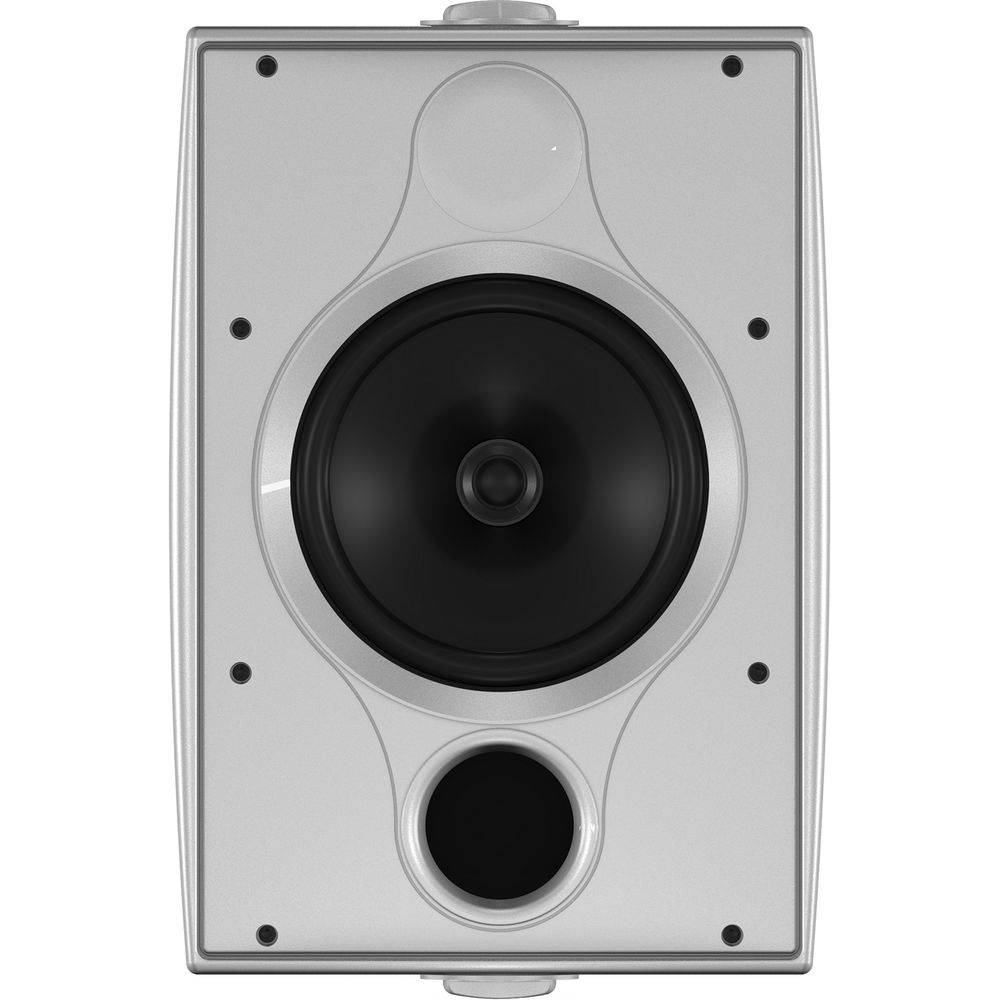

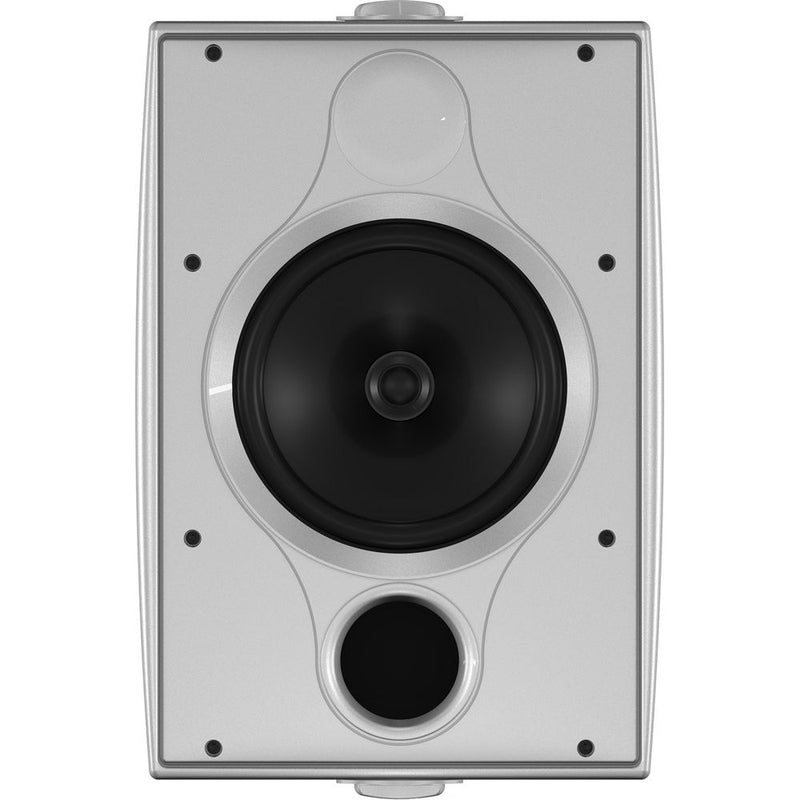

The speaker utilizes a point source design with a 8" mid-bass driver with a coaxially mounted 0.75" high-frequency dome tweeter mounted in a stylish injection molded ABS enclosure. Certified for IP64, the speaker provides protection against water and dust and is an excellent choice for challenging environments such as indoor swimming pools, saunas, or work areas with high levels of dust or moisture.
- Full-range, surface-mount loudspeaker for indoor and outdoor installation applications
- 70W continuous, 280W peak power
- 8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
- 0.75" ferrofluid cooled soft dome neodymium high frequency driver
- 80° constant directivity dispersion for optimum coverage
- UL 1480 certified for general signaling systems
- UV and weather resistant UL 94 V-0 ABS enclosure
- Multiple transformer taps for 70V and 100V line systems
- Low insertion loss 60W line transformer with easily accessible tapping switch
- All components weather resistant to IP64 for outdoor use
- Stylish durable enclosure in a semimatte finish fits unobtrusively in any environment
- Painted perforated aluminum mesh grille with dust protection

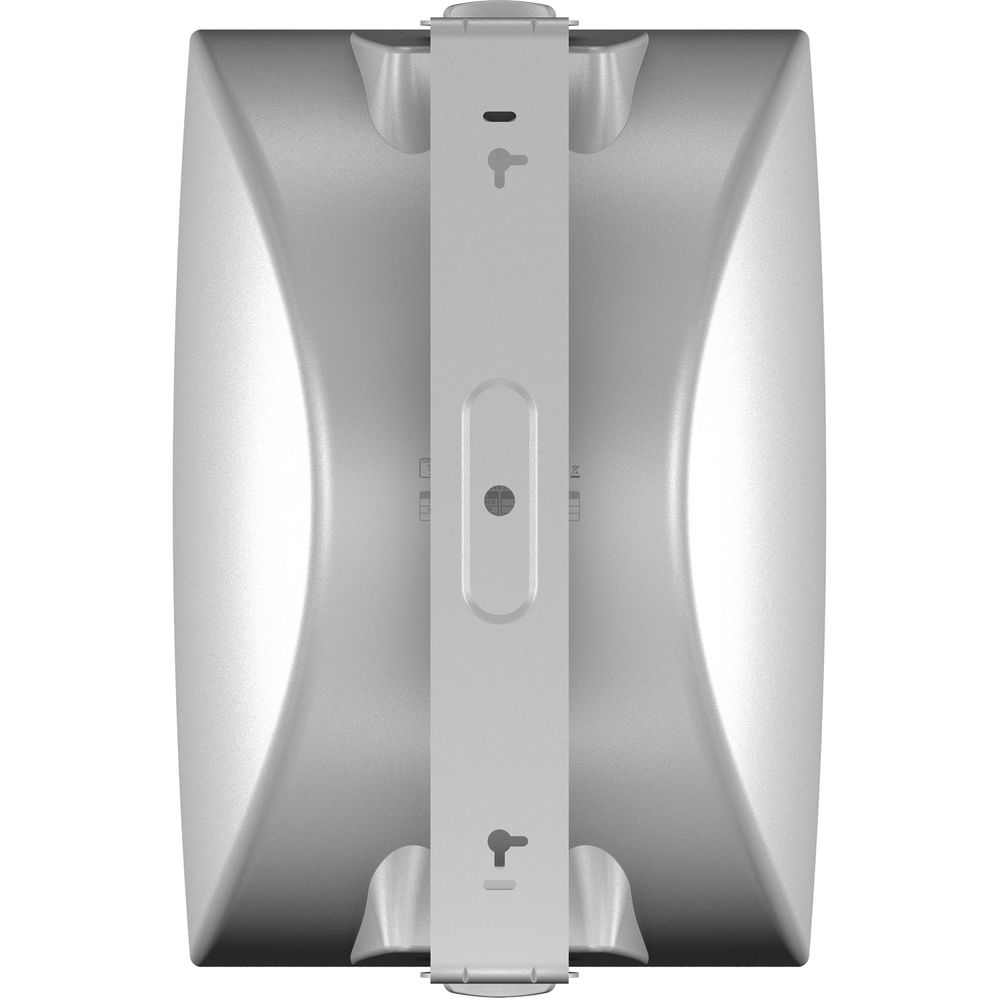

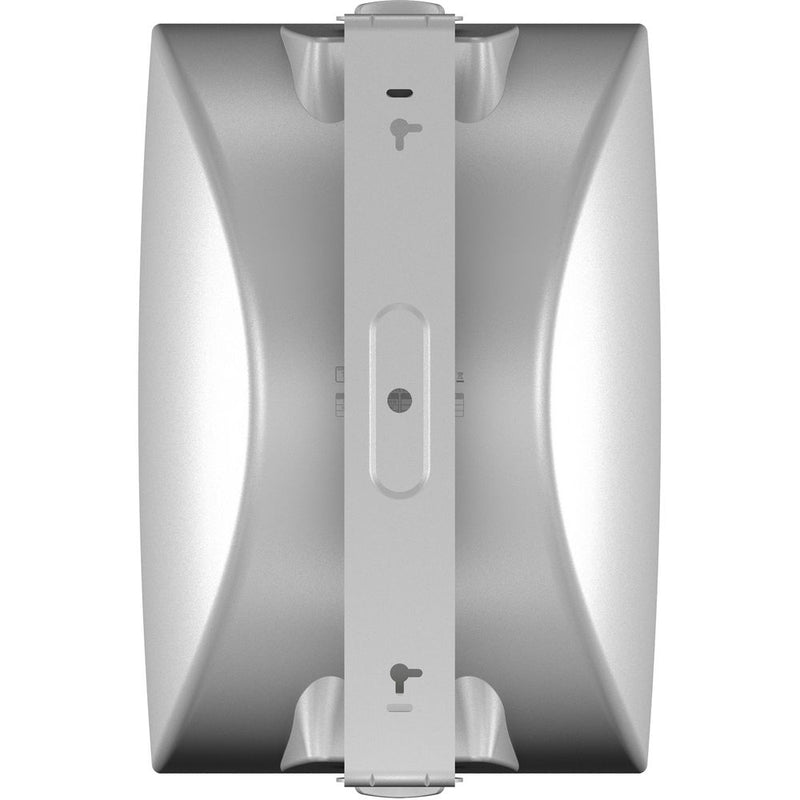

- Yoke bracket included for ease of installation
- Phoenix connectors input and link output
In the Box

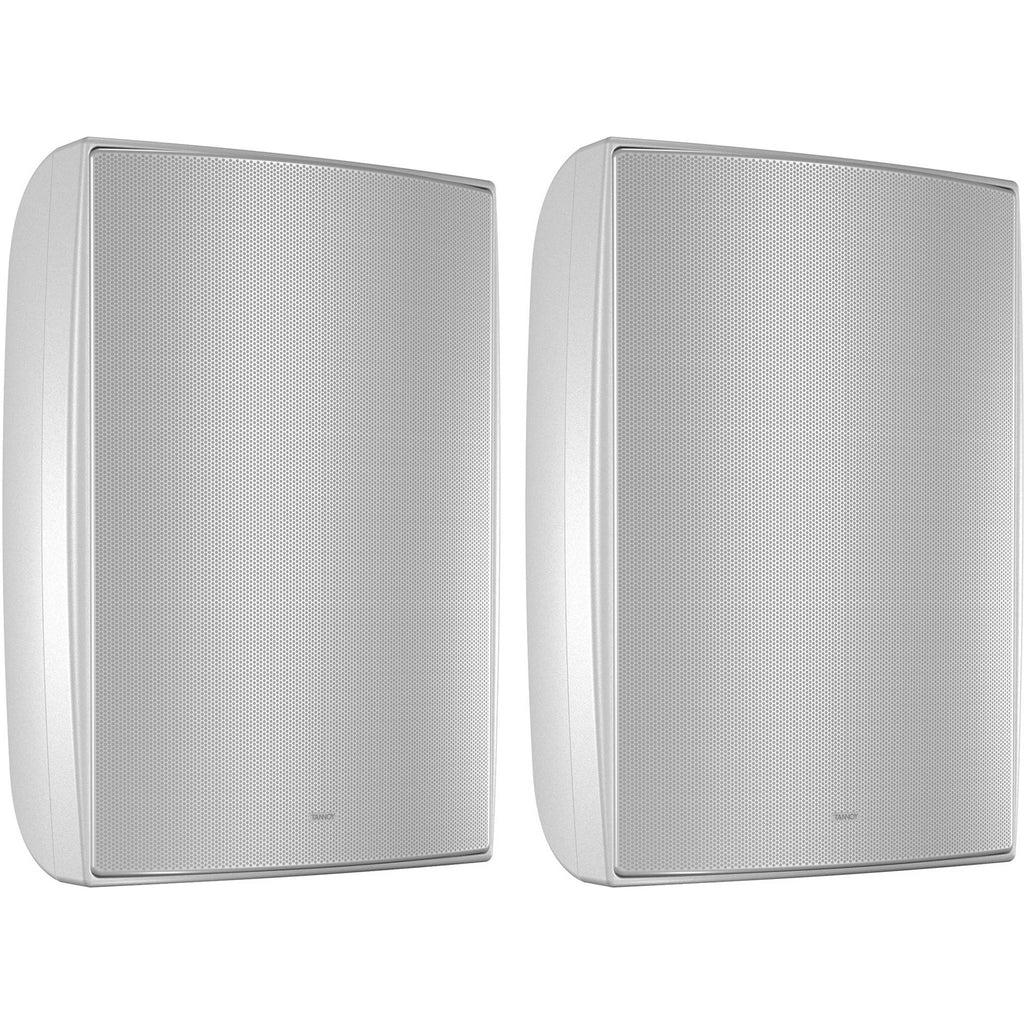

- Tannoy 8" Coaxial Surface-Mount Loudspeaker with Transformer (White, Pair)
- Phoenix Connector
Tannoy DVS8 Specs
| Active or Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | 2-Way |
| Power Handling | 70 W RMS 140 W Program 280 W Peak |
| Recommended Amplifier Power | 140 W |
| Impedance | 6 Ohms |
| Transformer Wattage | 60 W |
| Enclosure Type | Bass-Reflex |
| HF Driver | 1 x 0.8" / 20 mm Dome |
| LF Driver | 1 x 8" / 203.2 mm |
| Magnet | HF: Neodymium |
| Frequency Range | 60 Hz to 30 kHz -10 dB |
| Frequency Response | 75 Hz to 20 kHz -3 dB |
| Maximum SPL | 114 dB (Peak) 108 dB (Continuous) |
| Sensitivity | 90 dB |
| Coverage Angle | 80° (Conical) |
| Directivity | 12.3 dB (Directivity/Q Factor) 10 dB (Directivity Index) |
| Crossover | 3.4 kHz, 12 dB/Octave |
| I/O | Block Line Input/Thru |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
| Water / Weather Resistance | Dust Resistant, Humidity Resistant, Moisture Resistant, Water Resistant |
| IP Rating | IP64 |
| Color | Black |
| Mounting | Bracket Point |
| Construction Material | ABS |
| Dimensions | 17.8 x 11.4 x 11.7" / 451.8 x 290 x 296 mm |
