| ₹ 273865.0 includes GST and import duties. | |
| B2B customers can avail ₹ 41764.41 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

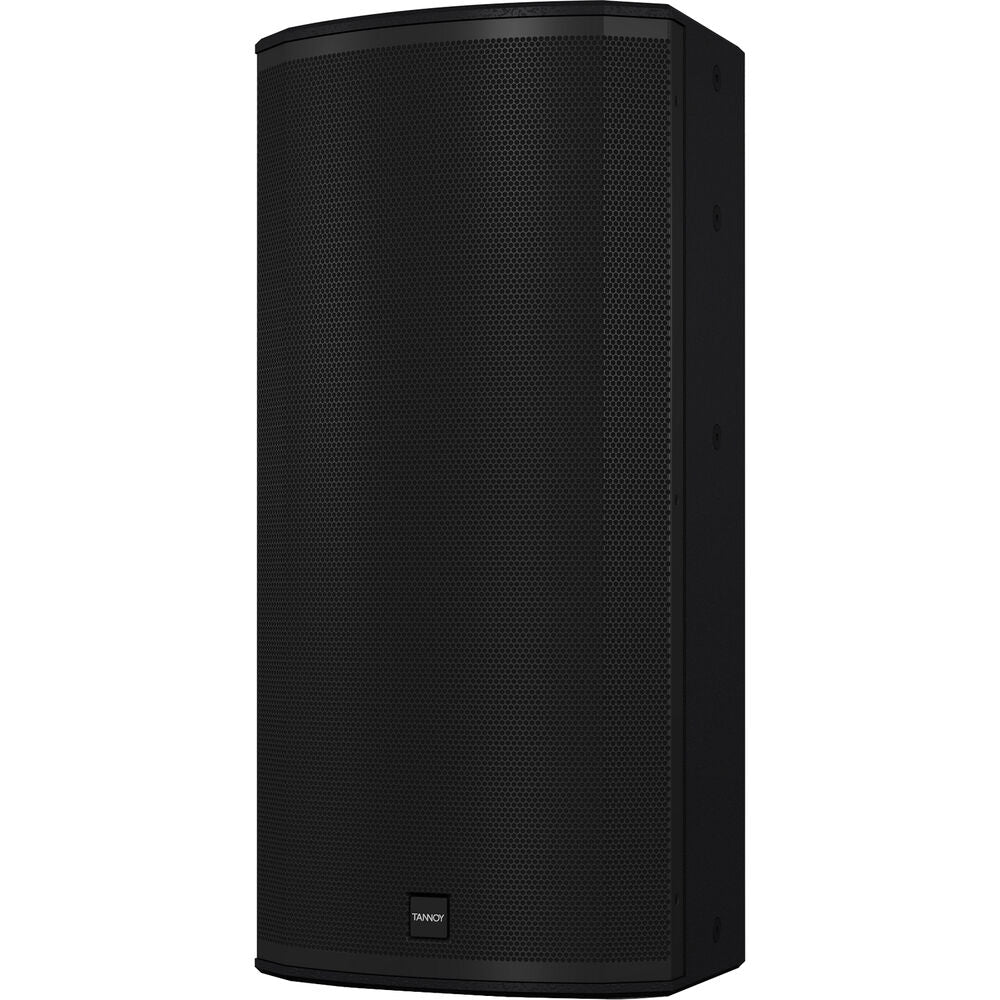

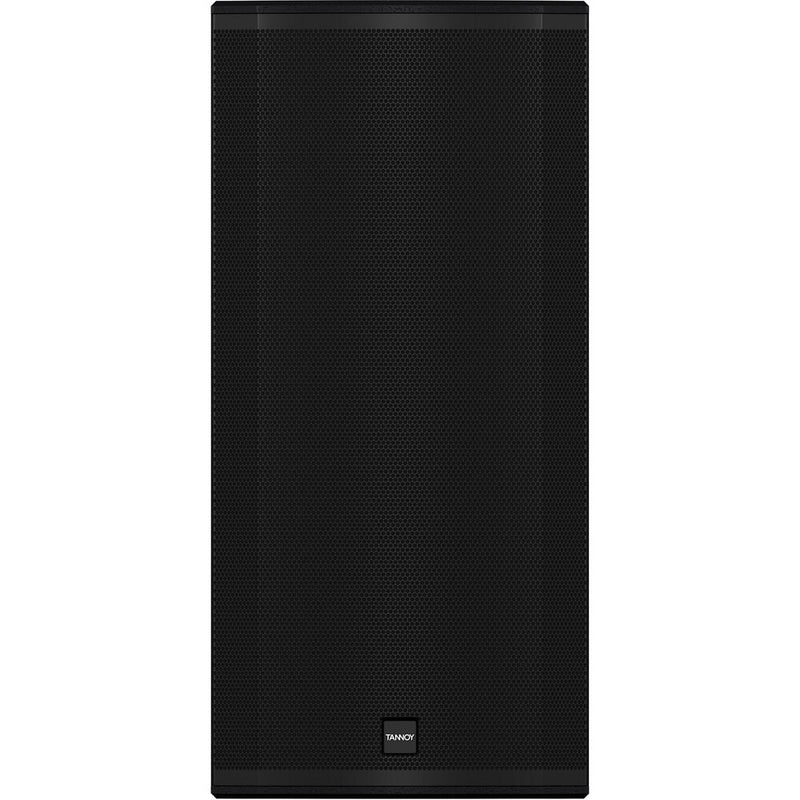

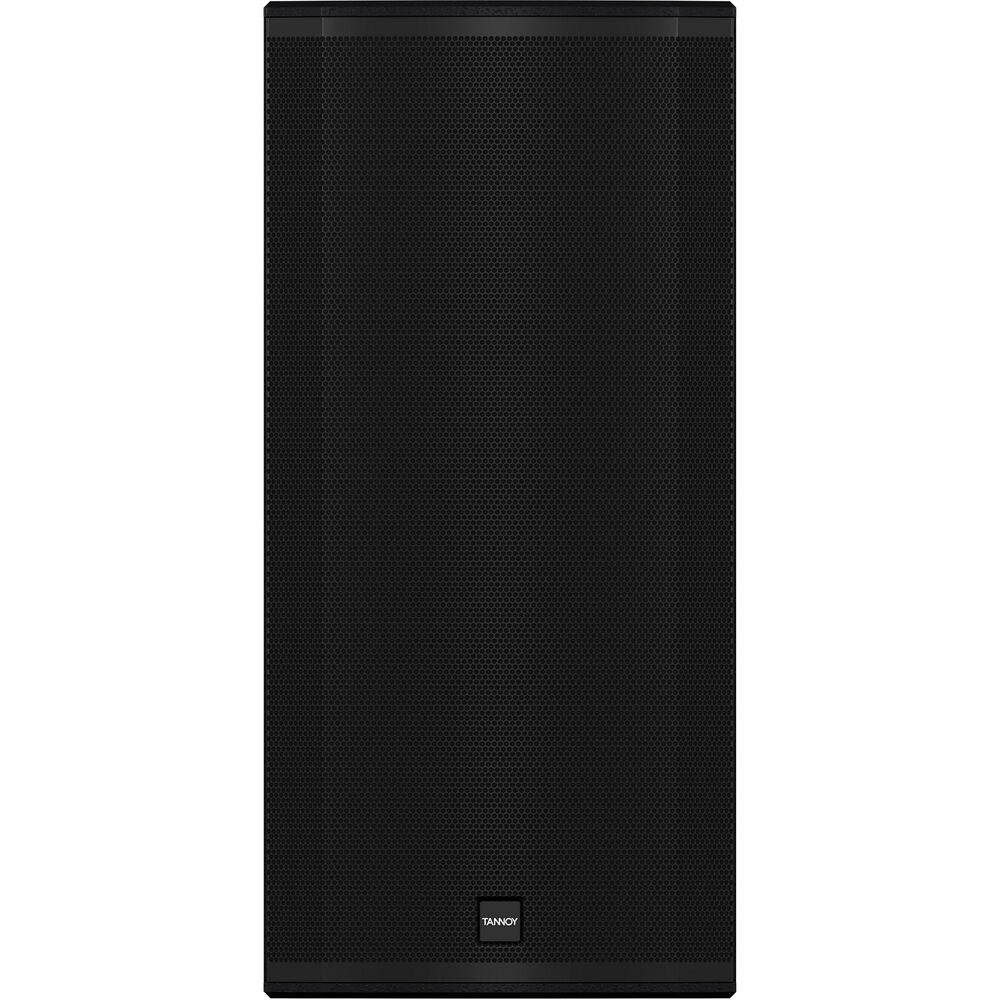

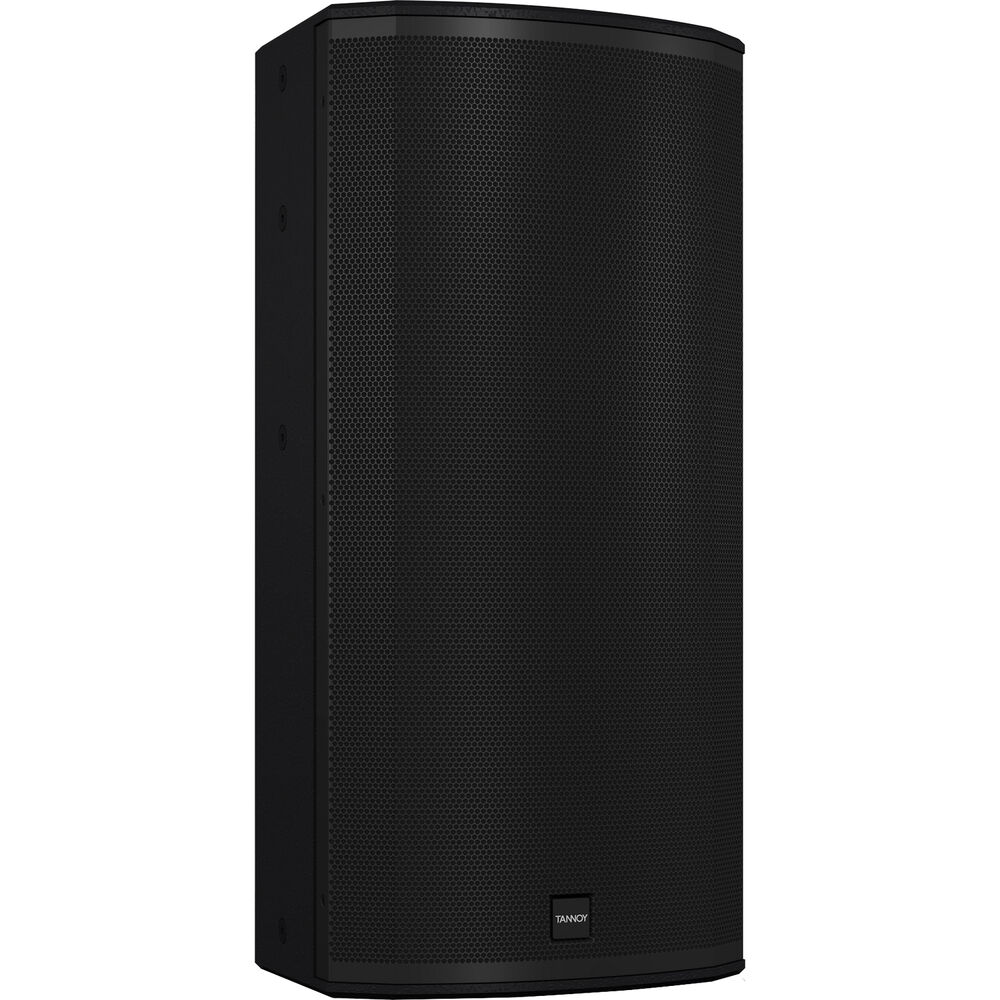

Tannoy VX 12.2Q Overview
Looking for a powerful full-range PA speaker for portable and installation applications? Check out the Tannoy VX 12.2Q, a single passive 12" loudspeaker offering high output and optimal phase coherence for multipurpose use as an FOH speaker, a floor monitor, or a side fill. The VX 12.2Q can be used as a passive full-range speaker or bi-amped.
The speaker utilizes 2000W (peak) to drive the 12" PowerDual driver and the 12" low frequency driver, which combine for a frequency response of 70 Hz to 25 kHz with a maximum SPL of 132. The speaker can also be used in a bi-amp configuration, where both drivers require up to 1400W each. The VX 12.2Q utilizes a Q-Centric waveguide for tight horizontal and vertical pattern control (75° H x 40° V). The vented and internally braced trapezoidal plywood enclosure features an array of mounting points including eight M10 flying inserts, eight M10 yoke bracket inserts, and a blanking plate, allowing versatile installation with separately available hardware.
- Full-range multipurpose sound-reinforcement loudspeaker for portable and installation applications
- 500W continuous, 2000W peak power

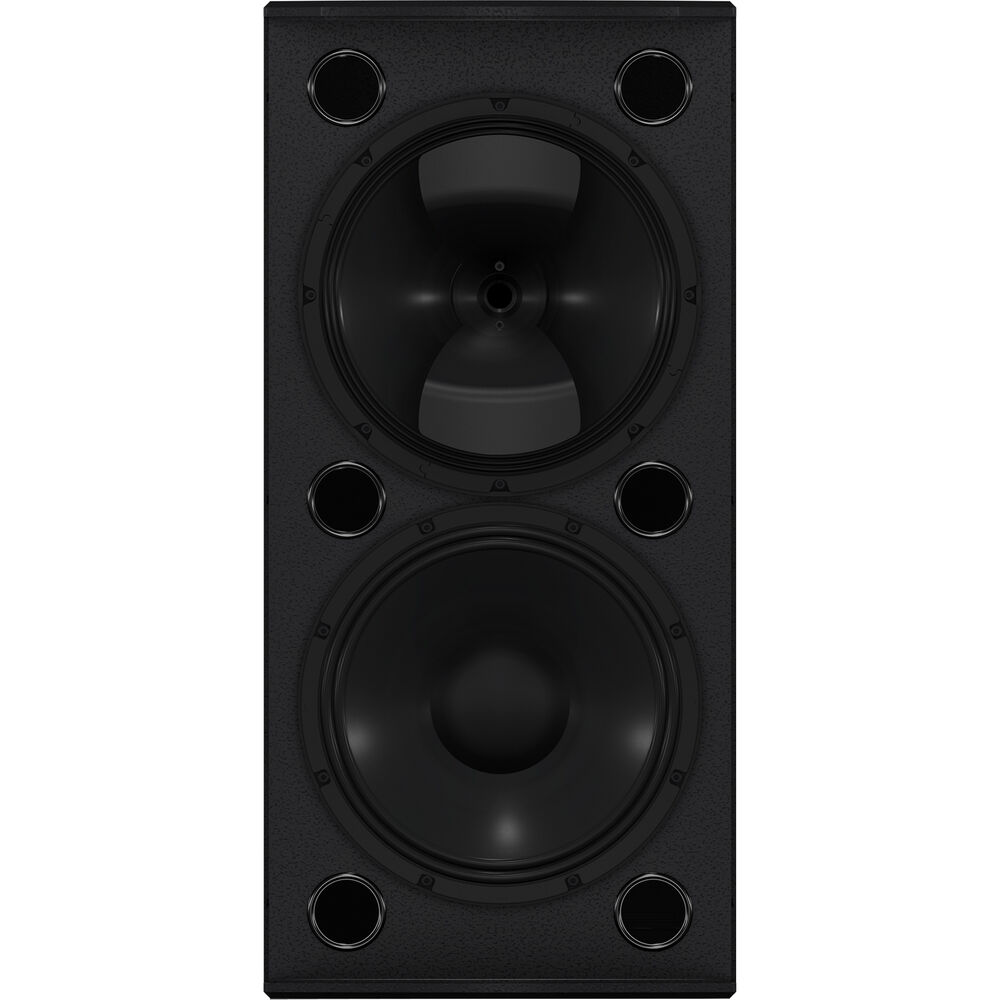

- 12" PowerDual full-range driver for point-source phase coherence
- 12" low-frequency driver for extended bass response
- Q-Centric waveguide for tighter vertical or horizontal pattern control
- Precise 75° H x 40° V dispersion for optimum coverage and forward projection
- Ideal for FOH, floor monitor, and side-fill applications
- Configurable for bi-amp operation
- Vented and internally braced plywood enclosure
- Finished with hard wearing semi-matt black paint
- Rugged powder-coated perforated steel-mesh grille
- Blanking plate for optional VTH pole mount
- Optional horizontal and vertical mounting yokes (available separately)
- Integrip handles ergonomically integrated into top and bottom of cabinet

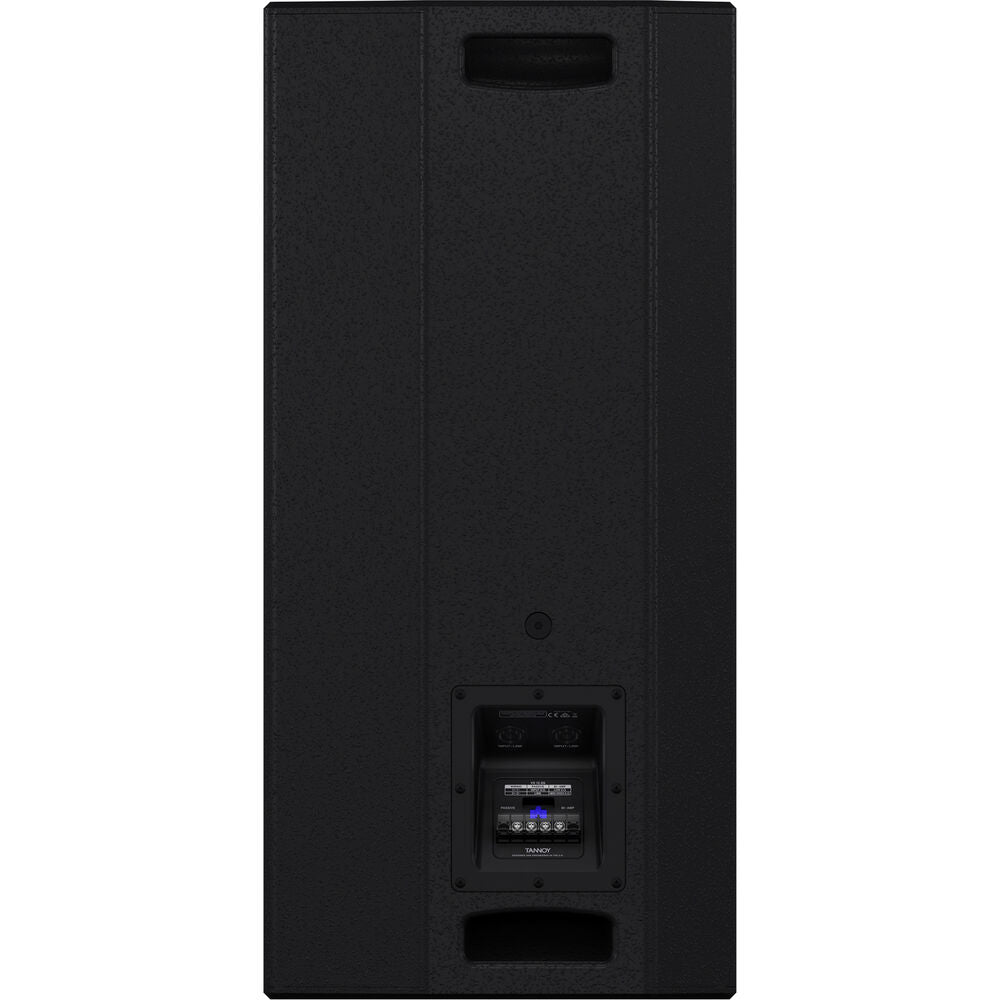

- Neutrik speakON NL4 and barrier strip connectors for input and link output
- 10-year warranty program
Tannoy VX 12.2Q Specs
| Configuration | Passive Full-Range |
| Enclosure Type | Loudspeaker |
| Total Power Capacity | Passive: 2000 W Peak (at 8 Ohms) 500 W RMS (at 8 Ohms) Bi-Amp / LF: 1400 W Peak (at 8 Ohms) 350 W RMS (at 8 Ohms) Bi-Amp / HF: 1400 W Peak 350 W RMS |
| Constant Voltage / Transformer Taps | None |
| System Impedance | 8 Ohms |
| Full-Range Driver | 1 x 12" / 30.48 cm |
| MF Driver | None |
| LF Driver | 1 x 12" / 30.5 cm |
| Frequency Response | 70 Hz to 25 kHz ±3 dB 55 Hz to 30 kHz -10 dB |
| Maximum SPL | 129 dB (Continuous) 132 dB (Peak) |
| Coverage Angle | 75° H x 40° V |
| Directivity | 13 (Directivity/Q Factor) 11.1 (Directivity Index) |
| Speaker Sensitivity | 99 dB |
| Audio I/O | 2 x speakON NL4 Male Speaker Input (Lockable) 1 x Barrier Strip 4-Pin Input |
| Filters | None |
| Phase Adjustment | None |
| Mounting | 8 x M10 Fly Point 8 x M10 Bracket Point |
| Handles | 1 x Top 1 x Bottom |
| Construction Material | Perforated Metal Grille, Plywood |
| Dimensions | 30.7 x 14.6 x 14.2" / 78 x 37.1 x 36.1 cm |
| Weight | 67.2 lb / 30.5 kg |
Tannoy VX 12.2Q Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 268387.7 |
| 3-5 | ₹ 265649.05 |
| 5-10 | ₹ 260171.75 |
| 10+ | ₹ 254694.45 |
Bulk discount will be automatically applied during checkout based on quantity.
