Product details
| Capacitance:
3.3µF
|
| Voltage(DC):
50V
|
| Capacitor Case / Package:
1210 [3225 Metric]
|
| Capacitance Tolerance:
± 10%
|
| Dielectric Characteristic:
X8L
|
| Product Range:
CGA Series
|
| Product Length:
3.2mm
|
| Product Width:
2.5mm
|
| Capacitor Terminals:
Wraparound
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
150°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
TDK |
| Part Number |
CGA6M1X8L1H335K200AC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

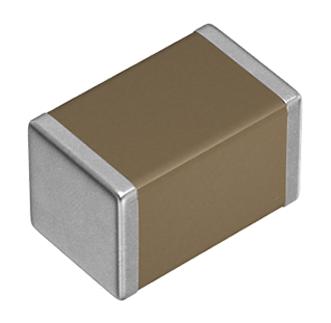

![TDK CGA6M1X8L1H335K200AC SMD Multilayer Ceramic Capacitor, 3.3 µF, 50 V, 1210 [3225 Metric], ± 10%, X8L, CGA Series](http://www.tanotis.com/cdn/shop/files/42bc931bc9d45bc5f0c372ca881201d9_17aa49c8-9e94-4784-ab5e-71ee34be3269_{width}x.jpg?v=1706932978)
