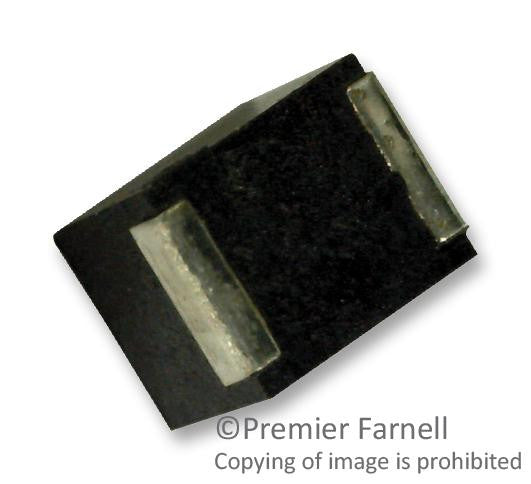

This is a Surface Mount High Frequency Inductor, NLV Series, 3.9 µH, 180 mA, 1008 [2520 Metric], Wirewound product from TDK with the model number NLV25T-3R9J-EF
Product details
| Product Range |
NLV Series |
| Inductance |
3.9µH |
| DC Current Rating |
180mA |
| High Frequency Inductor Case |
1008 [2520 Metric] |
| Inductor Construction |
Wirewound |
| DC Resistance Max |
2.1ohm |
| Inductance Tolerance |
± 5% |
| Self Resonant Frequency Min |
48MHz |
| Packaging |
Cut Tape |
Other details
| Brand |
TDK |
| Part Number |
NLV25T-3R9J-EF |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
