Description
Teradek LT 1500 Overview

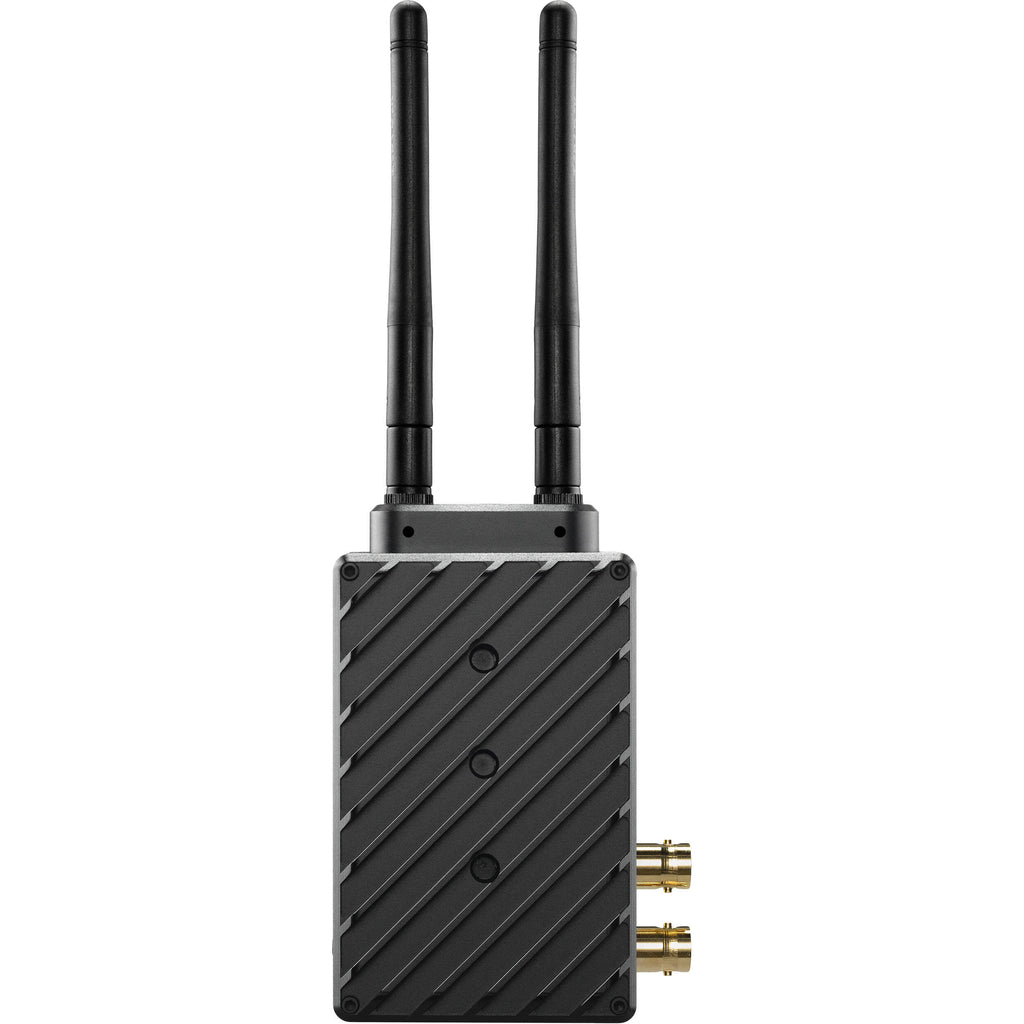

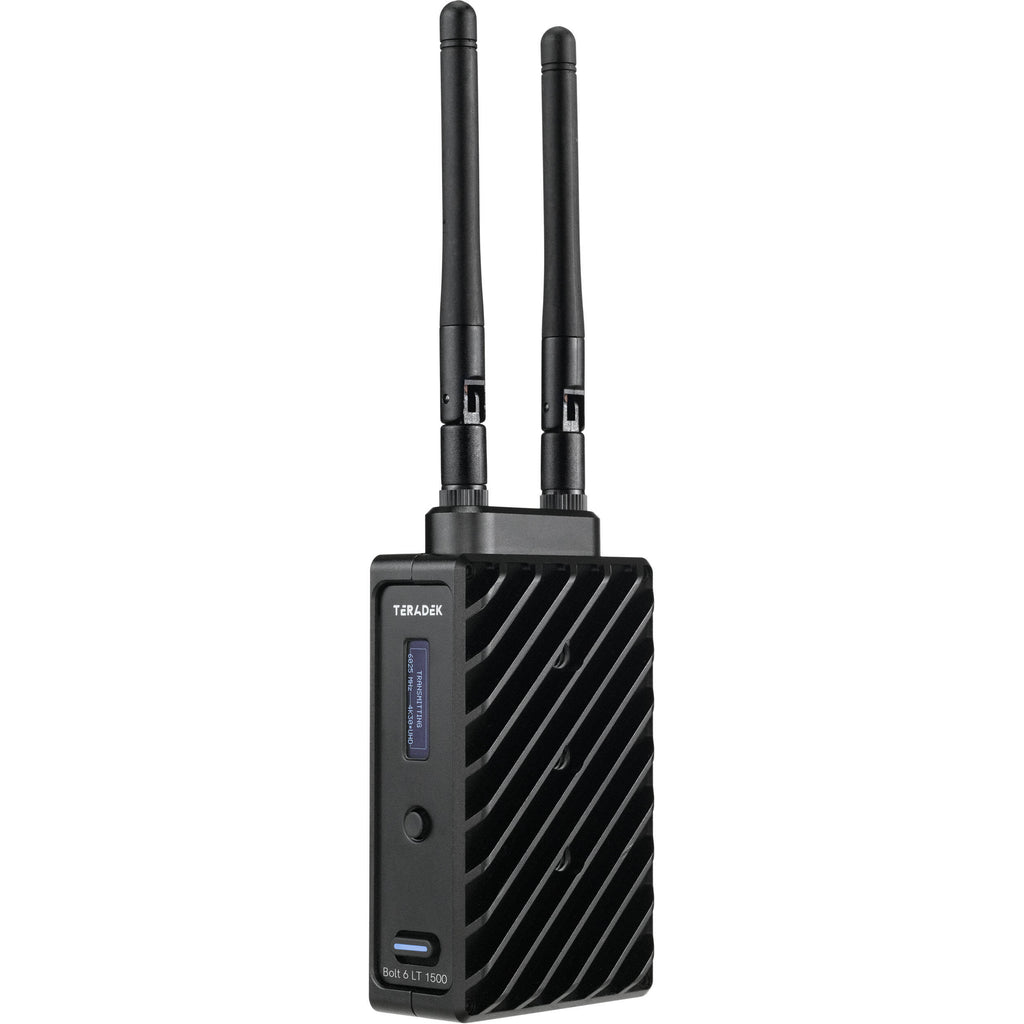

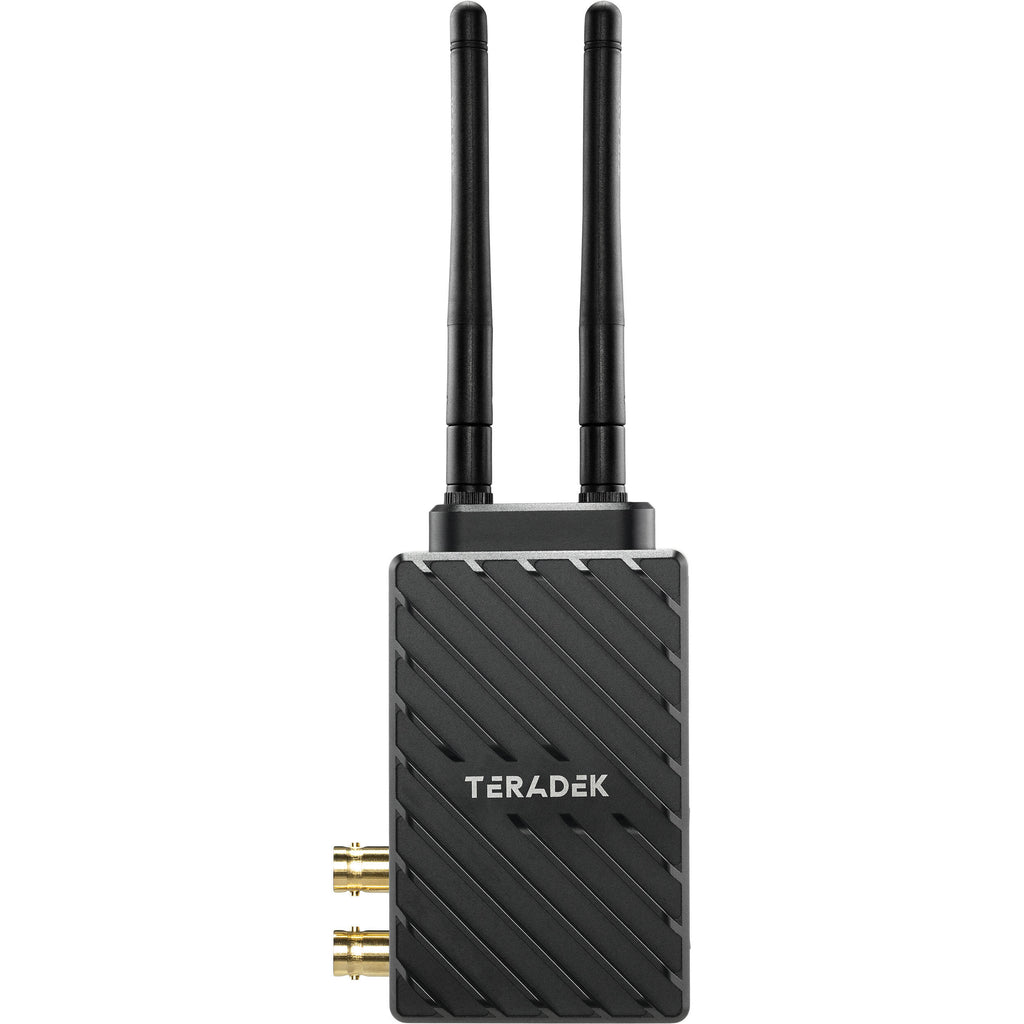

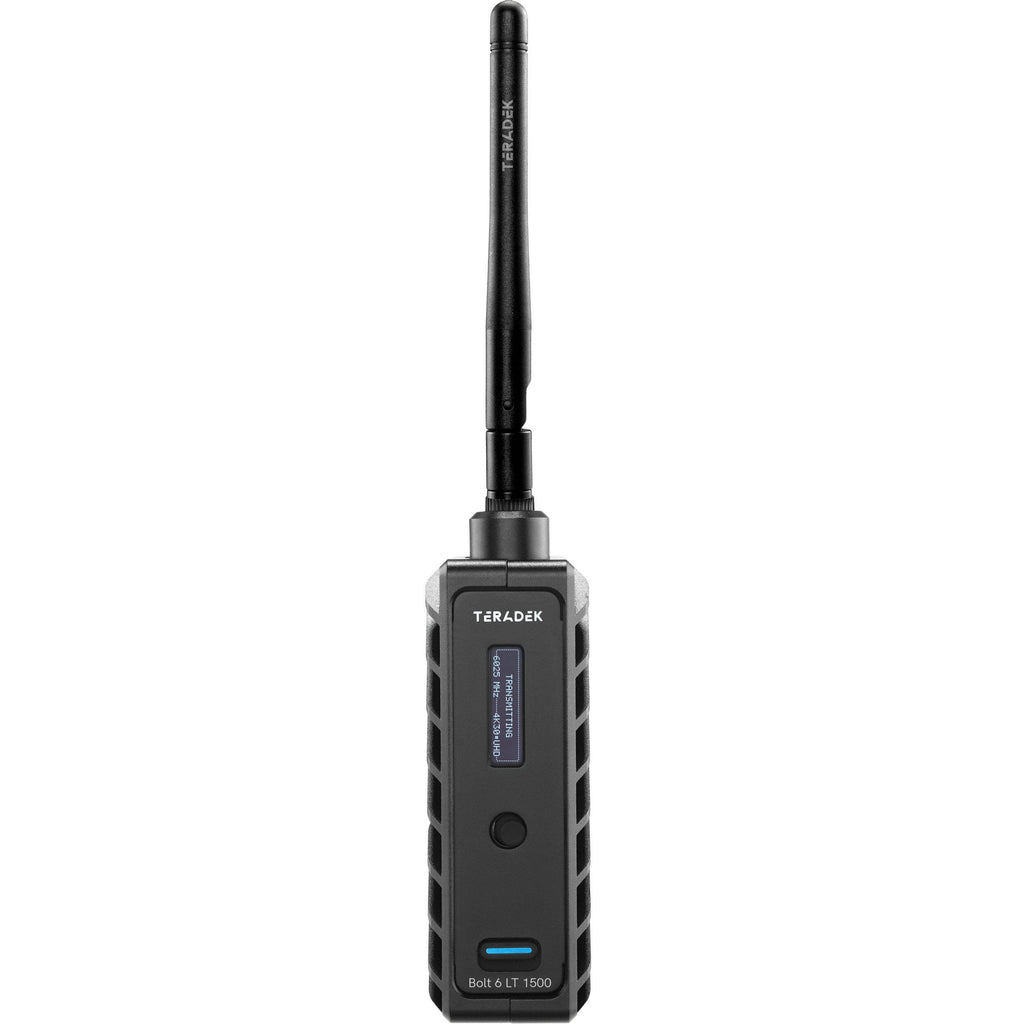

Transmit lossless HD video up to 1500' with the Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter from Teradek. With the same form factor as the Bolt 4K LT 1500, this transmitter can input video over HDMI or 3G-SDI with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter unit provides a powerful signal that can travel up to 1500' line of sight. It also features a bright OLED display and an SDI loop output.
The transmitter supports transmission of up to UHD 4K30 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

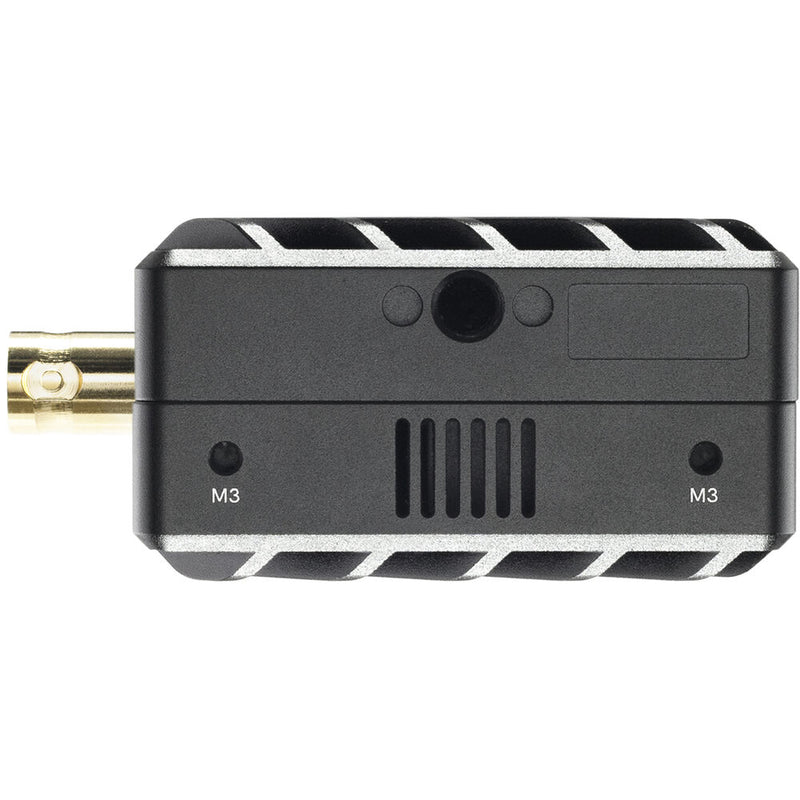

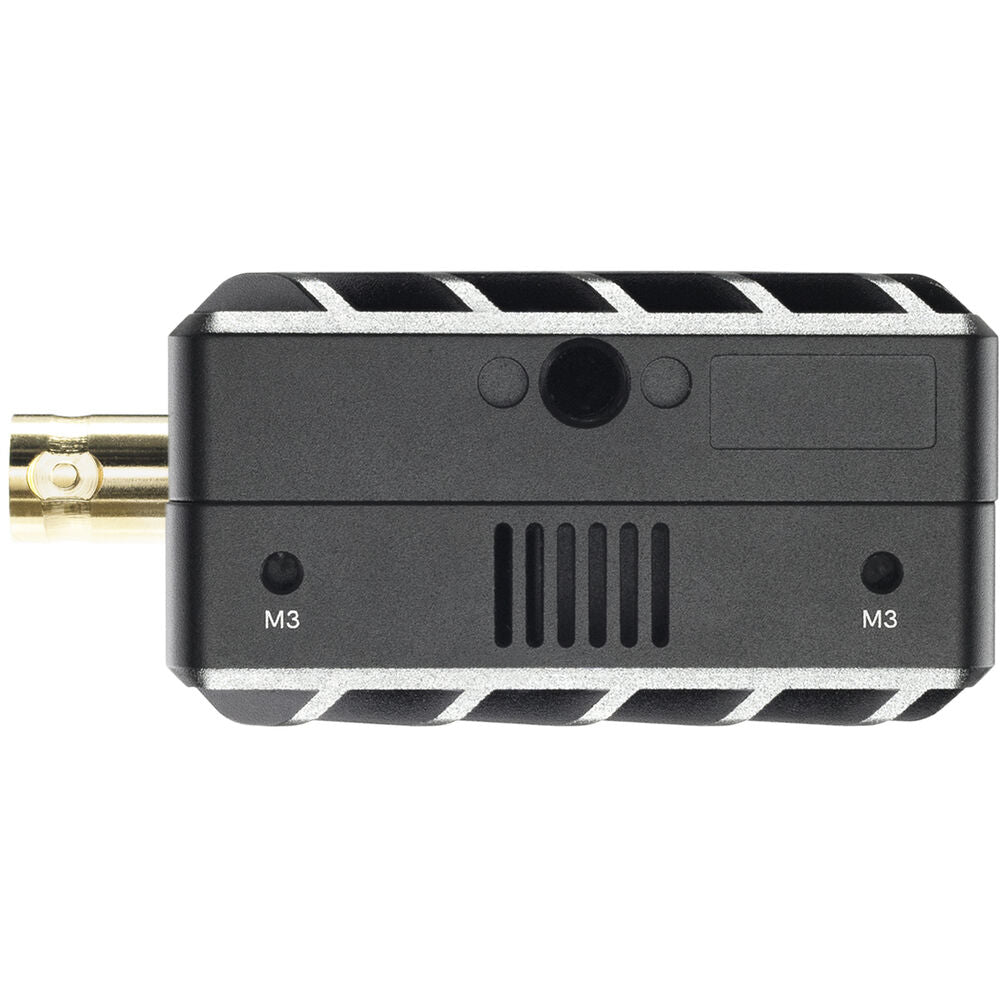

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
In the Box
- Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- HDMI Type A Male to HDMI Type A Male Cable (18")
- BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 2 x Antenna
Teradek LT 1500 Specs

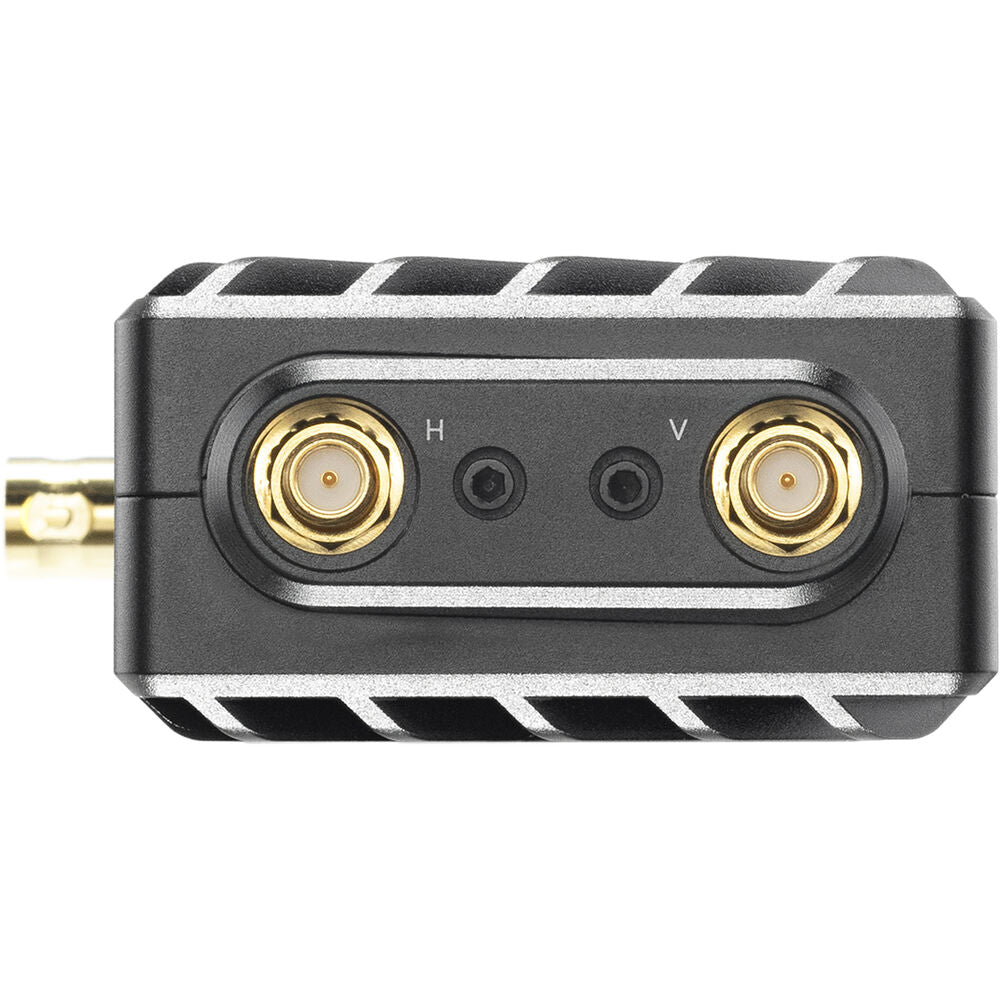

| Antenna I/O | 2 x RP-SMA Female |

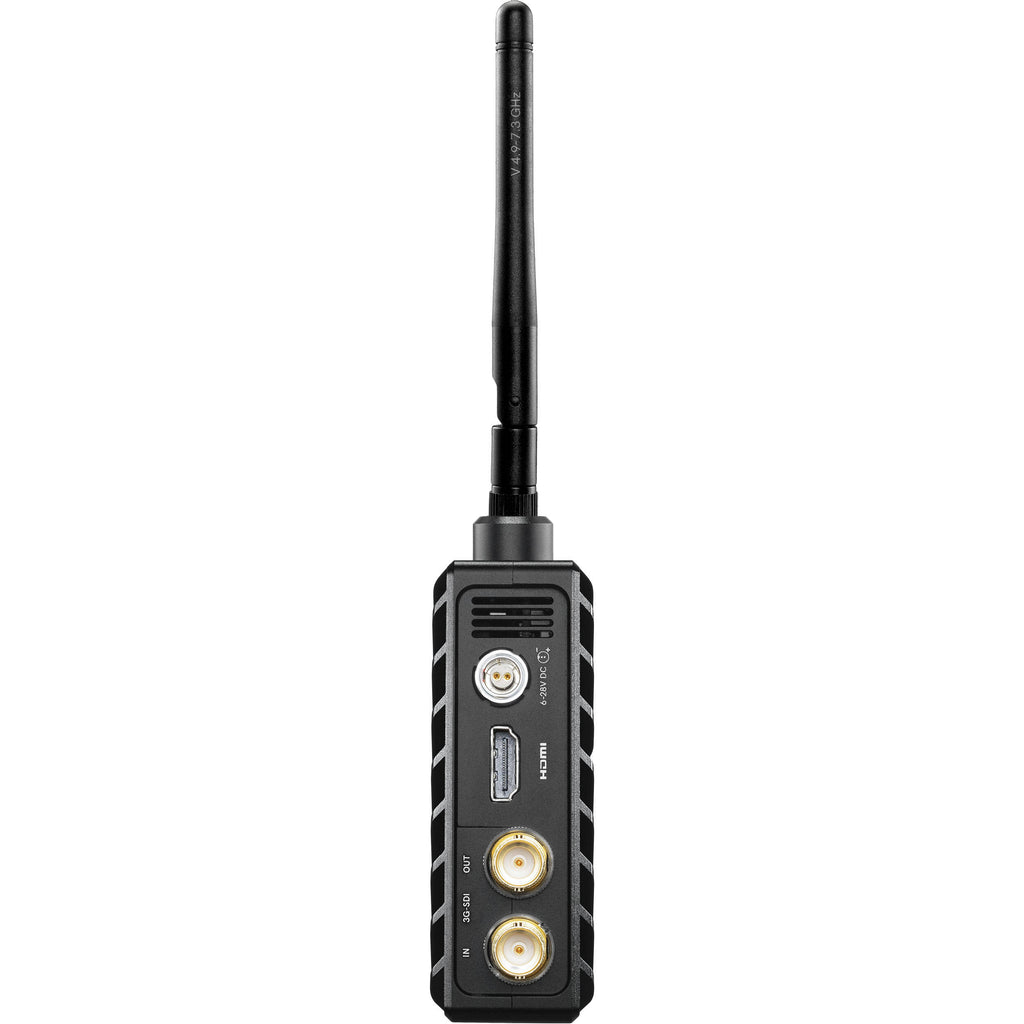

| Video I/O | 1 x HDMI 1.4b Input 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 1500' / 457.2 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | 9 W |
| Mounting | 1 x 1/4"-20 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm |
| Weight | 7.3 oz / 206 g |
| Package Weight | 3.235 lb |
| Box Dimensions (LxWxH) | 16.8 x 8.4 x 3.6" |
