Description
Teradek LT MAX Overview

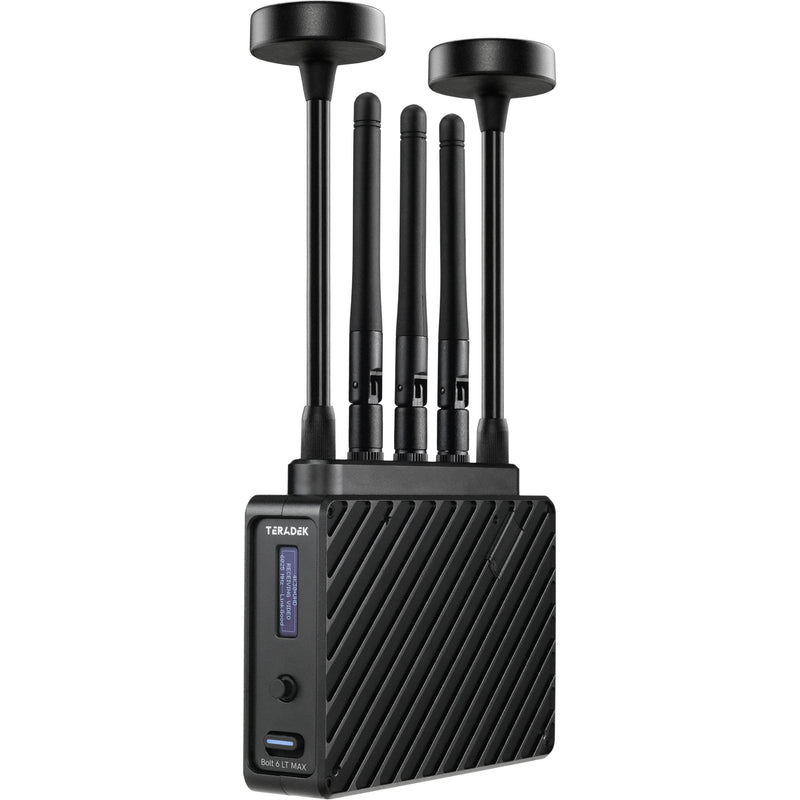

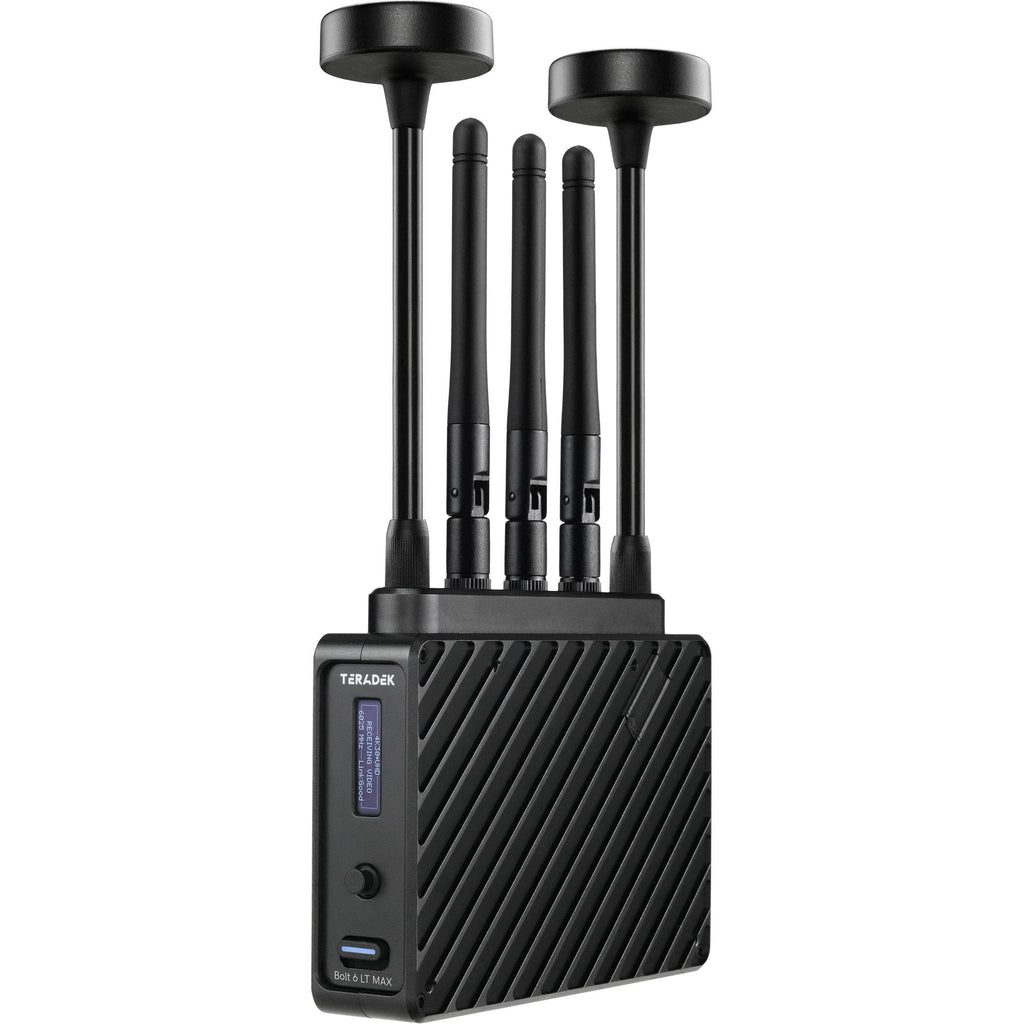

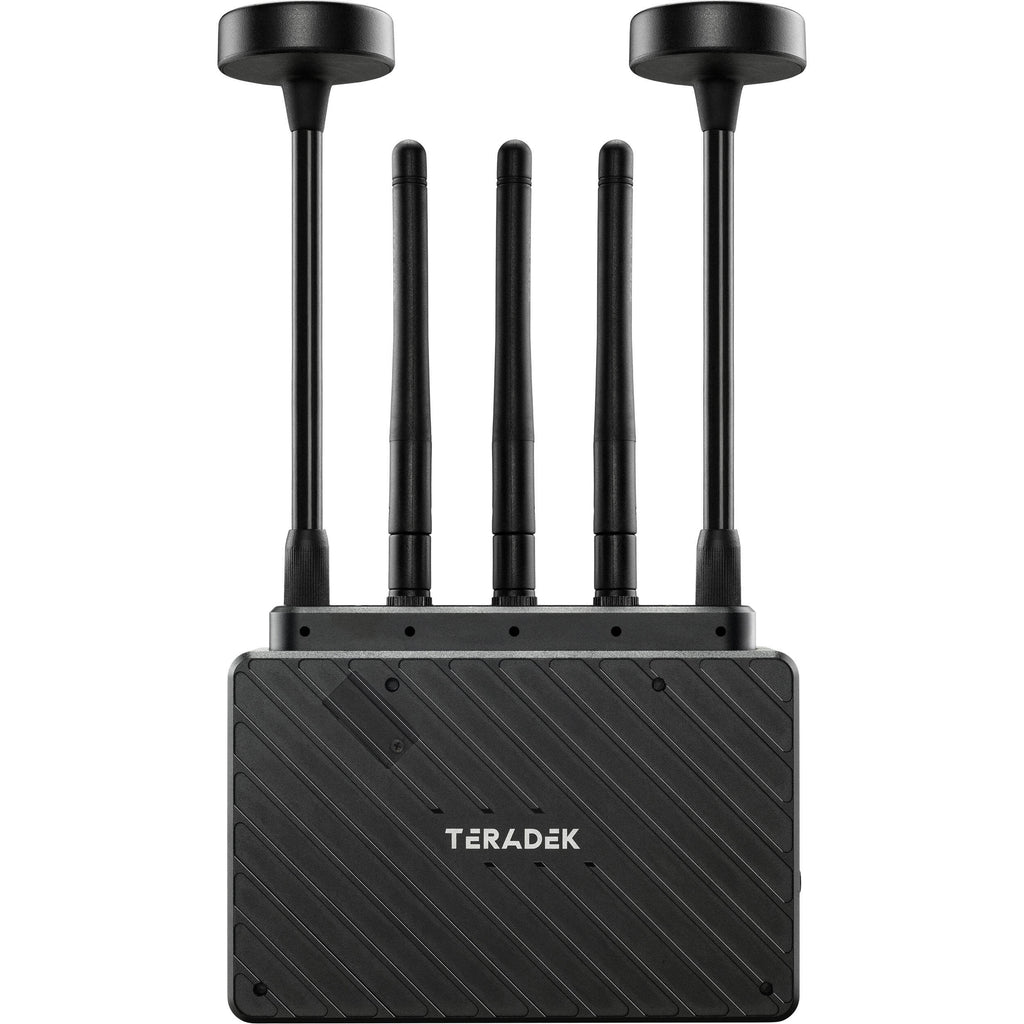

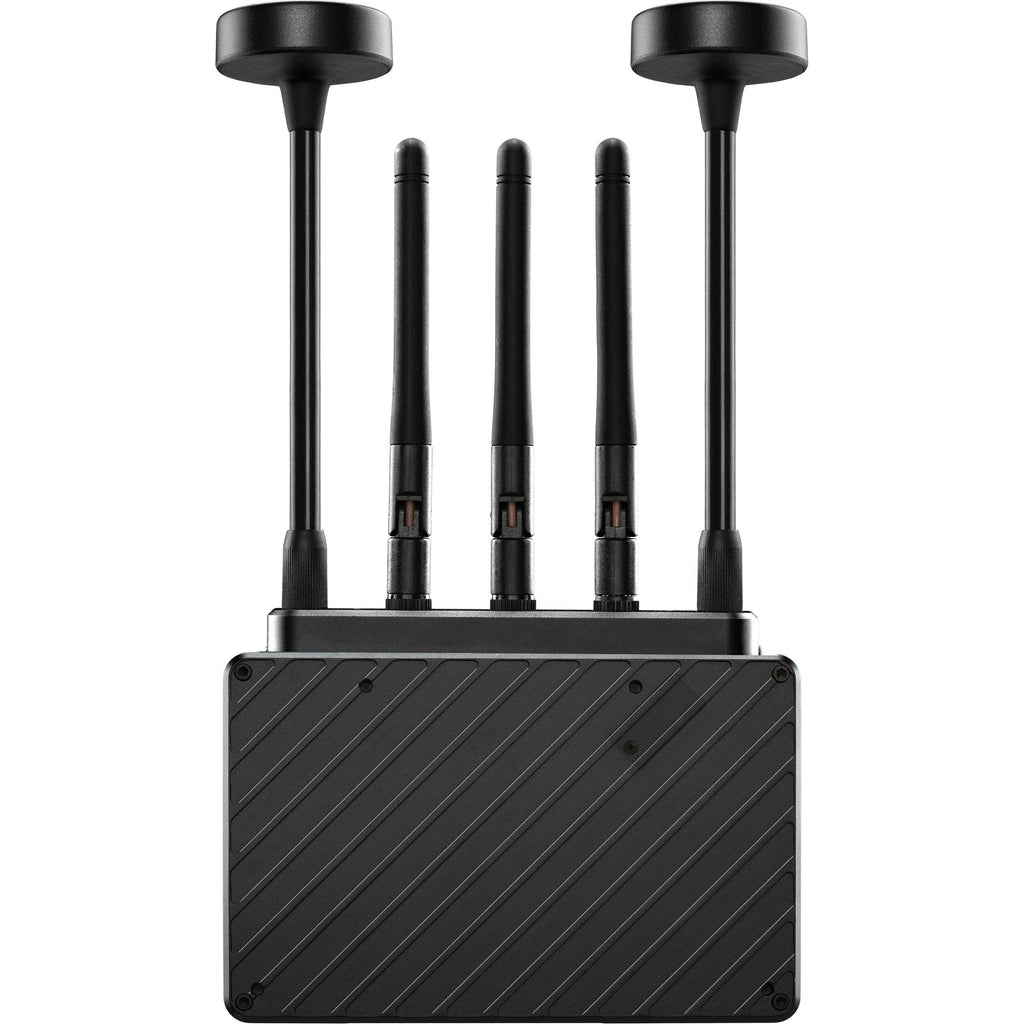

Receive lossless HD video from up to 5000' line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support, and this new Bolt 6 line supports the 6 GHz wireless band, which is now freely available. The receiver features a bright OLED display and outputs up to UHD 4K30 video via HDMI and up to 1080p30 via 3G-SDI. The transmitter unit can send a powerful signal that can travel up to a 5000' line of sight to the receiver using the optional Bolt 4K panel antenna and up to 3000' with its standard antennas.
The receiver supports transmissions of up to UHD 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. Other features include HDMI/SDI signal cross-conversion; HDR workflows that support HDR-10, PQ, and HLG standards; LUT control on outputs; and extended metadata, timecode, and start/stop trigger transmission over wireless. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports the desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and 3/8"-16 mounting threads to mount your receiver on a variety of monitors or rigs.
In the Box
- Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Receiver
- 2-Pin to D-Tap Power Cable (18")
- USB Type-A to Micro-USB Type-B Cable (3')
- Ultrathin HDMI Type A Cable (18")
- BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 3 x Standard Antenna
- 2 x Mushroom Antenna
Teradek LT MAX Specs

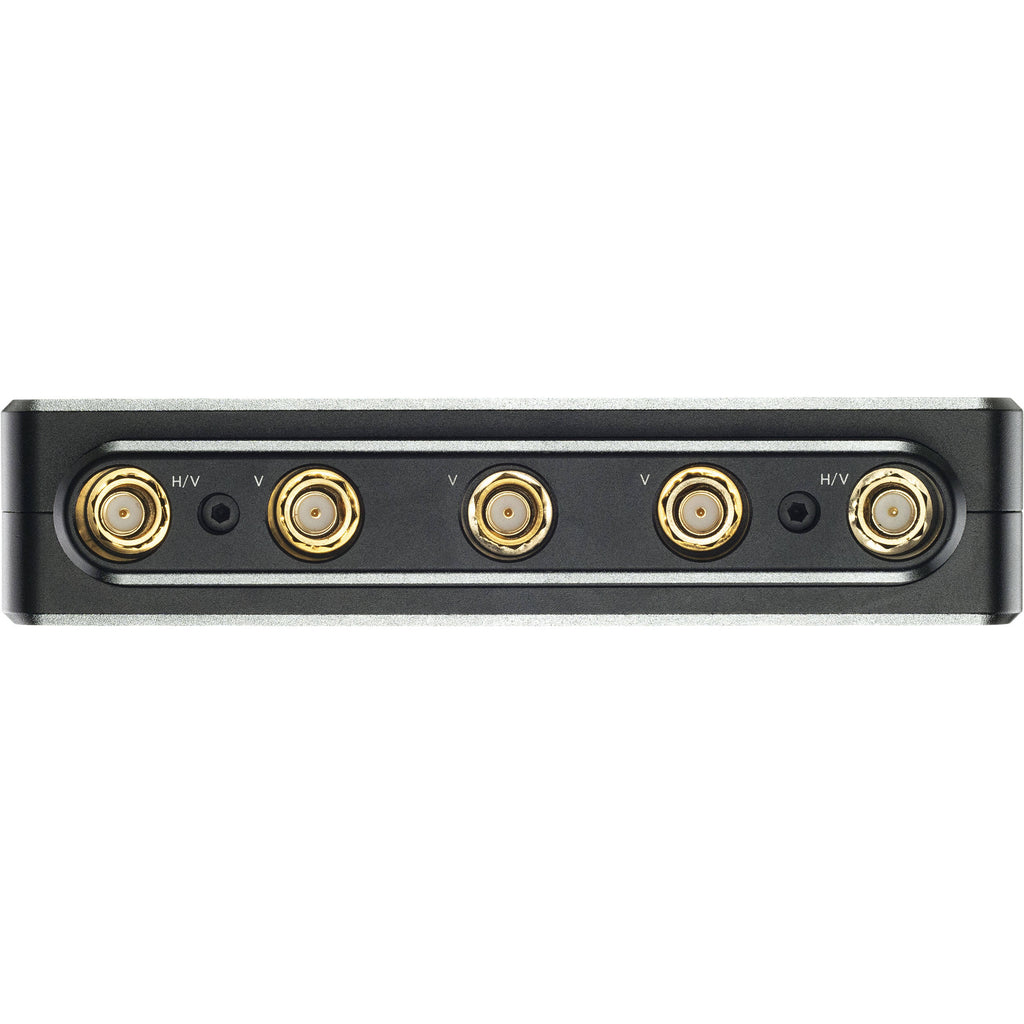

| Antenna I/O | 5 x RP-SMA Female |

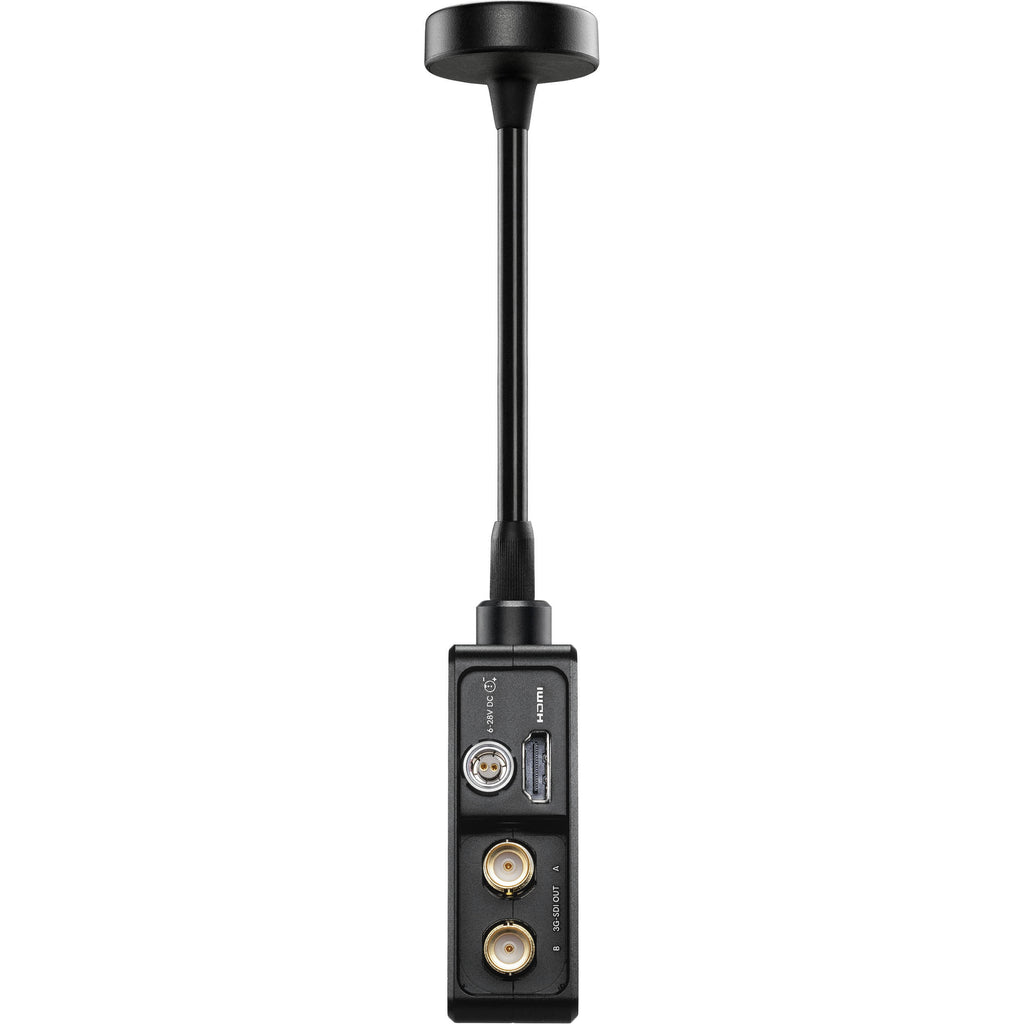

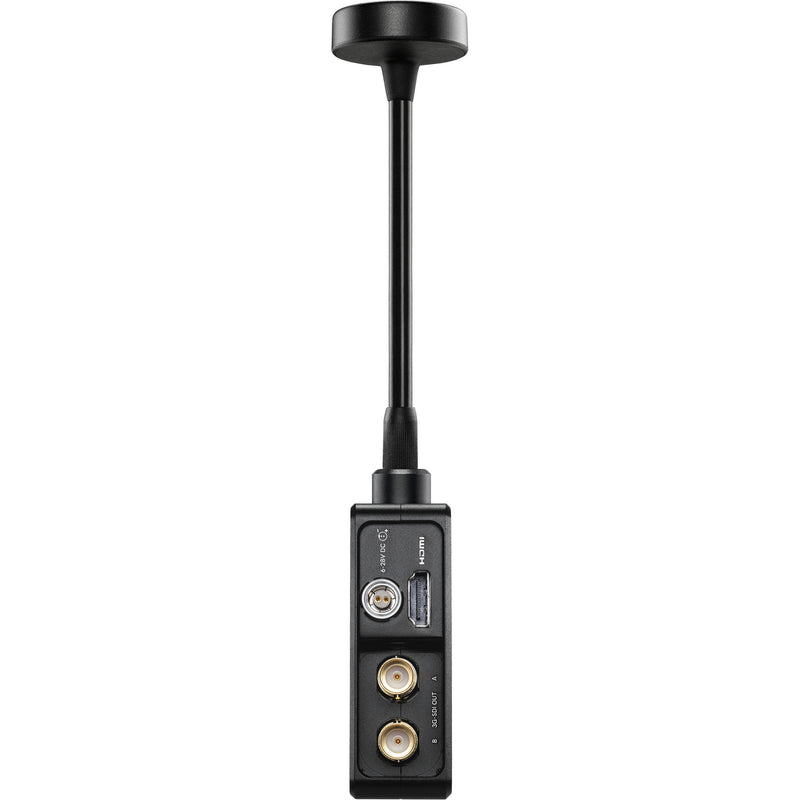

| Video I/O | 1 x HDMI 1.4b Output 1 x BNC (3G-SDI) Output |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 5000' / 1524 m (Line-of-Sight) 3000' / 914.4 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 |
| Video Standard Compliance | SMPTE 424M |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | 11 W |

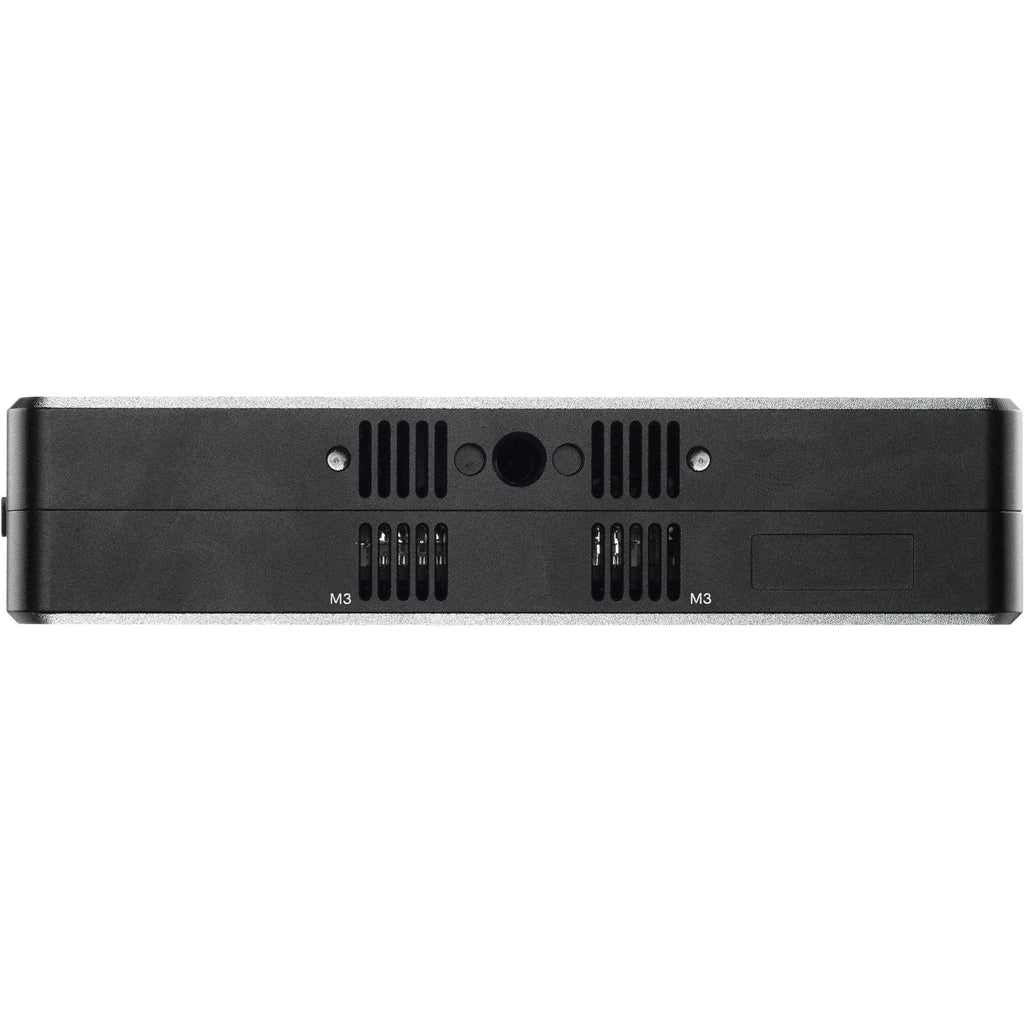

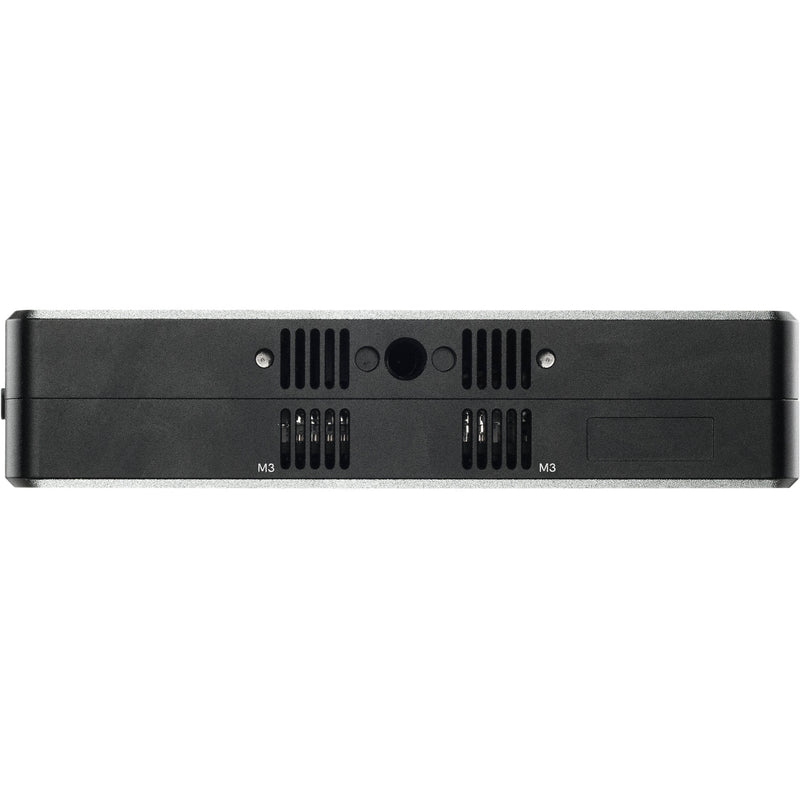

| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | 10.3 oz / 292 g |
| Package Weight | 3.53 lb |
| Box Dimensions (LxWxH) | 16.7 x 8.6 x 3.6" |
