Teslong TD500D85L1 Overview
-
1Description
-
2Applications
-
3Photo and Video
-
4Easy to Use
-
5Camera Probe

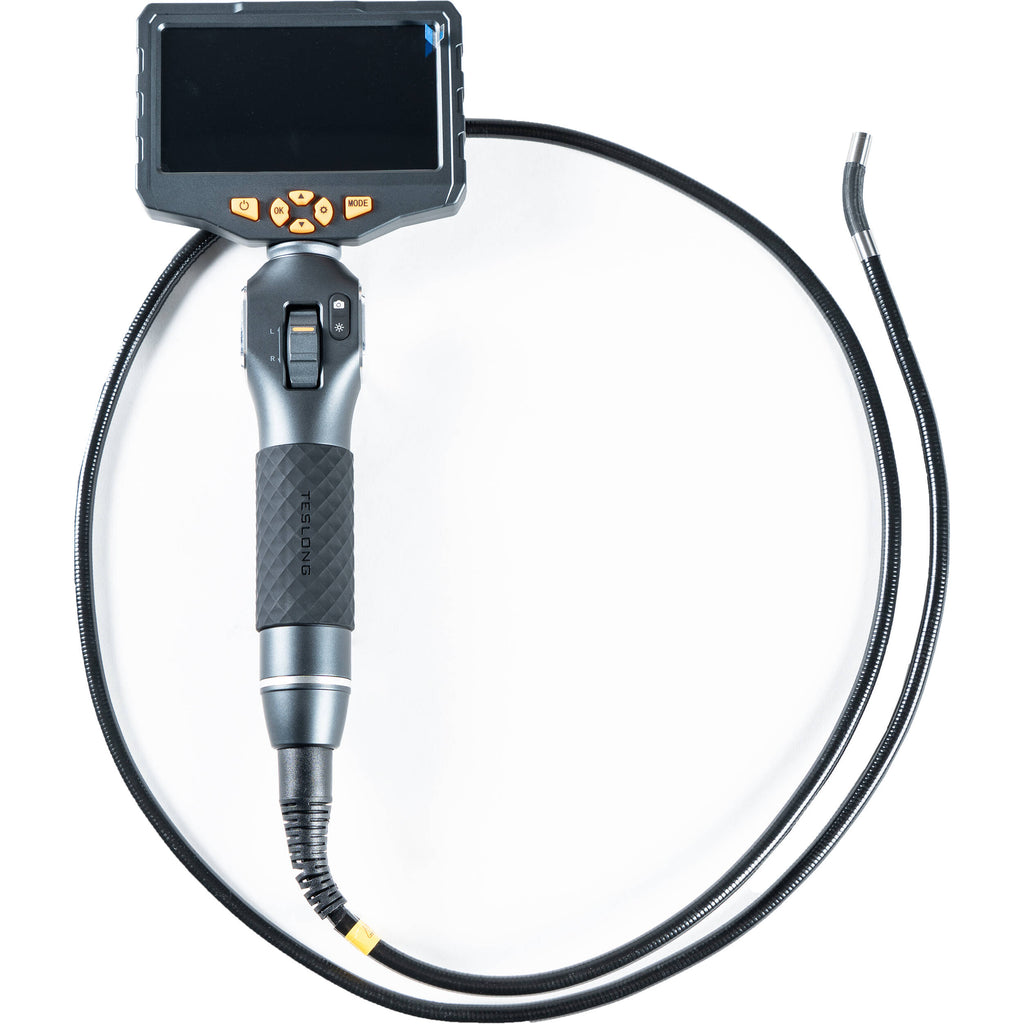

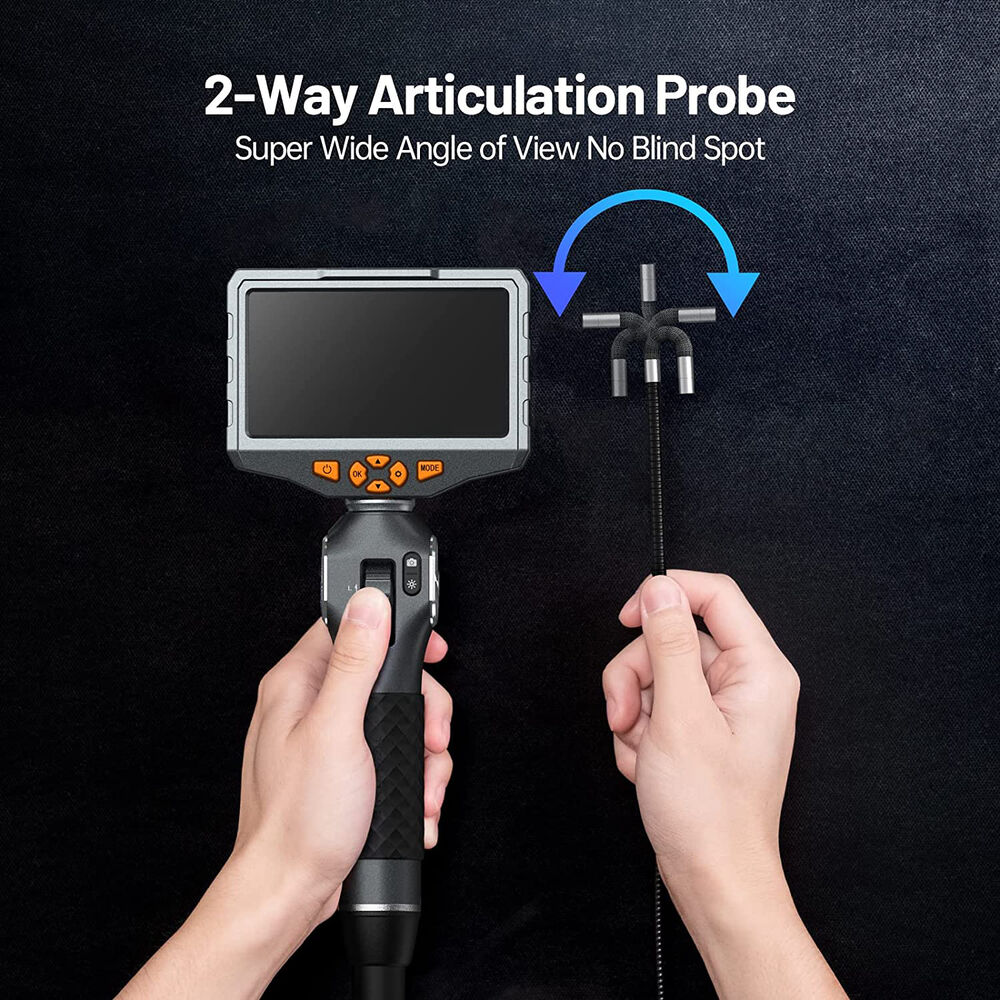

Safely inspect hard-to-reach spaces using this TD500 Articulating Lens Inspection Camera with 5" Screen from Teslong. The camera system consists of an endoscope camera with a 2-way articulating probe camera with built-in LEDs and a 5" IPS LCD monitor with a handgrip. The camera fits into small places for a variety of applications, including plumbing, appliances, or automotive maintenance.

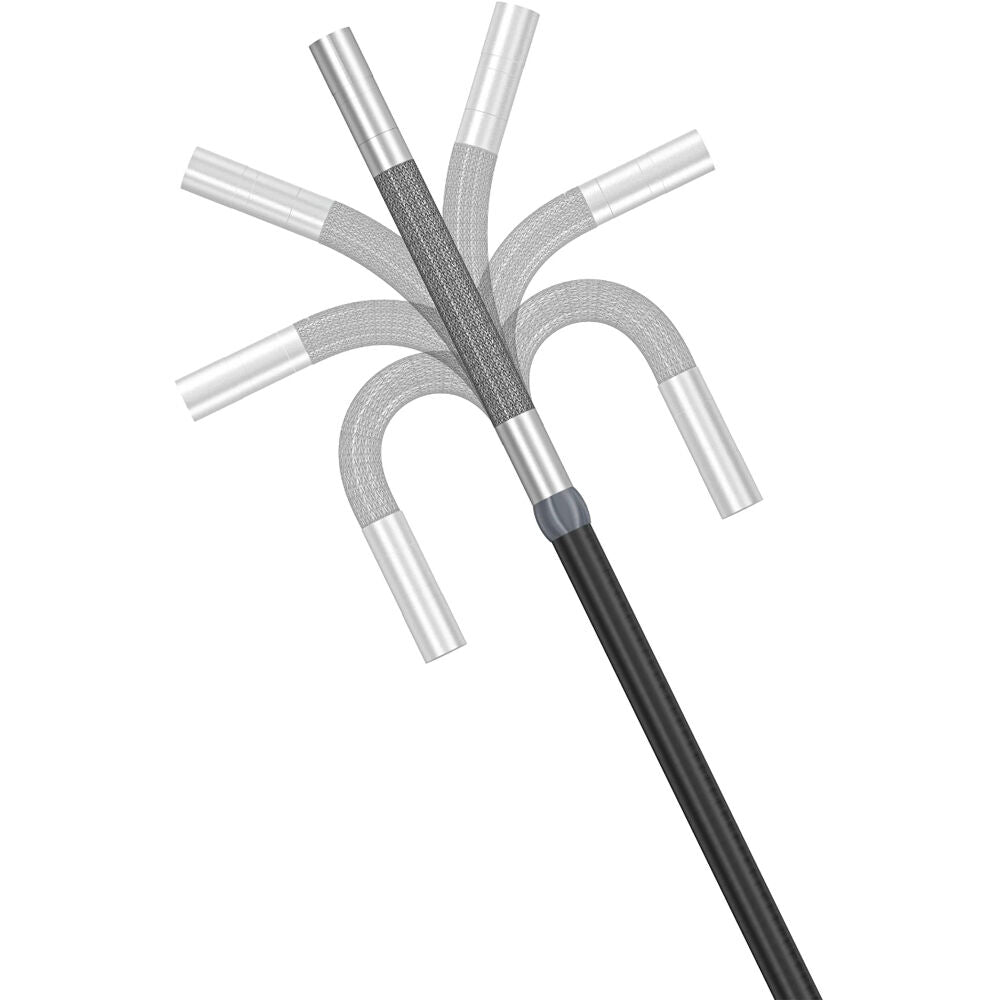

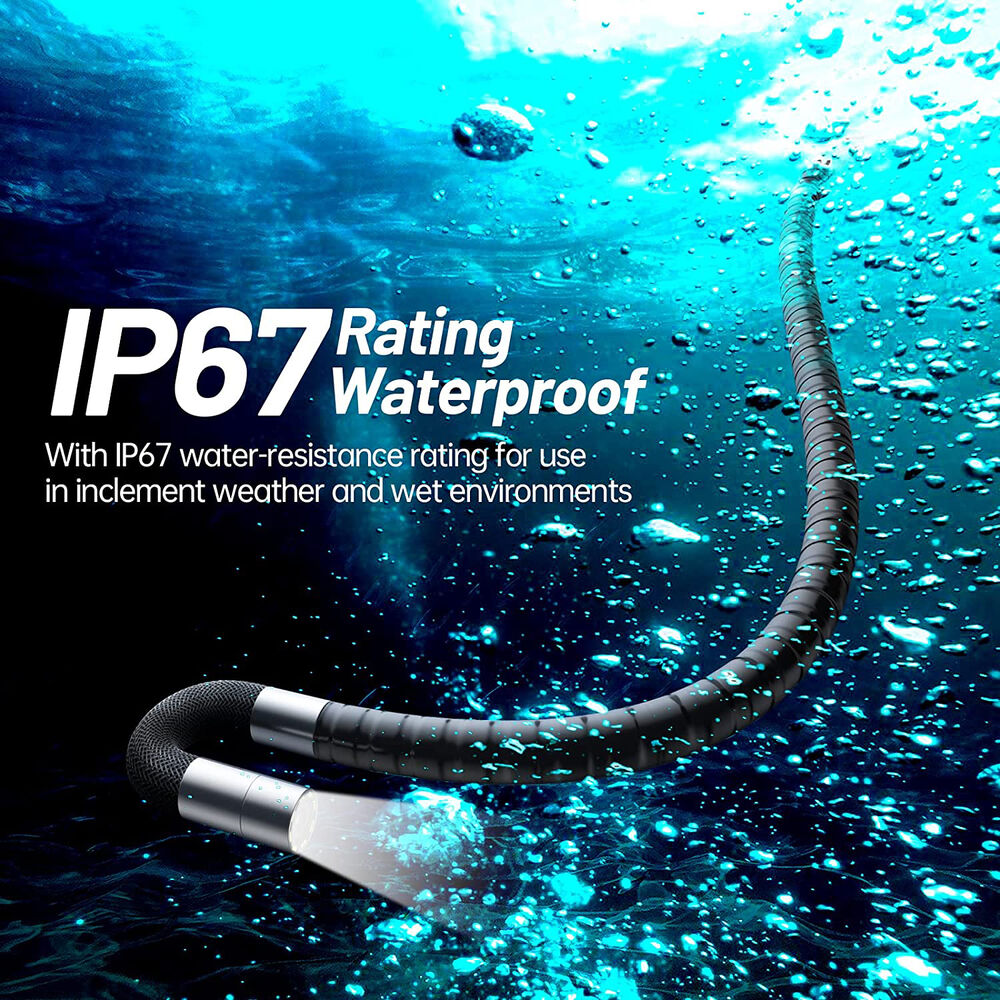

The lens probe has a tiny 0.33" diameter and 60° field of view, and it is IP67 waterproof, so it can easily fit into small pipes and narrow areas. The 5" display features strong tempered glass, and it is mounted onto a handgrip with controls that allows you to remotely control the camera's 210° articulation. The 32GB microSD card allows you to record up to 1080p video or photos. Eight lights on the camera illuminate your operation in dark environments. The built-in 3000mAh battery provides up to four hours of runtime.
Automotive repair and maintenance
Inspection of hard-to-reach and hard-to-see equipment
Plumbing, construction, restoration

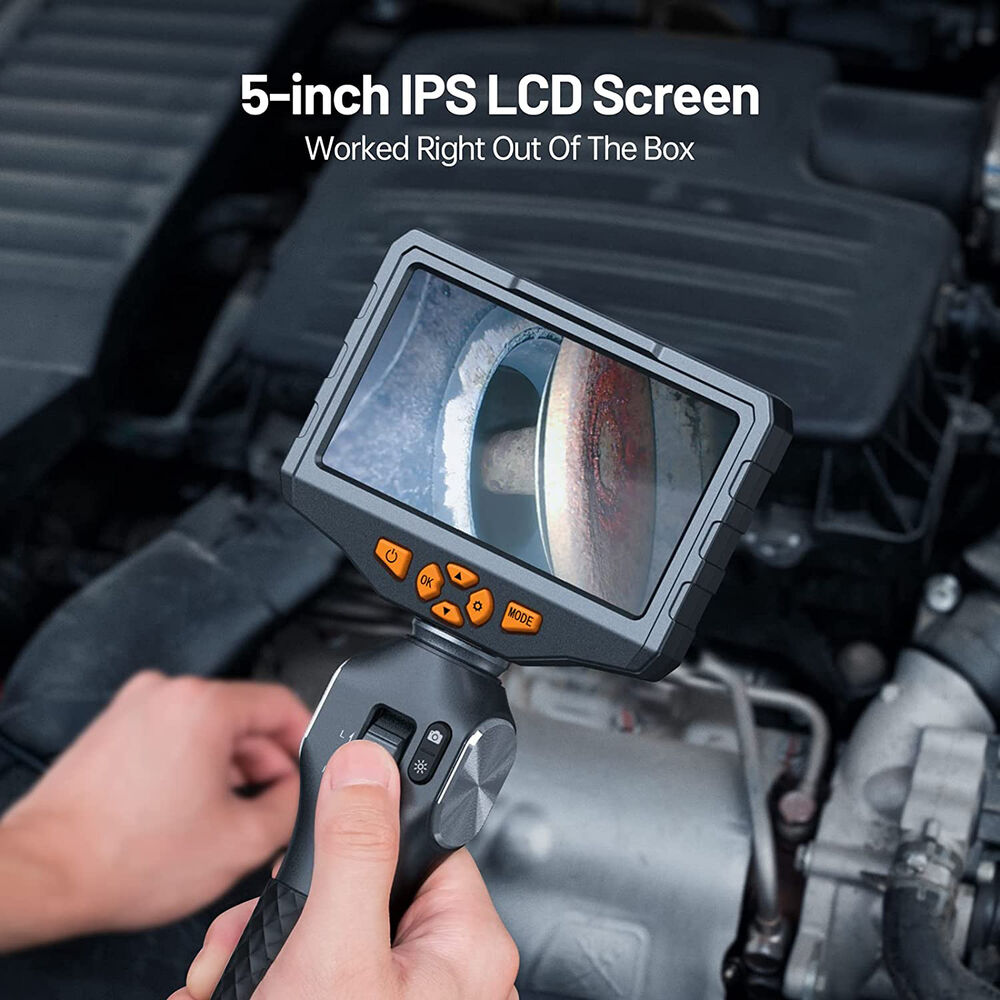

5" color 480p IPS LCD screen
Tempered glass protection
Up to 4-hour working time
Built-in 32GB memory microSD card
The depth of field of the front-view camera is 1.7 to 2.8"
The camera field of view is 60°
In the Box
- Teslong TD500 Articulating Lens Inspection Camera with 5" Screen
- Monitor

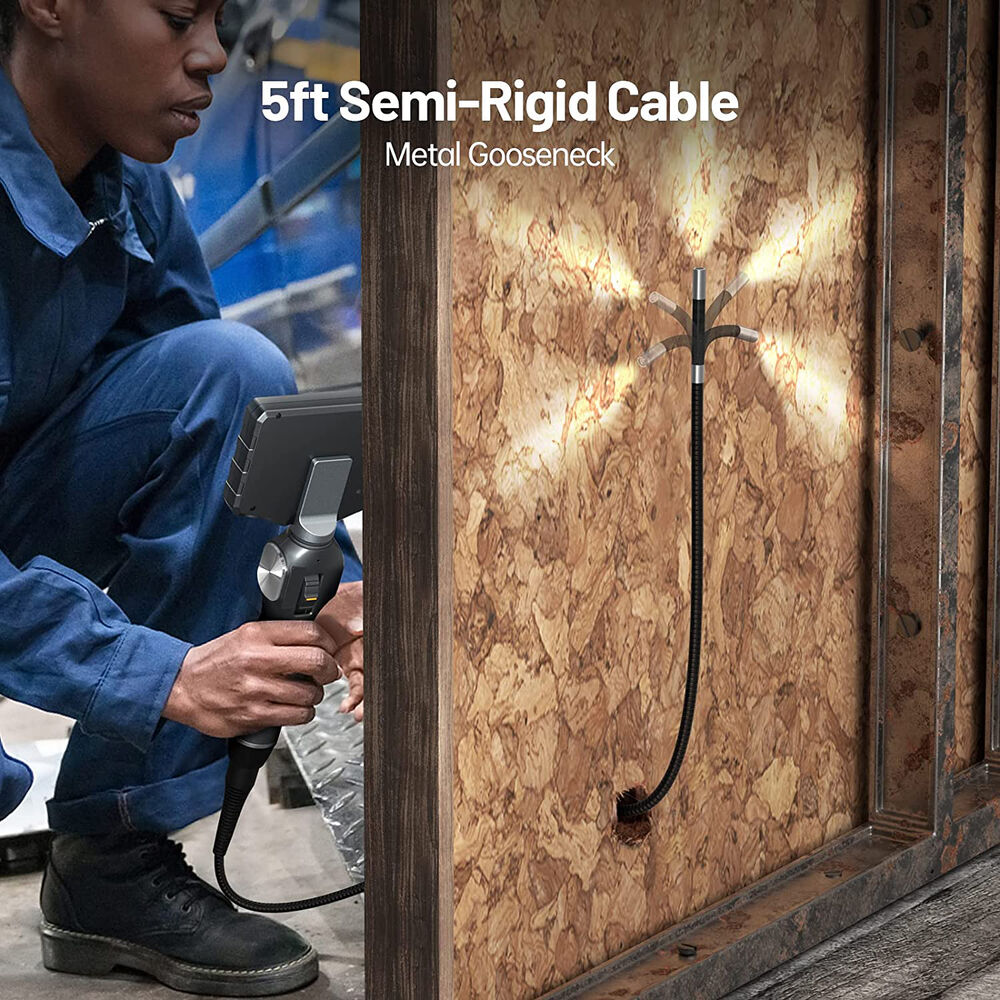

- Camera on Endoscope Cable (5.1')
- USB Cable
- 32GB microSD Card
- Carry Case
Table of Contents
- Description
- Applications
- Photo and Video
- Easy to Use
- Camera Probe
Teslong TD500D85L1 Specs
Display
| Panel Type |
IPS-Type LCD |
| Size |
5" |
| Resolution |
854 x 480 |
| Touchscreen |
No |
Inputs / Outputs
| USB I/O |
1 x Micro-USB (Power Only) Female Input |
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC [Class 10/U1/V10 or Faster Recommended] |
Battery
| Battery Chemistry |
Lithium-Ion |
| Battery Capacity |
3000 mAh |
| Maximum Battery Life |
4 Hours |
Environmental
| IP Rating |
IP67 |
| Certifications |
CE, FCC, RoHS
*as per Manufacturer |
Physical
| Cable Length |
5.09' / 1.55 m |
| Dimensions |
0.3" / 8.5 mm (Camera Probe Diameter) |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
3.4 lb |
| Box Dimensions (LxWxH) |
16.7 x 9.3 x 3.5" |
