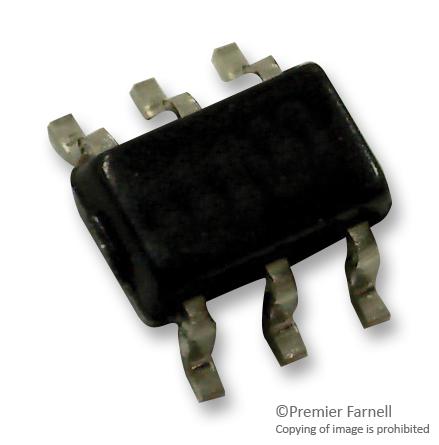

Texas Instruments TPL5010DDCT Timer With Watchdog Function IC 100 ms to 7200 s Intervals 1.8 V 5.5 SOT-23-6

The TPL5010DDCT is an Ultralow Power Timer with watchdog functionality and manual reset. Watchdog feature is ideal for system wake up in duty cycled or battery powered applications. In such systems the µC timer can be used for system wake-up, but if the timer sleep current is high, up to 60 to 80% of the total system current can be consumed by the µC timer in this sleep mode. Consuming only 35nA, the TPL5010 can replace the functionality of the integrated µC timer and allow the µC to be placed in a much lower power mode. Such power savings enable the use of significantly smaller batteries making it well suited for energy harvesting or wireless sensor applications. The TPL5010 provides selectable timing intervals from 100ms to 7200s and is designed for interrupt-driven applications. Some standards (such as EN50271) require implementation of a watchdog for safety and the TPL5010 realizes this watchdog function at almost no additional power consumption.

• 35nA Typical current consumption at 2.5V
• 100ms to 7200s Selectable time intervals
• 1% Typical timer accuracy
• Resistor selectable time interval
• Watchdog functionality
• Manual reset
• Green product and no Sb/Br

Applications

Power Management, Sensing & Instrumentation, Consumer Electronics, Wireless

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPL5010DDCT
Quantity	Each (Supplied on Cut Tape)
