Description
Thor H-HDMI-RF-PETIT-IR Overview

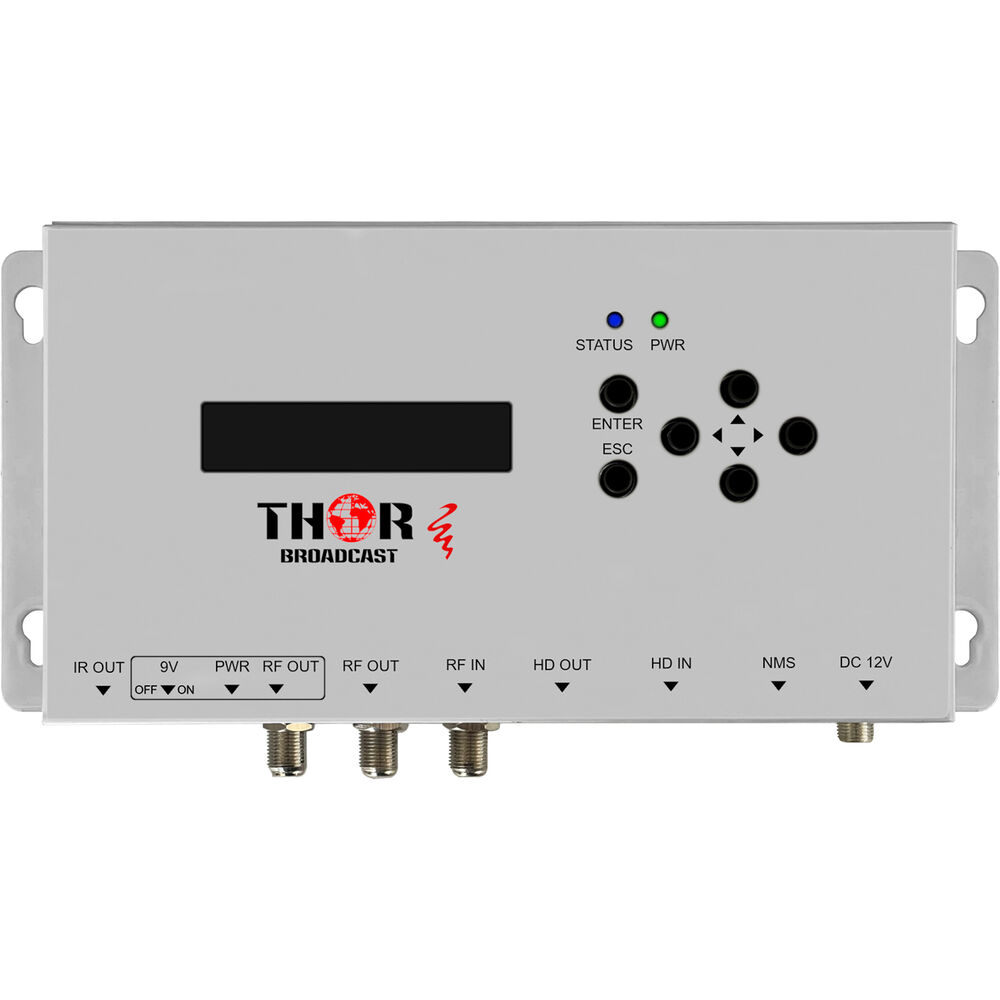

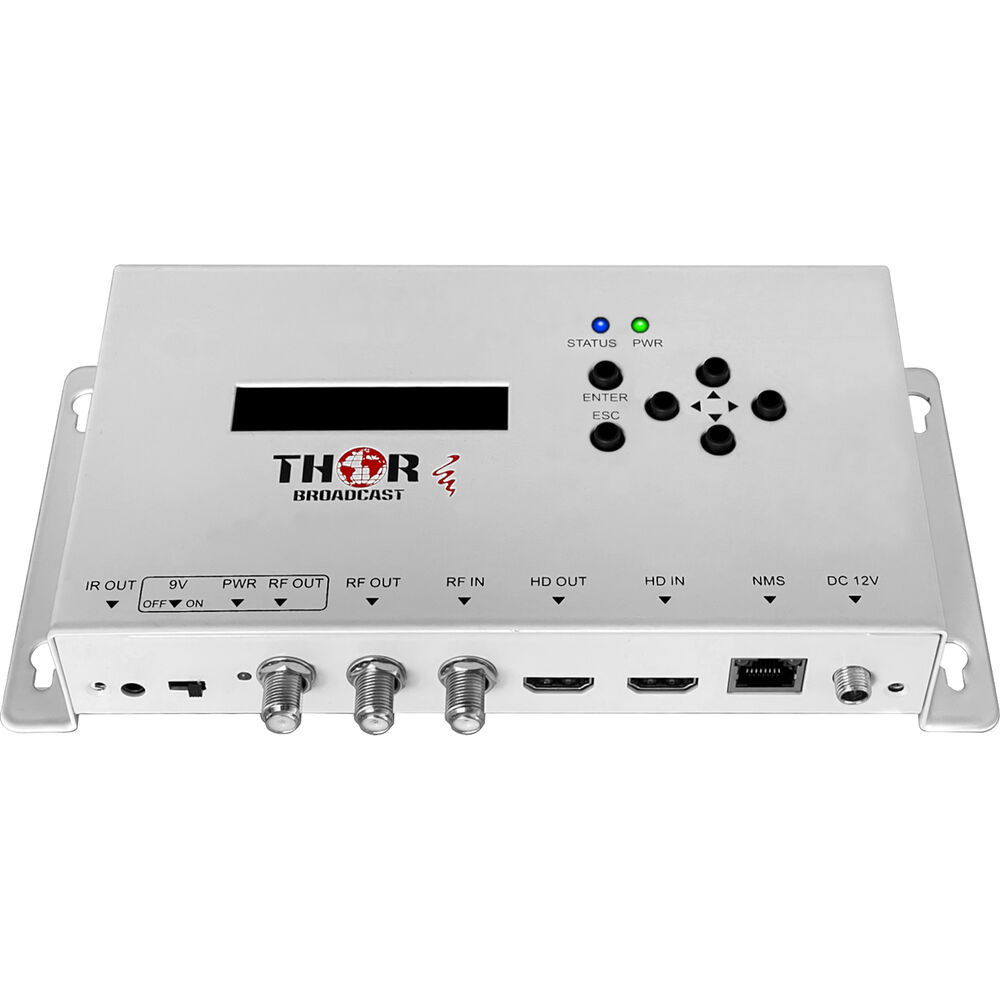

The Petit HDMI RF Modulator with Loop-Out and IR from Thor is a compact, HDCP-compliant modulator with an HDMI input and an HDMI loop output that can send out video signal with resolutions up to 1080p30. An LCD display and control buttons make it possible to set desired settings and functions directly on the unit, or you can connect an Ethernet cable to the modulator's NMS port and link that to a computer for control over a Web GUI.

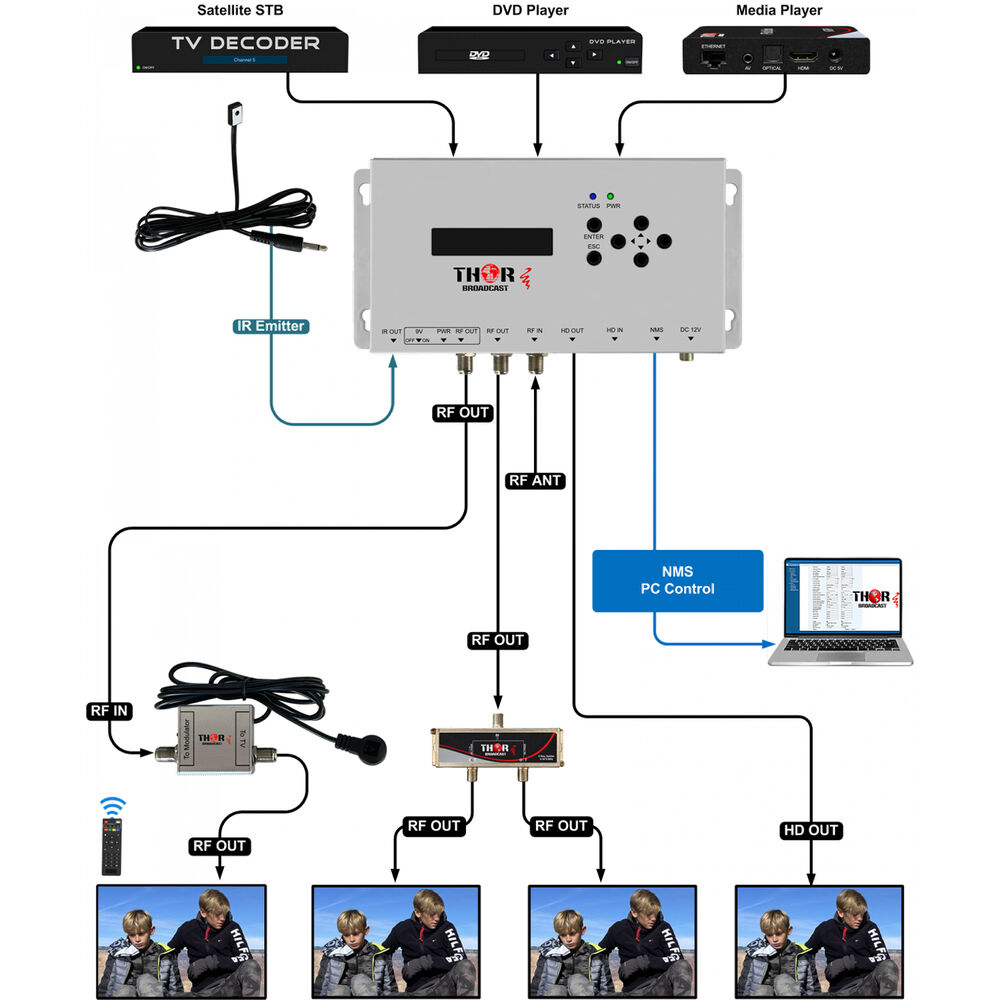

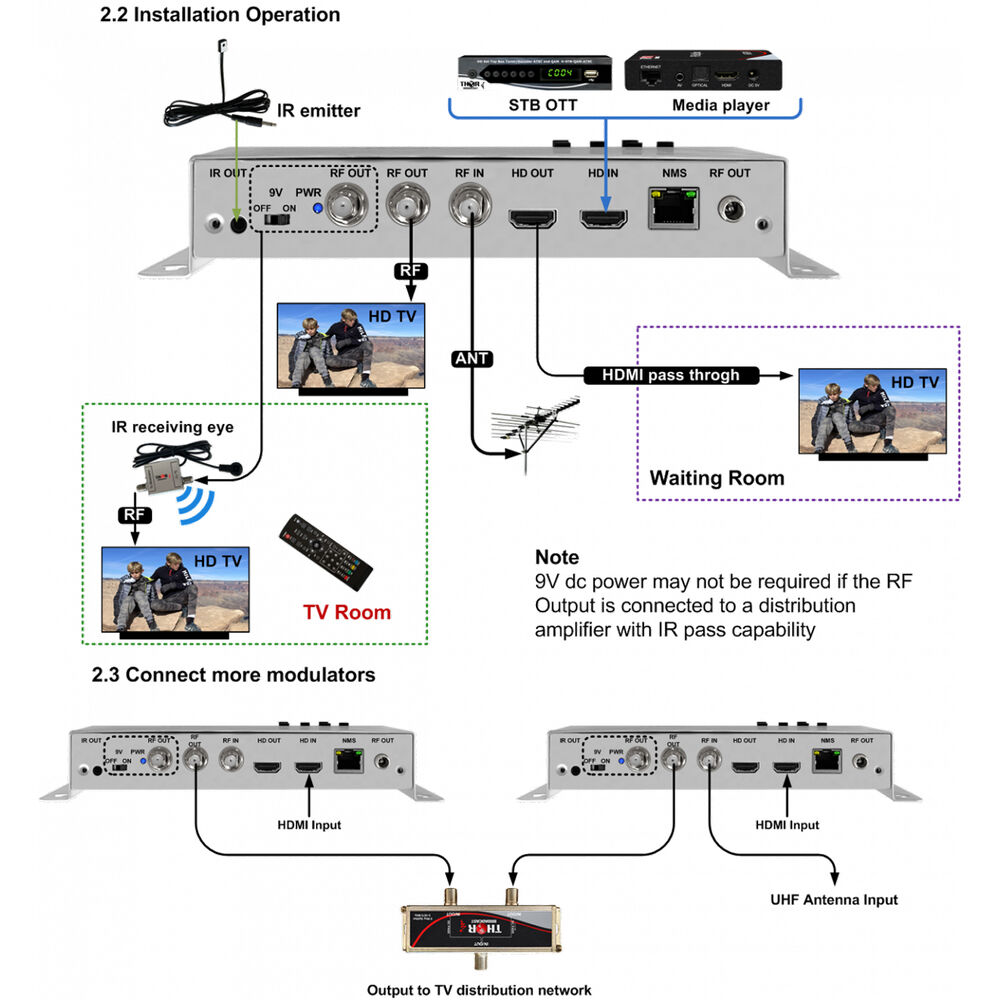

The RF output allows you to connect as many televisions as necessary to your application when using the modulator with an existing coax network. An RF input enables the connection of an antenna and then adding any HDMI source into the ATSC channel lineup. The unit supports all major RF modulation standards.
- HDMI loop-out for convenient monitoring on a local TV
- 10/100 Ethernet NMS port for control and setup
- RF output to any CATV format as QAM, ATSC, DVB-T, or ISDB-T
- RF output power is +100dB?V (30dB attenuation) for distributing HD video over the existing coax cable network
- RF power can be controlled over the network via a proprietary NMS GUI
- MPEG2 video encoding is supported
- Supports AC3, MPEG-1, and AAC audio encoding
- Supports any CATV RF agile channels from 50 to 950 MHz, channels 2 to 135
- Supports output resolutions up to 1080p30
- IR return with 9 VDC
In the Box
- Thor Petit HDMI RF Modulator with Loop-Out and IR
- Power Supply

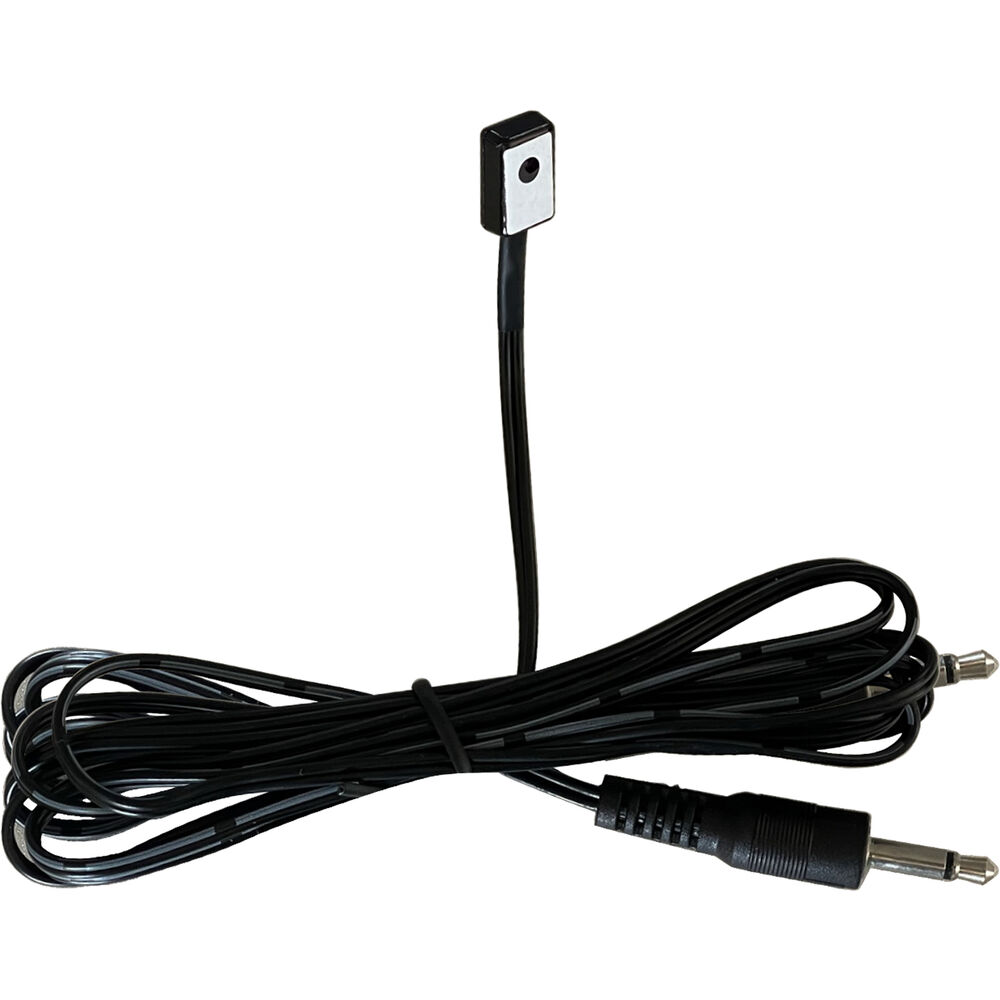

- IR Emitter Cable

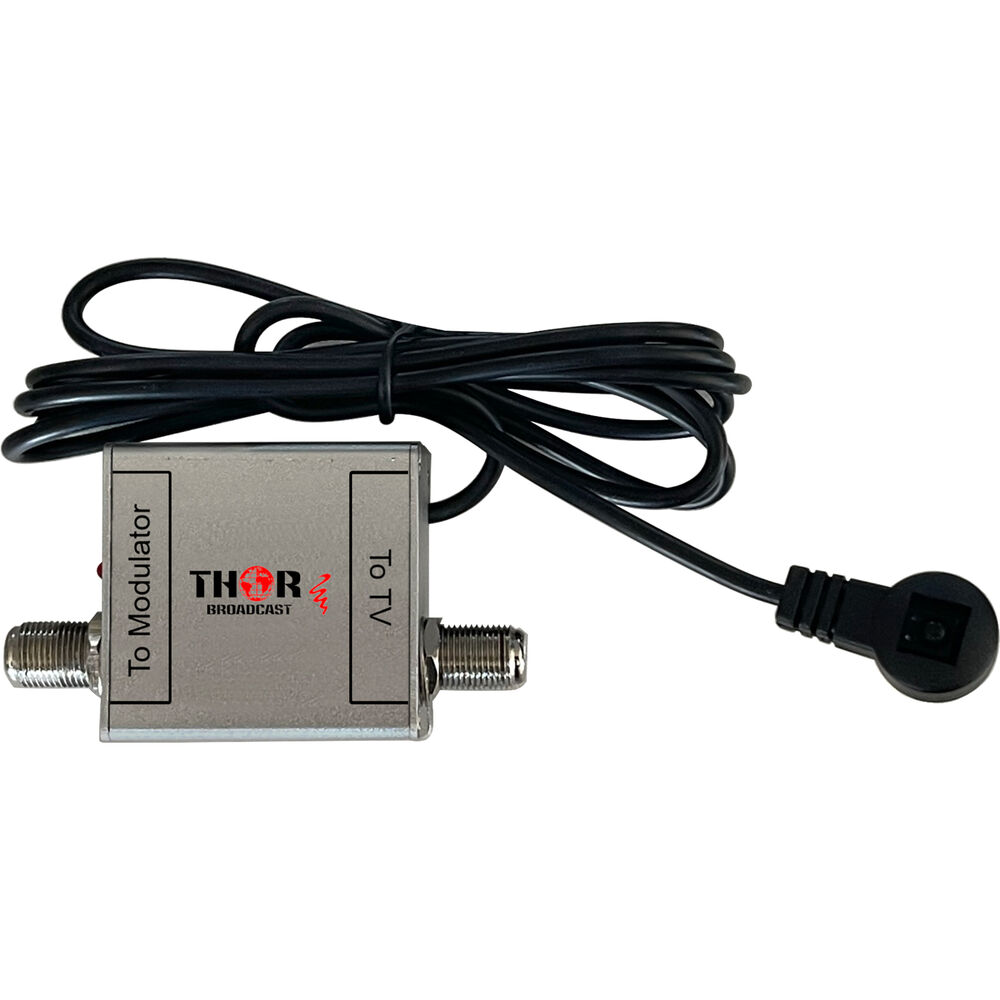

- IR Receiving Eye
- Alcohol Prep Pad
- Limited 1-Year Manufacturer Warranty
Thor H-HDMI-RF-PETIT-IR Specs
| Video Encoding |
MPEG-2
|
| Resolution |
Input: 720p at 50/60 fps, 1080p at 50/60 fps, 1080i at 50/60 fps
Output: up to 1080p30 |
| Bitrate |
5 to 25 Mb/s
|
| Audio Encoding |
MPEG-1 Layer2, AAC, AC3
|
| Sample Rate |
48 kHz
|
| System Management |
Control Buttons with LCD Display, Ethernet Web GUI
|
| MER |
35 dB9 (Typical)
|
| RF Range |
50 to 950 MHz, 1 kHz Step
|
| RF Output Level |
100dB?V (30 dB Attenuation)
|
| Standard |
ATSC
|
| Constellation |
8VSB
|
| Standard |
QAM J.83B, Annex A , DVB-T, ISDB-T
|
| Constellation |
64QAM, 128QAM, 256QAM
|
| RF Output |
2 x RF Outputs (9 VDC for IR Pass)
|
| Panel Type |
LCD
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|

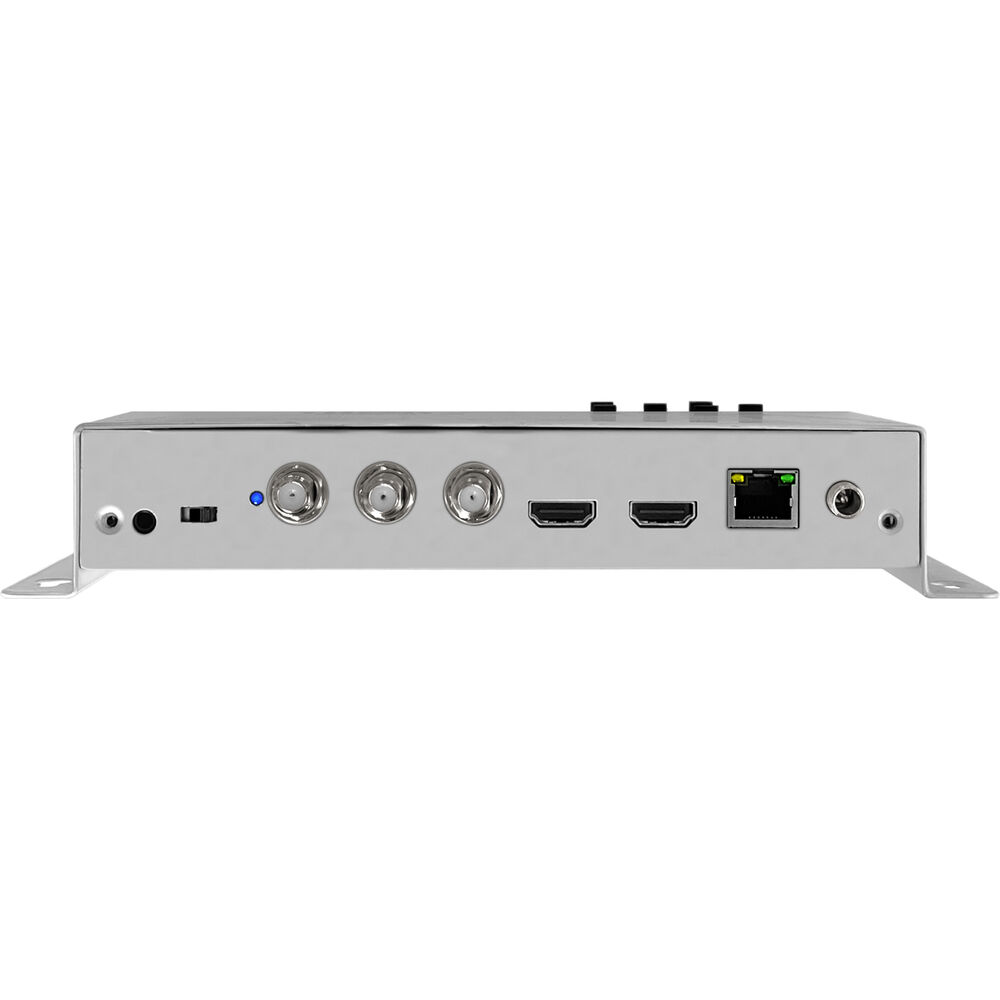

| Video I/O |
1x HDMI Input
1x HDMI Loop Output 1x Coaxial F-Type Input 2x Coaxial F-Type Output |
| Other I/O |
1 x RJ45 NMS
1 x 3.5 mm IR Output |
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
12 VDC at 1 A
|
| Dimensions |
8.9 x 4.1 x 1.6" / 225 x 105 x 41 mm
|
| Weight |
1.5 lb / 680 g
|
