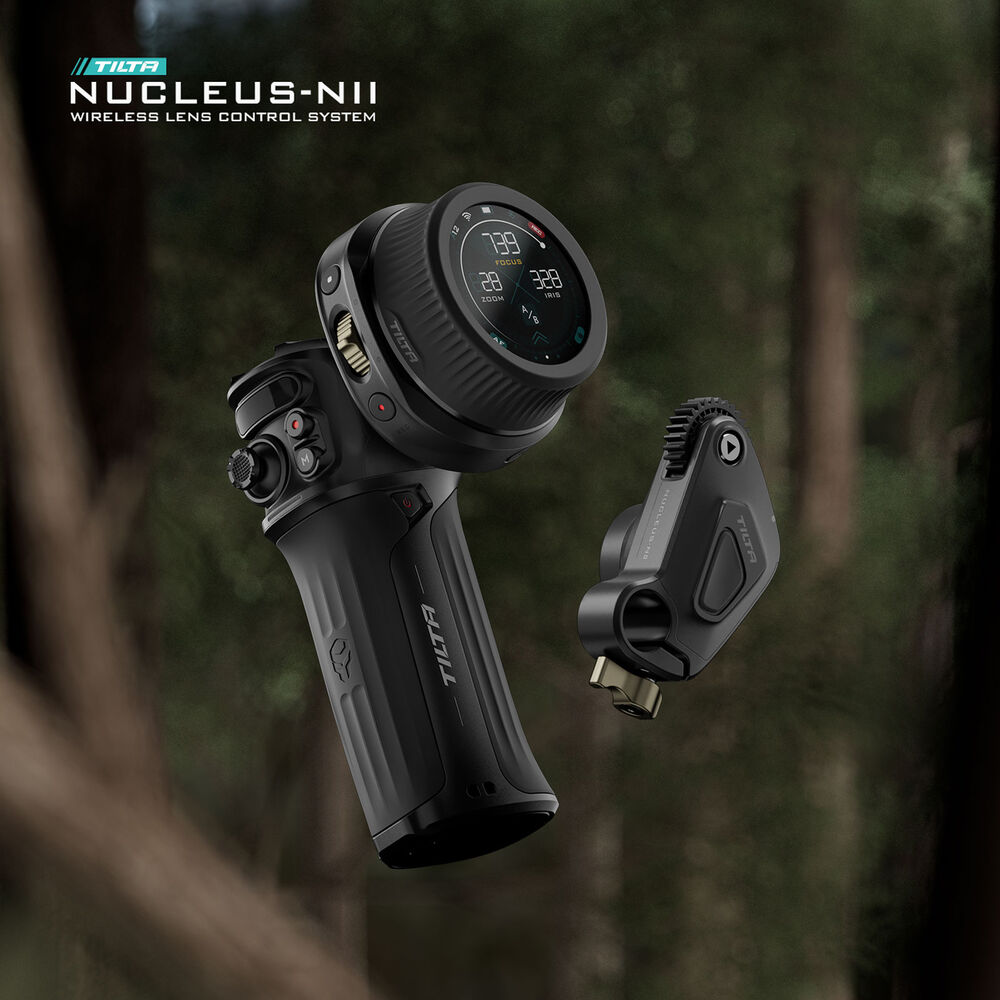

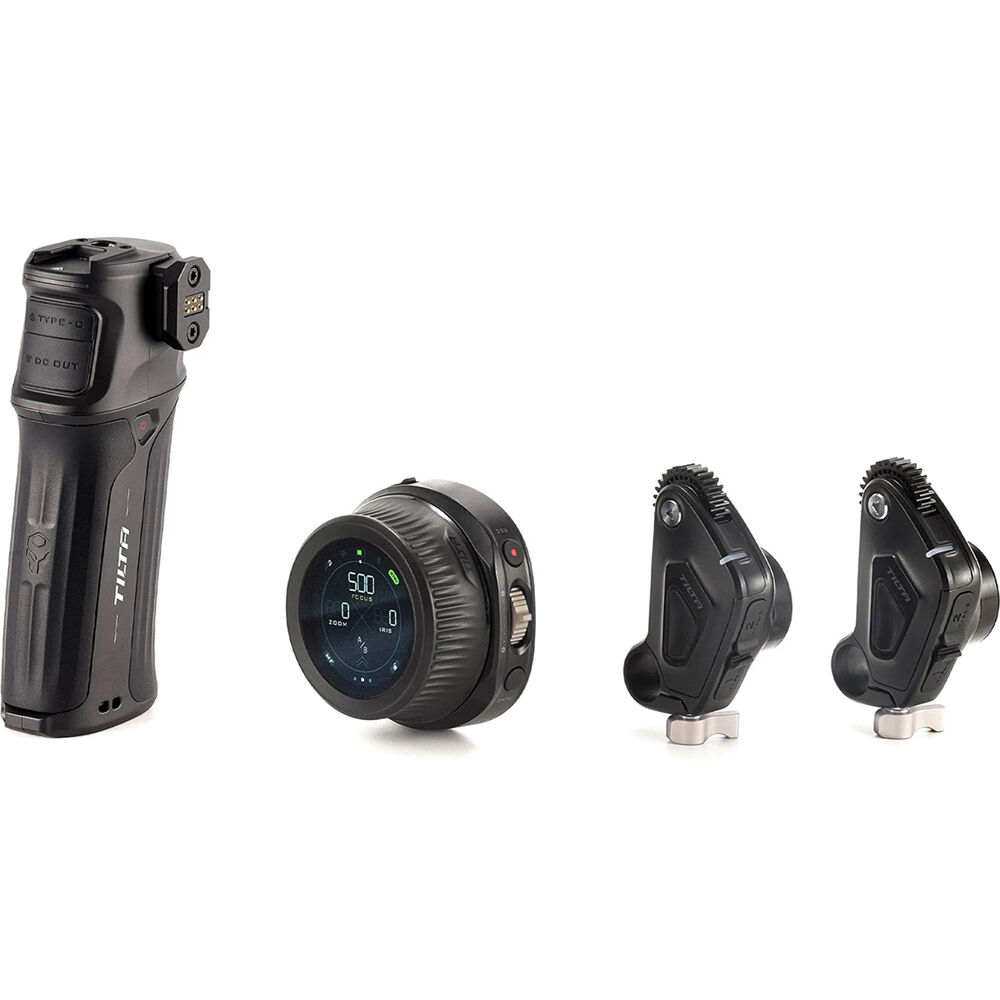

Tilta Nucleus Nano II Wireless Lens Control System with Power Handle (Kit I)

For the most demanding shots that require up to four channels of control including gimbal support, Tilta offers the Nucleus Nano II Wireless Lens Control System with Power Handle, which pairs the Nano II Handwheel Controller and the Power Handle as well as two Lens Control Motor Kits and mounting and power accessories to give cinematographers the utmost flexibility in configuration and control. Whether assembled into a shoulder rig for solo operation, combined with a monitor for follow focus work, or used with the optional Wireless Receiver Module to remotely control DJI RS 2 and RS 3 Pro gimbals, the Power Handle Kit brings versatility to any shoot.

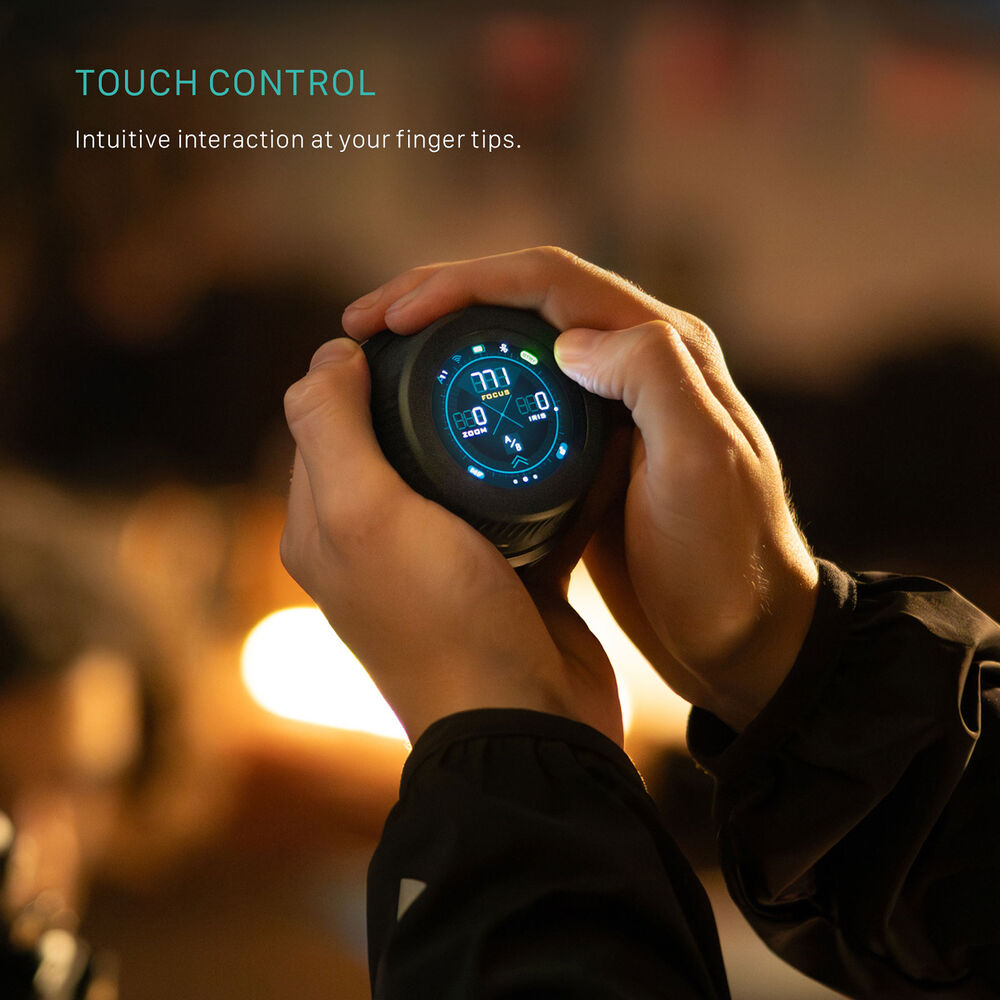

View the wireless channel, Wi-Fi status, battery life, Bluetooth connectivity, and standby status on the outer portion of the controller's 1.6" touchscreen dial. Focus/iris/zoom parameters and A/B stop live on the center portion, with the option to lock the screen or toggle between auto and manual focusing modes. Two other menus can be accessed from the main screen to lock and adjust a connected camera's settings and view the current lens parameters. Additional settings available through the Handwheel Controller include pairing and accessing manual controls for the Control Motors as well as additional customizations for the Handwheel Controller.

The Power Handle powers the Handwheel Controller using a separately available Sony L-series battery (such as NP-F550 or NP-570) for extended battery life. The Power Handle also allows users to power accessories via the integrated USB-C and DC power outputs. It features a 1/4"-20 thread with locating points, perfect for mounting the Tilta Right-Angle Rosette Adapter in order to easily integrate the Handle into a shoulder rig setup. The top of the handle also features a cold shoe receiver, which can be used with an optional mount for an external monitor or other accessories.

The motor drive is positioned in an offset orientation from the main gearing to prevent the motor from pushing away from the lens during use. A 0.8 MOD gear ensures compatibility with most cinema-standard lenses, while the included follow focus adapter rings expand this compatibility to DSLR and mirrorless lenses as well. The motor has two USB-C ports. Port one is I/O, which can be used to daisy chain additional motors to a single control source, and port two is input only to power the motor.

The USB-C I/O port on the handwheel can be used for camera control when wired to select cameras from Sony and Canon. It also facilitates firmware updates when connected to the Nano II Lens Control Motors, optional Control Handle, or the Power Handle. Both ports support PD Fast Charging to quickly recharge the internal 1800mAh battery, which can run up to 20 hours, depending on usage, or attach it to the Power Handle using the Tilta NATO connector to integrate its Sony L-series battery.

Select a 2.4 GHz Wi-Fi channel to pair your Handwheel Controller with the Lens Control Motor over a wireless connection. Press the function button on the motor to finalize the connection and cycle through the available categories: iris, zoom, focus, or other. Different colored lights will indicate the assigned category: green for iris, blue for zoom, purple for focus, and yellow for other. Hold down the function button to automatically calibrate the motor. To pair motors to the Control Handle, select E-Z Mode in the Wireless submenu with the M button, double press the function button on the motor, and press the M button again.

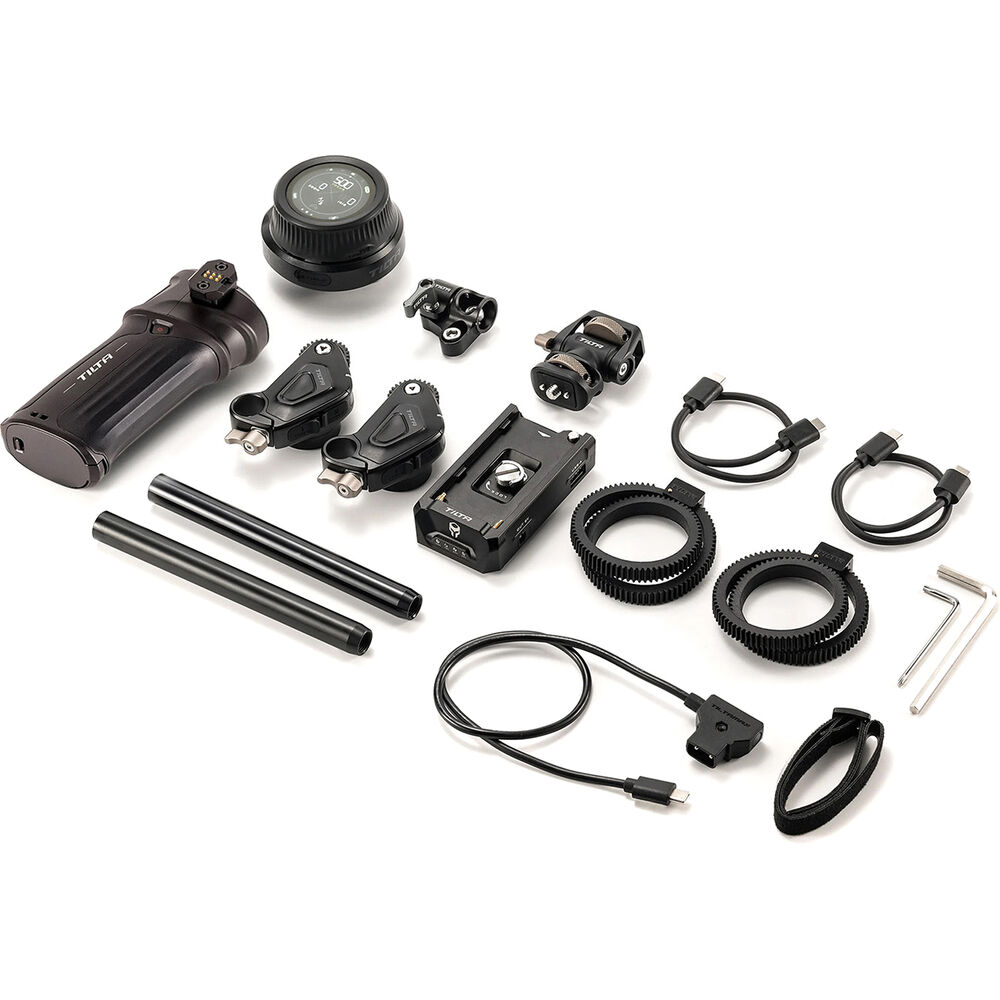

In addition to the power accessories, the Power Handle Kit also includes Tilta's 15mm Rod Holder to Dual 1/4"-20 Adapter for attaching rods and motors to a camera cage, a rubber rod support, two 6" 15mm aluminum rods for rigging multiple motors, and the 1/4"-20 Accessory Mounting Bracket with locating pins for mounting accessories such as an external monitor for follow focus work.

Compatibility

The Nano II Wireless Lens Control System is backward compatible with the previous generation Nucleus-Nano and Nucleus-M lens motors for easy integration with your preexisting equipment.

The current firmware fully supports all controls for the BMPCC 4K, 6K, and 6K Pro via Bluetooth only, with partial camera control, including run/stop, shutter speed, ISO, and iris adjustment for Sony FX3, A7S3, A7R5, ZV-E1, ZV-E10, and Canon R7 via USB-C PD cables. Mount and integrate the Power Handle or separately available Nano II Control Handle into your DJI RS 2 or RS 3 Pro gimbal setup with the included mounting accessories and the optional Wireless Receiver Module for wireless gimbal and DJI RS Focus Motor control.

For the most current features, camera, and gimbal support, please visit the Tilta website.

NOTE: Some features listed above are not fully functional in the current firmware, such as DJI Ronin and DJI Focus Motor compatibility and lens mapping, and will be implemented with future firmware updates.

Tilta Nucleus-Nano II Specs

Number of Channels	4
Wireless Frequency	2.4 GHz
Included Drive Gear	0.8 MOD
Included Motors	2
Maximum Peak Torque	5 Nm
Transmitter I/O	1 x USB-C

Number of Channels	4
Wireless Frequency	2.4 GHz

Bluetooth	Yes
Included Drive Gear	0.8 MOD
Rod Standard	Receiver / Motor: 15 mm Single Rod (Slide-On)
Included Motors	2
Motor Model	Nucleus Nano II Motor
Maximum Peak Torque	5 Nm
[Component] I/O	Receiver / Motor: 1 x USB-C Input/Output Receiver / Motor: 1 x USB-C Output
Battery Type	No
DC Input Power	7.4 to 16.8 VDC
Material of Construction	Receiver / Motor: ABS, Aluminum, Plastic, Rubber
Dimensions	Receiver / Motor: H: 6 x W: 5 x D: 4" / H: 15.2 x W: 12.7 x D: 10.2 cm
Weight	Receiver / Motor: 1 lb / 454 g

Transmitter I/O	1 x USB-C
Camera Trigger	Yes
Battery Type	Built-In Rechargeable
Material of Construction	Aluminum Alloy
Dimensions	2.9 x 2.8 x 2.1" / 73 x 72 x 53 mm
Weight	6.2 oz / 175 g

Package Weight	4.99 lb
Box Dimensions (LxWxH)	11.7 x 9.9 x 4.6"
