Description
TipTop Audio 258T Overview

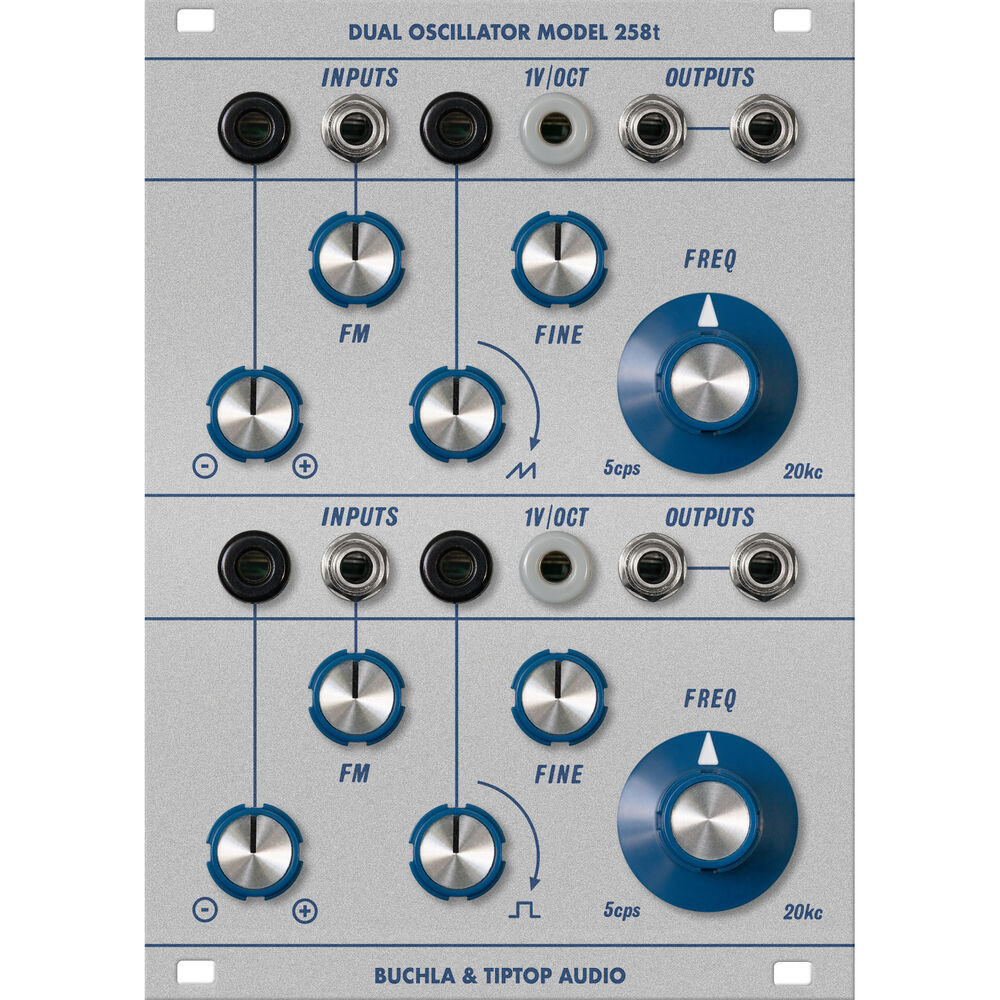

Generate complex waveforms with the Tiptop Audio Buchla 258t Dual Oscillator, with two independent voltage-controlled oscillators, a processing input, a frequency modulation input, and a 1V/oct input. Waveshapes and frequency can be voltage controlled. Model 258t oscillators feature low sinewave harmonic content, negligible settling error, and high short and long-term stability, even with rapidly changing ambient temperatures. The module ships with a ribbon power cable.
Trimmers
There are four trimmers for each oscillator on the back of the module:
- 1V/oct is the octave tracking trimmer and is set at the factory using high-precision instruments.
- SHAPE is the trimmer that set the sine wave, for the lower harmonic content of the sinewave.
- VC WAVE SHAPE sets the response of the waveshaper to the incoming control voltage. Both SHAPE and VC WAVE SHAPE trimmers are used to adjust sinewave purity.
- From version V1.2 two more trimmers were added. VPP1 and VPP2 are used to set the waveshape amplitude.
Eurorack Ready
- 18 HP Eurorack format module
- Maximum depth: 1.8" (45mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 70mA, -12V: 40mA

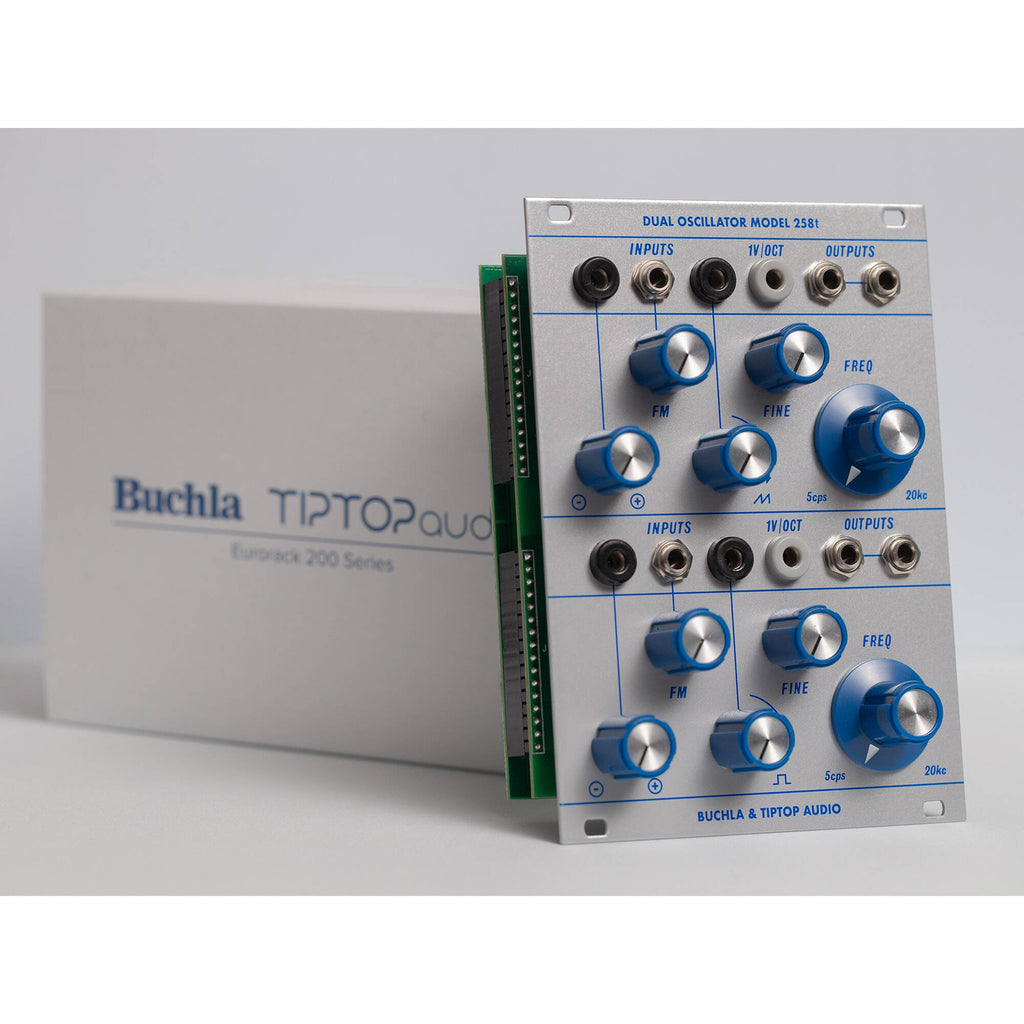

In the Box
- TipTop Audio Buchla Model 258t Dual Oscillator Eurorack Module (18 HP)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
TipTop Audio 258T Specs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
4x 1/8" / 3.5 mm Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm CV Input
|
| Patch Points |
8x 1/8" / 3.5 mm Input
4x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
70 mA on +12 V Rail
40 mA on -12 V Rail |
| Horizontal Pitch |
18 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
2x Variable (FM, Sawtooth, Sine, Square)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
4x 1/8" / 3.5 mm Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
8x 1/8" / 3.5 mm CV Input
|
| Control Voltage Level |
CV In: +12 V (1 V/Octave)
|
| Patch Points |
8x 1/8" / 3.5 mm Input
4x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
| Media/Memory Card Slot |
No
|
Audio Performance
| Frequency Response |
5 Hz to 20 kHz
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
70 mA on +12 V Rail
40 mA on -12 V Rail |
Physical
| Horizontal Pitch |
18 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.745 lb
|
| Box Dimensions (LxWxH) |
6 x 4.7 x 3"
|
