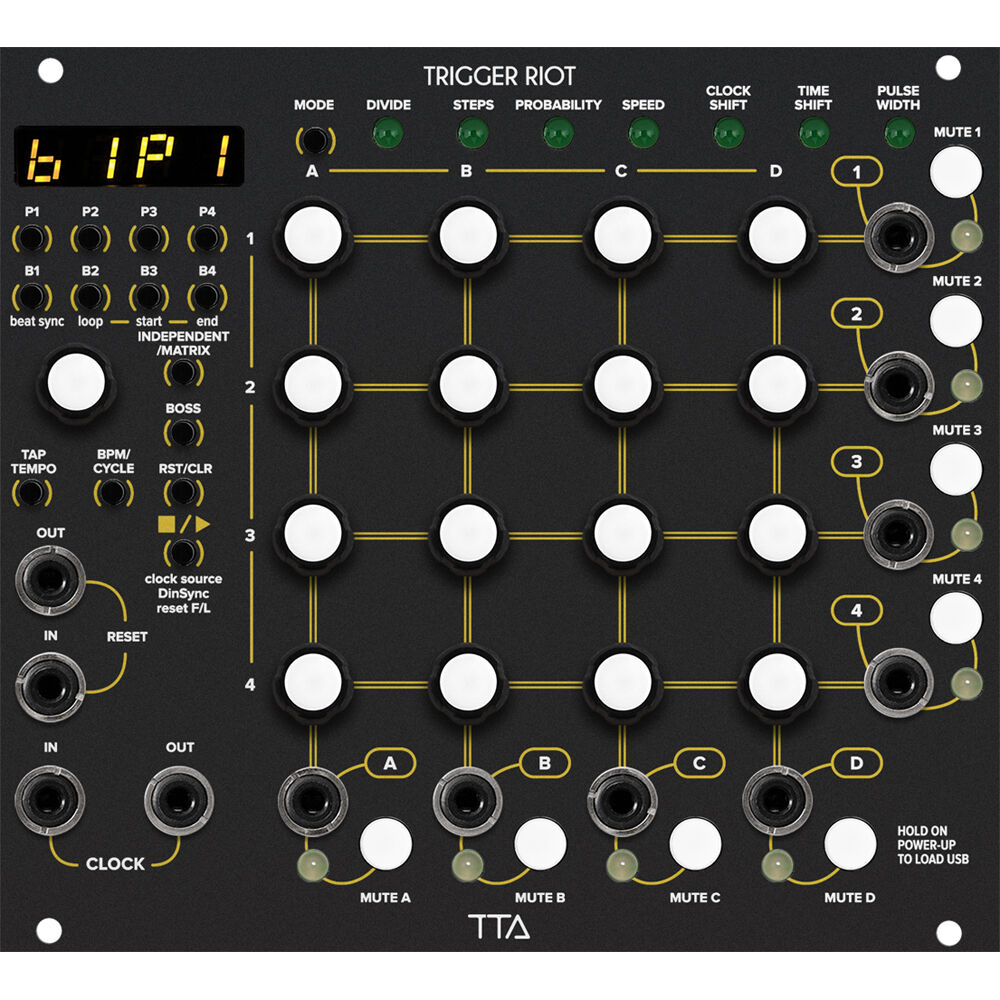

TipTop Audio Trigger Riot Sequencer Eurorack Module (28 HP, Black)

At a Glance

Multipurpose trigger module that makes ultracomplex patterns of gates, triggers, and clock pulses. It covers a lot of ground in any Eurorack system, from the master clocking for your entire system, to algorithmic generation of pulses for envelopes, step sequencers, drums and accents that can venture into highly complex territory driven by simple yet powerful logic and algebra with a dash of pseudo randomness for some unpredictable results.

User Interface

• The user interface allows a great deal of control over pulses, with each knob acting as a clock divider, clock multiplier, step injector, time shifter, clock shifter, pulse-width modulator, or arithmetic probability processor.
• The interface features a master clock knob�push switches to mute/unmute and select rows and multiple switches to configure, adjust, create loops, and save your work for later recall from memory banks.

Eurorack Integration

• Nonvolatile memory
• Generous synchronization options with external gear including sample accurate sync with DAWs
• Smart synchronization to other Tiptop modules using the SyncBus
• DIN Sync for vintage gear
• Precision internal tempo clock generator with tap tempo and BeatSync to manage precise changes

Eurorack Ready

• 28 HP Eurorack format module
• Maximum depth: 1.1" (28mm)
• Includes power ribbon cable with Eurorack power headers
• Power consumption: +12V: 200mA, -12V: 0mA

TipTop Audio TR BKSpecs

Sound Generation	Analog
Audio I/O	No
MIDI I/O	No
CV/Gate I/O	9x 1/8" / 3.5 mm TS Gate/Trigger Output 1x 1/8" / 3.5 mm TS Gate/Trigger Input
Patch Points	2x 1/8" / 3.5 mm TS Input 1x 1/8" / 3.5 mm TS Output
Eurorack Current Consumption	200 mA on +12 V Rail 0 mA on -12 V Rail
Horizontal Pitch	28 HP

Item Type	Eurorack Module
Sound Generation	Analog
Expression Controls	No
Number of Pads	No
Built-In Speaker	No

Oscillators	No
Mixer	No
Amplifiers	No
Envelopes	No
Filters	No

Sequencer	No
Arpeggiator	No

Audio I/O	No
MIDI I/O	No
CV/Gate I/O	9x 1/8" / 3.5 mm TS Gate/Trigger Output 1x 1/8" / 3.5 mm TS Gate/Trigger Input
Patch Points	2x 1/8" / 3.5 mm TS Input 1x 1/8" / 3.5 mm TS Output
Sync I/O	1x 1/8" / 3.5 mm TS Clock Input 1x 1/8" / 3.5 mm TS Clock Output

Power Requirements	Eurorack Power
Eurorack Current Consumption	200 mA on +12 V Rail 0 mA on -12 V Rail

Horizontal Pitch	28 HP
Included Accessories	No

Package Weight	0.75 lb
Box Dimensions (LxWxH)	6.5 x 5.8 x 2.3"
