Description

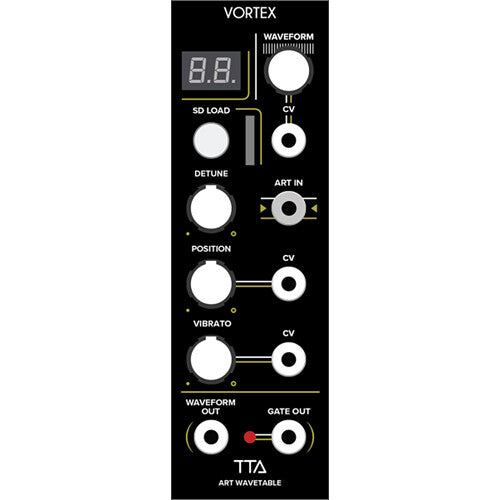

TipTop Audio VORTEX Overview
Generate harmonically rich sounds with the Tiptop Audio VORTEX, an ART wavetable dual-oscillator mono voice source in Eurorack format that can be used to build polyphonic and multivoice patches. The module features two vintage '80s D/A converters to feed your filters and effect processors, ensuring an authentic vintage wavetable sound.
VORTEX comes loaded with dozens of wavetables, and you can load additional user wavetables from the front-panel SD card. A detune knob controls the second VCO and adds effects from deep phasing to a sub octave. The position knob and CV input selects waves in the tables and vibrato from LFOs to create FM. Like other ART sound generators, a dedicated Gate output manages the voice envelope or any modulation synced to that voice. VORTEX is a great companion to the analog ATX1 and a must for digital synthesist enthusiasts.
- ART wavetable dual oscillator mono voice source
- Great for building polyphonic and multi voice patches
- Generates harmonically rich sound
- Uses two vintage '80s D/A converters
- Comes loaded with dozens of wavetables
- Additional user wavetables can be loaded from the front panel SD card
- Detune knob: Controls the second VCO and adds effects from deep phasing to a sub octave
- Position knob and CV input selects waves in the tables
- Vibrato knob and CV input creates FM-like effects from LFOs
- Dedicated gate output manages the voice envelope or any modulation synced to that voice
- 8 HP Eurorack format module
- Maximum depth: 1.6" (40mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 80mA, -12V: 25mA
In the Box
- TipTop Audio VORTEX ART Wavetable Oscillator Eurorack Module (8 HP)
- Busboard Power Cable
- Limited 1-Year Manufacturer Warranty
TipTop Audio VORTEX Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm CV Input
1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
80 mA on +12 V Rail
25 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
2 (Wavetable)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Glide/Portamento |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm CV Input
1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
80 mA on +12 V Rail
25 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Included Accessories |
No
|
