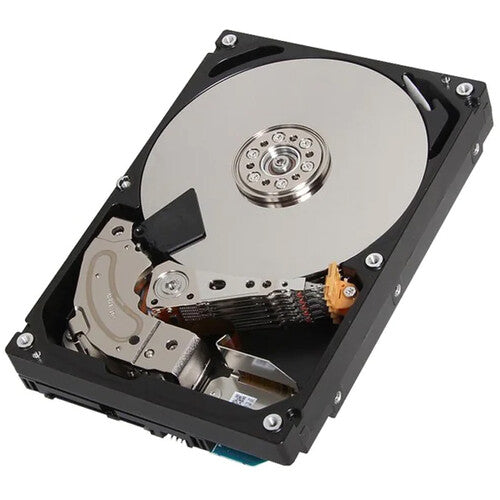

Toshiba MG09ACA Internal HDD Overview
The Toshiba 18TB MG09 Series Cloud-Scale Capacity 7200 rpm SATA III 3.5" Internal Hard Drive features 9-disk design, providing 18TB of conventional magnetic recording (CMR) storage capacity and 7200 rpm performance for optimal application compatibility and data reliability. The massive 18TB CMR capacity is delivered using Toshiba's innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. Toshiba used precision industrial laser welding technology to seal helium inside the 9-disk mechanics. The helium-sealed design reduces aerodynamic drag to significantly lower the drive's operational power profile, which helps deliver critical TCO benefits for data center infrastructures. The 3.5" form factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File- and Object-based storage solutions.
Conventional magnetic recording (CMR) for broad compatibility
Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
9-disk helium-sealed design for storage density
Standard 3.5" 26.1 mm height form factor
SATA III 6 Gb/s interface
Lower operational power profile, providing power efficiency (W/TB) for better TCO
550 Total TB transferred per year workload rating
512e Advanced Format Sector technology
Sustained transfer rate and power efficiency improvements vs. prior MG Series generations
Cloud-scale server and storage infrastructure
Software-defined data center infrastructure
File- and Object-based storage infrastructure
Tiered storage infrastructure solutions
Workloads and use-cases that benefit from high capacity per spindle disk drives
Capacity-optimized cloud-scale and rack-scale storage systems
Compliance data archives and data life-cycle management storage systems
Data center data-protection and data back-up infrastructure
In the Box
- Toshiba 18TB MG09 Series Cloud-Scale Capacity 7200 rpm SATA III 3.5" Internal Hard Drive
- Limited 5-Year Manufacturer Warranty
Toshiba MG09ACA Internal HDD Specs
| Storage Capacity |
18 TB SATA III (6 Gb/s) 3.5" HDD (7200 rpm) |
| Read Speed |
Not Specified by Manufacturer |
| Write Speed |
Not Specified by Manufacturer |
| Buffer |
512 MB |
| Pre-Format |
None |
Reliability / Data Integrity
| Encryption |
None |
| Load/Unload Cycles |
600,000 |
| Mean Time Between Failures (MTBF) |
2.5 Million Hours |
| Non-Recoverable Read Errors per Bits Read |
10 in 1016 |
Electrical
| Power Draw |
4.16 W |
| Supported Voltage |
5 VDC, 12 VDC |
Environmental
| Operating Temperature |
37 to 87°F / 5 to 55°C |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Operating Shock |
70 G / 2.0 ms |
| Storage Shock |
250 G / 2.0 ms |
| Operating Vibration |
0.75 G / 5 to 300 Hz |
| Storage Vibration |
3.0 G / 5 to 500 Hz |
| Operating Humidity |
5 to 90% (Non-Condensing) |
| Storage Humidity |
5 to 95% (Non-Condensing) |
| Operating Altitude |
9999' / 3048 m |
| Storage Altitude |
39,999' / 12,192 m |
General
| Dimensions |
5.8 x 4.01 x 1" / 147 x 101.85 x 26.1 mm |
| Weight |
1.6 lb / 720 g |
Packaging Info
| Package Weight |
1.84 lb |
| Box Dimensions (LxWxH) |
9.6 x 6 x 3" |
