| ₹ 211.55 includes GST and import duties. | |
| B2B customers can avail ₹ 32.26 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

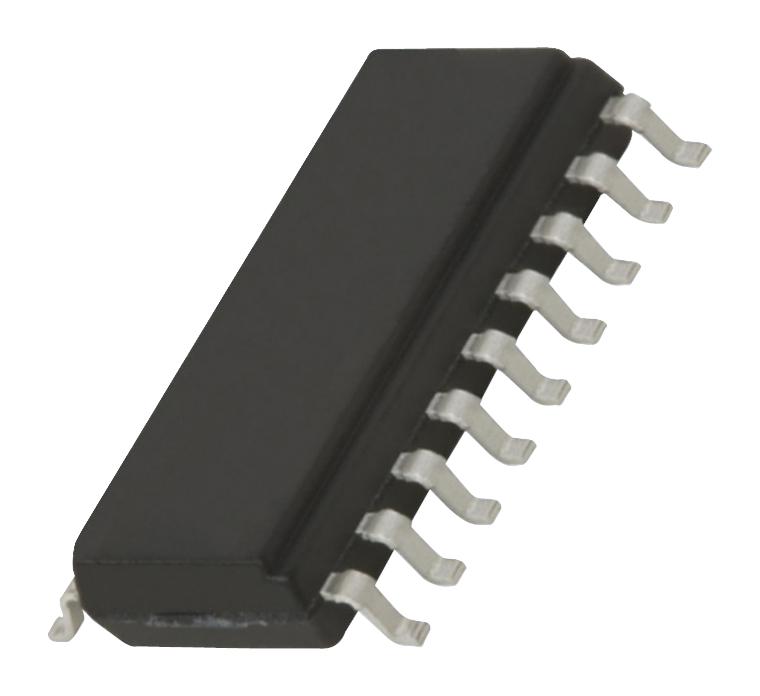

TBD62084AFG(Z,EL) is a TBD62084A series BiCD silicon monolithic integrated circuit. It has a clamp diode for switching inductive loads built-in in each output.
- 8 channel sink type DMOS transistor array
- High voltage is 50V (max, Ta = 25°C), high current is 500mA/ch (max, Ta = 25°C)
- Input voltage range from 7.0 to 25V (output on, IOUT = 100mA or upper, VOUT = 2V, Ta = -40 to 85 °C)
- COMMON pin voltage is 50V (max, Ta = -40 to 85°C)
- Clamp diode forward current is 400mA (max, Ta = -40 to 85°C)
- Output leakage current is 1.0µA (max, VOUT = 50V, Ta = 85°C, VIN = 0V)
- Turn on delay is 0.4µs (typ, VOUT = 50V, RL = 125ohm, CL = 15pF)
- Turn off delay is 0.8µs (typ, VOUT = 50V, RL = 125ohm, CL = 15pF)
- SOP18-P-375-1.27 package, operating temperature range from -40 to 85°C
Footnotes
Please be careful about thermal conditions during use.
Product details
| Supply Voltage Min: - |
| Supply Voltage Max: - |
| No. of Outputs: 8Outputs |
| Output Voltage: 50V |
| Output Current: 500mA |
| Driver Case Style: SOP |
| Product Range: - |
Other details
| Brand | TOSHIBA |
| Part Number | TBD62084AFG(Z,EL) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 207.32 |
| 3-5 | ₹ 205.2 |
| 5-10 | ₹ 200.97 |
| 10+ | ₹ 196.74 |
Bulk discount will be automatically applied during checkout based on quantity.
