TP-Link AXE75 Overview
-
1Description
-
2Performance
-
3Reliable Connections
-
4OneMesh Network
-
5Wired Connections
-
6USB Sharing
-
7Tether App
-
8TP-Link HomeShield
-
9VPN Access
-
10Network Security

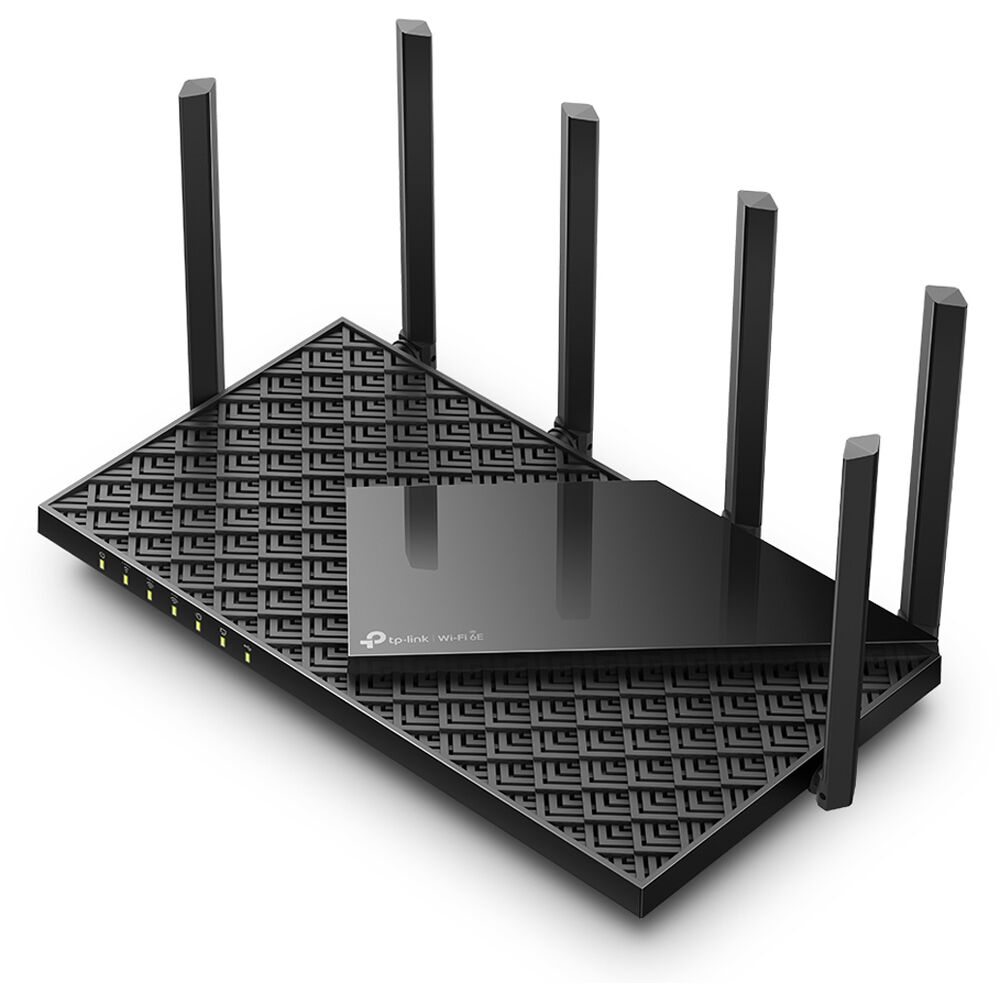

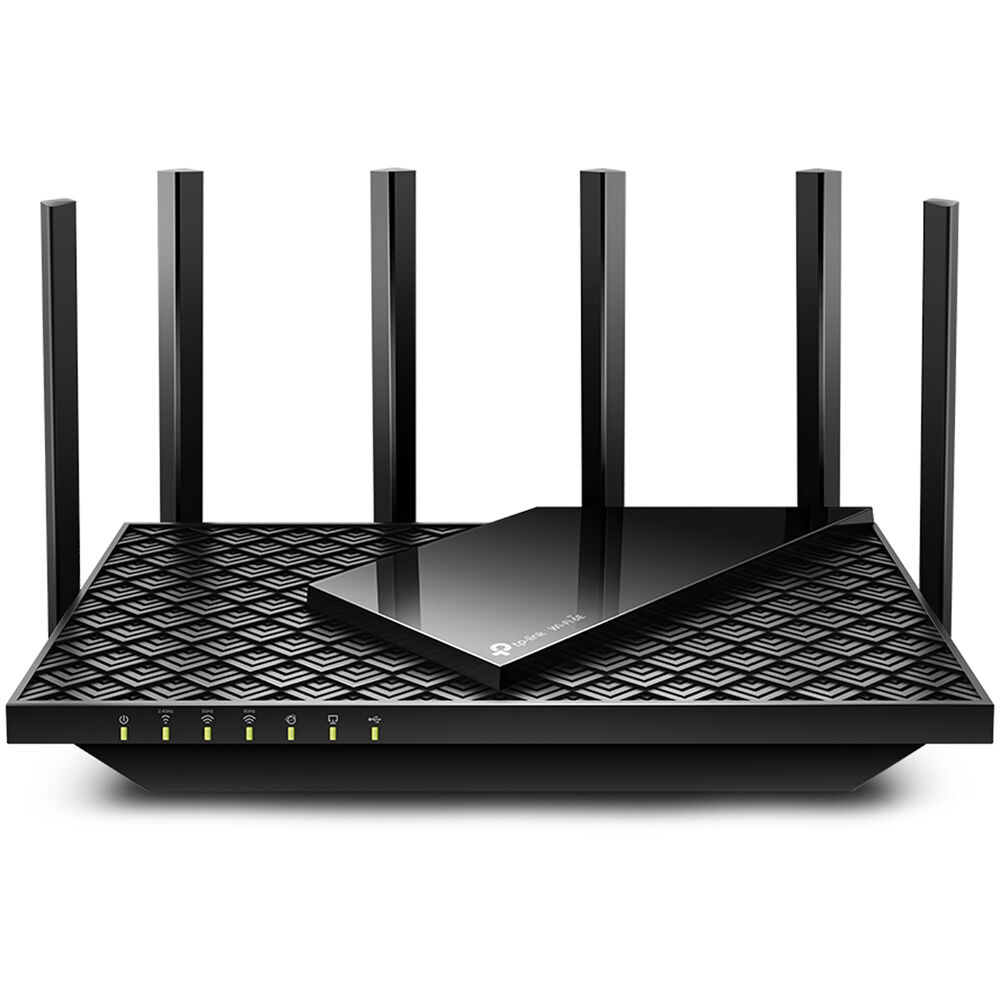

Enjoy smooth 8K video streaming, online gaming, and internet browsing experiences throughout your home by connecting the TP-Link Archer AXE75 AX5400 Wireless Tri-Band Gigabit Router to your compatible cable or DSL modem. This high-speed Wi-Fi 6E (802.11ax) router delivers up to 5378 Mb/s throughput across the 2.4 GHz, 5 GHz, and 6 GHz bands, allowing you to dedicate specific frequencies to your wireless smart devices, laptops, and gaming systems so that they don't interfere with each other. Use the TP-Link Tether app to quickly configure your network, including setting up a guest network and parental controls.
The Archer AXE75 delivers up to 2402 Mb/s transfer rates on both the 5 GHz and less congested 6 GHz bands while transferring 574 Mb/s on the 2.4 GHz frequency. The 1.7 GHz quad-core processor and 512MB of memory allow it to handle enormous amounts of data and minimize latency.
The six powerful external antennas use OFDMA and MU-MIMO technologies deliver data to multiple devices simultaneously while beamforming allows the signal to provide broad coverage.
Add TP-Link OneMesh compatible routers and other devices to your network to increase its wireless coverage. The network operates using a single network ID (SSID), and will automatically switch you to the device with the strongest signal to provide a seamless experience as you move from room to room.

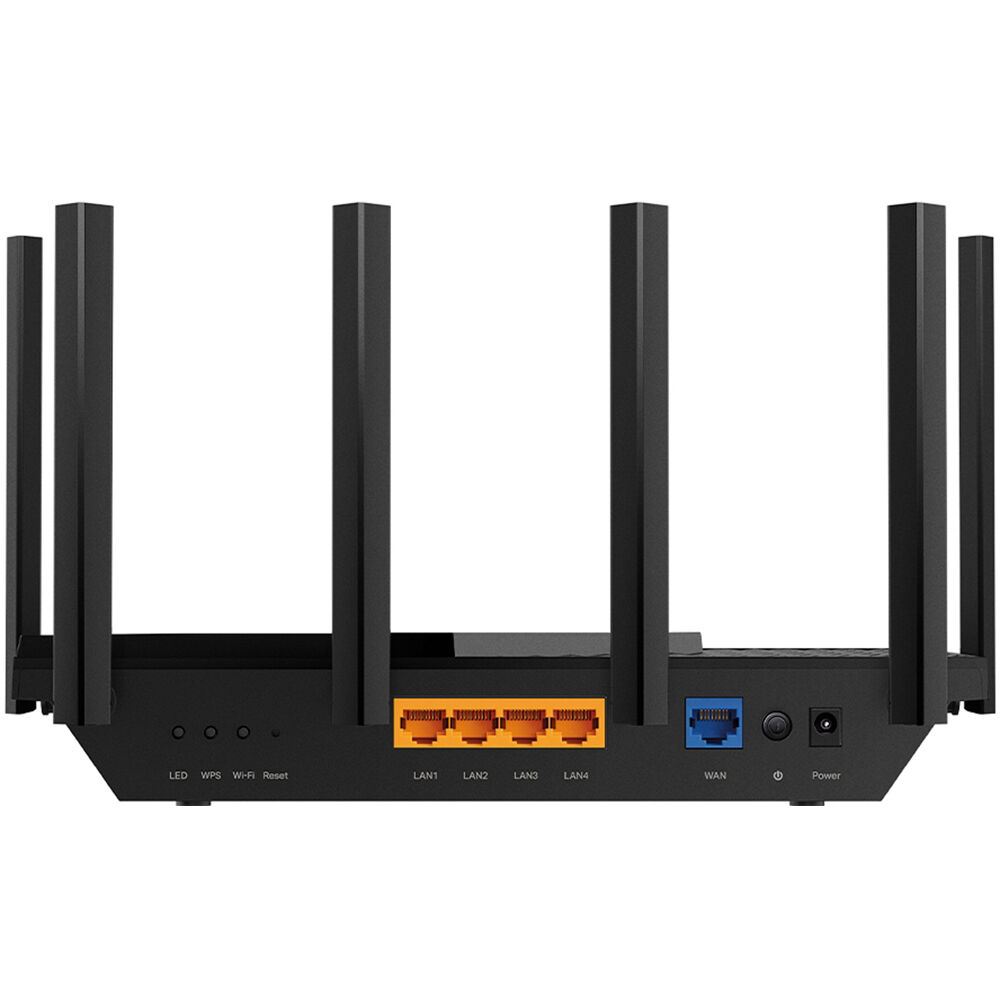

Connect wired devices such as computers, smart TVs, and game consoles to the router through its four Gigabit Ethernet LAN ports. With link aggregation support, up to two ports may be combined for high-speed access to compatible devices. The Archer AXE75 connects to your cable or DSL modem through its Gigabit Ethernet WAN port.
Connect a storage device to the USB 3.1 Gen 1 Type-A port to share photos, videos, and other files with connected devices across your network. USB 3.1 Gen 1 and USB 3.0 are synonymous.
Configure and manage your network from almost anywhere using the TP-Link Tether app for Android and iOS.
TP-Link's premium security services keep your home network safe by automatically detecting online threats. It also includes a host of parental controls and quality of service features to customize your family's online experience.
Have added peace of mind when using public Wi-Fi hotspots by establishing a secure OpenVPN and PPTP VPN connection to your home network.
Your wireless network is protected by WPA/WPA2-Personal, WPA2/WPA3-Personal, and WPA/WPA2-Enterprise encryptions. The Archer AXE75 also features an SPI firewall that's designed to deter network intruders.
In the Box
- TP-Link Archer AXE75 AX5400 Wireless Tri-Band Gigabit Router
- Power Adapter
- Ethernet Cable
Table of Contents
- Description
- Performance
- Reliable Connections
- OneMesh Network
- Wired Connections
- USB Sharing
- Tether App
- TP-Link HomeShield
- VPN Access
- Network Security
TP-Link AXE75 Specs
Wireless
Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) |
Number of Antennas |
6 |
MU-MIMO Support |
Yes |
Sensitivity |
-64 to -53 dBm |
Transmit Power |
17 to 29 dBm |
Supported Protocols |
DMZ IPv4 IPv6 |
Antenna Placement |
External (Integrated) |
Performance
Throughput |
5378 Mb/s Total 6 GHz: 2402 Mb/s 5 GHz: 2402 Mb/s 2.4 GHz: 574 Mb/s |
Interface
Inputs/Outputs |
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) 1 x 5 Gb/s USB-A |
USB Sharing Support |
Yes |
Security
Guest Network Support |
Yes |
Wireless Security |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
VPN Protocol |
L2TP, PPTP, Pass-Through |
Firewall Support |
SPI |
Lock Slot |
None |
Hardware
RAM |
512 MB |
CPU |
1.7 GHz Quad-Core |
Supported File Systems |
FAT32, HFS+, NTFS, exFAT |
Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1x |
Electrical
DC Input Power |
12 VDC at 2.5 A |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Storage Temperature |
-40 to 158°F / -40 to 70°C |
Operating Humidity |
10 to 90% |
Storage Humidity |
5 to 90% |
General
IP Rating |
None |
Dimensions |
10.7 x 5.8 x 1.9" / 272.5 x 147.2 x 49.2 mm |
Packaging Info
Package Weight |
3.35 lb |
Box Dimensions (LxWxH) |
13.2 x 11.3 x 4.8" |
