Description
TP-Link EAP783 Overview

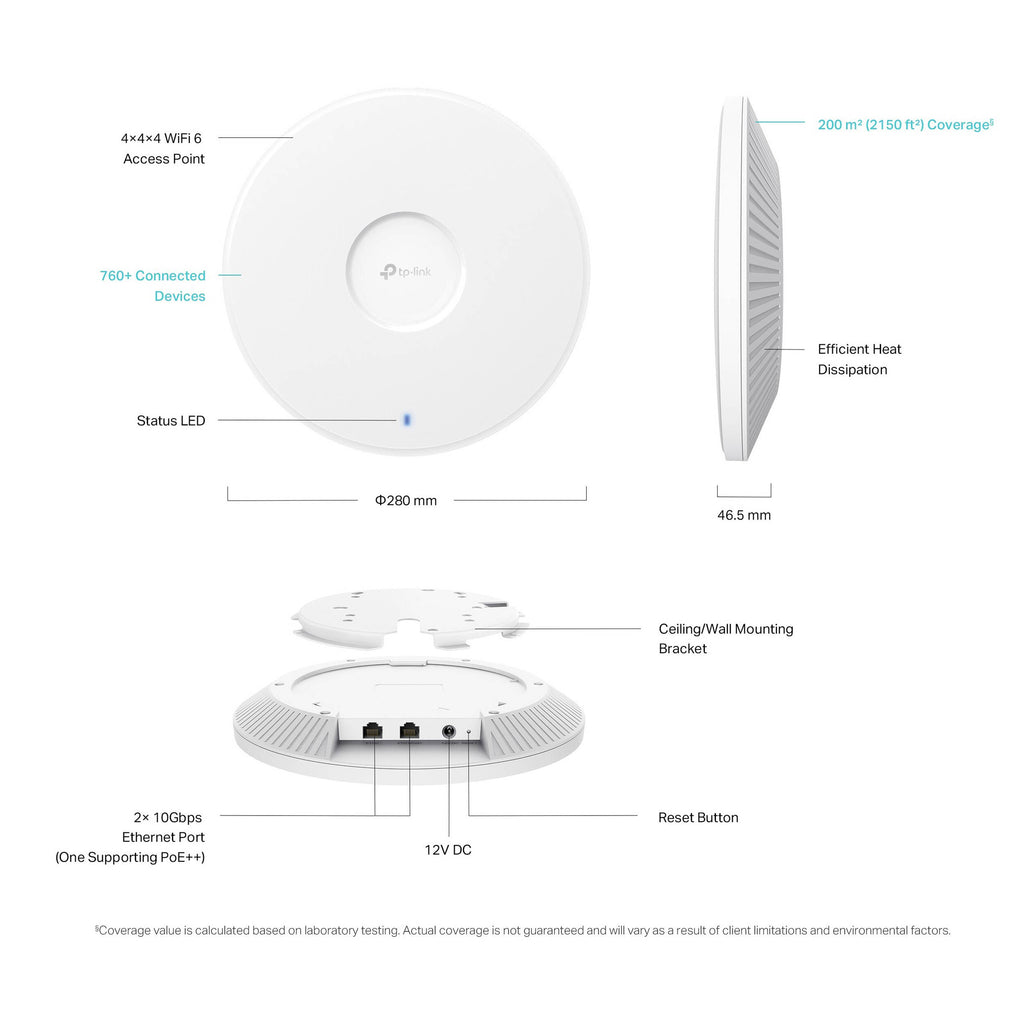

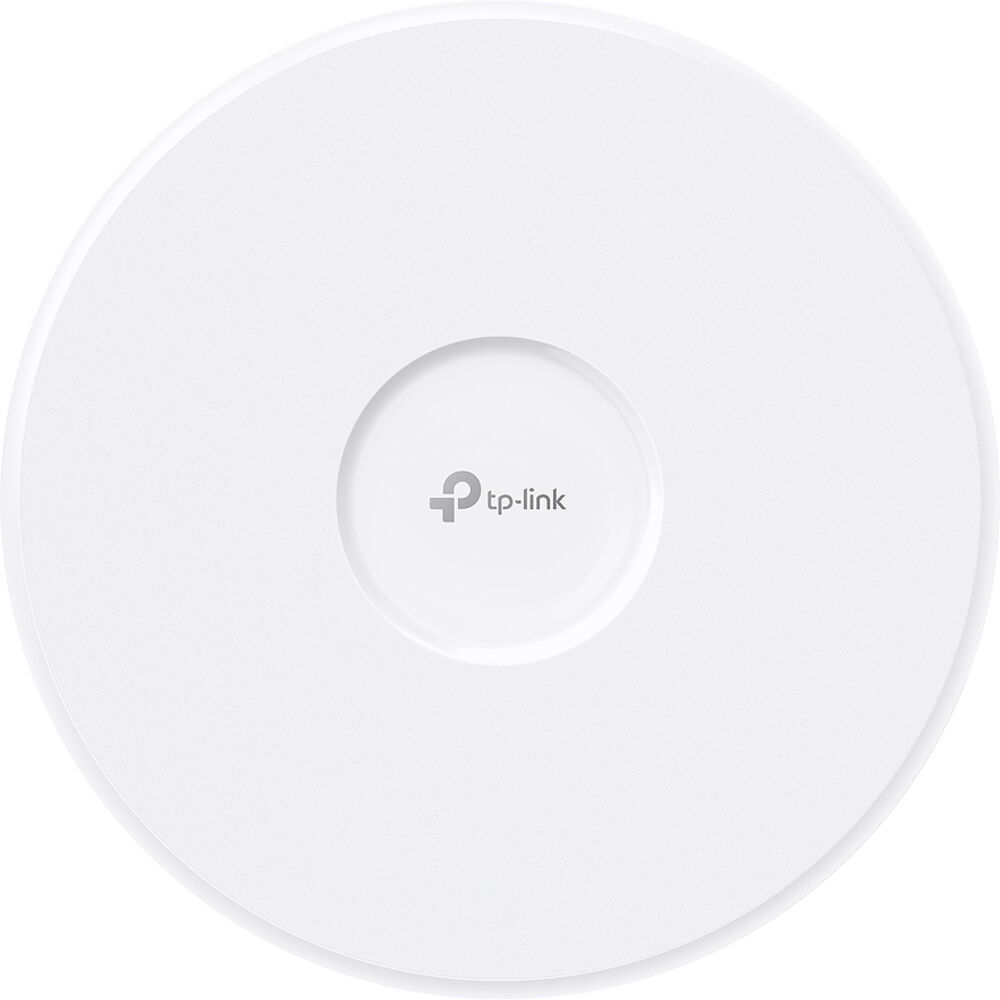

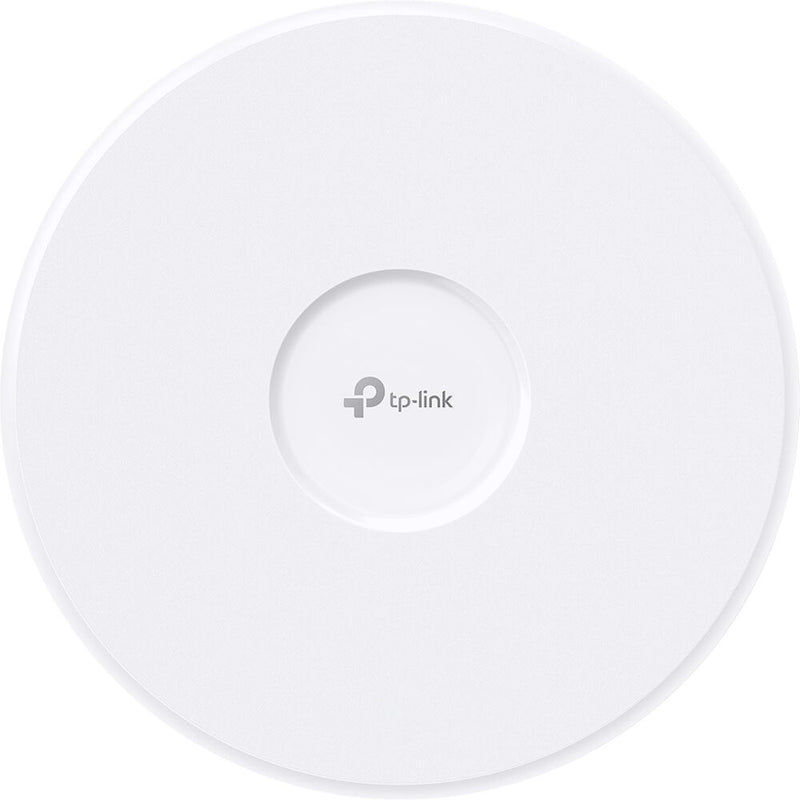

With its slim design, the EAP783 BE22000 Tri-Band Wi-Fi 7 Access Point from TP-Link blends in with most environments while delivering fast and reliable coverage. It also features a total throughput of up to 21,536 Mb/s across three frequency bands, supporting over 760 concurrent clients with up to 2150 square foot coverage.
In addition to high bandwidth and access to the less congested 6 GHz band, Wi-Fi 7 technology provides efficient and reliable connectivity with compatible devices. Connecting the two 10G Ethernet ports to a PoE++ compatible device allows you to transfer both power and data. Or you can add a separately purchased power adapter. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.
Wi-Fi 7
Wi-Fi 7 supports the 320 MHz channels, which doubles the bandwidth of Wi-Fi 6E using the 6 GHz band. This access point features a total throughput of up to 21,536 Mb/s over the 6 GHz, 5 GHz, and 2.4 GHz bands.
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.
Auto Channel Selection and Power Adjustment
Boost Wi-Fi performance and minimize interference for your network by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Intelligent Power Management
Offers more reliable network operation for your business.
Omada Mesh Technology
Create a mesh network for seamless roaming by using additional Omada Mesh compatible devices to expand coverage.
Omada SDN Integration
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network that's controlled from a single interface.
Boosted Network Security
Separate access privileges with support for up to 24 SSIDs. Configure a guest network and customize a captive portal to help ensure only authorized users have access. Your wireless network is protected by WPA3 encryption. The Rogue AP Detection feature helps to mitigate rogue APs to protect your business from security holes and other threats.
UPC: 840030710070

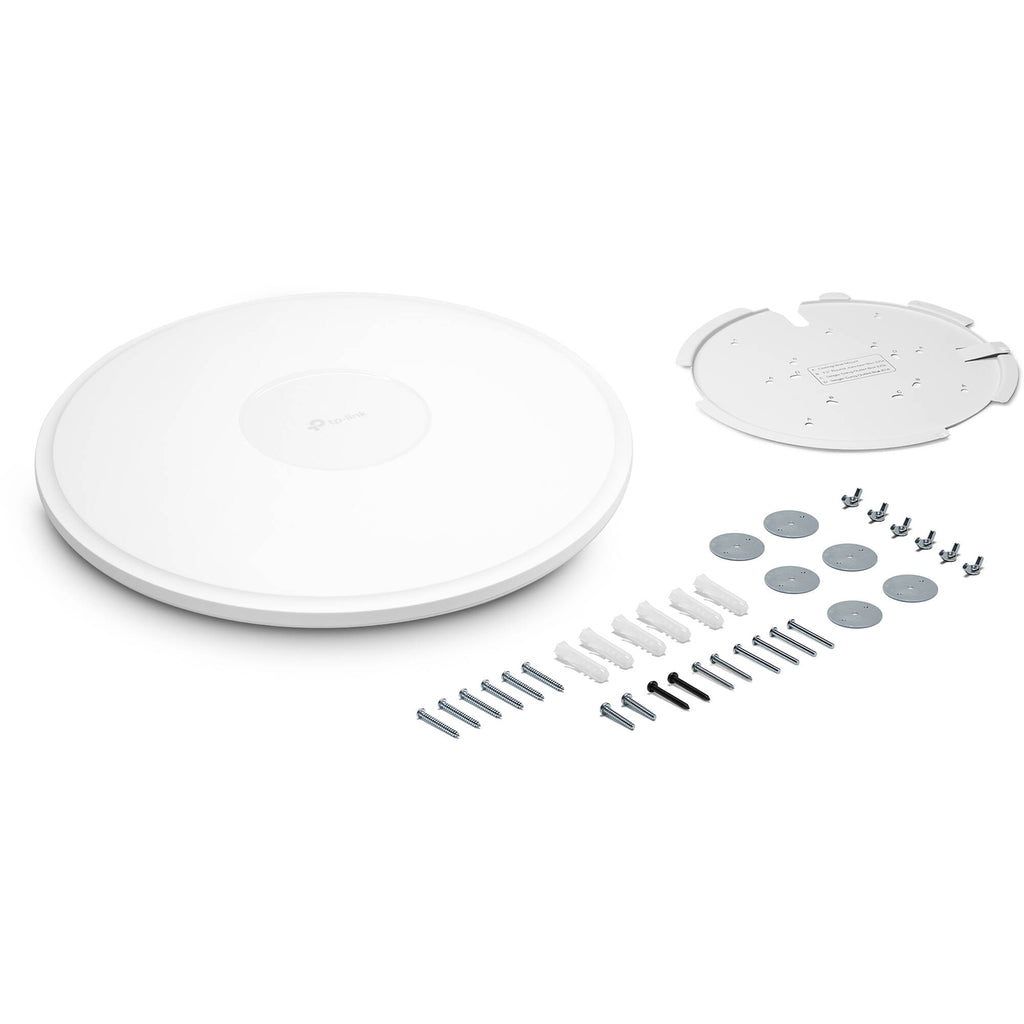

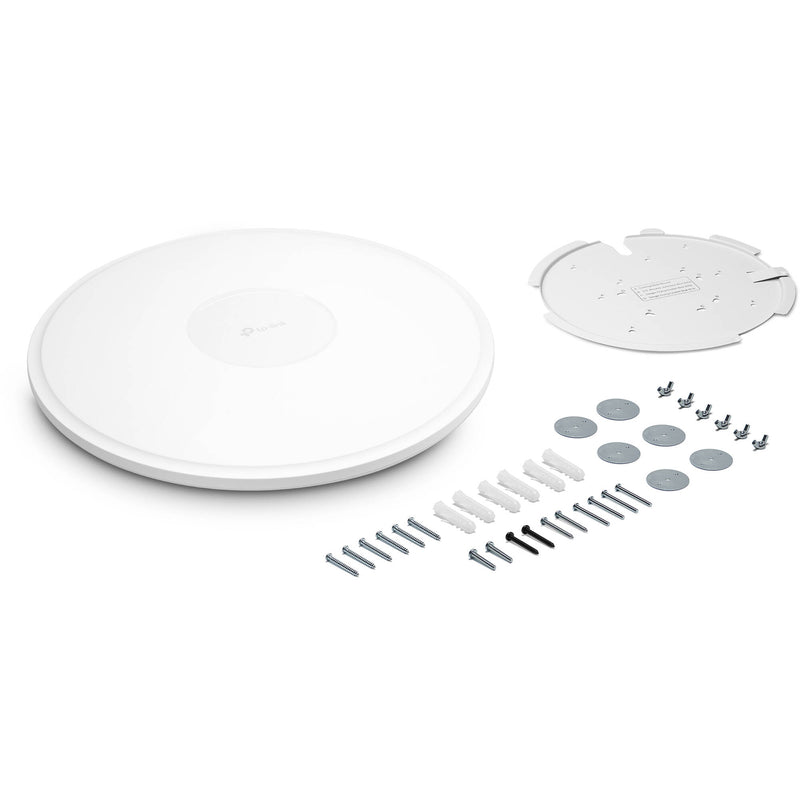

Items Included
- TP-Link EAP783 BE22000 Tri-Band Wi-Fi 7 Access Point
- Ceiling Mounting Kit
- Limited 5-Year Manufacturer Warranty
Additional Resources
TP-Link EAP783 Specs
Key Specs
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (4 x 4)
|
| Throughput |
21,536 Mb/s Total
6 GHz: 11520 Mb/s 5 GHz: 8640 Mb/s 2.4 GHz: 1376 Mb/s |
| Inputs/Outputs |

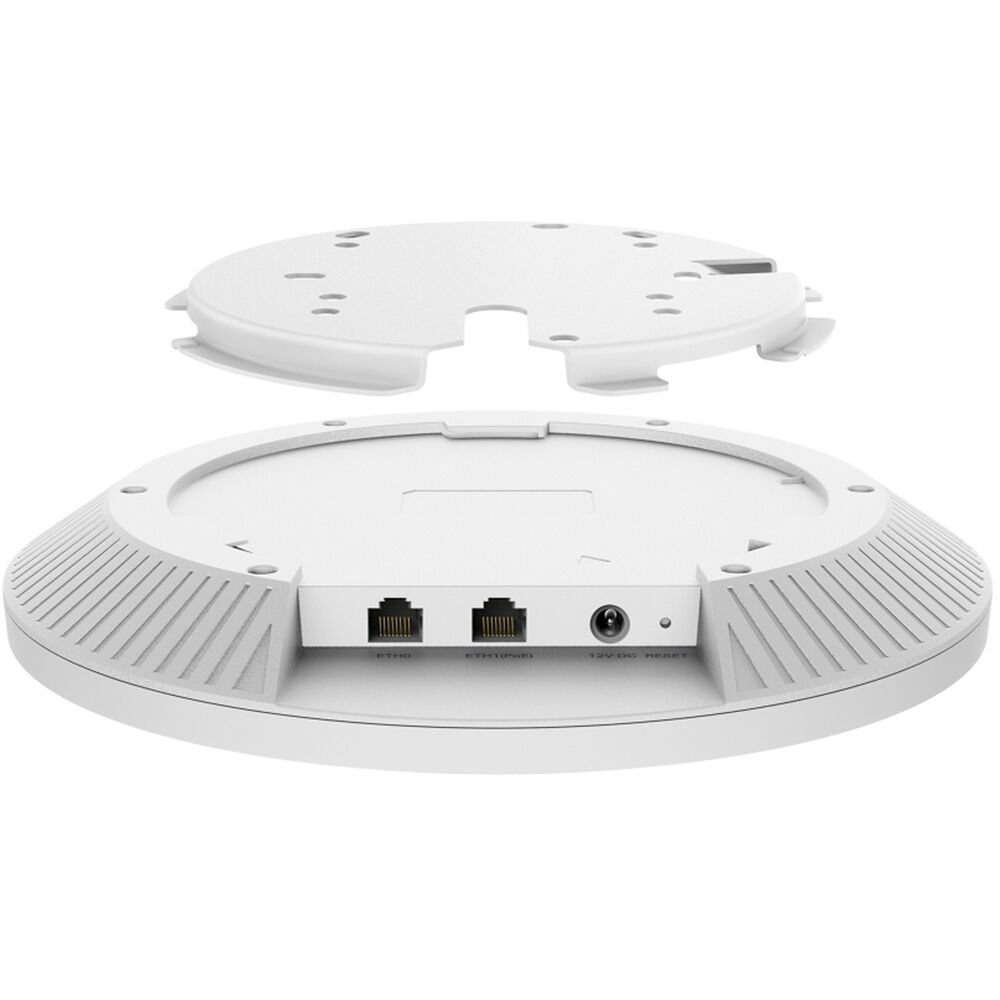

2x RJ45 10 GbE
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (4 x 4)
|
| Antenna Gain |
4 to 5 dBi
|
| Transmit Power |
24 to 28 dBm
|
| Antenna Placement |
Internal
|
| Bluetooth |
No
|
| Throughput |
21,536 Mb/s Total
6 GHz: 11520 Mb/s 5 GHz: 8640 Mb/s 2.4 GHz: 1376 Mb/s |
Interface
| Inputs/Outputs |
2x RJ45 10 GbE
|
| USB Sharing Support |
No
|
Security
| Guest Network Support |
Yes
|
| Wireless Security |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
|
| Lock Slot |
No
|
Management
| Operation Modes |
Access Point
|
| Supported Clients |
380
|
| Max SSIDs Supported |
24
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Omada |
Hardware
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11n, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W)
|
Electrical
| Input Power |
12 VDC
|
| Power Consumption |
39 W
|
General
| Environmental Resistance |
No
|
| Certifications |
CE, RoHS, FCC, IC
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 158°F / -40 to 70°C at 5 to 90% Humidity
|
| Mount Options |
Wall, Ceiling
|
| Dimensions |
11 x 11 x 1.8" / 280 x 280 x 46.5 mm
|
| Weight |
3 lb / 1384.6 g
|
Packaging Info
| Package Weight |
5.255 lb
|
| Box Dimensions (LxWxH) |
13.9 x 12.7 x 3.8"
|
