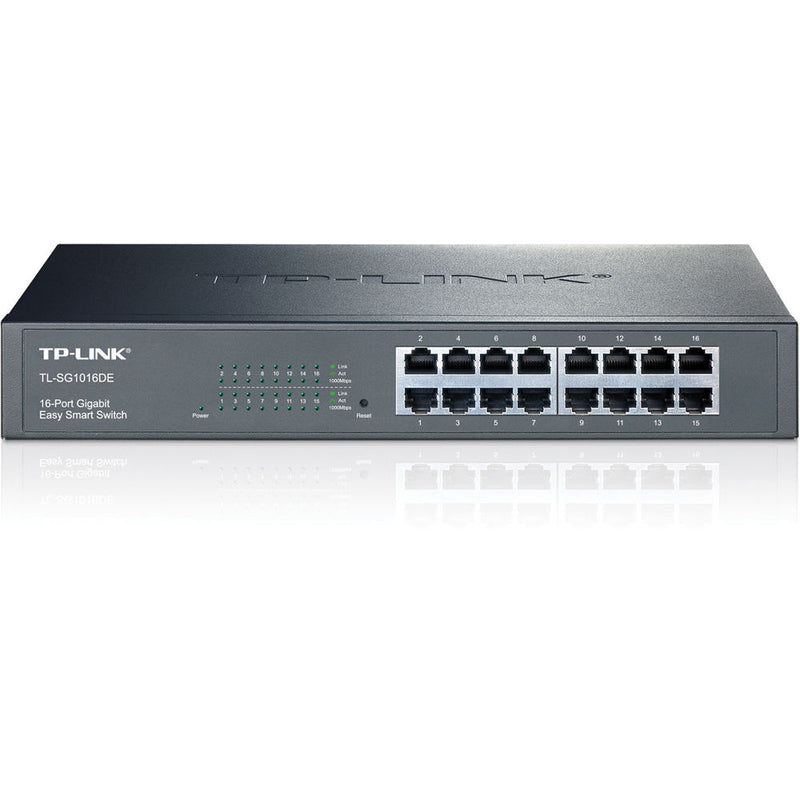

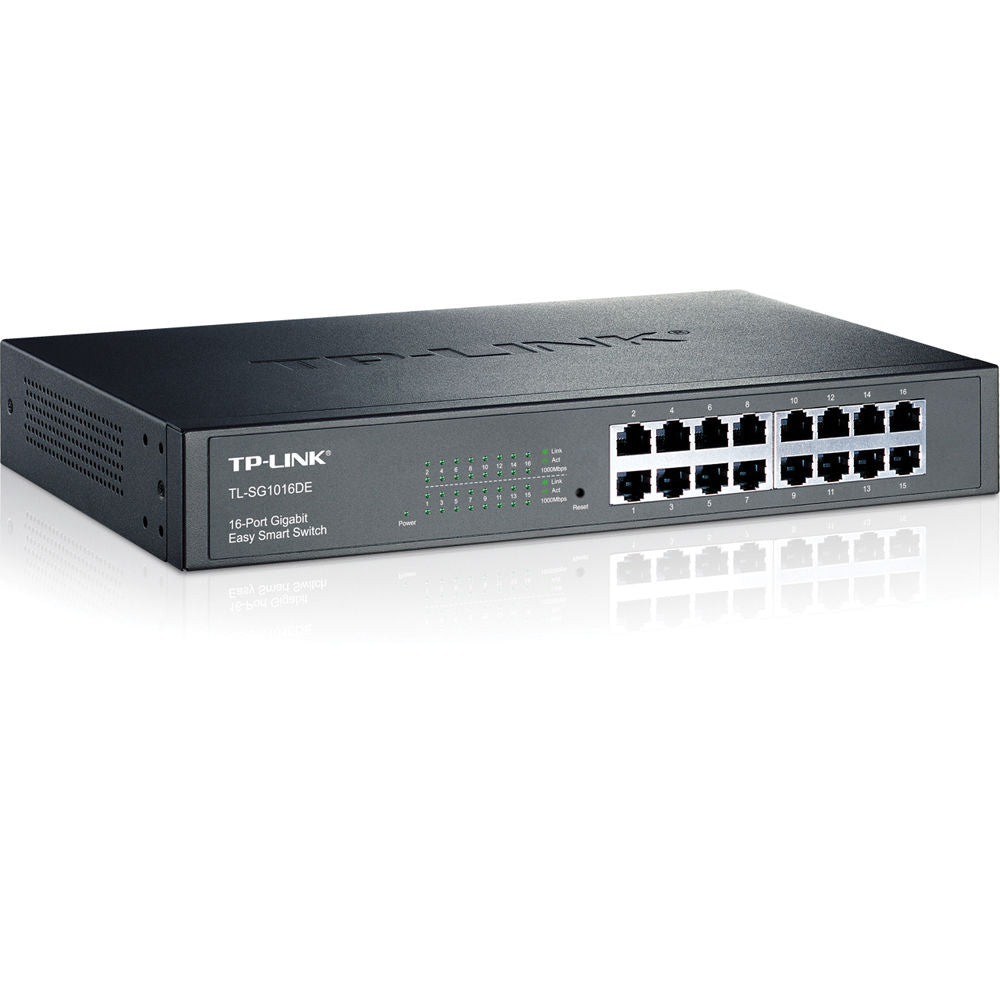

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch

The TL-SG1016DE 16-Port Gigabit Easy Smart Switch from TP-Link is designed for small and medium business networks that require simple network management. To optimize traffic on your business network, Easy Smart switch offers both port- and tag-based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. With its innovative energy-efficient technology, the Gigabit switch can save up to 40% of power consumption, making it an eco-friendly solution for your business network.

This Gigabit Easy Smart switch offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention, and Cable Diagnostics features, this switch can identify and even locate connection problems on your business network. Administrators can designate the priority of the traffic, based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth, and lag-free. Furthermore, to improve security and network performance, the switch supports MTU VLAN, port-based VLAN, and 802.1Q-based VLAN functions. The Easy Smart switch is an upgrade from the plug and play Unmanaged Switch, delivering value while empowering your network. The TL-SG1016DE features an energy-efficient technology that can expand your network's capacity with less power. The Gigabit switch automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The Gigabit switch can automatically detect the link status of each port and reduce the power consumption of ports that are idle. This switch analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution. This Gigabit switch is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mb/s), and intelligently adjusts for compatibility and optimal performance. Its compact size makes it suitable for desktops with limited space as it is rack-mountable, convenient, and safe. It also features LED lights that provide real-time work status display and basic fault diagnosis.

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch

Interfaces
Ports	16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

Protocols
Supported Protocols	Auto-MDIX/MDI IGMP Snooping Link Aggregation Port Mirroring
Transmission Method	Store-and-Forward
Jumbo Frames Support	10,240 Bytes
MAC Address Table Size	8K
VLAN Groups	32
VLAN IDs	4000

Security
Security Features	Storm Control

Standards
Supported IEEE Standards	802.1p, 802.1q, 802.3, 802.3ab, 802.3u, 802.3x

Performance
Forwarding Rate	23.8 Mpps
Switching Bandwidth	32 Gb/s
Priority Queues	4
Packet Buffer	512 Kb

Computer
OS Compatibility	Windows XP or Later macOS Linux UNIX

Electrical
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	10 to 90%
Storage Temperature	-40 to 158°F / -40 to 70°C
Storage Humidity	5 to 90%
Certifications	RoHS, as per Manufacturer

General
Dimensions	11.6 x 7.1 x 1.7" / 29.4 x 18 x 4.4 cm

Packaging Info
Package Weight	5.15 lb
Box Dimensions (LxWxH)	15.827 x 9.685 x 3.15"
