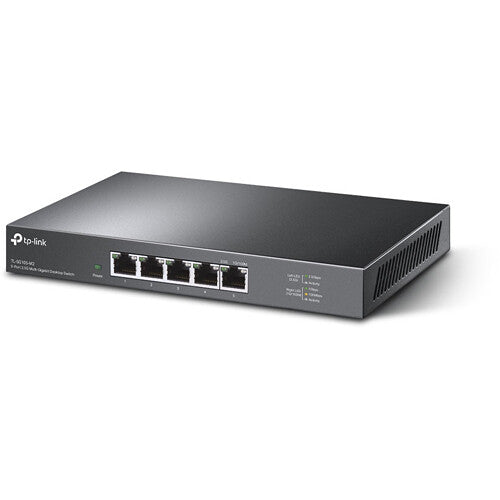

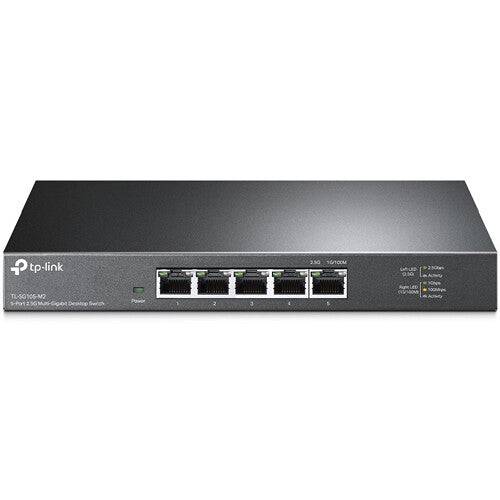

TP-Link TL-SG105-M2 Overview
-
1Description
-
2Fast Network Connections
-
3Backward Compatible
-
4Silent Cooling

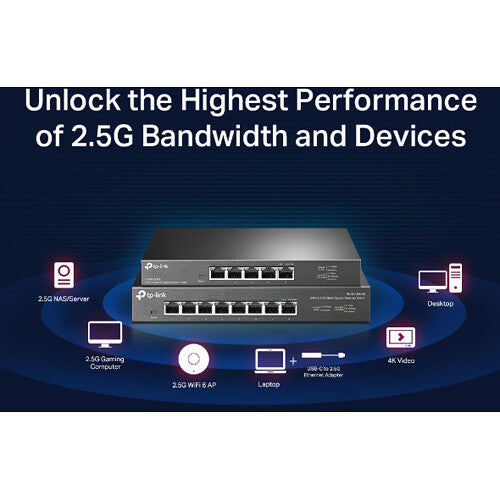

Upgrade your home or business with blazing fast wired network speeds with the TL-SG105-M2 5-Port 2.5 Gigabit Unmanaged Switch from TP-Link. Featuring five 2.5 Gigabit Ethernet ports and a plug-and-play design, this unmanaged switch connects to compatible routers and devices using Cat 5e to 6a cables, allowing you to perform high-bandwidth tasks such as data backups without having to purchase new cables or hardware, or install software drivers. By increasing your number of available 2.5G Ethernet ports, you can enjoy exceptionally high-speed data transfers with multiple connected computers, network storage devices, Wi-Fi 6 access points, and more to provide improved multiplayer gaming, 4K video streaming, and productivity experiences. The TL-SG105-M2 can be configured to prioritize video game traffic to help eliminate latency during your LAN parties. For productivity, video clips and other large files can be quickly backed up and transferred between connected workstations. With its durable metal casing, this switch is designed to operate silently while mounted onto a desk or wall.
Fast Network Connections
Featuring five 2.5G Ethernet ports with a 25 Gb/s switching capacity and 18.6 Mpps forwarding rate, this switch is designed to provide fast and smooth data transfers.
Backward Compatible
The TL-SG105-M2 automatically detects whether 100Mb, 1G, or 2.5G devices are connected and optimizes performance accordingly.
Silent Cooling
The durable metal exterior helps to efficiently dissipate heat and maintain optimal performance.
![]()
UPC: 845973089757
In the Box
- TP-Link TL-SG105-M2 5-Port 2.5 Gigabit Unmanaged Switch
- Power Adapter
- Rubber Feet
- Limited Lifetime Warranty
Table of Contents
- Description
- Fast Network Connections
- Backward Compatible
- Silent Cooling
TP-Link TL-SG105-M2 Specs
Interfaces
| Ports |
5 x 2.5 Gb/s Ethernet (RJ45) |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Transmission Method |
Store-and-Forward |
| Jumbo Frames Support |
10,000 Bytes |
| MAC Address Table Size |
16K |
Standards
| Supported IEEE Standards |
802.1p, 802.3, 802.3ab, 802.3bz, 802.3u, 802.3x |
Performance
| Forwarding Rate |
18.6 Mpps |
| Switching Bandwidth |
25 Gb/s |
| Packet Buffer |
1.5 Mb |
Electrical
| Power Draw |
12.11 W (Max) |
| DC Input Power |
12 VDC at 1 A |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Storage Humidity |
5 to 90% |
General
| Cooling System |
Passive |
| Material of Construction |
Metal |
| Indicator Lights |
Link/Activity, Power |
| Dimensions |
8.2 x 5 x 1" / 209 x 126 x 26 mm |
Packaging Info
| Package Weight |
2.14 lb |
| Box Dimensions (LxWxH) |
12.6 x 9.4 x 2.8" |
TP-Link TL-SG105-M2 Reviews
Great economical option
By Harpreet
Rated 4 out of 5
Date: 2021-09-10
The switch is great, and performs better than the atypical gigabit switch. I wish it was a little more affordable though.
