Description
TP-Link TL-SG1210MP Overview
- 1Description
- 2Power-over-Ethernet
- 3Keep Your Network Smooth and Safe
- 4System Self-Healing with PoE Auto Recovery
- 5Durable Metal Casing
- 6Intelligent Power Management

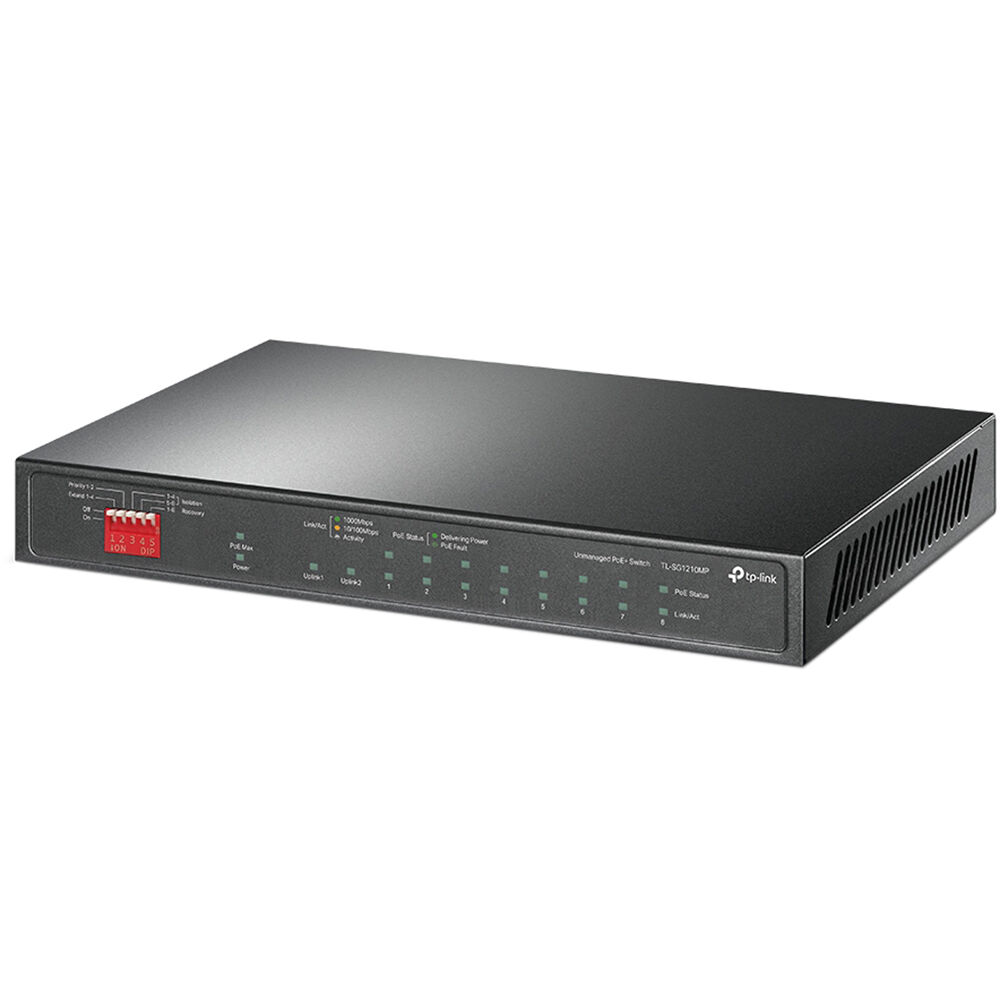

The TP-Link TL-SG1210MP is an unmanaged switch with nine Gigabit RJ45 ports and one Gigabit combo SFP/RJ45 port that requires no configuration. With eight PoE (Power-over-Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant powered devices (PDs). In this situation, electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP cameras, or IP phones.
Power-over-Ethernet
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123W PoE power budget for the eight PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Keep Your Network Smooth and Safe

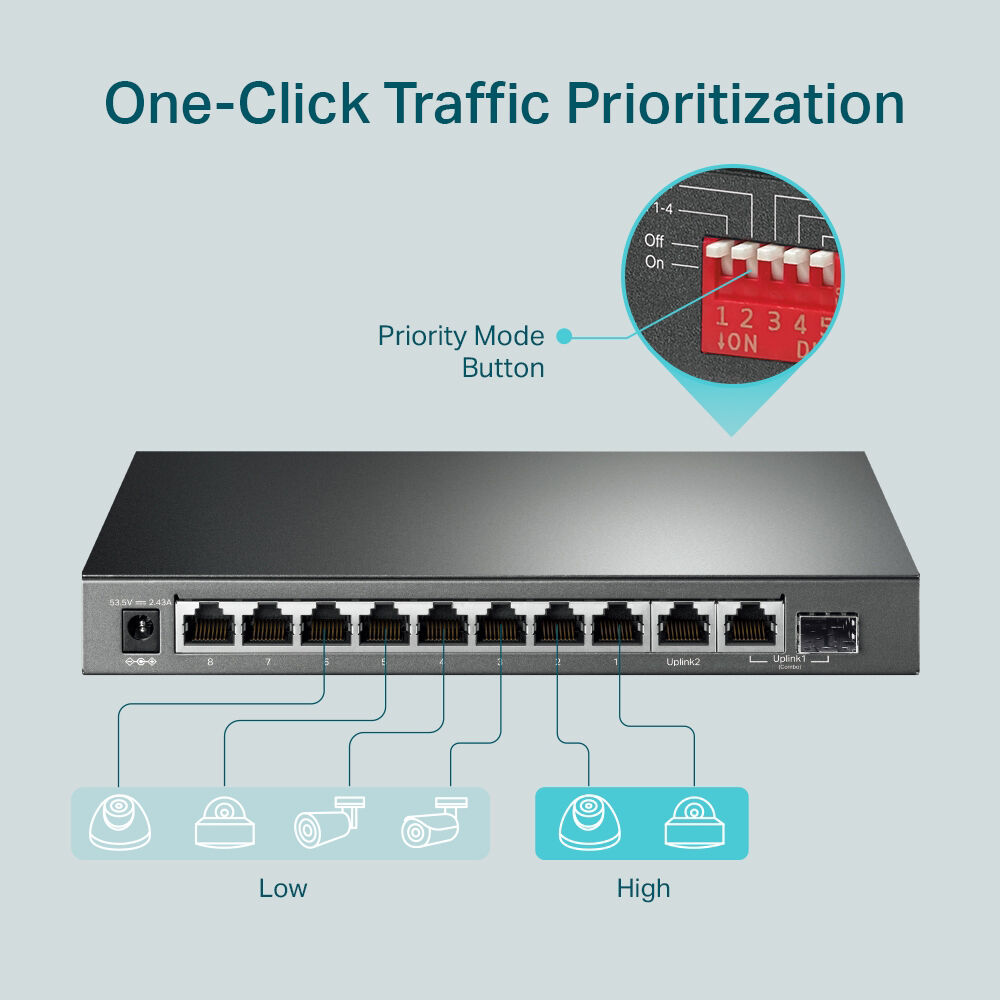

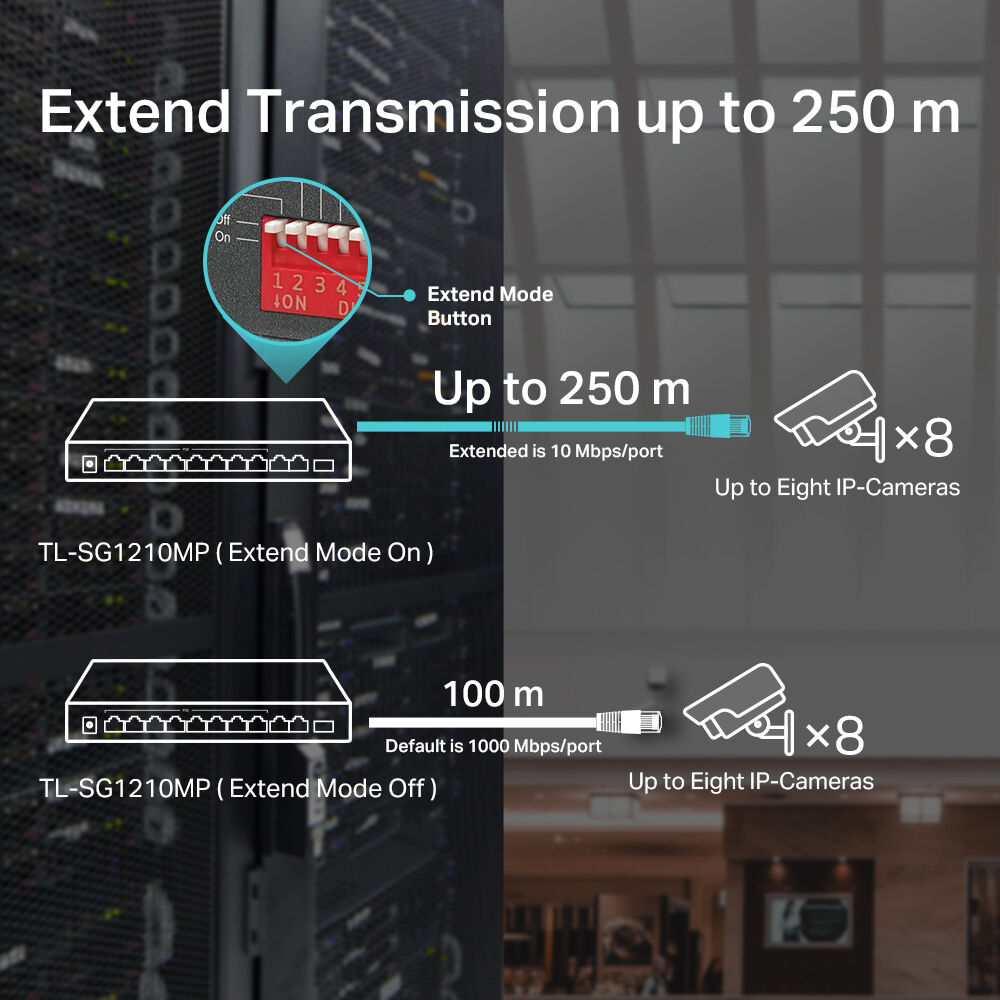

With extend mode, the PoE transmission distance reaches up to 820.21 feet� perfect for IP camera deployment in large areas. Guarantee the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2. Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
Durable Metal Casing
The interior components of TL-SG1210MP are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MP delivers switching performance you can depend on.
Intelligent Power Management
When total power consumption exceeds 123W, intelligent power management will cut the lower priority port power. This ensures the high-priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
UPC: 845973099534
In the Box

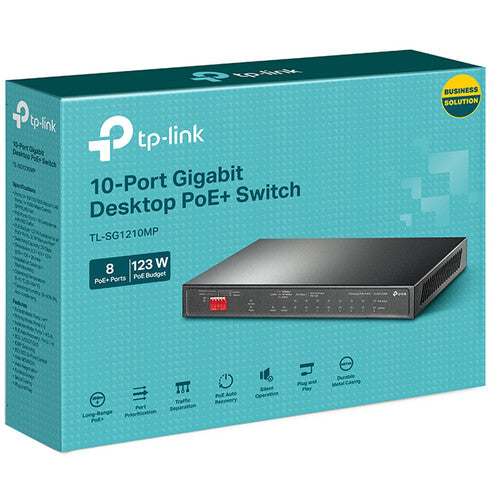

- TP-Link TL-SG1210MP 10-Port Gigabit PoE+ Compliant Unmanaged Network Switch
- Power Adapter
Table of Contents
- Description
- Power-over-Ethernet
- Keep Your Network Smooth and Safe
- System Self-Healing with PoE Auto Recovery
- Durable Metal Casing
- Intelligent Power Management
TP-Link TL-SG1210MP Specs
Interfaces

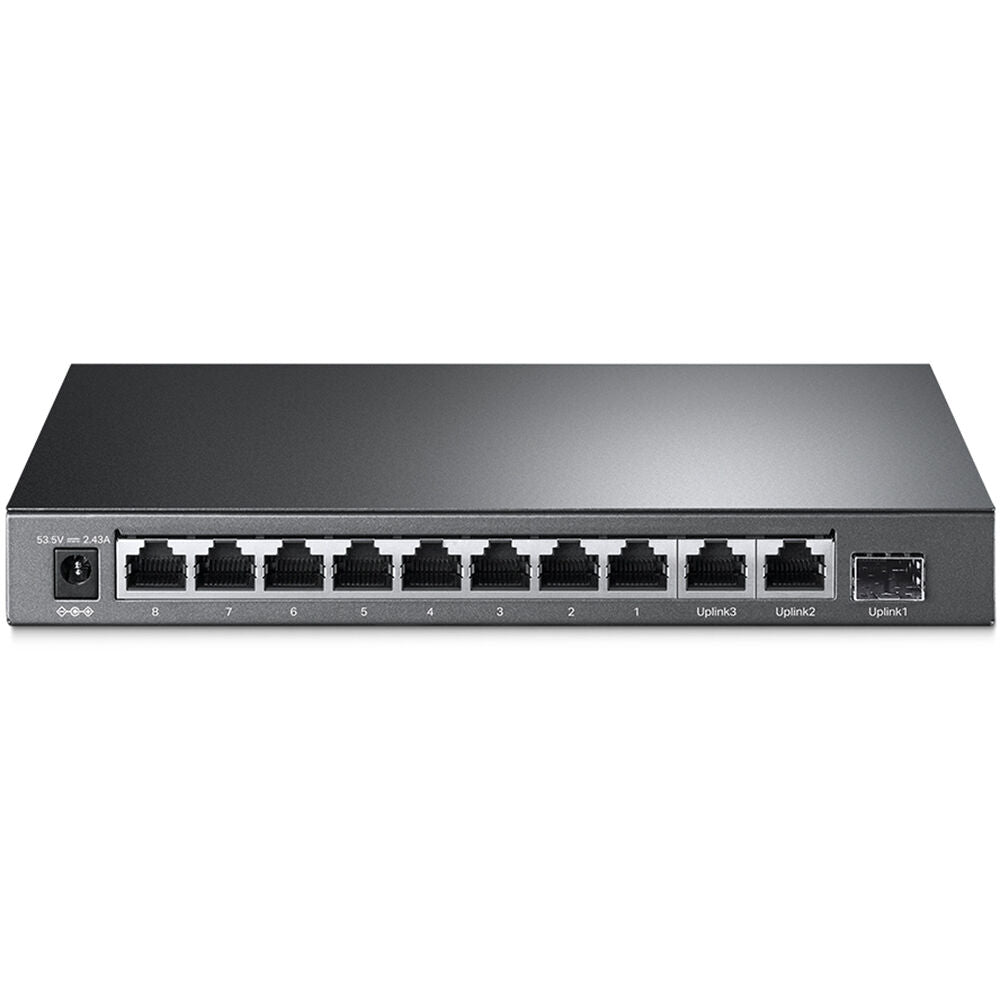

| Inputs/Outputs | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 1 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) |
Protocols
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDI |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 16,000 Bytes |
| MAC Address Table Size | 4K |
Standards
| Supported IEEE Standards | 802.3af, 802.3at, 802.3x |
Performance
| Forwarding Rate | 14.88 Mpps |
| Switching Bandwidth | 20 Gb/s |
Electrical
| Power Draw | 141.4 W (Max) |
| DC Input Power | 53.5 VDC at 2.43 A |
| PoE Power Budget | 123 W |
| PoE per Port | 30 W |
| Power Supply Type | External |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 95% |
General
| Cooling System | Passive |
| Material of Construction | Metal |
| Dimensions | 8.2 x 5 x 1" / 209 x 126 x 26 mm |
Packaging Info
| Package Weight | 3.435 lb |
| Box Dimensions (LxWxH) | 12.4 x 9.6 x 2.9" |
