Description
The TEN 5WI series from Tracopower are board mount, isolated single output DC to DC converters. These high performance DC to DC converter modules feature ultra wide input voltage range from 9VDC to 36VDC and 18VDC to 75VDC. TEN 5WI series comes in a shielded DIP-24 metal package with industry standard footprint. These DC to DC converters are approved by CSA, cUL/UL 60950-1, IEC/EN 60950-1 standards. Typical applications include battery operated equipment and distributed power architectures.
- 6W output power
- Ultra wide 4:1 input range
- Output voltage range from 3.3VDC to ±15VDC
- Output current range from ±200mA to 1200mA
- High efficiency up to 83%
- Excellent load and line regulation
- Indefinite short circuit protection
- I/O isolation of 1500VDC
- Built-in filter to meet EN 55022 class A, FCC, level A standards
- Extended operating temperature range from -40°C to 85°C
Applications
Industrial, Power Management, Communications & Networking, Sensing & Instrumentation
- :
- 5W
- :
- 9V
- :
- Through Hole
- :
- -
- :
- -
- :
- 31.8mm
- :
- 20.3mm
- :
- TEN 5WI Series
- :
- DIP
- :
- IEC, UL
- :
- -
- :
- 5V
- :
- -
- :
- 1 Output
- :
- Fixed
- :
- 36V
- :
- 1A
- :
- 10.2mm
Product details
| Output Power Max | 5W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 31.8mm |
| Width | 20.3mm |
| Product Range | TEN 5WI Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 1A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 5-2411WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |

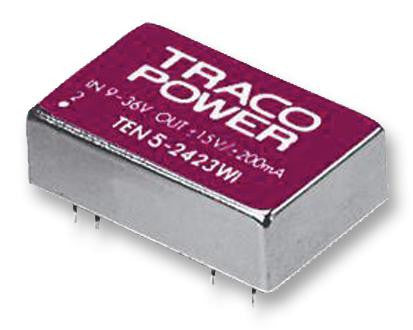

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
