The THL 20-4815WI from Tracopower is a THL 20WI series, 20W DC to DC converter. The THL 20WI series is the latest generation of DC to DC converter module with highest power density. The product achieves 20W output power while it comes in a metal case with dimensions of only 1.0" x 1.0" x 0.4". It has an ultra wide 4:1 input voltage range and precisely regulated output voltages. Highest efficiency of up to 90% makes this product very reliable and applicable in temperature ranges of up to +75°C or +85°C with optional mounted heat sink. Typical applications are in mobile equipments, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.
- Input voltage range from 18VDC to 75VDC (48VDC nominal)
- Output voltage is 24VDC
- Output current is 835mA
- Typical efficiency is 88%
- I/O isolation voltage is 1500VDC, maximum I/O isolation capacitance is 1500pF
- I/O isolation resistance is >1000Mohm at (500VDC)
- Input current at no load is 25mA typical, input current at full load is 470mA
- Switching frequency (fixed) is 330KHz typical
- Shielded metal case with isolated baseplate, remote on/off control
- UL/cUL 60950-1, IEC/EN 60950-1 safety standards
Applications
Industrial
Product details
| No. of Outputs |
1 Output |
| Output Power Max |
20W |
| Output Voltage - Output 1 |
24V |
| Output Current - Output 1 |
835mA |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Product Range |
THL 20WI Series |
| Input Voltage DC Min |
18V |
| Input Voltage DC Max |
75V |
| DC / DC Converter Output Type |
Fixed, Adjustable |
| DC / DC Converter Type |
DIP |
| DC / DC Converter Mounting |
Through Hole |
| Width |
25.4mm |
| Height |
10.2mm |
| Depth |
25.4mm |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
TRACOPOWER |
| Part Number |
THL 20-4815WI |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

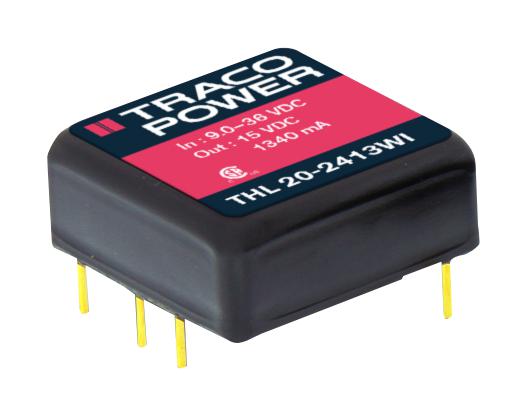

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
