Description

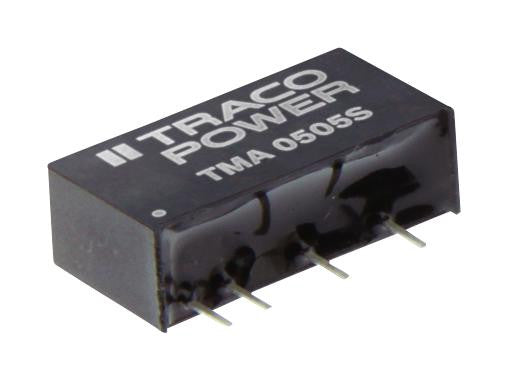

The TMA series single/dual-output 1W isolated miniature DC/DC Converter requiring only 1.2cm² board space it offers the ideal solution in many space critical applications for board level power distribution. The use of SMD-technology makes it possible to offer a product with high performance.
- Industry standard pin-out
- 1000VDC I/O isolation
- High efficiency up to 81%
- 100% Burn-in (8h)
Applications
Power Management, Industrial
- :
- 1W
- :
- 13.5V
- :
- Through Hole
- :
- -5V
- :
- 100mA
- :
- 19.5mm
- :
- 6.1mm
- :
- TMA Series
- :
- SIP
- :
- -
- :
- -
- :
- 5V
- :
- -
- :
- 2 Output
- :
- Fixed
- :
- 16.5V
- :
- 100mA
- :
- 10.2mm
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 13.5V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -5V |
| Output Current - Output 2 | 100mA |
| Depth | 19.5mm |
| Width | 6.1mm |
| Product Range | TMA Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 16.5V |
| Output Current - Output 1 | 100mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TMA 1505D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
