Description

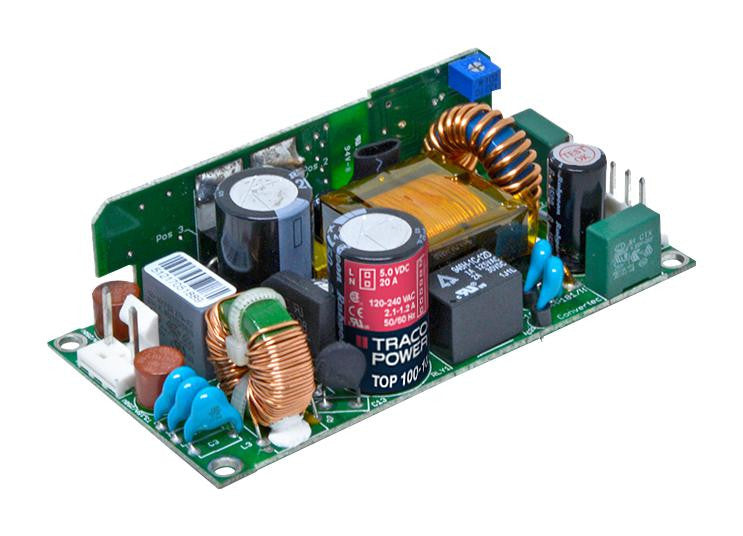

The TOP 100-112 is a 1-output 100W AC/DC Open Frame Power Supply with adjustable and fixed output. The new TOP-100 series AC/DC power supply features the highest power rating in the industry standard footprint. It can supply power with convection cooling over an industrial operating temperature range. This performance could be realized by a state of the art design providing an extremely high efficiency of >90% which eliminates the need for a dedicated power supply cooling fan. High reliability is provided by use of industrial quality grade components and an excellent thermal management. This product offers an interesting power supply solution for many applications. It offers with internal potentiometer output voltage adjustment and foldback short-circuit protection.
- Low leakage current
- Full load operation up to 50�C with convection cooling
- 90% Typical highest efficiency
- -25 to 70�C Operating temperature range
Applications
Power Management, Consumer Electronics, Commercial
Product details
| Power Supply Output Type | Adjustable, Fixed |
| Output Power Max | 100W |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Input Voltage AC Max | 264V |
| Input Voltage AC Min | 90V |
| Product Range | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| Output Current - Output 4 | - |
| No. of Outputs | 1 Output |
| Output Voltage - Output 4 | - |
| Output Current - Output 1 | 8.3A |
Other details
| Brand | TRACOPOWER |
| Part Number | TOP 100-112 |
| Quantity | Each |
| Technical Data Sheet EN |  |
