Description

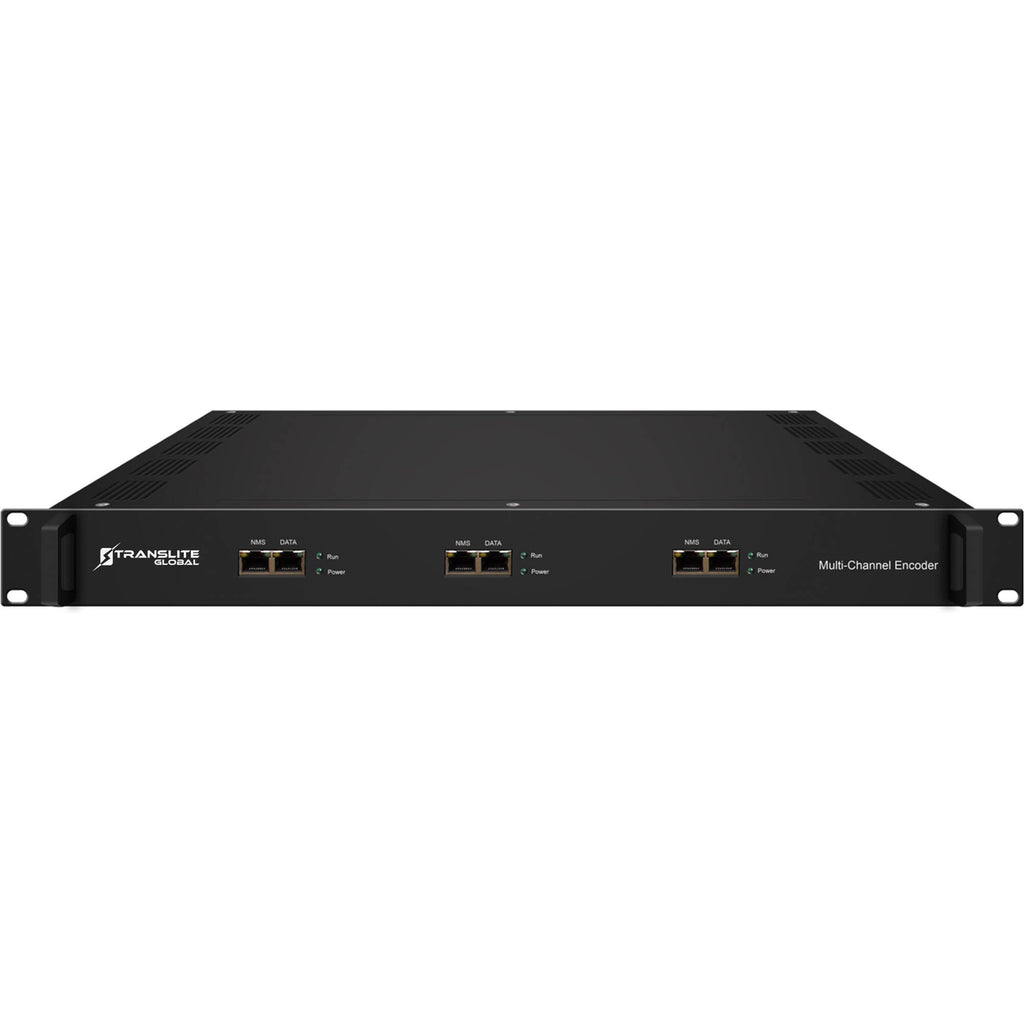

Translite Global TL-9228S-24 Overview
Encode and stream HDMI video for cable distribution and digital broadcasting using the 24-Channel HDMI H.264 Multichannel Encoder from Translite Global. This MPEG4 AVC/H.264 streaming encoder supports up to 1080p60 video input resolution and up to 1080p30 streaming output via UDP and RTP/RTSP. The 24 HDMI input ports share 3 encoder modules that support 3 multipoint and 24 single-point outputs. A power cord and 24 4.9' HDMI cables are included with the encoder.
HDMI Input

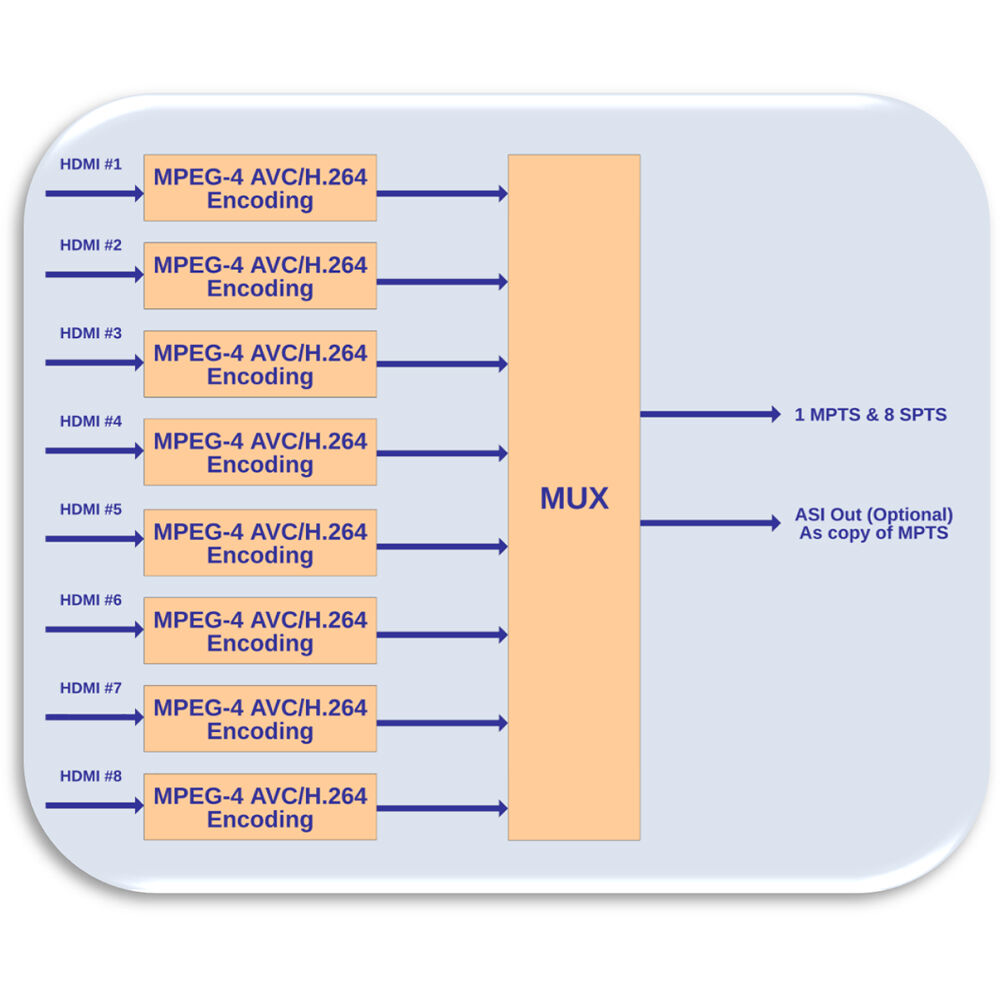

- The TL-9228S-24 encoder provides 24 HDMI inputs that share two encoder modules.
- The integrated modules support 3 multipoint and 24 single-point outputs.
Video Encoding
- This encoder uses the popular MPEG4 AVC/H.264 video encoding format.
Audio Encoding
- Audio encoding includes MPEG-1 Layer II, LC-AAC, and HE-AAC formats.
- Audio features include AC3 pass-through and gain adjustment.
IP Streaming
- IP streaming is output over UDP and RTP/RTSP protocols.
- Optional single ASI output as a mirror of the MPTS.
Customization
- This encoder supports QR codes, logos, and caption insertions for customizing your output.
Null Packet Filter Support
- Supports a filter function to remove unnecessary null packets while producing a steady stream.
Control Options
- Control and update the encoder via web management.
In the Box
- Translite Global 24-Channel HDMI H.264 Multichannel Encoder
- 24 x HDMI Cable (4.9')
- Power Cord
- Limited 1-Year Manufacturer Warranty
- Limited 5-Year Manufacturer Warranty (Support)
Additional Resources
Guides & Manuals
Translite Global TL-9228S-24Specs

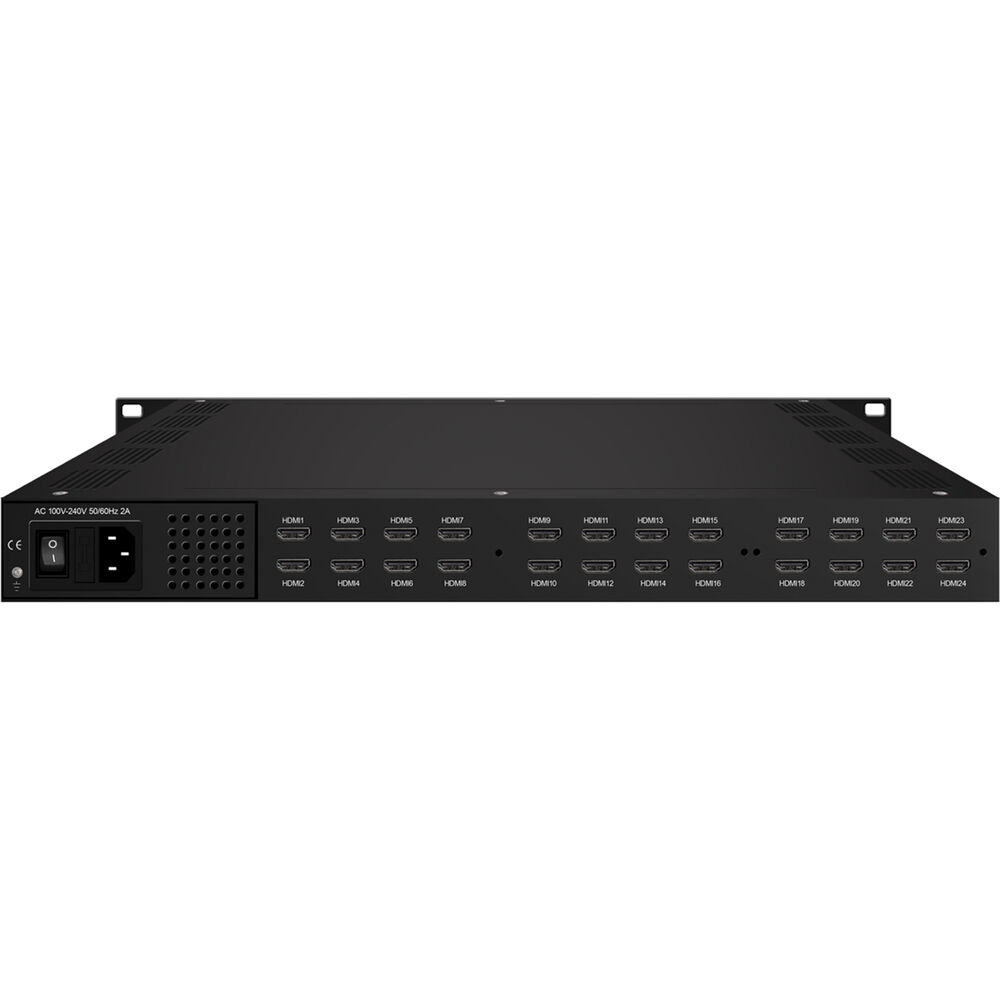

Inputs/Outputs
| Video Inputs |
24x HDMI Female
|
| Audio Inputs |
No
|
| Audio Outputs |
No
|
| Other I/O |
3x RJ45 LAN Input/Output
|
| Expansion Slots |
No
|
Format Support
| Input Video Format |
HDMI
1080p at 50/60 fps 1080i at 50/60 fps 720p at 50/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 60 fps |
| Embedded Audio |
HDMI Input
LAN (RJ45) Output |
Standards
| HDR Support |
No
|
IP Streaming
| Video IP Encoding |
H.264, RTP, RTSP, UDP: 1920 x 1080 at 25p, 30p (1 to 13 Mb/s)
H.264, RTP, RTSP, UDP: 1280 x 720 at 25p, 30p (1 to 13 Mb/s) H.264, RTP, RTSP, UDP: 720 x 576 at 25p (1 to 13 Mb/s) H.264, RTP, RTSP, UDP: 720 x 480 at 30p (1 to 13 Mb/s) |
| Audio IP Encoding |
AAC-LC, MPEG Layer 2: 24-Bit / 48 kHz (48.00 to 384.00 Kb/s)
AAC-HE: 24-Bit / 48 kHz (48.00 to 128.00 Kb/s) |
Hardware
| Tally Light |
Yes
|
| Wireless |
No
|
Power
| Power I/O |
1x IEC C14 (110 to 220 VAC ) Input
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Storage Temperature |
-4 to 176°F / -20 to 80°C
|
| Operating Humidity |
20 to 80%
|
General
| Dimensions |
19 x 15.7 x 1.7" / 482 x 400 x 44 mm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
