Description

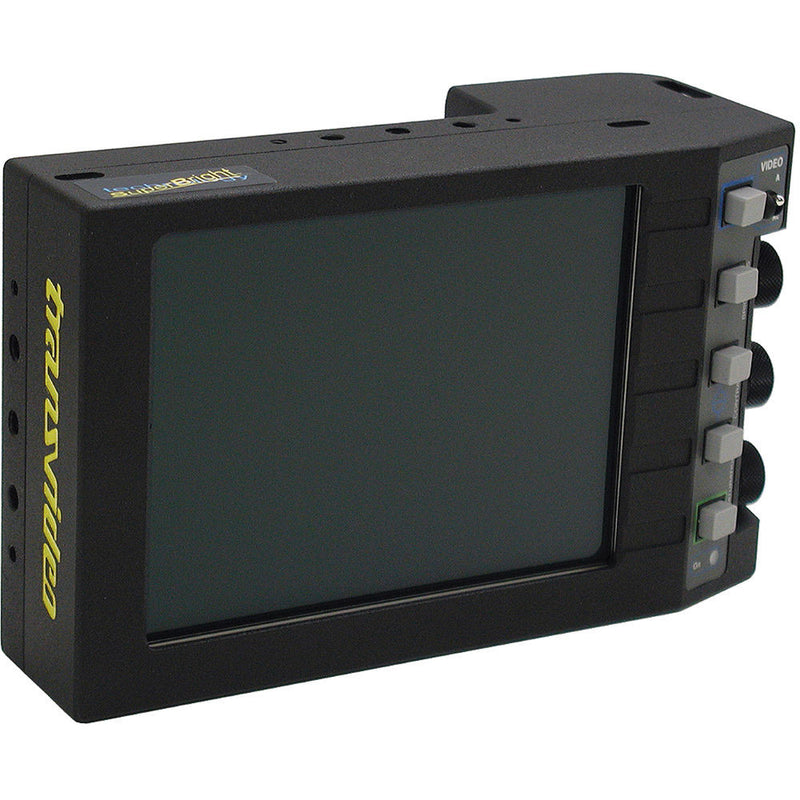

The 6" CineMonitorIIIa SuperBright Analog SD Field Monitor from Transvideo is switchable between 4:3, 16:9, and anamorphic 1:2.35 aspect ratios thanks to the built-in format converter. The 4:3 ratio with 16/9 extract lines and the 16:9 ratio with 14/9 lines help framing for most editing requirements. The field monitor offers three composite video in, a straight video out, and a processed video out. If the monitor is set in 16:9, the processed video out will be 16:9. This processed signal can be fed to other monitors, recorders, or transmitters. It also accepts the higher quality Y/C input available on Arriflex video-assists.
Highlights
- SuperBright technology offers 1200 nits brightness
NTSC, PAL, SECAM support
Switchable 4:3, 16:9, and anamorphic (1:2.35) aspect ratios
Robust construction
Multiple display modes and tools
Display Settings
- Display modes (color, B&W, green screen), aspect ratios (4:3, 16/9, anamorphic) and blue check
Brightness, contrast, saturation and (hue/tint in NTSC) adjustments are possible
Basic Features
- Image and monitor flips, user memories, fixed markers, lock function, full and under scan, and zoom in all standards and aspect ratios
Advanced Functions
- Advanced functions include sharpness to facilitate focus pulling; freeze-, replay-, & superimpose for frame matching and still frame reviewing; voltage monitoring
In the Box
Transvideo 6" CineMonitorIIIa SuperBright Analog SD Field Monitor
- Microfiber Cloth and Bag
- Pelican Case
- Limited 2-Year Warranty
| Screen Size | 6.0" (15.3 cm) |
| Video Standards | NTSC, PAL, SECAM |
| Input | 2 x CVBS, auto-terminated + 1 loop through (BNC) 1 x YC + Video in & out processed (Hirose10) |
| Nominal Input Level | 1 V / 75 ? composite & component Y 300 Vcc (burst level) component C |
| Contrast Ratio | 450:1 maximum |
| Viewing Angle | Horizontal: �70�, Vertical: +70/-50� |
| Brightness | >1200 nits |
| Power Input | 9 to 36 VDC, XLR4 connector (-1, +4) |
| Power Consumption | 13 W |
| Operating Temperature | -22 to 149�F (-30 to 65�C) |
| Storage Temperature | -40 to 176�F (-40 to 80�C) |
| Dimensions (L x H x D) | 7.16 x 4.41 x 2.75" (18.18 x 11.20 x 6.98 cm) |
| Weight | 2 lb (1 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.16 lb |
