Description
- HD/SD SDI, HDMI, Composite
- Waveform, Histogram, Vectorscope
- Focus Helper, Peaking, Zoom
- Markers, Aspect Ratios
- Display Adjustments
- Job Oriented User Interface

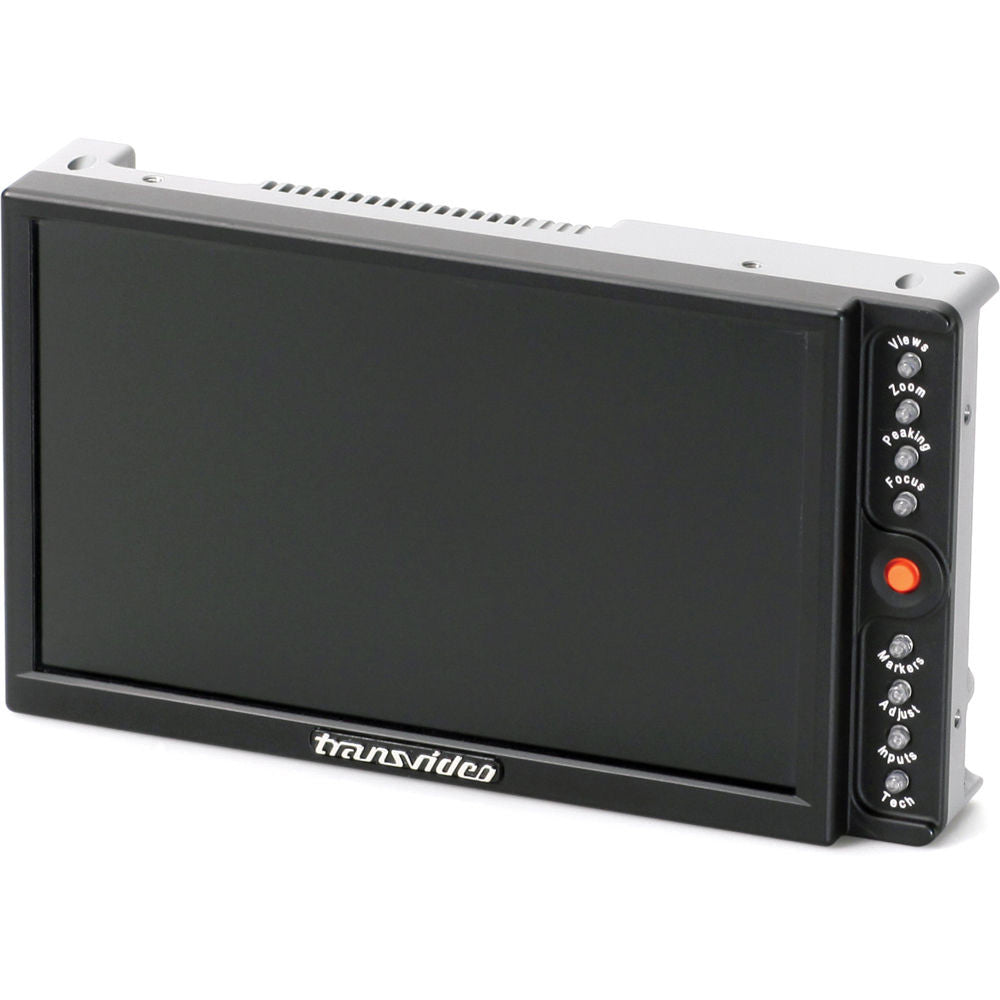

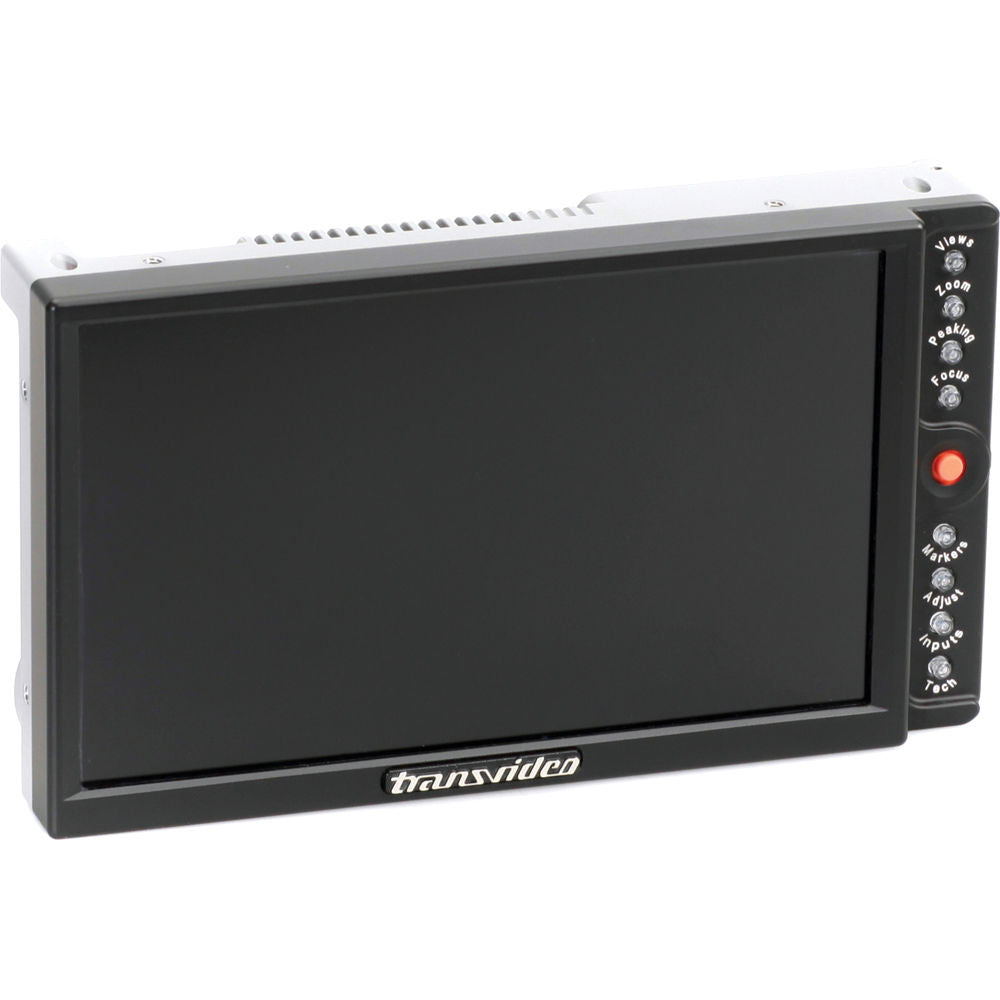

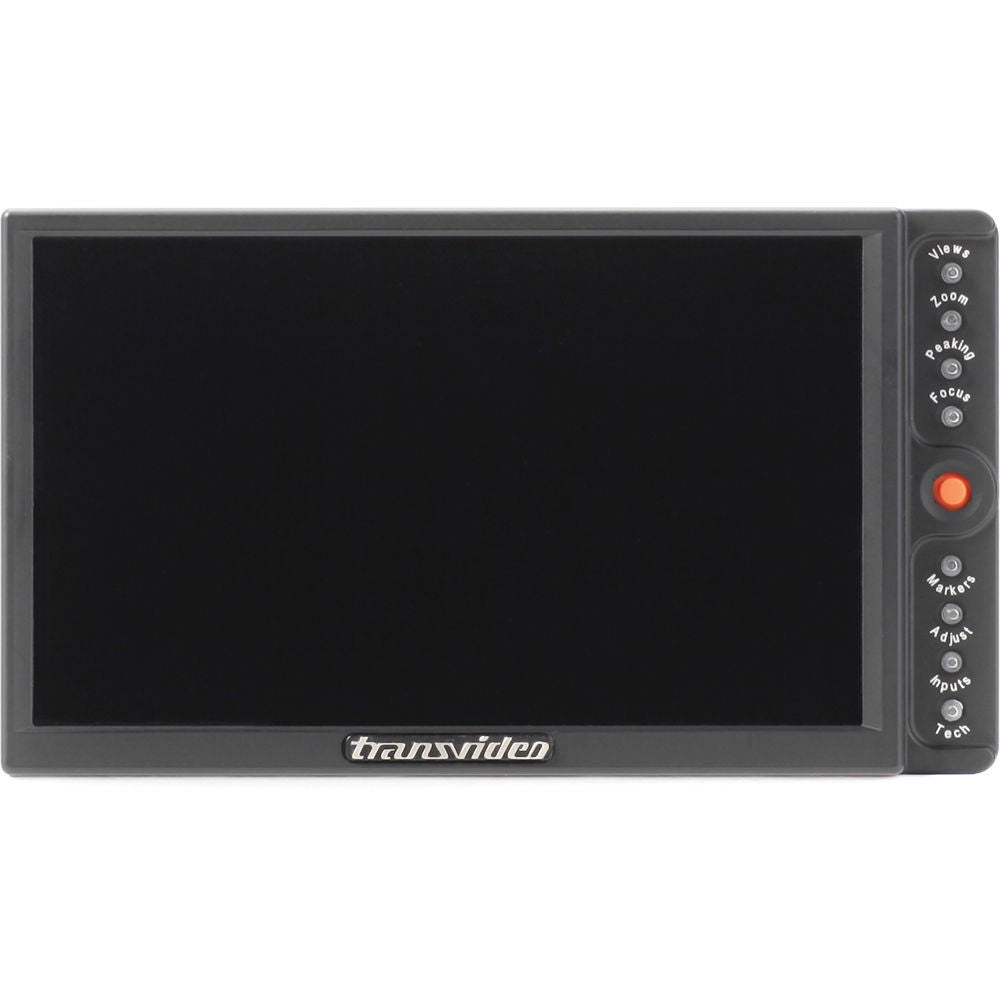

The Transvideo 7� RainbowHD7 On-Board Monitor is slim and rugged, with precision machined aluminum housing fully sealed (no holes, no noisy fans). It also features an anti reflective glass protecting the screen and high quality connectors.
A new concept has been introduced of working in the RainbowHD. Each job has its specific view, showing the image with a specific set of tools: no need to navigate in deep menus to find the right tools.
The screen measures 7� diagonal. The regular model features 450Nits, suggested for studios and interiors as well as low budget applications.
The RainbowHD7 includes Screen Protective Cover, Microfiber Cloth and Bag, 4.5GHz HDTV BNC Cable (1m), and Printed Documentation.
The 4.5GHz HDTV BNC Cable (1m) is a high performance 4.5GHz HDTV cable with certified HD BNC male connectors. Each cable is individually tested at 3GHz.

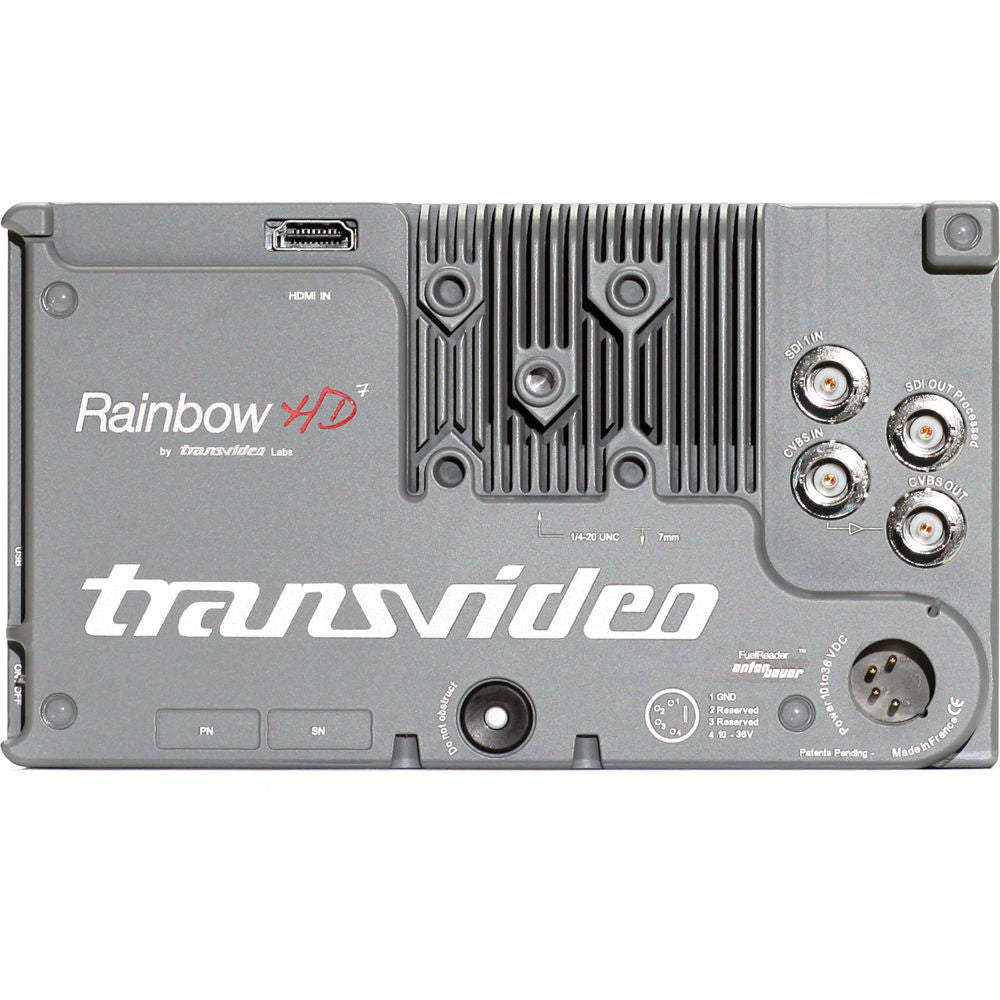

- Inputs / Outputs
-
- HD/SD SDI, HDMI, and composite
- HDMI to SDI converter
- Measurements
-
- Waveform, histogram, and vectorscope
- Display Adjust
-
- Factory color calibration preset D56/D65 - dimming
- Brightness, contrast, saturation, and hue
- Aspect ratios
- Tools
-
- Focus helper, peaking, zoom pixel to pixel
- Markers 1.33:1 & 1.56:1, safe area, crosshair
- Timecode reader, tally on SDI
- Battery / power informations
- Embedded audio monitoring
- Screen Protective Cover
- Microfiber Cloth & Bag
- 4.5 GHz 3G-SDI BNC to BNC Cable (3.3')
- Printed Documentation
- Limited 2-Year Warranty on Parts & Labor
| Video Input | 1 x HD/SD SDI 1 x HDMI 1 x CVBS |
| Video Output | 1 x HD/SD SDI (processed) 1 x CVBS (loop) |
| Supported Standards | 1080p / 1080i / 1080psf 480p / 576p / 720p SD SDI 525 / 625 NTSC (M, J, 443) / PAL (M, BG, N) / SECAM |
| Display Type | Size: AMLCD, 7.0" (177.8 mm) |
| Pixels | Picture zone 1024 x 560 |
| White Point Calibration | D65 ITU-R BT.709-5 & D56 |
| Color Space | Rec. ITU-R BT.709-5 |
| Contrast Ratio | 1000:1 (760:1 ANSI) |
| Brightness | Maximum: 450 Nits |
| Viewing Angle | Horizontal & Vertical: �80� |
| Power | 10 to 36 VDC through XLR4 or battery adapter (Anton-Bauer & V-mount) |
| Dimensions (W x H x D) | 7.5 x 4.1 x 14.0" (187.0 x 105.0 x 35.0 mm) |
| Weight | 23.2 oz (660.0 g) |
| Packaging Info | |
|---|---|
| Package Weight | 4.8 lb |
| Box Dimensions (LxWxH) | 10.4 x 9.4 x 4.7" |
