Description

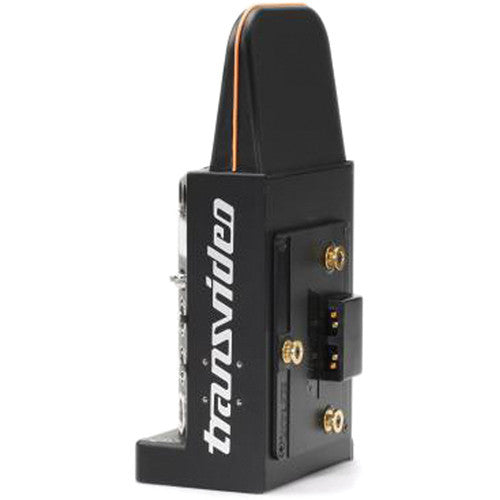

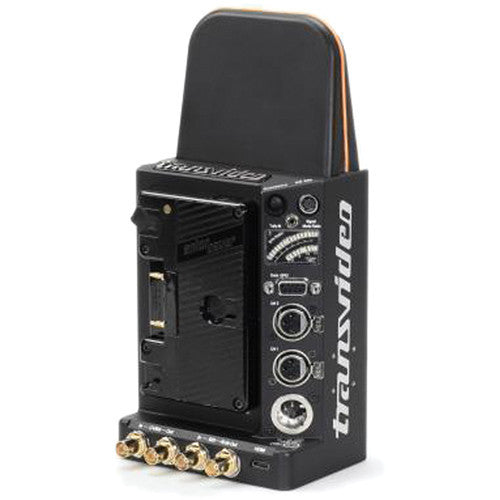

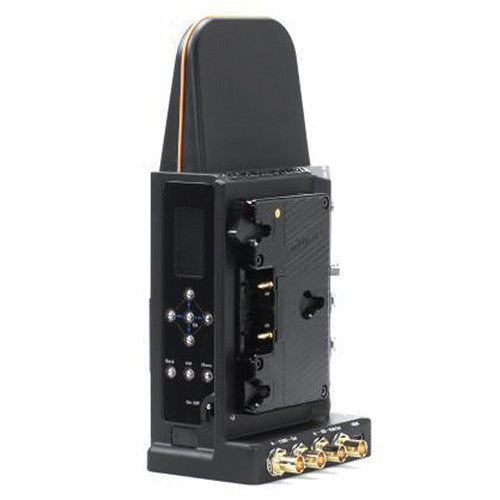

The TransVideo TitanHD Digital HD/SD Wireless Transmitter transmits signal without any loss in a normal environment. With latency below 5ms, it provides real-time SD/HD monitoring.
Based on a 5GHz ISM band COFDM MiMo wireless system, the TitanHD Transmitter carries RGB and YCrCb 10-bit signal (HD SDI and HDMI), as well as SD SDI and composite signals. It provides good signal strength and stability.
The Transmitter can be stacked between the camera and battery. It can be powered by an Anton Bauer battery (sold separately) or external DC. It works on the 5.8GHz ISM band that doesn't require a broadcast license.
- Digital HD/SD wireless transmitter
- The Transmitter can be stacked between the camera and the battery and is suitable for video-village, news, sport, digital-cinematography, and body-rigs. With latency below 5ms, the Transmitter transmits HD/SD SDI, composite, & HDMI signals using the 5.8GHz ISM band that doesn't require a broadcast license.
- Transmission Range
- The transmission range varies depending on the topology of the location; performance remains excellent within an open field line of sight test from 200.0' (60.9m). It can be reduced by walls or interferences with other systems.
- Audio & Metadata Transmission
- The TitanHD Transmitter allows audio transmission where 2 channels are embedded in the SDI signal or 2 analog balanced inputs. SDI-embedded Timecode and Tally transmission are possible in place of one audio channel (if anyone is embedded in the SDI). Several other possibilities are available to remotely control basic functions (Tally and GPIO).
- Link
- The selection of a channel can be manual or automatic. In P2P mode, the link is possible only between one receiver and one transmitter. In Broadcast mode, up to 6 receivers can be linked to a single transmitter, but data transmission from receiver to transmitter (S/N ratio, GPIO) is not possible.
- Compliance
- This transmitter complies with part 15C of the FCC rules and the procedures issued by Industry Canada
In the Box
Transvideo TitanHD Digital HD/SD Wireless Transmitter (Anton Bauer Battery Compatible)
- USB Adapter for Software Updates
- Limited 2-Year Warranty
| Input/Output | 1 x HD/SD SDI + 1 Rclk out (BNC) 1 x CVBS + Loop (BNC) 1 x mini HDMI in |
| Transmission | 5 GHz ISM band COFDM MiMo |
| Modes | P2P: 1 Tx to 1 Rx Broadcast: 1 Tx to 6 Rx |
| Channels | 10 for USA & Canada models |
| Power | XLR4 connector (-1, +4) - with galvanic insulation |
| Standards | HD SDI (SMPTE 292M): 1280 x 720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M) 1280 x 720p @ 50, 59.94, 60 Hz (SMPTE 296M) 1920 x 1080i @ 50, 59.94, 60 Hz (SMPTE 274M) 1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M) 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M) SD SDI (SMPTE 259M-C): 720 x 487i @ 60 Hz (SD SDI 525 - SMPTE 125M) 720 x 576i @ 50 Hz (SD SDI 625 - ITU-R BT.601) CVBS: NTSC-M, NTSC-J, NTSC 4.43 PAL B/G H I D, PAL M, PAL N SECAM HDMI: 720 x 480i @ 59.94, 60 Hz 720 x 576i @ 50 Hz 1280 x 720p @ 50, 59.94, 60 Hz 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 25, 29.97, 30 Hz 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz |
| Power Consumption | 10 to 36 VDC/22 W |
| Operating Temperature | -4 to 135�F (-20 to 55�C) |
| Storage Temperature | -40 to 176�F (-40 to 80�C) |
| Weight | 2.42 lb (1.09 kg) |
