Description

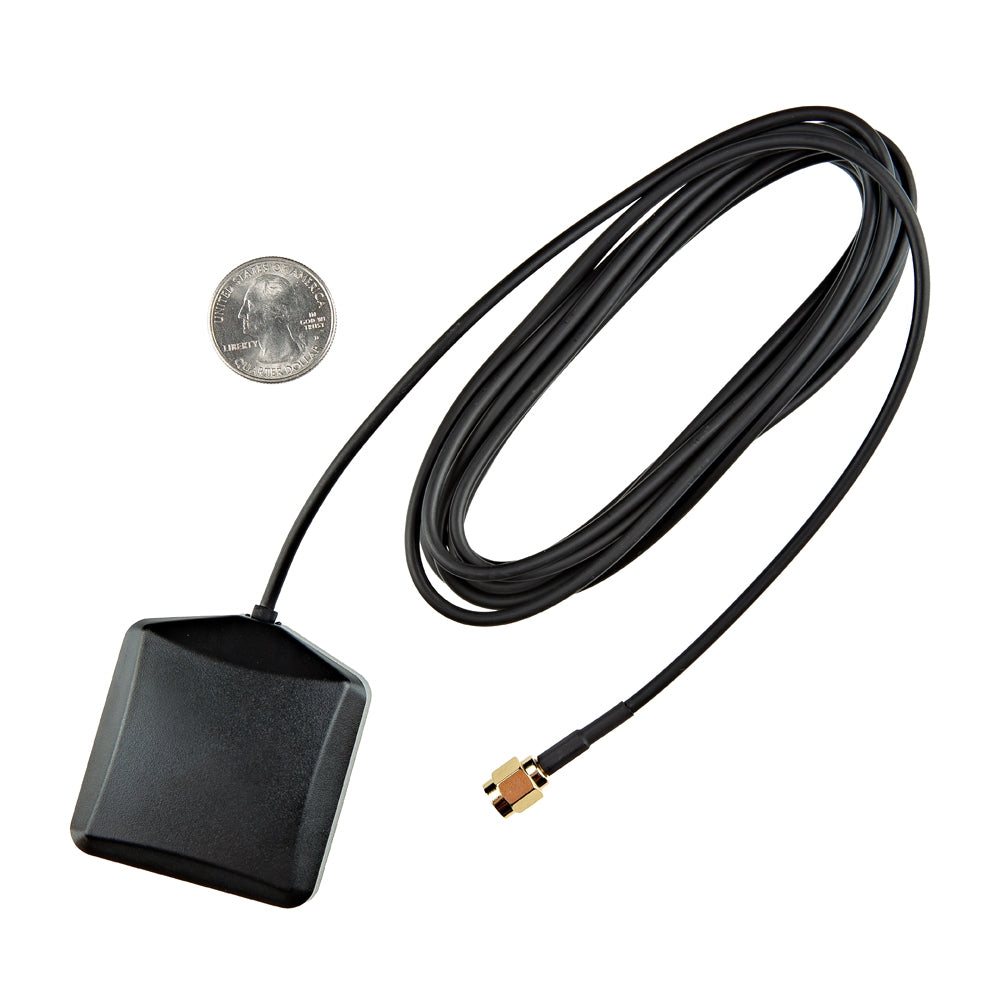

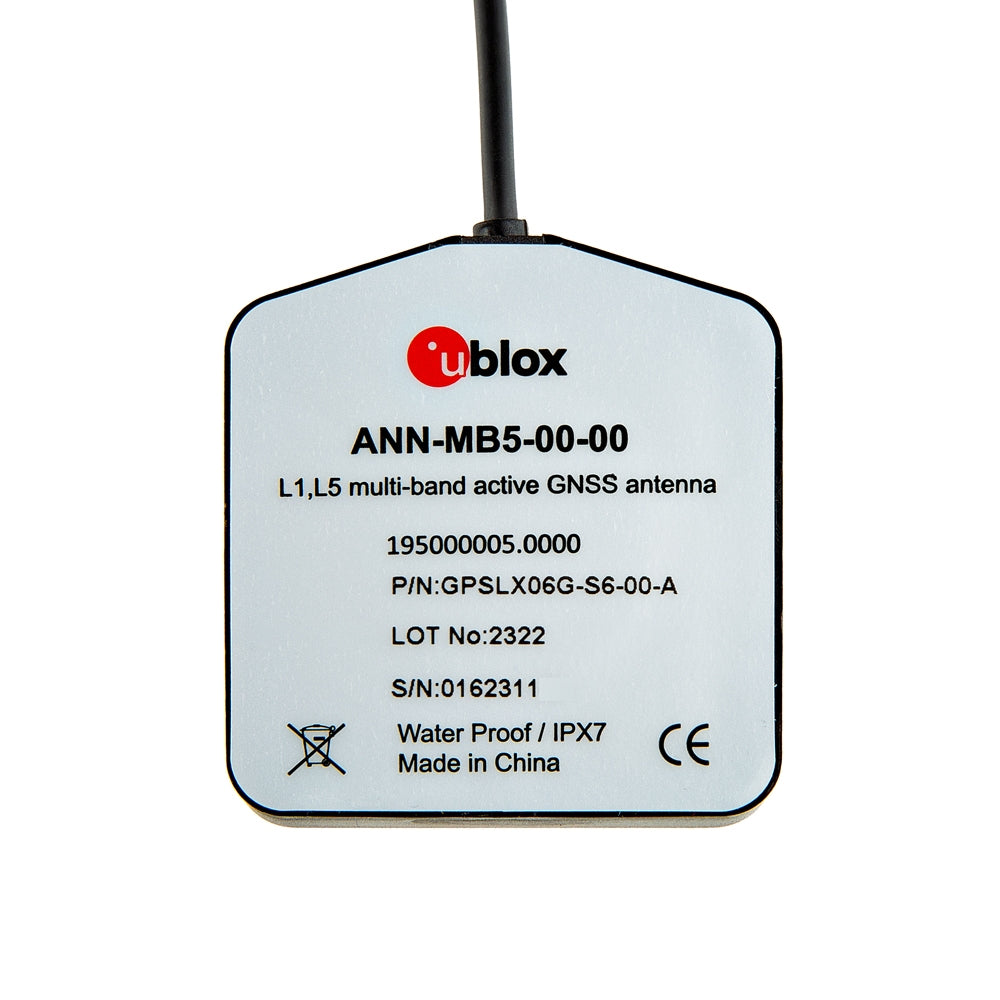

ANN-MB5 is a perfect match to the u-blox L1/L5 multi-band meter-level GNSS technology (e.g., F10 standard precision platform).
Features & Specs
- Weight: 103.8g (including cable)
- Dimensions: 49.1 x 46.1 x 15.9mm
- Cable Length: 3m, RG174 standard

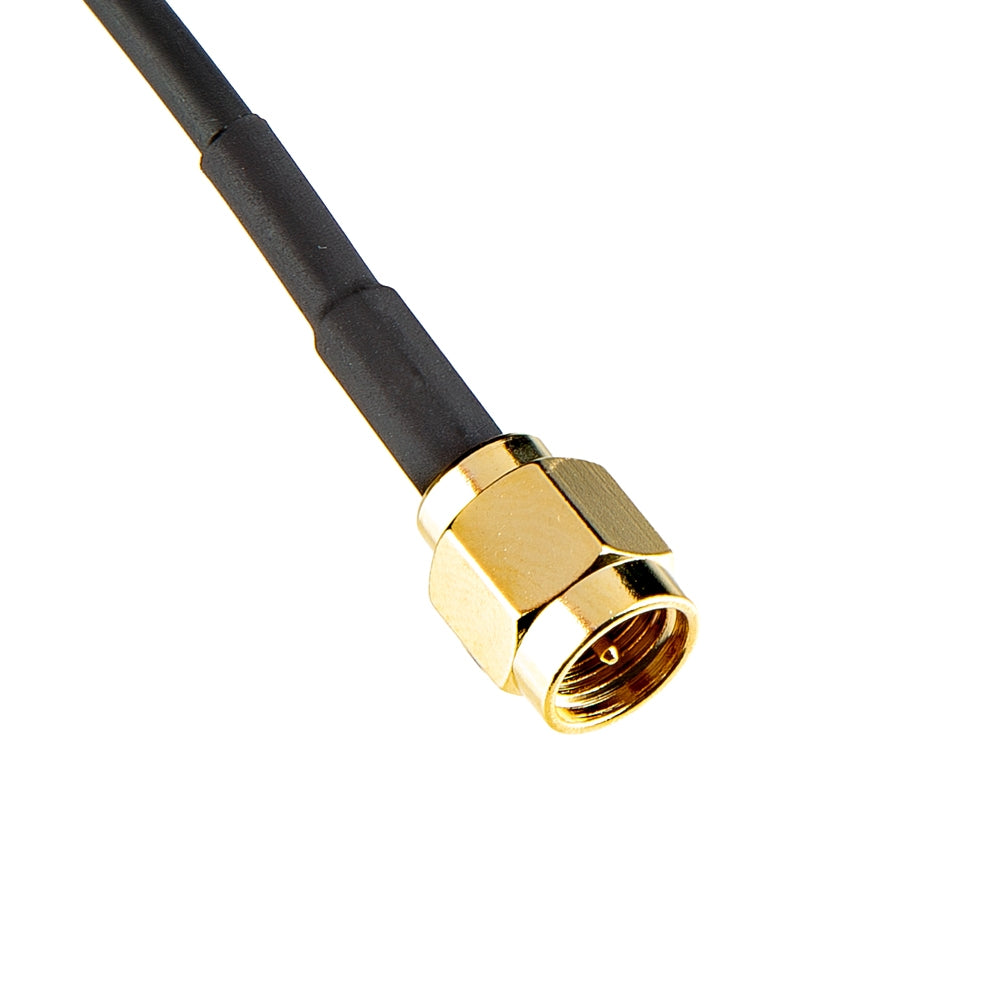

- Connector: SMA
- Mounting: Magnetic Base
- Frequency:
- L1 band: 1559-1608MHz
- L5/E5a/B2a/NavIC band: 1164-1186MHz
- VSWR: Max.2
- Impedance: 50 Ohm
- Peak Gain (over 12cm diameter ground plane):
- L1 band: 4.5dBic
- L5/E5a/B2a/NavIC band: 4.0dBic
- Polarization: RHCP
Features & Specs
- Weight: 103.8g (including cable)
- Dimensions: 49.1 x 46.1 x 15.9mm
- Cable Length: 3m, RG174 standard
- Connector: SMA
- Mounting: Magnetic Base
- Frequency:
- L1 band: 1559-1608MHz
- L5/E5a/B2a/NavIC band: 1164-1186MHz
- VSWR: Max.2
- Impedance: 50 Ohm
- Peak Gain (over 12cm diameter ground plane):
- L1 band: 4.5dBic
- L5/E5a/B2a/NavIC band: 4.0dBic
- Polarization: RHCP
