Description

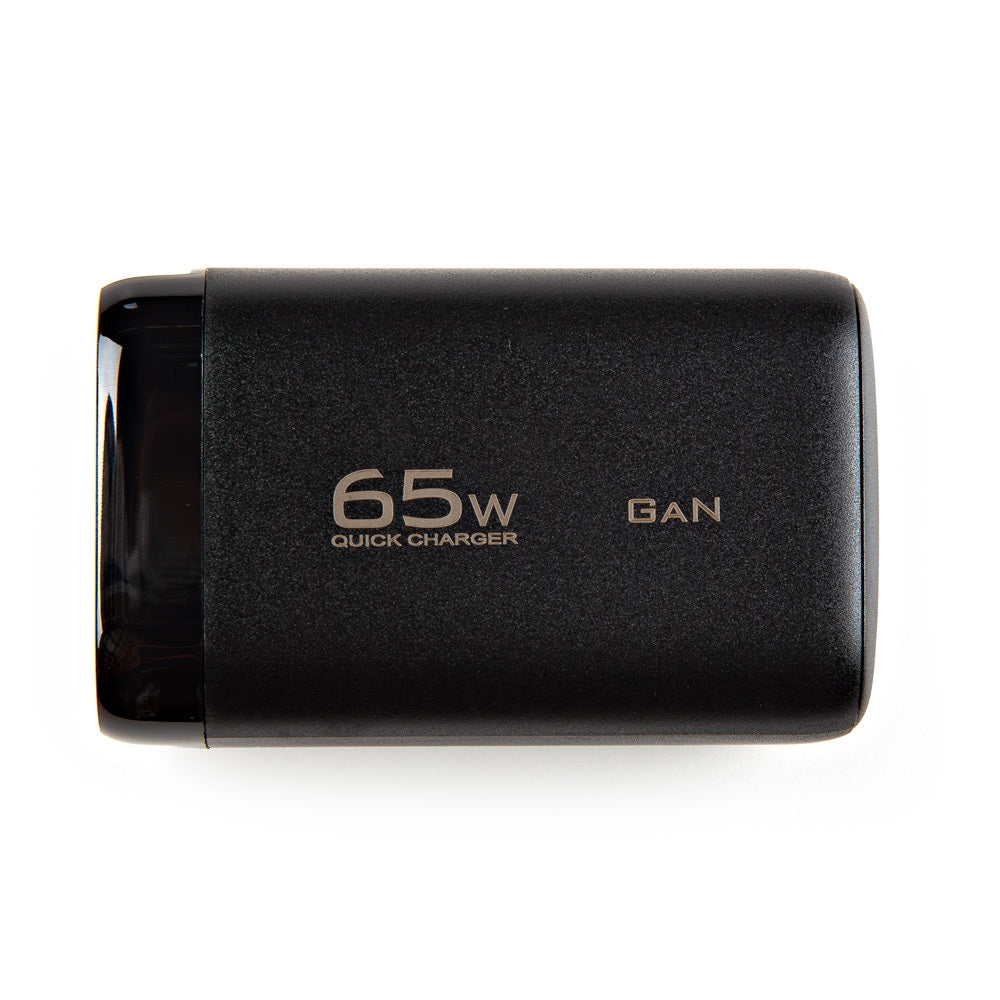

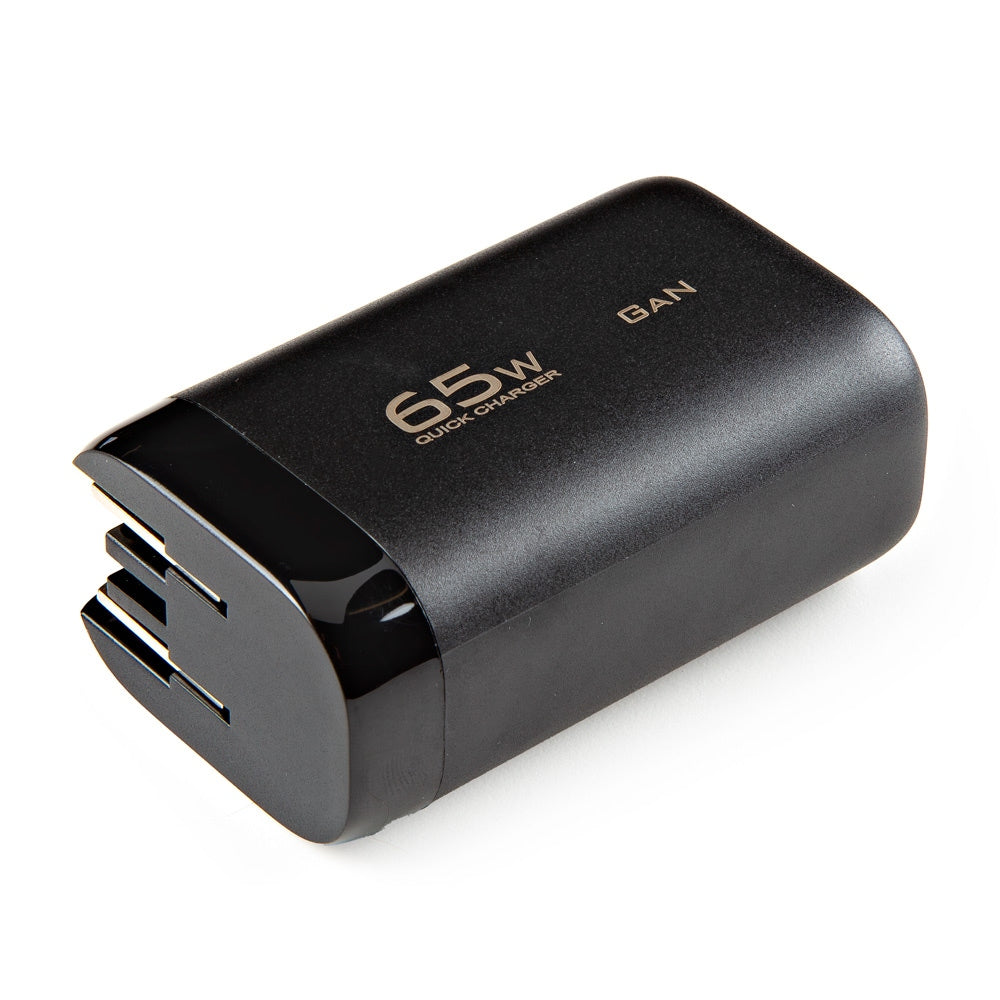

This 65W USB-PD wall adapter features two USB-C ports and one USB-A port, providing the high-power output required for the PD Stepper, laptops, and other heavy-duty USB devices.
Features & Specs
- Voltage: 100-240VAC
- Line Frequency: 50~60Hz
- Current: 1.5A Max
- Line Regulation: ±5% (typical)
- Ripple: 200mV p-p (Max)
- Turn On Delay Time: 3S (Max)
- Rise Time: 40mS (Max)
- Hold-Up Time: 5mS (Max)
- Standby Power: 0.1W

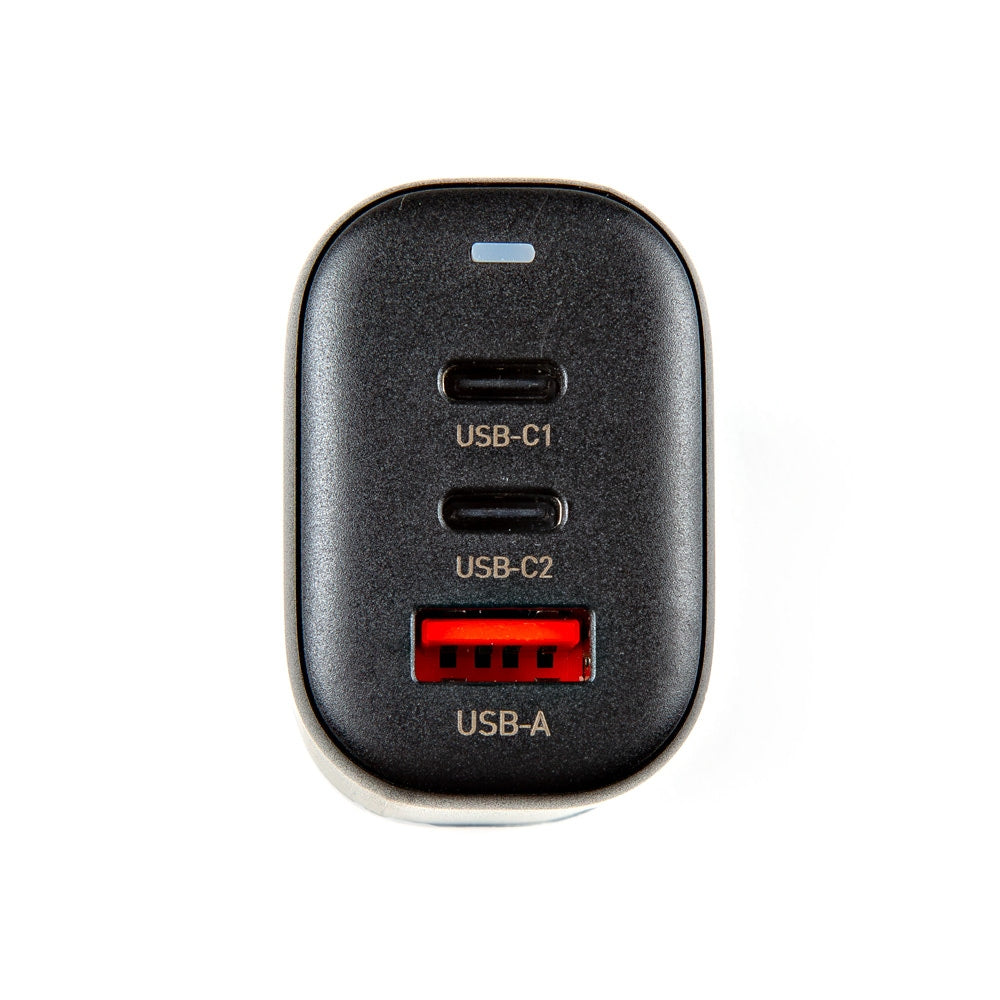

- DC Output Plug: USB Type-C x2 +USB-A
- Single Port Working:
- USB C1/C2 output (65W Max)
- USB A output (30W Max)
- Two Ports Working:
- USB C1+C2 output (45W+20W)
- USB C1+A output (45W+18W)
- Three Ports Working:
- USB C1+C2+A output (65W Max)
- Topology: Switching Flyback
- Dielectric Withstand: 3000VAC Primary-Secondary
- Leakage Current: 0.25mA
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Relative Humidity: Operating: 10%(0℃)~90%(40℃)RH 72Hrs,Full load, Normal operating
- Cooling: Natural Convection Cooling
Features & Specs
- Voltage: 100-240VAC
- Line Frequency: 50~60Hz
- Current: 1.5A Max
- Line Regulation: ±5% (typical)
- Ripple: 200mV p-p (Max)
- Turn On Delay Time: 3S (Max)
- Rise Time: 40mS (Max)
- Hold-Up Time: 5mS (Max)
- Standby Power: 0.1W
- DC Output Plug: USB Type-C x2 +USB-A
- Single Port Working:
- USB C1/C2 output (65W Max)
- USB A output (30W Max)
- Two Ports Working:
- USB C1+C2 output (45W+20W)
- USB C1+A output (45W+18W)
- Three Ports Working:
- USB C1+C2+A output (65W Max)
- Topology: Switching Flyback
- Dielectric Withstand: 3000VAC Primary-Secondary
- Leakage Current: 0.25mA
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Relative Humidity: Operating: 10%(0℃)~90%(40℃)RH 72Hrs,Full load, Normal operating
- Cooling: Natural Convection Cooling
