- Expanded I/O Capabilities

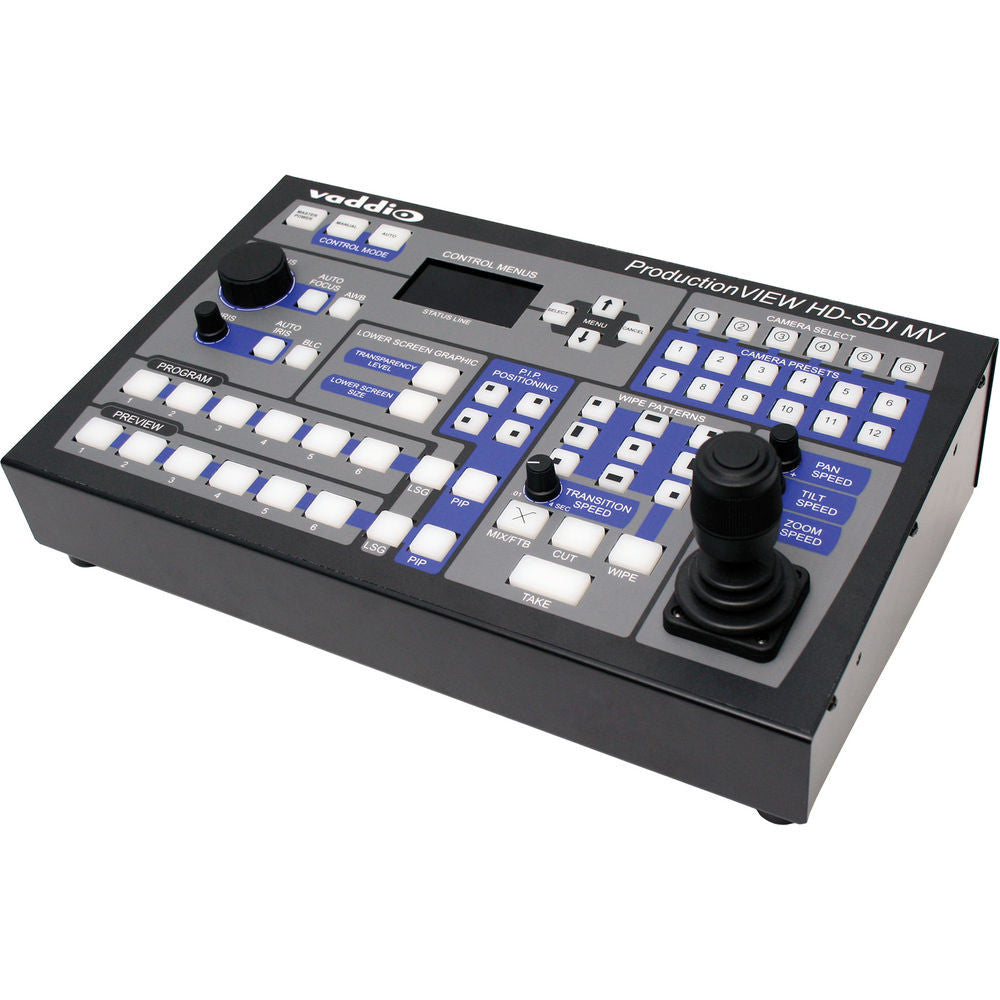

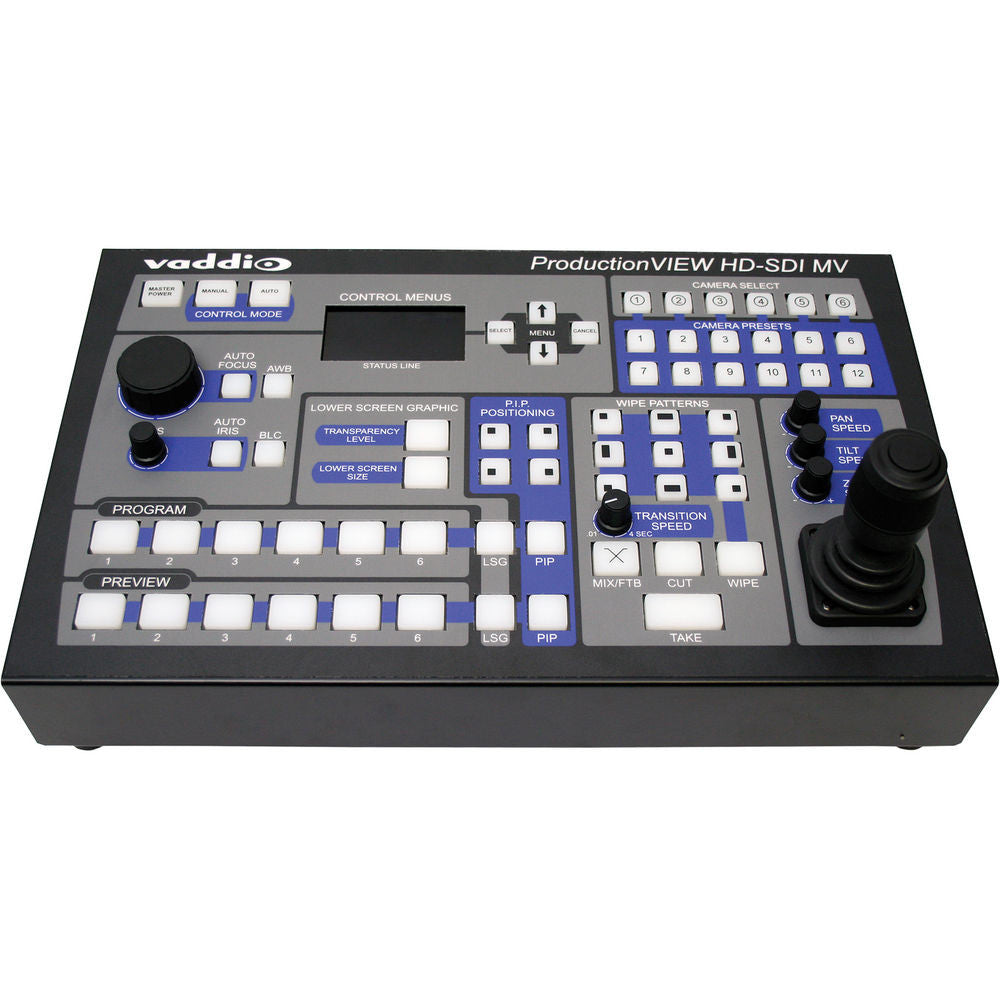

The Vaddio ProductionVIEW HD-SDI Camera Control Console with Built-in Multiviewer is live broadcast production console with HD-SDI/SDI video switching / mixing, a built-in multiviewer, lower screen graphics, and automated control functionality.
It is a seamless broadcast production switcher with integrated camera controller and multiviewer for live presentation environments. Adding the Vaddio TeleTouch Multiviewer Touch Screen Control Monitor (sold separately) provides live video switching with the touch of your finger.
This ProductionVIEW HD-SDI Camera Control Console is a broadcast quality 6 x 2 multi-format, seamless video mixer that also provides 2 discrete outputs for dual bus program feeds (2 independent 6 x 1 switchers / mixers). This system produces only 1 frame of delay which is a critical requirement for live production where image magnification is used.

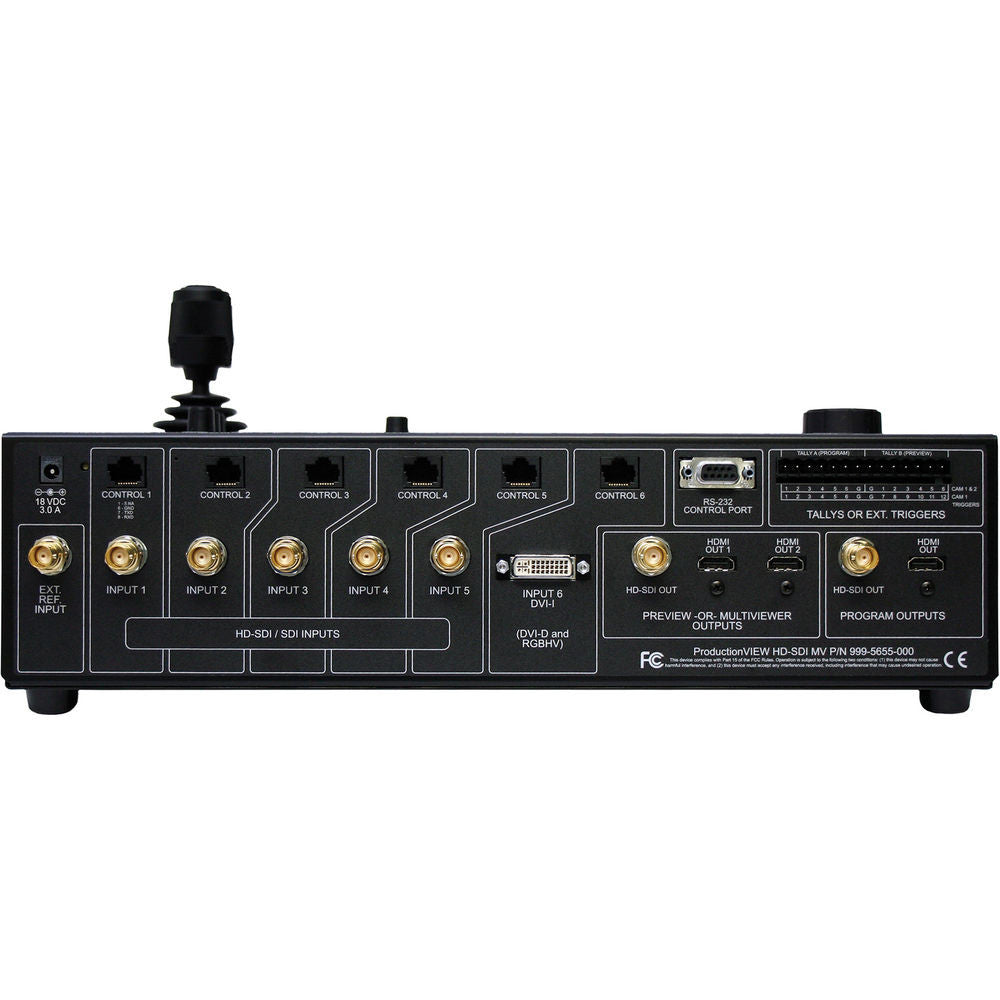

All 6 inputs are auto-sensing for video resolution, control and camera type. Video inputs include 5 HD-SDI/SDI (480i to 1080p) inputs on carrier class, edge mount gold contact BNC-F connectors and a single DVI-I input on channel 6 that allows for multiple formats (DVI-D, YPbPr, RGBHV and HDMI) with thirty-six additional input resolutions. Input signals include the 3 Gb/s HD-SDI standard (SMPTE 424M) on a single coax (single link), as well as SMPTE 292M and SMPTE 259M. Between the HD-SDI and HDMI outputs, a total of twenty video output resolutions are selectable. The HD-SDI and HDMI outputs provide a distinct advantage when choosing a set of inexpensive monitors or using the Vaddio TeleTouch Touch Screen Control Monitor (sold separately).

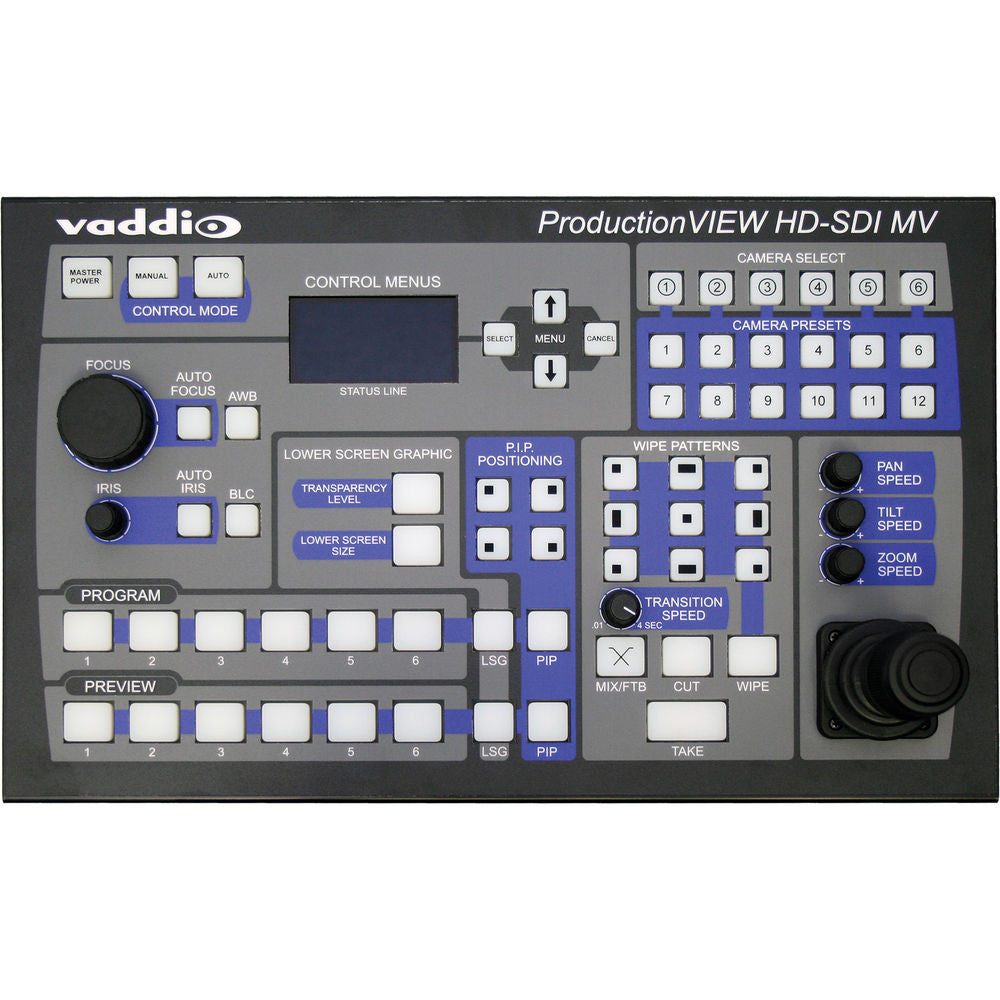

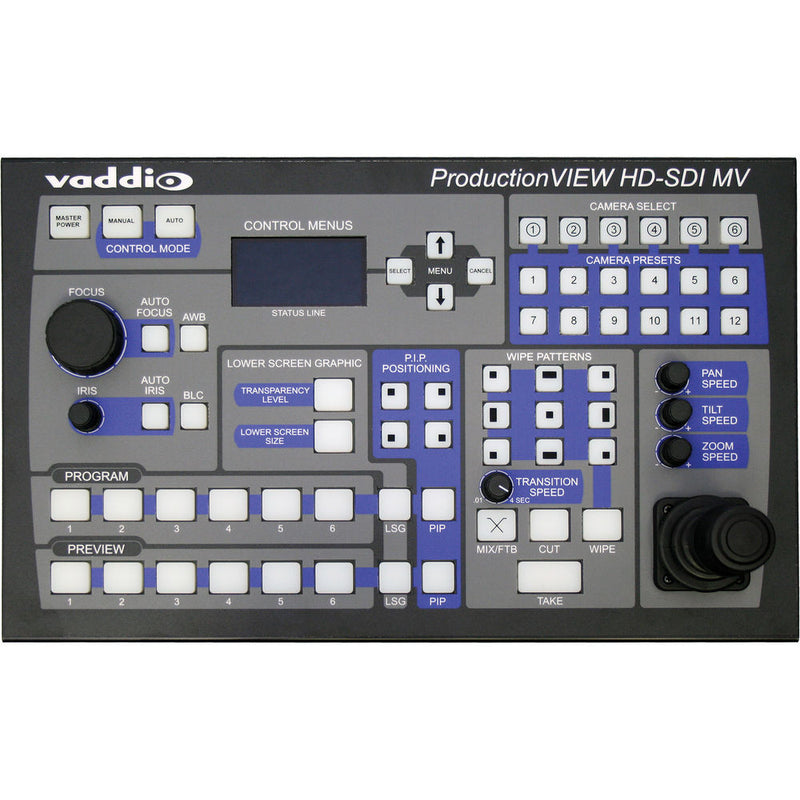

The control surface includes a broadcast style 3-Axis/1-Button Hall Effect Joystick with twist-handle zoom control as well as separate pan, tilt and speed control knobs. Transitions (cut, dissolve, wipe) and transition speed can be achieved through user-selectable buttons built into the control surface. A new LSG (Lower Screen Graphic) function allows users to overlay their computer graphics onto the program video output.
The ProductionVIEW HD-SDI Camera Control Console is the suitable HD switcher and camera control system for a wide variety of video applications, including houses of worship, local government and any live event production.
- 3-Axis/1-Button Hall-Effect Joystick
- The improved Hall-Effect Joystick includes a larger handle for better grip and a top button that moves the PTZ camera to its home position when pressed.
- Lower Screen Graphic
- Users can overlay their computer graphics onto the program video output. A variety of sizes and transparency levels are available through buttons on the console.
- Six Auto-Configuring RS-232 PTZ Control Ports
- ProductionVIEW HD-SDI MV has 6 discrete PTZ control ports that eliminate the need to daisy chain control cabling. This controller is capable of auto-sensing each camera attached including Vaddio, Sony, Panasonic, and Canon (see manual for complete camera compatibility list).
In the Box
Vaddio ProductionVIEW HD-SDI Camera Control Console with Built-in Multiviewer
- 18VDC PowerRite Power Supply with AC Power Cord
- Lower Screen Graphic Quick-Start Demo CD
- Limited 2-Year Warranty on Parts & Labor
| Compatible With | Vaddio, Panasonic and Sony PTZ Cameras (cameras require optional SDI card) |
| Video Switcher | 6 x input
2 x output
2 x independent 6 x 1 switchers in dual mode |
| Transitions | Crossfade Video
9-wipe options and straight cuts, fade to black with a selectable transition time of 0.01 to 4.00 sec |
| Video Inputs | 5 x HD-SDI/SDI inputs on BNC connectors
1 x DVI-I input (DVI-D, RGBHV, YPbPr, HDMI (DVI1.0 and HDMI 1.3 compliant receiver) |
| Outputs | Preview or Multiviewer: 1 x preview output BNC-F for HD-SDI or SDI
2 x preview or multiviewer outputs (HDMI) |
| Program Output | 1 x program output BNC-F for HD-SDI or SDI
1 x program output (HDMI) Transitions only appear on the program outputs |
| External Reference | 1 x BNC-F Input for external reference (sync) |
| Ports | Camera Control: 6 x RS-232 on RJ-45-F |
| Control Interface | 1 x RS-232 on DE-9-F (DB-9-F) |
| Display | 8-line backlit LCD display (menu) |
| Power Requirements | PowerRite 18 VDC, 2.78 A |
| Inputs | Control Inputs for Auto Mode (Input 1 & 2): Cameras 1 & 2 have 6 presets each or camera 1 can have 12 presets (select between trigger inputs for camera presets or tally outputs) |
| Tally Output | Tally outputs for each of the 6 video inputs (select between trigger inputs for camera presets or tally outputs) |
| Dimensions (W x D x H) | 16.00 x 10.00 x 4.00" (40.64 x 25.40 x 10.16 cm) |
| Weight | Approximately 9.50 lb (4.32 kg) |
| Packaging Info |
| Package Weight | 13.25 lb |
| Box Dimensions (LxWxH) | 19.4 x 13.3 x 11.2" |
