Description
Vaxis Atom 600 HDMI Overview
By Photo's
Bruno Derlin
The

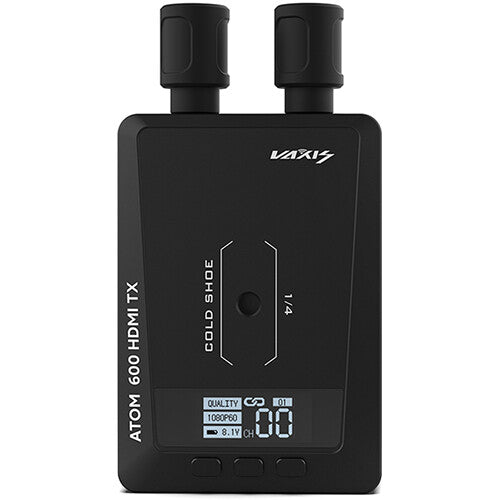

ATOM 600 HDMI Wireless Video Transmitter from
Vaxis enables visually lossless video transmission with less than 80 ms latency. The powerful line-of-sight signal can transmit to 600' while multicasting to up to four mobile devices via Wi-Fi for monitoring, using the dedicated Vaxis app. The transmitter features a bright OLED display and a cooling fan that can be turned on and off to prevent undesirable noise during production. It accepts L-series batteries, and a USB-C connector provides connectivity for firmware updates and may also be used as a 5V/2A power output. A single transmitter can connect to two receivers and up to three mobile devices simultaneously.
The integrated dual cavs antenna with 2.4 and 5.8 GHz frequency support provides a stronger signal and faster transfer rates with ultra-low latency. Compatible with all Atom ecosystem devices, the unit features multiple ports and Trigger Record functionality.
Supports 1080p Wireless Video up to 600'
The flexibility of handling wireless video at up to 600' distances allows camera operators to move freely and create highly dynamic shooting angles while always ensuring a stable and reliable signal.
Real-Time Monitoring to up to Four Devices
Multicast support ensures real-time video monitoring via Wi-Fi to up to four devices with a low, less than 80ms latency.
Resolutions up to 1080p60
Whether you're shooting in a studio setting or if you're always on the go, you can reliably count on capturing high-definition images at up to 1080p60 with 100% video and audio sync.
Power and Cooling
The unit powers using optional L-series batteries, and it features an integrated, adjustable cooling fan.
Items Included
- Vaxis ATOM 600 HDMI Wireless Video Transmitter
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year
Not Included
- Essential Receivers
Additional Resources
Vaxis Atom 600 HDMI Specs
Key Specs
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI/Wireless
|
| Latency |
< 80 ms
|
| Video Format |
HDMI
1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Battery Type |
1x L-Series
|
| Power Consumption |
5 W
|
| Mounting |
Not Specified by Manufacturer
|
Inputs/Outputs
| Antenna I/O |
2x F-Type
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI/Wireless
|
| Audio I/O |
No
|
| Power I/O |
1x USB-C (5 VDC) Input
|
Wireless
| Wireless Range |
600' / 182.9 m (Line-of-Sight)
|
| # of Channels |
13
|
| Frequency Range |
US: 5.8 GHz
US: 2.4 GHz |
| Latency |
< 80 ms
|
| RF Power |
17 dBm
|
| RF Sensitivity |
-80 dBm
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Cellular Support |
No
|
Format Support
| Video Format |
HDMI
1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Wireless Video Compression |
Compressed
|
| Timecode Support |
No
|
Power
| Input Power |
5 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
5 W
|
Mounting
| Mounting |
Not Specified by Manufacturer
|
General
| Status Display |
OLED
|
| Environmental Resistance |
No
|
| Dimensions |
3.6 x 2.5 x 1" / 91 x 63.5 x 26 mm
|
| Weight |
5.29 oz / 150.00 g
|
Packaging Info
| Package Weight |
0.545 lb
|
| Box Dimensions (LxWxH) |
6.4 x 3.9 x 1.6"
|
