Description
- Convert Existing Coax Cables to Ethernet
- High-Speed Network Connection
- No Configuration / Setup Required
- Sensed on Connection
- No MAC / IP Address Required
- Auto-Optimizes for 75 ohm Coax Cables
- Long Connection Range
- Universal Power Input

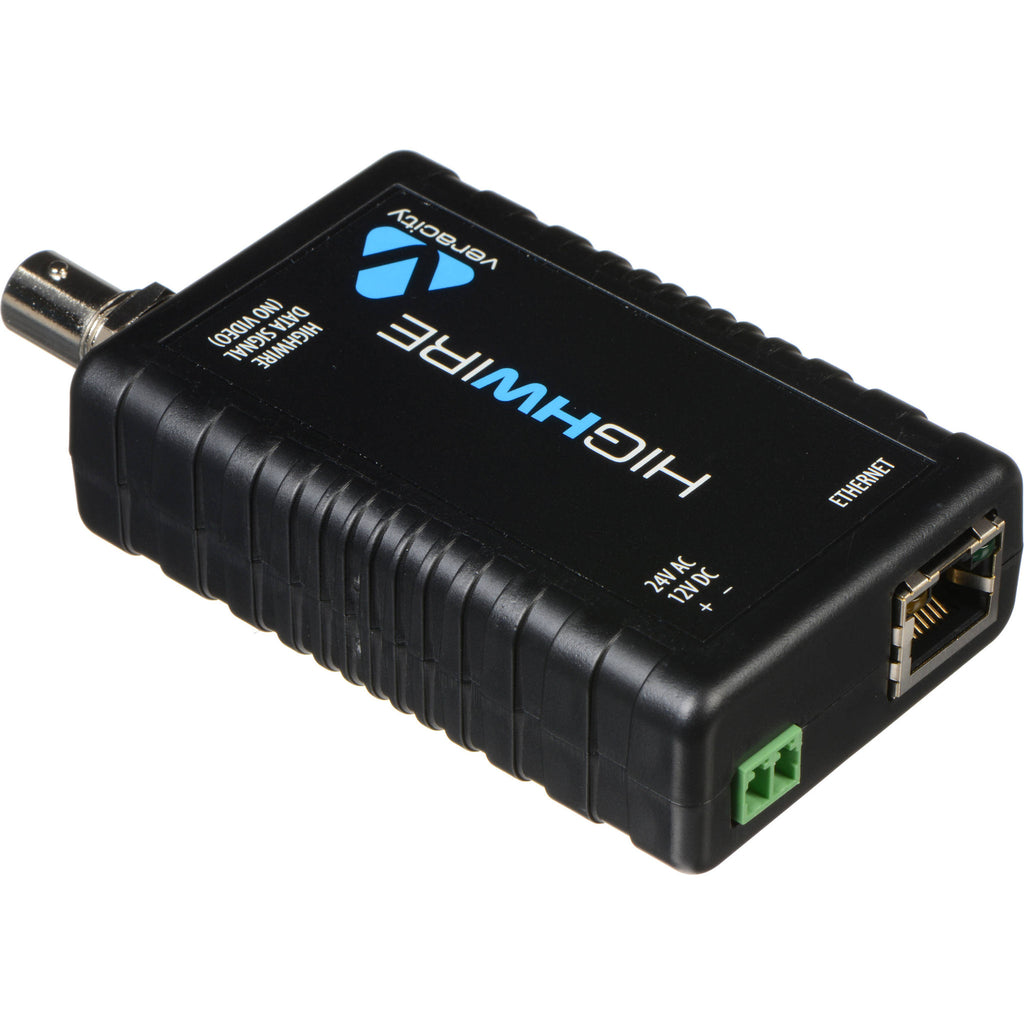

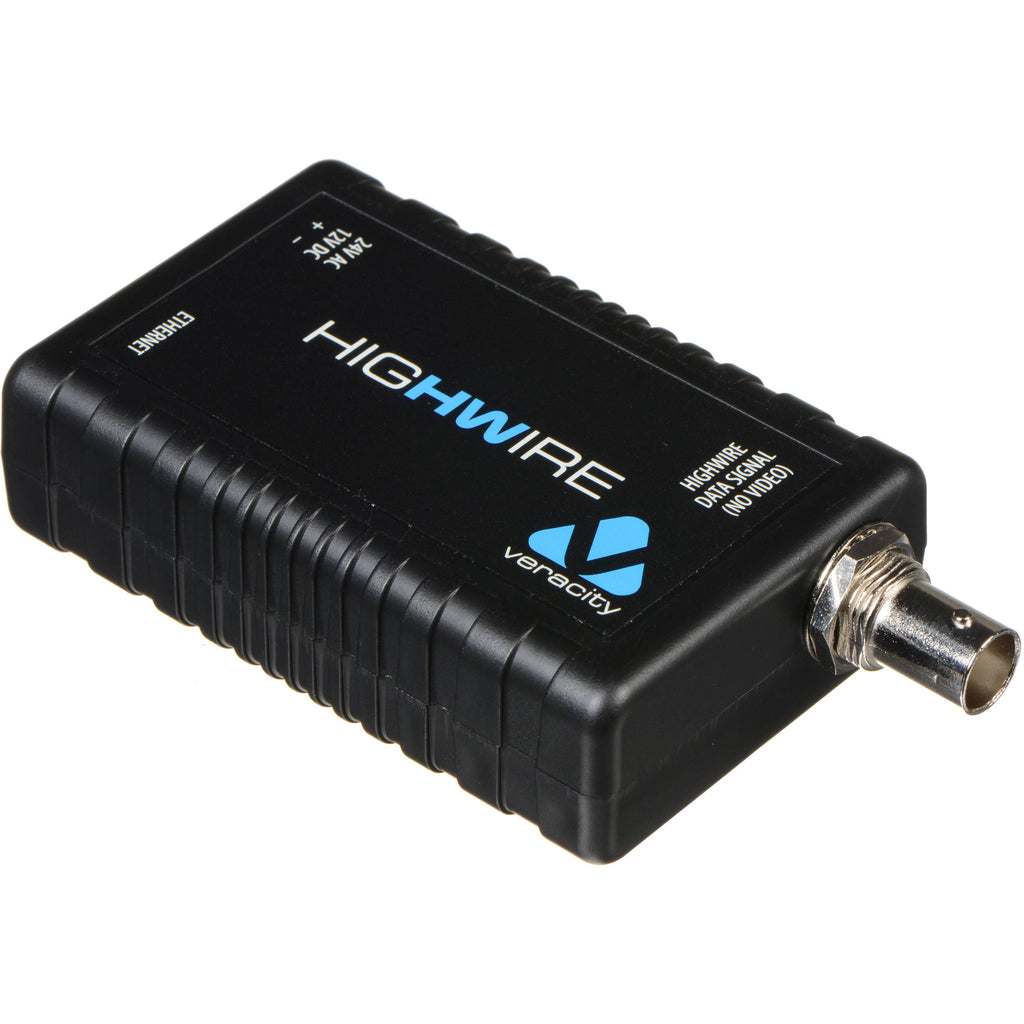

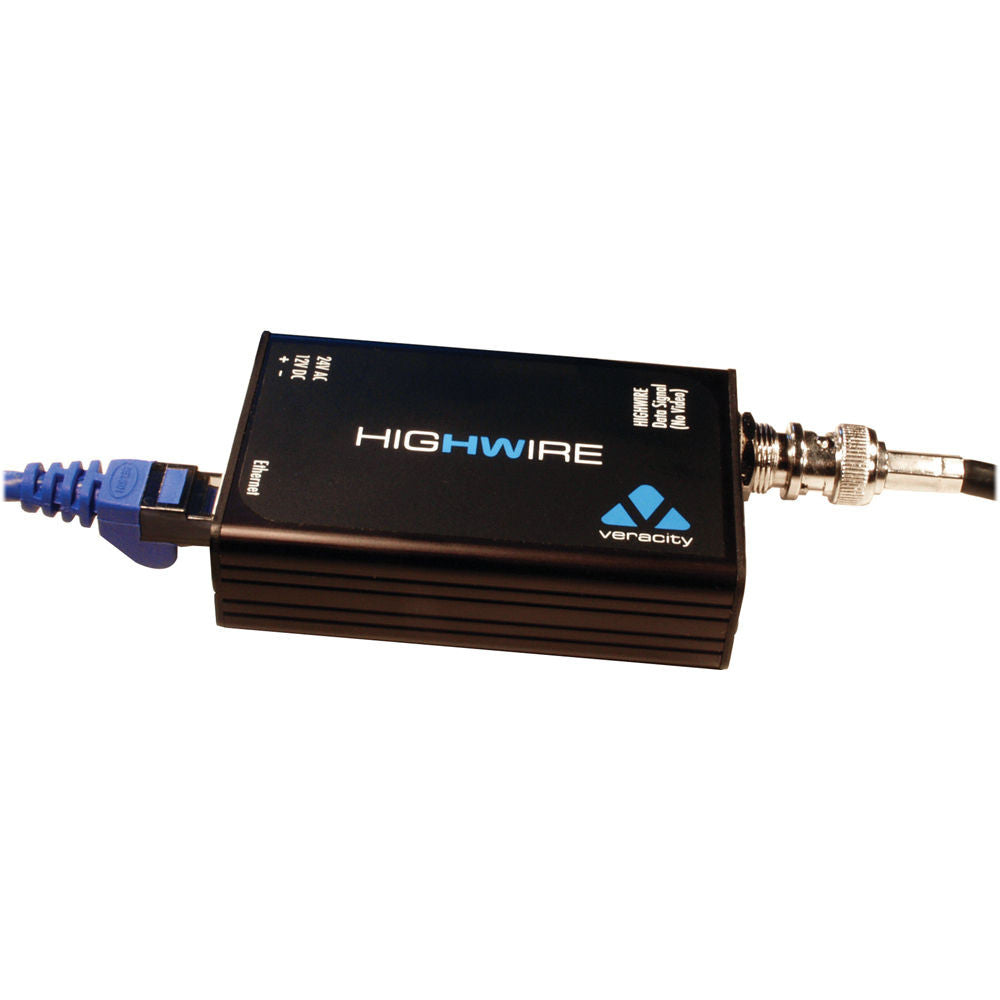

Easily convert your BNC cabling into a high-speed RJ45 Ethernet connection with the Highwire Ethernet over Coax Adapter from Veracity . Using the adapter, you can replace analog cameras with IP cameras, while still using your existing cables. This package includes one adapter, however, two adapters per link are required, one connected to your IP camera and one connected to your PoE switch.
Speed, duplex, and crossover are sensed as soon as you connect the adapter to your system so that no setup is required. Furthermore, no configuration is required when you connect the unit to each end of the coaxial cable, as the link will be established automatically.
The Ethernet over Coax Adapter is invisible to Ethernet data, and it does not need a MAC or IP address. In addition to auto-optimizing for all 75 ohm coaxial cables, the long connection range of the converter makes it suitable for network connections beyond 328' (100m).
Featuring a universal power input, the Highwire Ethernet over Coax Adapter is suitable for low-voltage installations and use with legacy coaxial cables. Compared to Cat 5 cables, the coaxial cables coil and bend, enabling you to provide network access to elevator carriages, VoIP items, security systems, lift panels, and similar devices.
- Converts analog video cables into a high-speed network connection
- Allows you to replace analog cameras with IP cameras, without installing any new cables
- Speed, duplex, and crossover are sensed on connection
- No need for MAC or IP addresses
- Invisible to Ethernet data
- Auto-optimizing for all 75 ohm coaxial cables
- Long connection range of up to 1650' with RG11 cable, or 930' with CCTV-grade RG59 cable
- Suitable for network connections beyond 328'
- Universal power input
- Suitable for low-voltage installations; can be used on existing coaxial cables
- Coaxial cables coil and bend appropriately compared to Cat 5 cables
- Allows network access to elevator carriages, VoIP items, security systems, lift panels, and similar devices
- No modification needed when used with 50 ohm coax cables or cables of other impedance
- Optional wall-mounting brackets and rack-mounting kit
| Interface | Connector Type: BNC 75 ohms Cable Impedance: 75 ohms (RG59 or similar) Data Throughput Max: 200 Mbps (total up + down) Auto-adaptation to cable conditions |
| Range | Auto-Optimizing for all 75 ohm Coaxial Cables: 920' / 280 m full-rate over video-grade RG59 (Up to 1150' / 350 m depending on quality) 1150' / 350 m full-rate over RG6 1640' / 500 m full-rate over RG11 |
| Network | Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables |
| Ethernet | Connector Type: RJ45 Cable Type: Straight through or cross-over, auto detected Rates Supported: 100BaseT / 10BaseT, full/half duplex with auto negotiation |
| Indicators | Green - Constant: Power OK, Full HIGHWIRE data link Green - Slow: Power OK, Auto-adapted HIGHWIRE data link Green - Blink: Power OK, no HIGHWIRE link Green - Off: No power Amber - Constant: Ethernet link On Amber - Blink: Network traffic |
| Power | Unit Power: 1.5 W Connector Type: Screw terminals with detachable plug Power Supply Type: IEC Class II isolated only Operating Voltage: 8 to 57 VDC or 20 to 28 VAC (type and polarity auto detected) Supply Current: 120 mA (12 V), 60 mA (24 V) |
| Environment | Operating Temp.: 14 - 122°F / -10 ~ +50ºC Relative Humidity: 85% non-condensing Grounding: Chassis should be grounded and is connected to the BNC shield |
| Compliance | CE, FCC, RoHS |
| Dimensions | 3.3 x 2.1 x 1" / 84 x 54 x 24 mm With Connector: 4 x 2.1 x 1" / 102 x 54 x 24 mm |
| Weight | 3.9 oz / 110 g |
| Packaging Info | |
|---|---|
| Package Weight | 0.25 lb |
| Box Dimensions (LxWxH) | 5.1 x 3.0 x 1.3" |
- Limited 1-Year Warranty
