Description
- View Live Video on Laptop/Mobile Devices
- Built-In Wireless Network Link
- Rechargeable and Removable Battery
- Two RJ45 Ethernet Ports
- USB Charging Port
- LED Indicators for Power and Camera

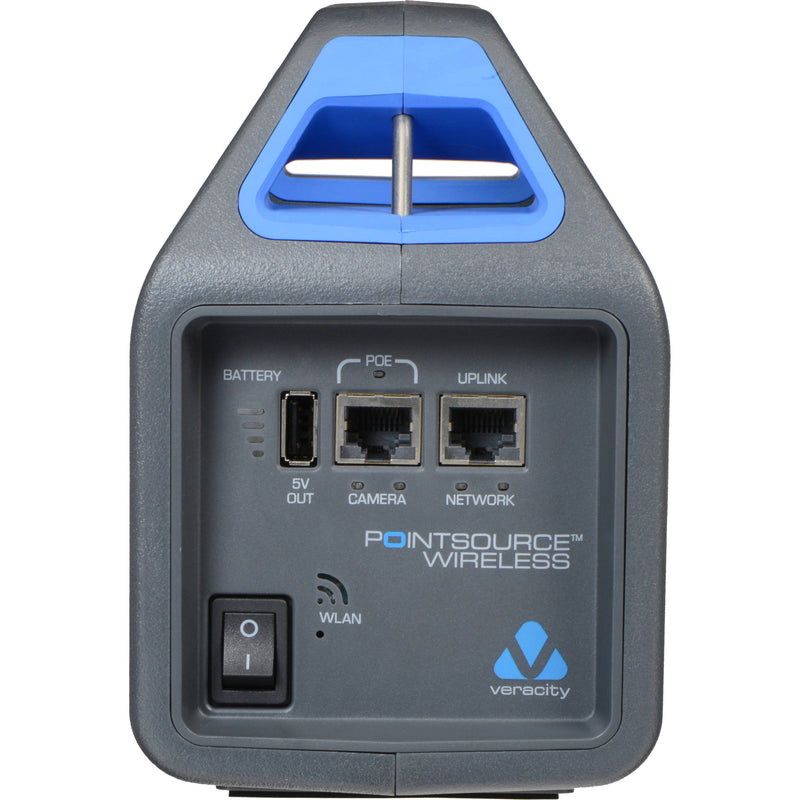

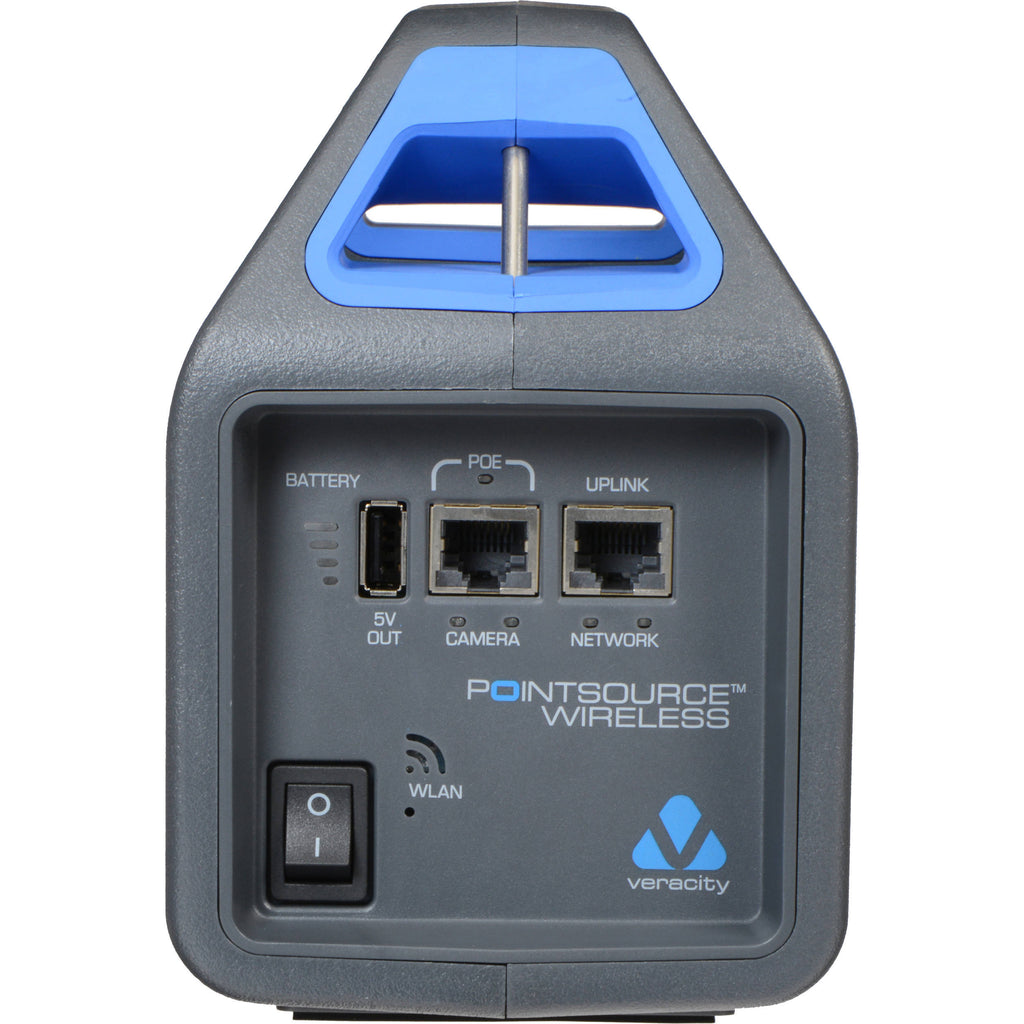

View live video of your IP cameras on your laptop, smartphone, or tablet with the POINTSOURCE Wireless PoE Injector from Veracity . POINTSOURCE Wireless delivers up to 30W of power to the connected IP camera while providing 2.4 or 5 GHz wireless network access to allow you to connect to it directly in order to install, configure, focus, and align IP cameras. It features a rechargeable and removable battery for up to six hours of use. It has two RJ45 Ethernet ports and a USB charging port to charge your smartphone or tablet. This PoE injector can be used for preinstallation trials and site surveys.
- PoE injector with built-in wireless network
- Allows local viewing of IP camera video wirelessly on laptops, smartphones, and tablets
- Enables adjustment of camera alignment, focus, and field of view

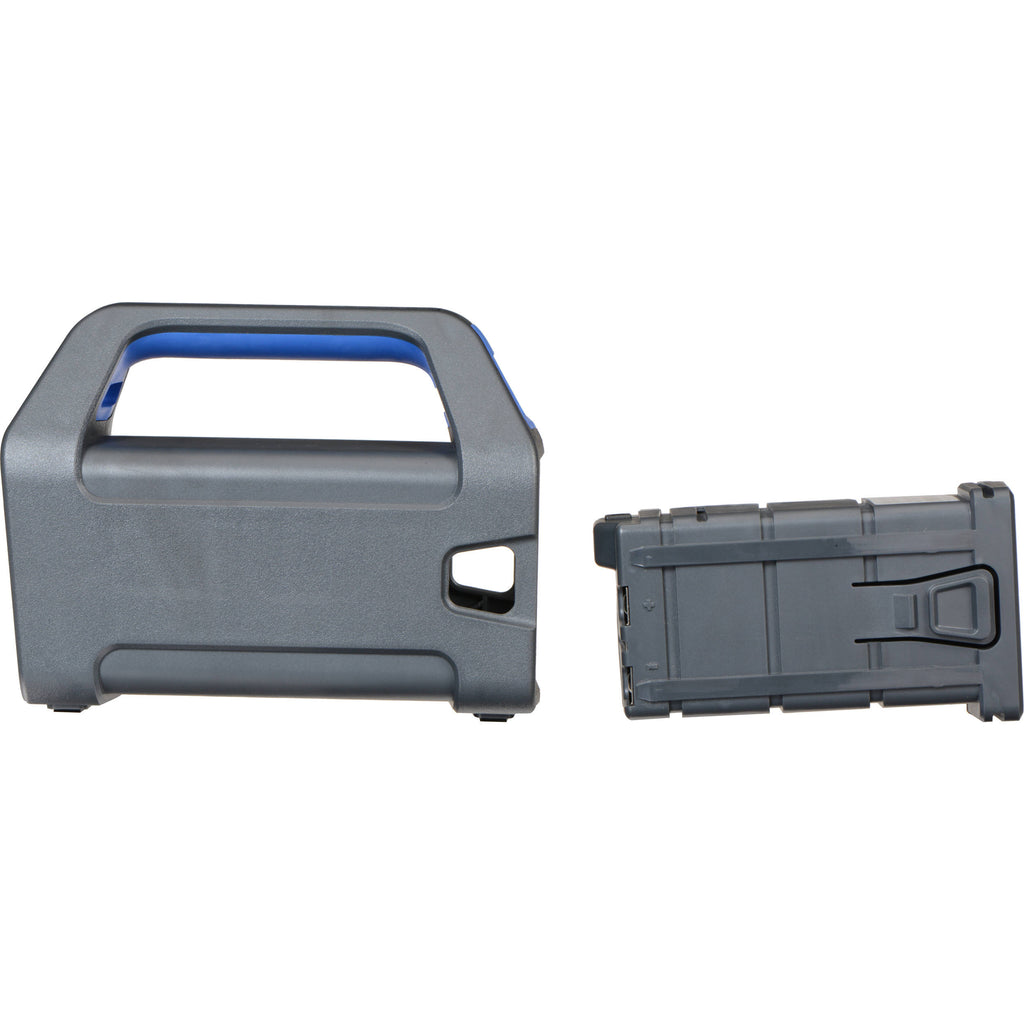

- Removable and rechargeable battery
- Supports all classes of 802.3af and 802.3at PoE devices
- USB charging port for smartphones and tablets
UPC: 892314002487
In the Box
Veracity POINTSOURCE Wireless PoE Injector
- Charger
- Carry Strap
- Limited 2-Year Warranty
| Power | |
|---|---|
| Output | PoE: 48 VDC @ up to 30W |
| USB Charging | 5 V @ 2.1 A (power only, no data) |
| Battery Type | 12 V, 3.4 Ah lead-acid |
| Battery Run-Time (Hours) | 6 hours continuous for a 5 W camera (typical) |
| Battery Life | About 3 years, 200 to 300 charging cycles |
| Charger | 0.08" (2.1 mm) jack, center positive (on battery module, remove to charge) Three-stage intelligent (14.4 V, 1 A, 13.8 V float) |
| Network | |
|---|---|
| Network Interface | Camera Port: 10Base-T/100Base-T with PoE Network Port: 10Base-T/100Base-T data only |
| IP | Automatic or manual configuration of IP address (IPv4) |
| Wireless Network Interface | IEEE 802.11b/g/n/ac 2.4 GHz b/g/n (default) (channels 1, 6 or 11) 5 GHz a/ac/n (channels 36, 40 or 44) |
| SSID | User configurable |
| Wireless Security | WPA2-PSK with user configurable password |
| Network Connectors | 2 x RJ45 Ethernet, one with PoE |
| LED Indicator Specifications | |
|---|---|
| LED Indicators | PoE Status Indicator: Red LED for on, flash indicates error, off indicates no PoE Battery Status Indicator: Green four-bar display indicates charge level: 100%, 75%, 50%, 25% Network Port LEDs: Green: Link speed Orange: Network activity Wireless Indicator: Blue LED shows wireless link on, flash indicates booting up |
| General | |
|---|---|
| USB Connector | USB Type-A female for charging only (no data) |
| Compatibility | ONVIF-enabled cameras IP cameras supporting live-viewing via browser on smart device or with RTSP URL address |
| Operating Temperature | 32 to 122�F (0 to 50�C) |
| Storage Temperature | -22 to 158�F (-30 to 70�C) |
| Battery Charging | Temperature: 32 to 95�F (0 to 35�C) |
| Relative Humidity (non-condensing) | 20 to 85% |
| Dimensions | 8.07 x 3.94 x 5.9" (205 x 100 x 150 mm) |
| Weight | Unit: 1.3 lb (0.6 kg) Unit with Battery: 4.8 lb (2.2 kg) Battery: 3.5 lb (1.6 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 7.1 lb |
| Box Dimensions (LxWxH) | 11.4 x 11.1 x 7.6" |
