Description

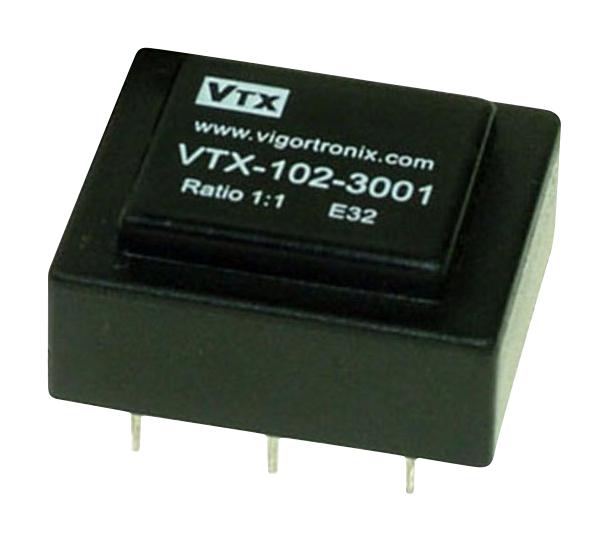

VTX-102-3001 is a high-quality audio transformer with a 1:1 winding ratio and an impedance of 600 ohms. This transformer allows an audio signal to pass unmodified from the primary to the secondary while blocking DC voltage and radio frequency interference. With the primary and secondary windings being isolated from each other, different parts of your system will be electrically isolated reducing hum issues by lifting the grounds of different devices.
- Inter-wind capacitance measured at 1KHz, 0.3V: 109pF nominal
- Frequency range: 20Hz to 30KHz
- Very low THD 0.1% at 30Hz
- DC resistance is 30ohm (primary (pins 1-5) and secondary (pins 10-6))
- Inductance is 3.2H at 100Hz, 0.3V (primary (pins 1-5) and secondary (pins 10-6))
- 109p/F interwinding capacitance at 1KHz, 0.3V
- 1.5KV rms isolation (Pri/Sec for 1min), UKCA approved
- 10KHz, 0dB60dB C.M.R.R
Product details
Other details
| Brand | VIGORTRONIX |
| Part Number | VTX-102-3001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
