Description

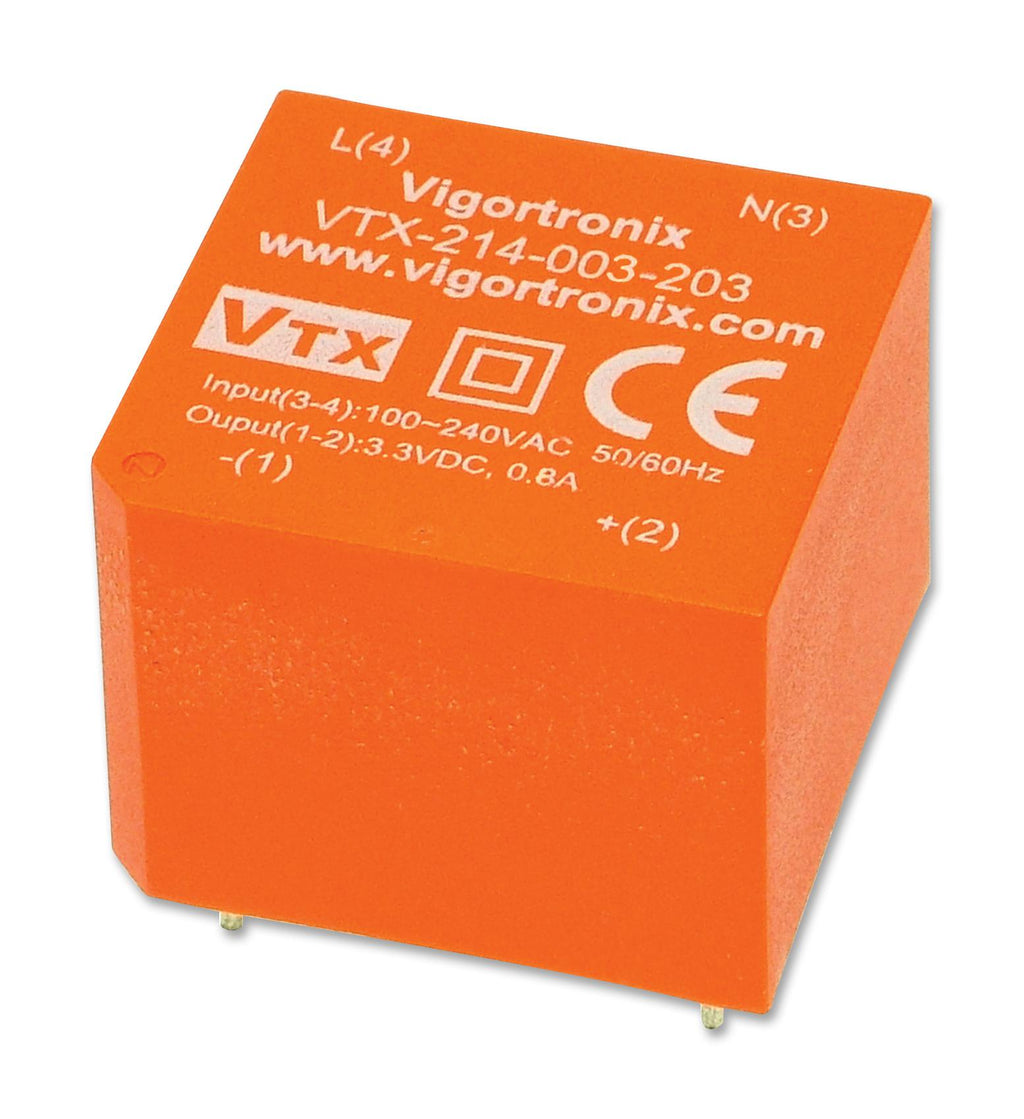

The VTX-214-003 miniature series from Vigortronix are single output, PCB mount AC to DC SMPS converters. These miniature size AC to DC converters are approved by EN61558, EN60950, CE standards.
- 3W regulated single output
- Output voltage ranges from 3.3VDC to 48VDC
- Output current ranges from 62mA to 900mA
- Input voltage ranges from 90VAC to 265VAC at 47Hz to 63Hz
- Low standby power of 0.3W
- Low ripple and noise
- Encapsulated design
- Efficiency up to 65%
- Operating temperature range -25°C to 70°C
- Class II insulation
Applications
Power Management, Industrial
Product details
| Power Supply Applications: ITE |
| No. of Outputs: 1 Output |
| Output Power Max: 3W |
| Output Voltage - Output 1: 15VDC |
| Output Current - Output 1: 200mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Voltage - Output 3: - |
| Output Current - Output 3: - |
| Power Supply Output Type: Fixed |
| Input Voltage VAC: 90V AC to 265V AC |
| Width: 23mm |
| Height: 19mm |
| Depth: 24mm |
| Product Range: - |
Other details
| Brand | VIGORTRONIX |
| Part Number | VTX-214-003-215 |
| Quantity | Each |
| Technical Data Sheet EN |  |
