Description
Viltrox DC-V1 Overview

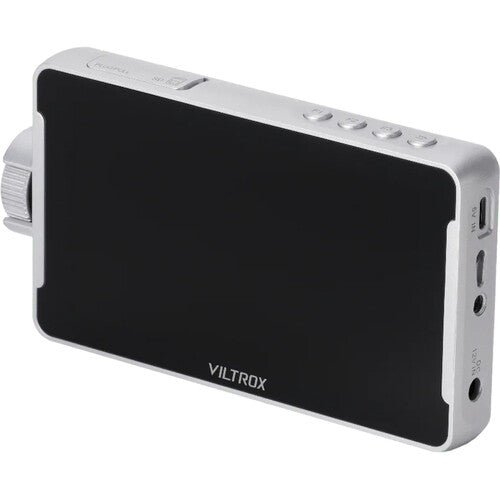

The lightweight DC-V1 5.5" Touchscreen HD On-Camera Monitor from Viltrox lets you view your camera's image on a bright, sharp 5.5" display. The DC-V1 supports up to DCI/UHD 4K30 via the HDMI video input and can send the signal to another display through an HDMI loop-through output. This model features multiple image tools such as histogram and waveform, and its 400 cd/m² brightness makes it suitable for indoor or outdoor use.

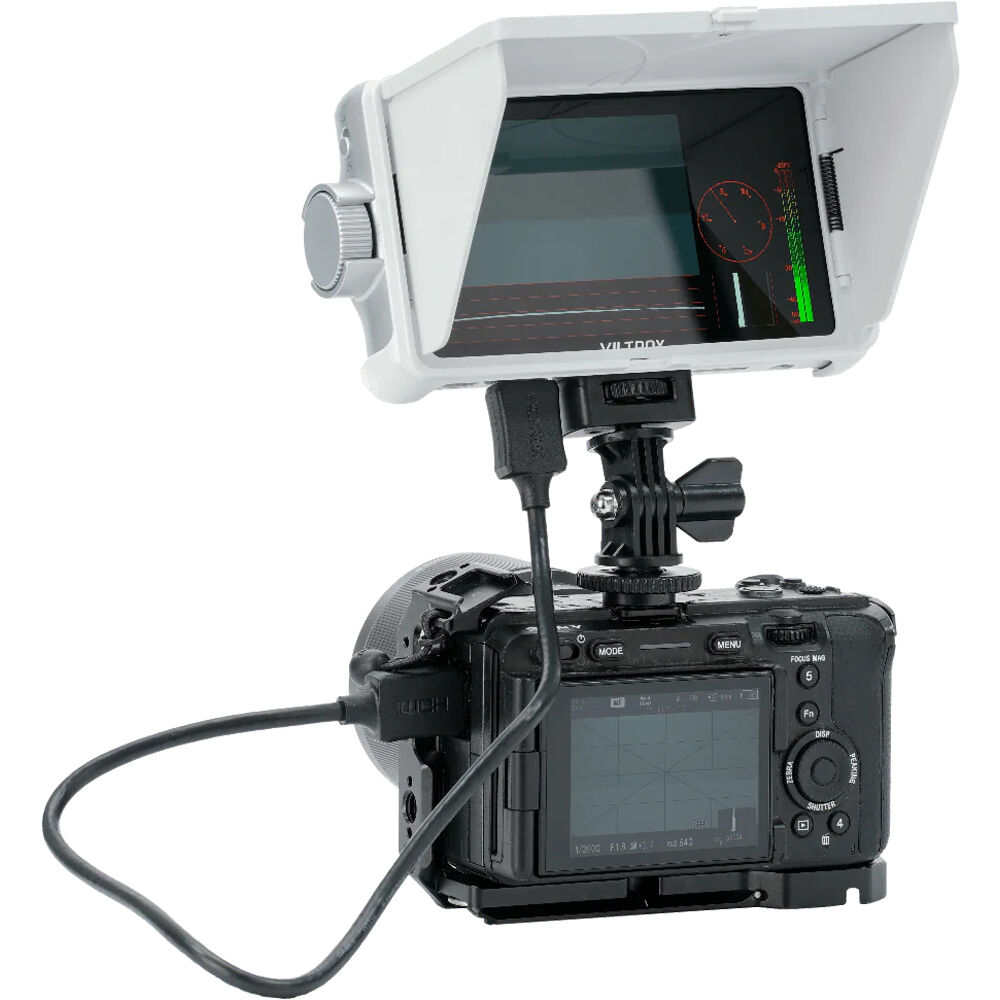

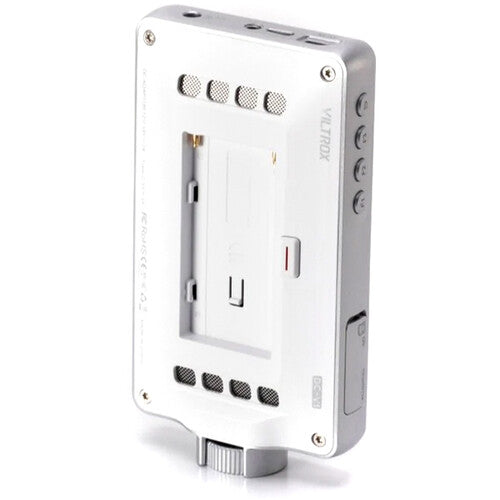

The DC-V1 features a 1920 x 1080 display that supports live view from your camera, and you can monitor the audio via its built-in speaker or 3.5mm headphone port. The SD card slot can be used to upgrade the firmware or to add custom 3D LUT files to apply to your view. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with the L-series battery, or you can power it with a separately available DC barrel or USB-C adapter. The camera mounts onto a cage, camera, or rig using the included shoe adapter mount, and a sun hood is available to protect the monitor from glare.

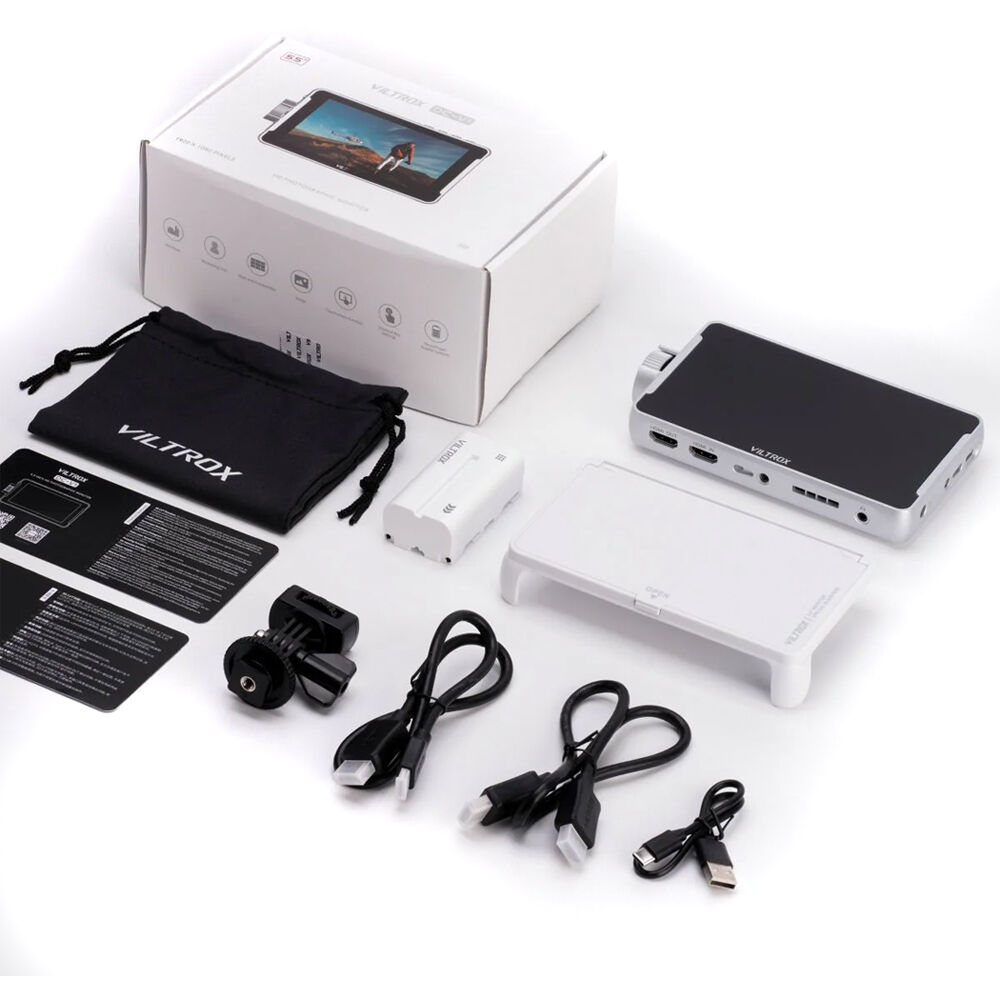

Items Included
- Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor
- Sun Hood
- Shoe Mount Adapter
- HDMI Type A to Mini-HDMI Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
Viltrox DC-V1 Specs
| Display Size |
5.5" / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
No
|

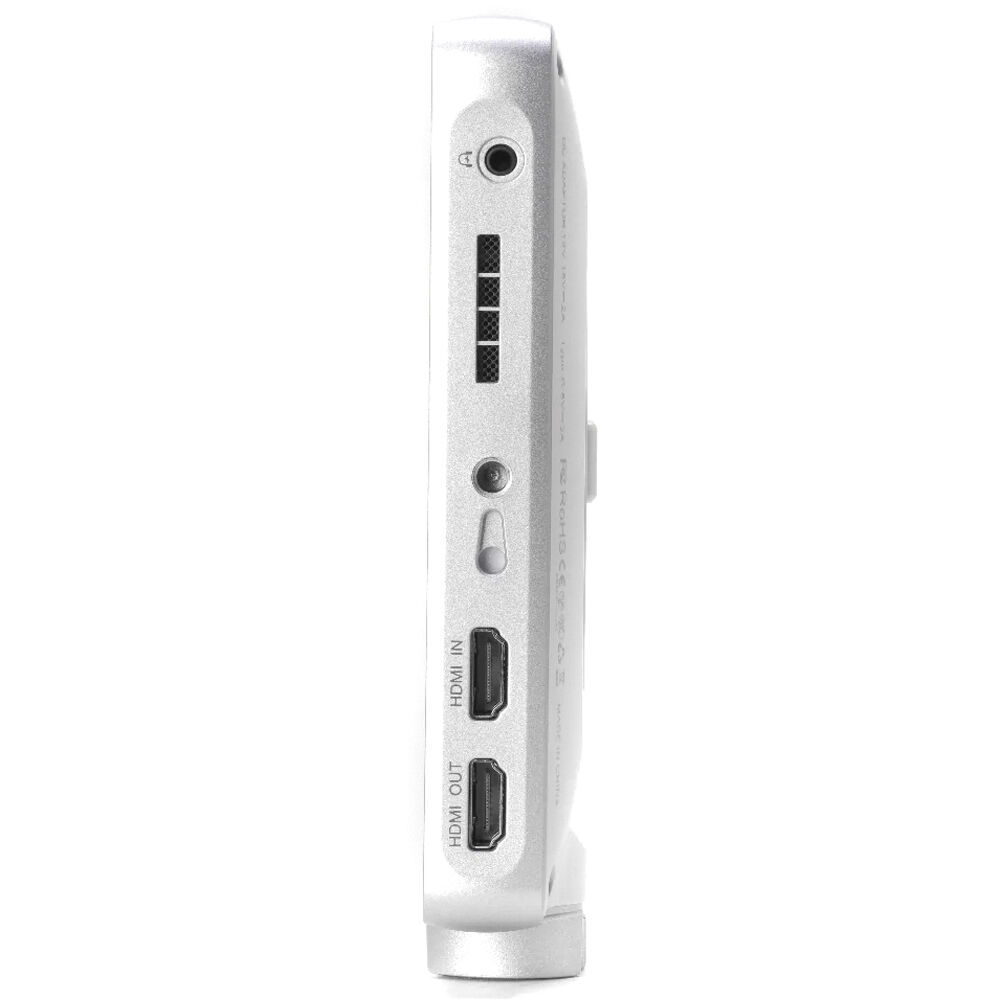

| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Video Format |
HDMI
DCI 4K: 30/25/24 UHD 4K: 30/25/24 1080p |
| Battery Type |
1x L-Series
|
| Mounting |
1x 1/4"-20 Female (Bottom)
|
| Panel Type |
LCD
|
| Display Size |
5.5" / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
400 nits / cd/m2 (Peak)
|
| HDR Support |
No
|
| Pixels Per Inch (ppi) |
400 ppi
|
| LUT Support |
No
|
| Image Controls |
False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform
|
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (2 A / 12 VDC) Input
1x USB-C (3 A / 5 VDC) Input |
| Other I/O |
No
|
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 30/25/24 UHD 4K: 30/25/24 1080p |
| Gamma Curve |
Rec709
|
| Input Power |
12 to 18 VDC at 2 A
|
| Battery Type |
1x L-Series
|
| Mounting |
1x 1/4"-20 Female (Bottom)
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Material of Construction |
Aluminum
|
| Dimensions |
6.5 x 3.6 x 1.1" / 16.5 x 9.1 x 2.9 cm
|
| Weight |
7.87 oz / 223.00 g
|
| Package Weight |
1.5 lb
|
| Box Dimensions (LxWxH) |
8 x 5 x 3.75"
|
