Vinten Osprey Lite Overview
-
1Description
-
2Vinten Osprey Lite 2-Stage Steering Pedestal
-
3Vinten VISION 100 Fluid Head (100mm Ball Base) (Black) - Supports 44.1 lbs
-
4Vinten 3330-16 100mm Leveling Bowl Adapter to 4-Bolt Flat Base
-
5Vinten 3219-91 Telescopic Pan Bar with Clamp (Black)

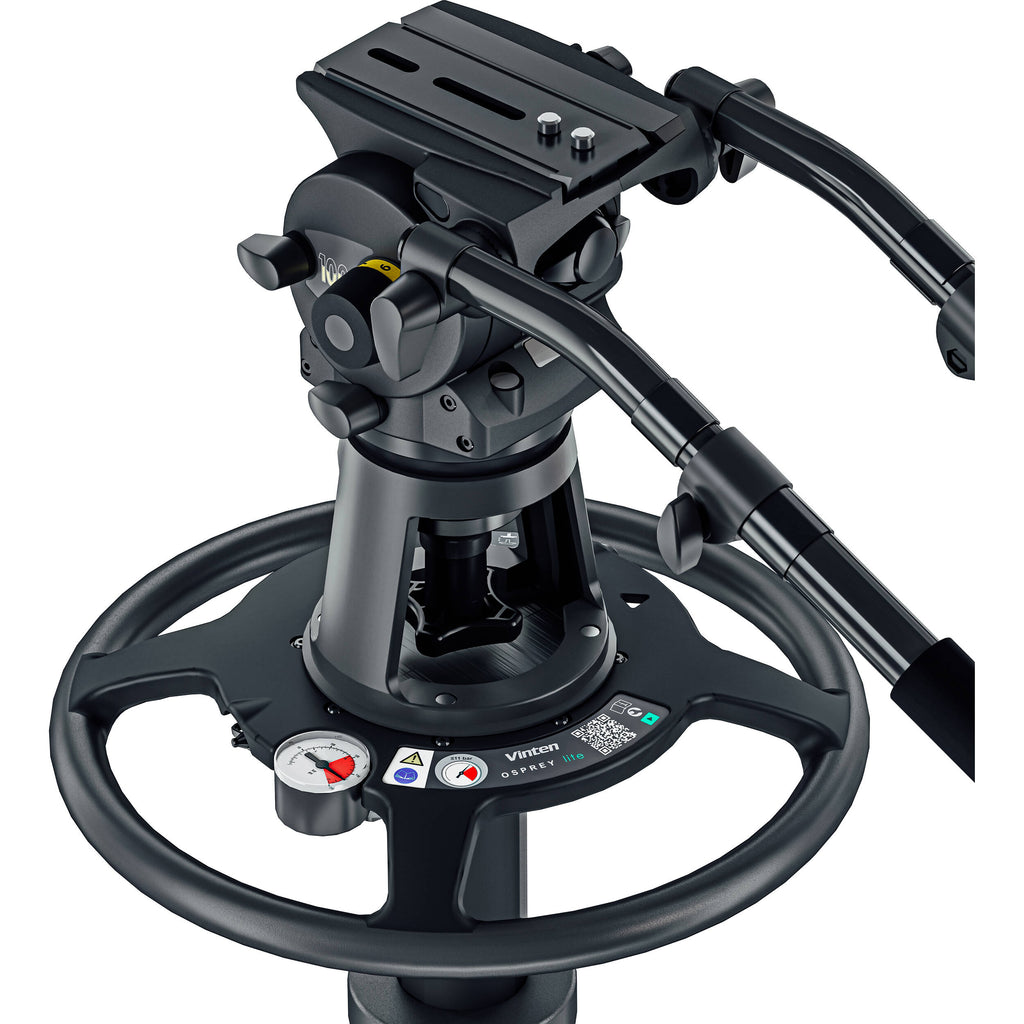

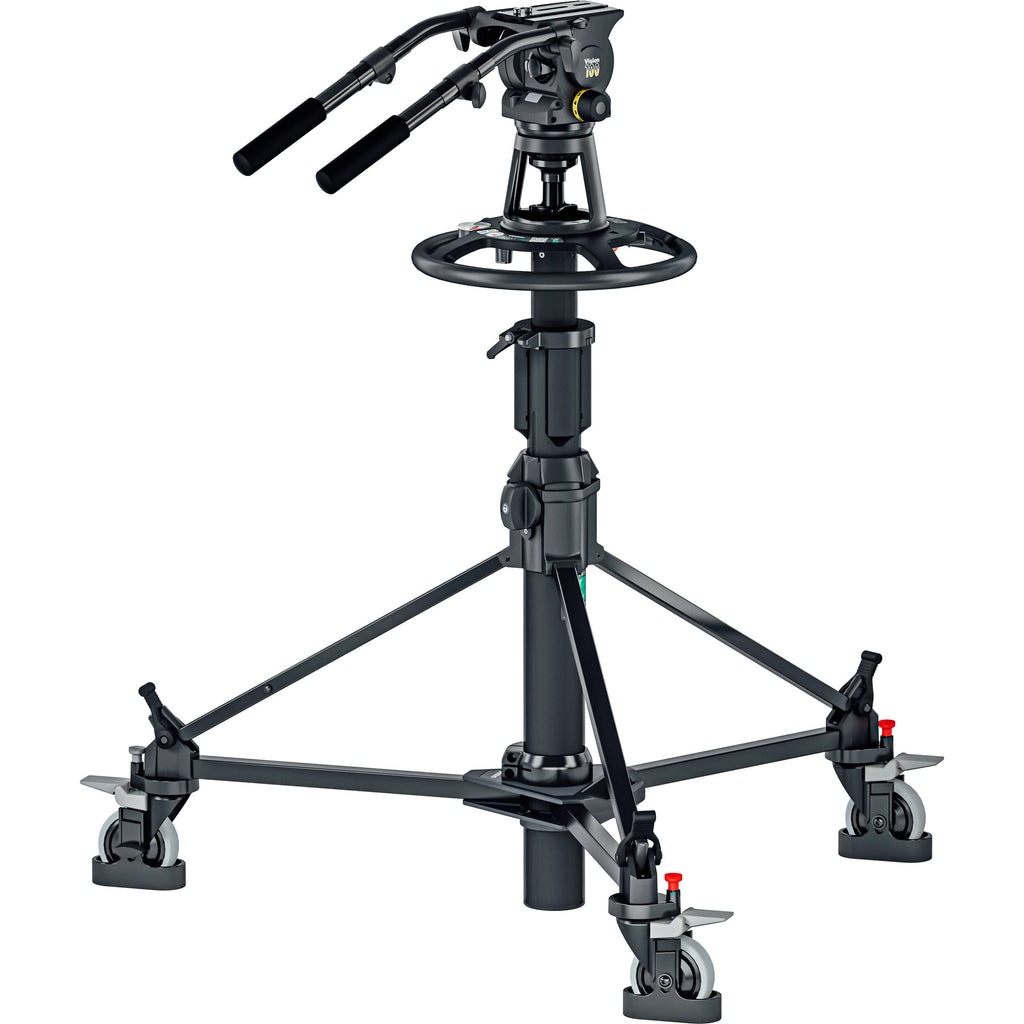

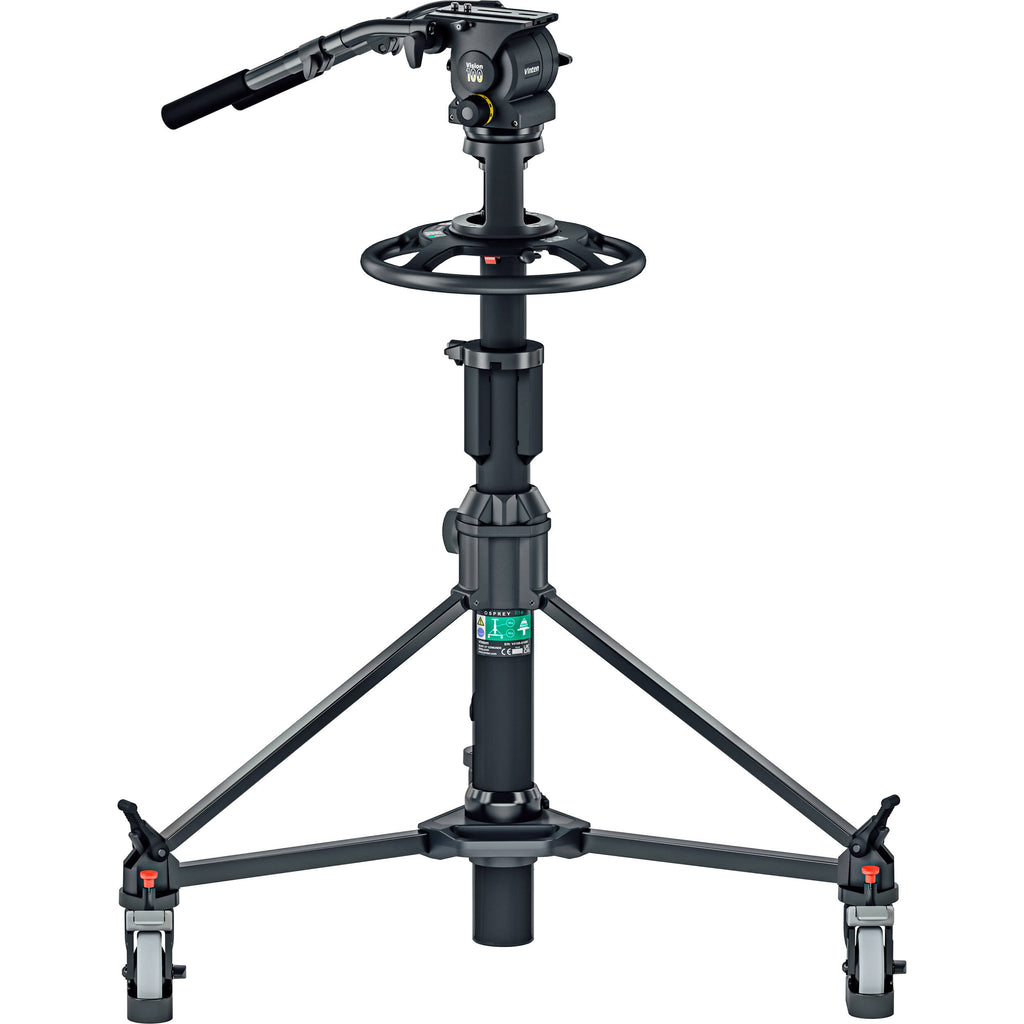

The Vision 100 Fluid Head with Osprey Lite Pedestal System from Vinten combines perfect balance with TF (Thin Film) drag control in a 2-stage pedestal system. The unique design features of the Vision 100 head and the lightweight portability of the Osprey Lite pedestal make this quick-to-set-up system an ideal solution for both studio and on-location productions.
Vinten Osprey Lite 2-Stage Steering Pedestal
Easily transport your camera to quickly set up shots in a studio or on location with the Osprey Lite 2-Stage Steering Pedestal from Vinten. This lightweight and compact pedestal supports up to 77 lb and features a detachable skid, which allows the unit to be broken down into two sections for easy transportation and storage. An integral manual pump and an inlet valve make setup quick and easy to balance, with the unit's 2-stage design providing flexibility for high and low shots and its column adaptable to work on a dolly track.
Vinten VISION 100 Fluid Head (100mm Ball Base) (Black) - Supports 44.1 lbs
The Vision 100 Fluid Head (100mm Ball Base) (Black); Designed and engineered to new advanced levels, it is the perfect head for today's latest digital camera configurations and one-piece camcorders. Incorporating a drag mechanism employing non-contacting thin film technology, which ensures consistent drag and constant performance over a temperature range from -40°F to +140°F.
The Vision 100 gives precise movement and excellent camera control during the critical slow start up of your shot, with a seamless transition into whip pan and instant recovery to the original drag setting at the finish of movement. Calibrated with variable adjustment and a single turn rotation from fully on to off, the drag knobs are backlit for easy viewing and detented to give a "dial-in feel" and to ensure settings are always maintained. Offers perfect balance throughout its payload range and allow heads to tilt through the full range of ±90°, without being anxious that the tripod will tumble.
For smooth movement and total control - imperative to provide those perfect shots first time....
The Vision 100 pan & tilt head achieves the Perfect Counter Balance by means of an innovative and patented infinitely-variable spring mechanism. This allows the head to tilt through the full range of ±90° in perfect balance, eliminating a considerable amount of physical effort required by the operator to control the tilting action. Since the camera is perfectly balanced, it can be left at any angle - totally hands free - without having to lock the tilt brake. The variable counterbalance mechanism allows it to be used with a variety of lenses, batteries, viewfinders and on-camera lights.
For even faster setup, the Vision 100 offers a digital counterbalance readout, with repeatable balance setting. The display is activated by a simple press of a button and remains visible for 15 seconds.
TF (Thin Film) Drag Control
The Vision 100 uses the Vinten TF (Thin Film) damping system, to provide consistent drag and constant performance in demanding conditions from -40°F to +140°F. The TF system offers total control, for precise movement and excellent camera control during the critical slow start-up of your shot. Providing seamless transition into Whip Pan and instant recovery to the original drag setting at the finish of the movement.
Calibrated with variable adjustment and a single turn rotation from fully On to Off, the drag knobs are backlit and are adjusted accordingly (depending on the lighting conditions) by a light sensor built into the digital readout. For easy viewing and detented to give a "dial-in feel", ensuring that settings are always maintained.
Unique design features allow fast setup - a must if you are continuously on the move. The leveling bowl has a double threaded screw shank, which allows the bowl lock to be tightened and released quickly. Very handy when you are constantly adjusting the bowl to level the camera (especially on uneven terrain).
Tough die-cast body ensures robustness, while quality design and construction provide a lifetime of precision.
Adjustable camera mounting plate with unique rubber grip strips holds the camera rock steady.
Built-in illuminated bubble for horizontal leveling, ensuring easy leveling even under unfavorable lighting conditions.
Load capacity of: 44.1 lb
Vinten 3330-16 100mm Leveling Bowl Adapter to 4-Bolt Flat Base
This is the 3330-16 100mm Leveling Bowl Adapter to 4-Bolt Flat Base from Vinten. It allows a pan/tilt head to be installed on a standard Vinten four-hole base. It is also used in conjunction with Vinten's Quickfix adapter.
Vinten 3219-91 Telescopic Pan Bar with Clamp (Black)
The Vinten 3219-91 Telescopic Pan Bar with Clamp, in black, is compatible with Vinten Vision 8AS/10AS and Vision 100/250 fluid heads.
In the Box
- Vinten Osprey Lite 2-Stage Steering Pedestal
- ENG Studio Skid
- Manual Pump
- Vinten VISION 100 Fluid Head (100mm Ball Base) (Black) - Supports 44.1 lbs
- Telescopic Pan Bar (Black) (#3219-91)
- Camera Mounting Plate (#3364-900SP)
- Vinten 3330-16 100mm Leveling Bowl Adapter to 4-Bolt Flat Base
- Vinten 3219-91 Telescopic Pan Bar with Clamp (Black)
Table of Contents
- Description
- Vinten Osprey Lite 2-Stage Steering Pedestal
- Vinten VISION 100 Fluid Head (100mm Ball Base) (Black) - Supports 44.1 lbs
- Vinten 3330-16 100mm Leveling Bowl Adapter to 4-Bolt Flat Base
- Vinten 3219-91 Telescopic Pan Bar with Clamp (Black)
Vinten Osprey Lite 2-Stage Steering Pedestal Specs
Environmental
| Operating Temperature |
-8 to 92°F / -40 to 60°C |
Physical
| Load Capacity |
77.2 lb / 35 kg |
| Dimensions |
Not Specified by Manufacturer |
| Weight |
29.32 lb / 13.3 kg |
Vinten VISION 100 Fluid Head (100mm Ball Base) (Black) - Supports 44.1 lbs Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate, Quick Release |
| Camera Plate Type |
Vinten 33364-900SP |
| Camera Mounting Screw |
2 x 3/8"-16 Male |
| Balance Plate Sliding Range |
4" / 101.6 mm |
Head
| Base Mount |
100 mm Half Ball |
| Counter Balance |
Continuous (15.4 to 44.1 lb / ) |
| Center of Gravity |
5" / 12.7 cm |
| Bubble Level |
1 x Illuminated |
Pan & Tilt
| Drag Control |
Tilt: Continuous Plus 0 |
| Vertical Tilt |
+90° to -90° |
| Panning Range |
360° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
General
| Load Capacity |
44.1 lb / 20 kg |
| Operating Temperature |
-40 to 140°F / -40 to 60°C |
| Weight |
7 lb / 3.2 kg |
Packaging Info
| Package Weight |
12 lb |
| Box Dimensions (LxWxH) |
15.7 x 10.6 x 9.5" |
Vinten 3330-16 100mm Leveling Bowl Adapter to 4-Bolt Flat Base Specs
| Head Fixing |
100 mm Ball |
| Base Fixing |
Vinten Four-Hole Base with 3/8" (0.4") and Quickfix Adapter |
| Load Capacity |
100.0 lb / 45.4 kg |
| Weight |
1.1 lb / 0.5 kg |
Packaging Info
| Package Weight |
1.34 lb |
| Box Dimensions (LxWxH) |
8.55 x 7.2 x 5.05" |
Vinten 3219-91 Telescopic Pan Bar with Clamp (Black) Specs
Packaging Info
| Package Weight |
0.88 lb |
| Box Dimensions (LxWxH) |
17.65 x 3.2 x 3.05" |
