Vinten Vision 10AS System with flowtech 100 Legs, Mid-Level Spreader & Case

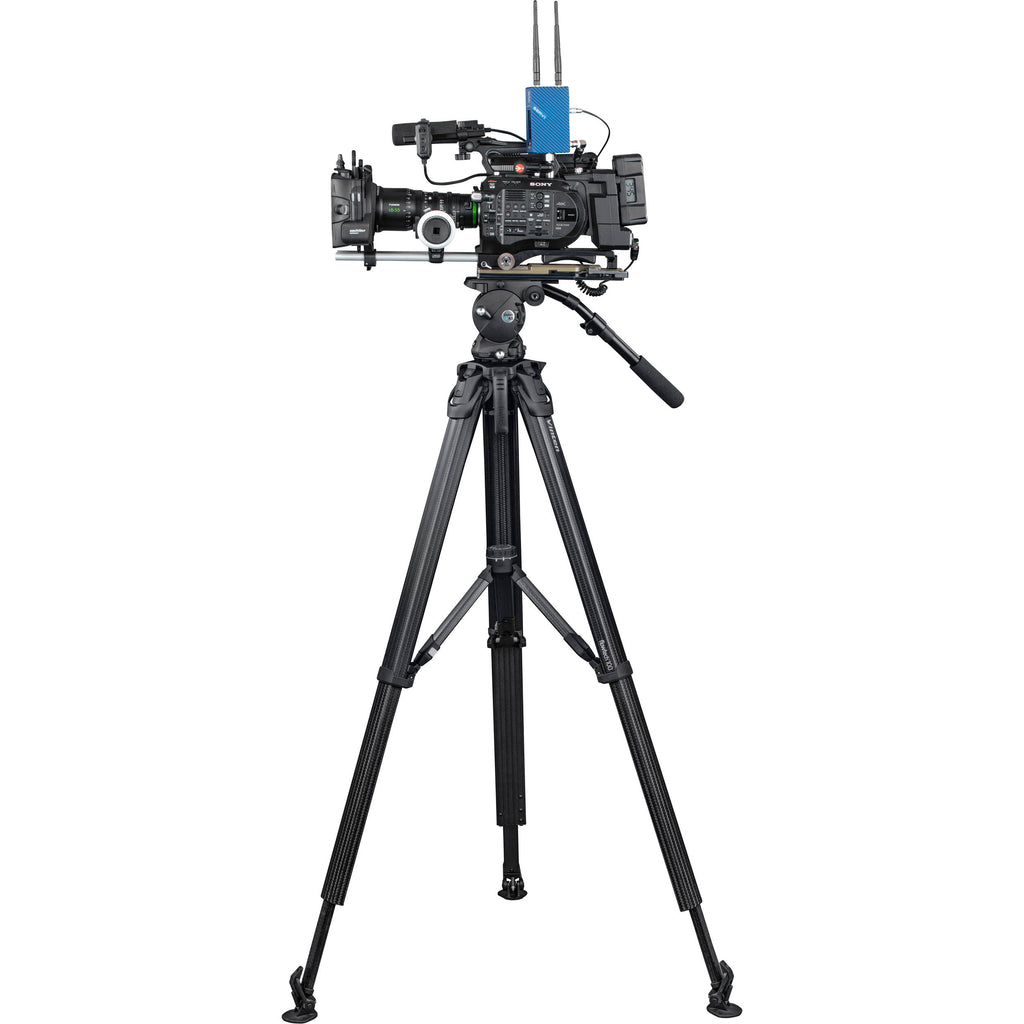

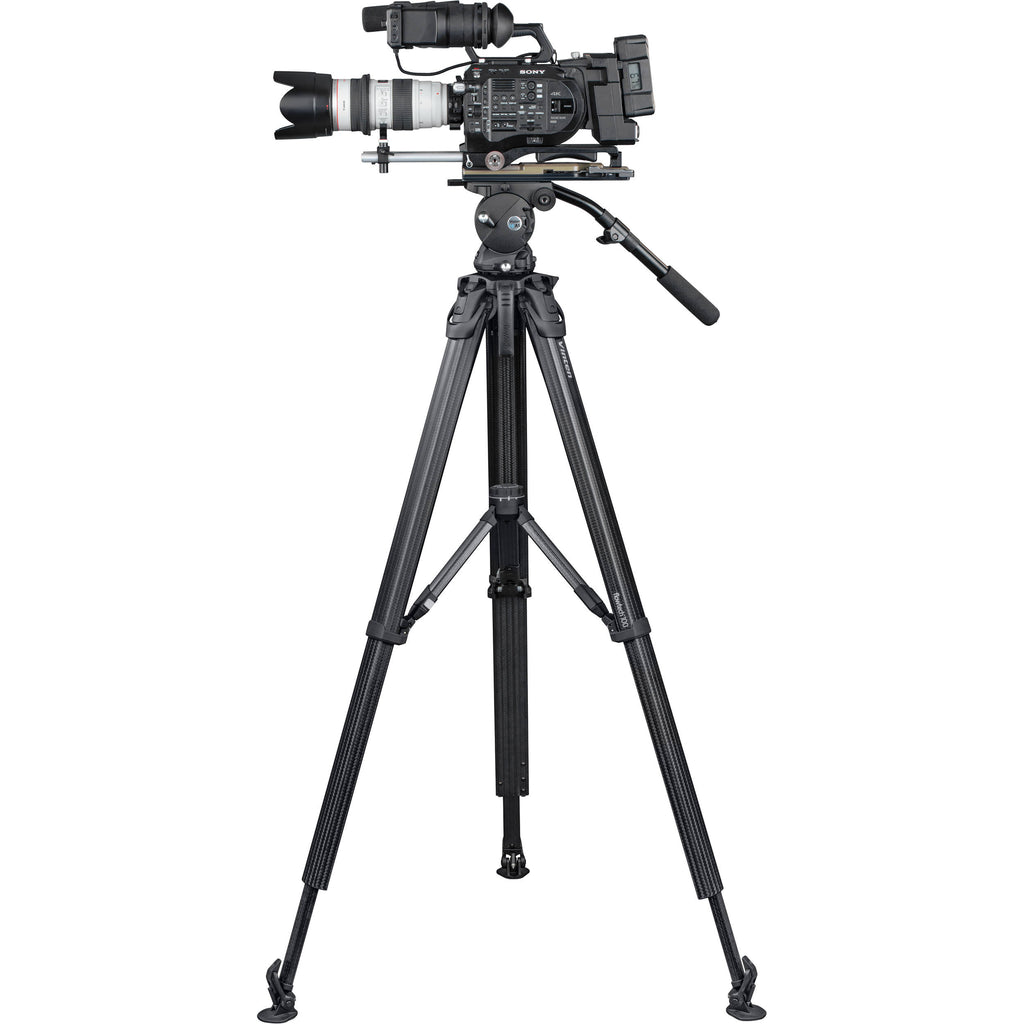

The Vinten Vision 10AS System with flowtech 100 Legs, Mid-Level Spreader Case consists of a Vinten 10AS fluid head, a set of 100mm flowtech carbon fiber legs, a carrying handle, and a soft case. The system supports cameras weighing between 14.7 and 37.5 pounds. The Vision 10AS head features continuous� not stepped� counterbalance for precise adjustments and smooth operation. The sideload system provides a sliding plate for fine-tuning the balance of your camera on the head while allowing for quick mounting and dismounting of the camera plate.

The 100mm flowtech legs are lightweight, corrosion resistant, strong, and feature a removable mid-level spreader and removable feet. The 100mm bowl enables supporting heavier camera loads than a 75mm bowl, and the increased diameter provides a wider platform for balancing your camera on the included head. Each leg features a single lever lock at the top which allows you to quickly adjust the length of the sections in each leg. Built into the bowl are three 3/8"-16 threaded accessory mounting holes onto which you can attach accessories. One such accessory is the included Sachtler Carry Handle, which enables you to comfortably carry your flowtech tripod and fluid head as you move from shot to shot. The included padded soft carry case protects your system during transport and storage.

• V4046-0001 Vision 10AS Fluid Head (Black)

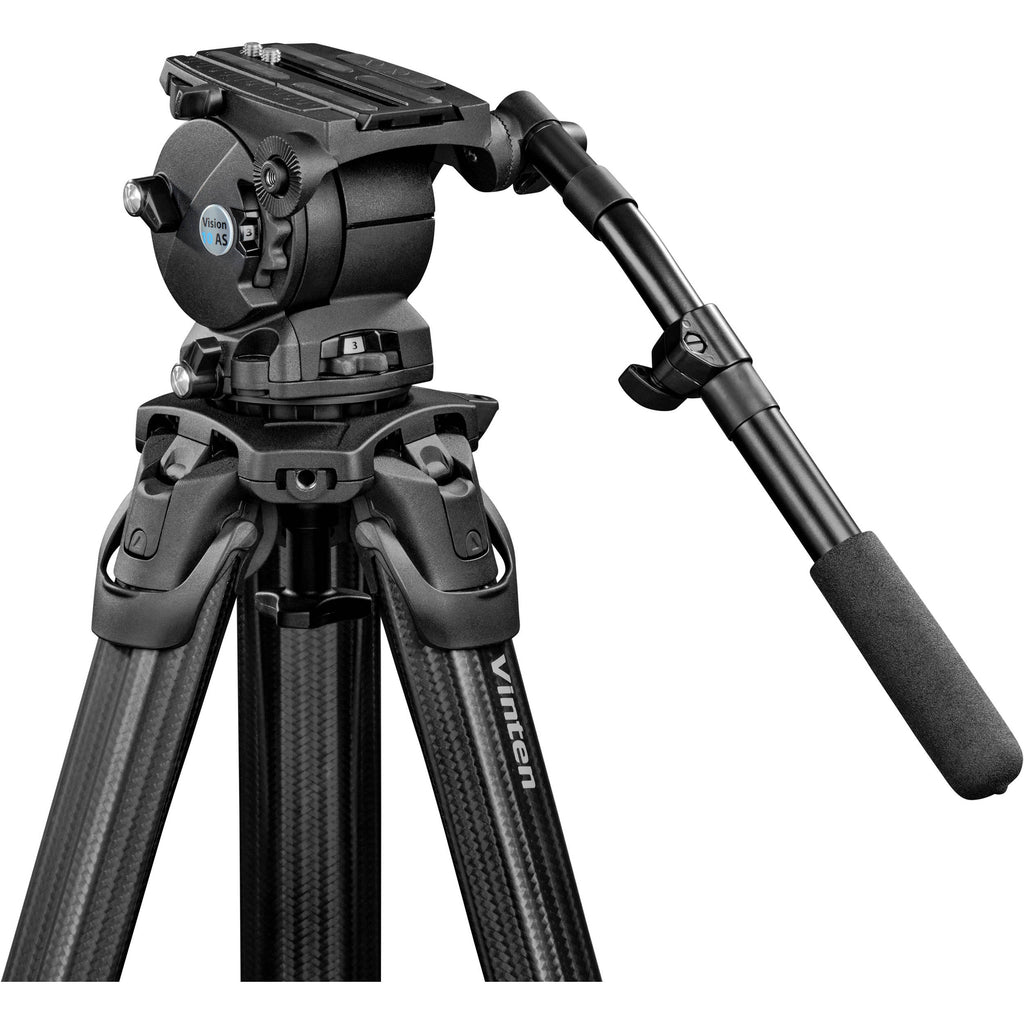

  The Vinten V4046-0001 Vision 10AS is a modern fluid head for shoulder mount camcorders up to 32 lbs. This 100mm ball base fluid head offers illuminated level, a sideload system for attachment and LF drag control for a professional Vinten feel.

  Black Color

  The Vision 10AS offers a modern black color for those who want to change from Vintens traditional white equipment.

  Balance

  Perfect balance can be achieved with the 10AS because of an infinitely adjustable counterbalance.

  Bubble Level

  The blue illuminated bubble level is asthetically pleasing and easy to see in many lighting situations.

  Drag Control

  LF Drag controls are numerically calibrated and feature the smooth, professional feel Vinten users come to expect.

• flowtech 100 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet

  The Vinten flowtech 100 Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet eschews the common single or double carbon fiber tube design; instead, it has redesigned the shape of the legs for improved torsional strength. The legs weigh just over 9 pounds, including rubber feet and spreader, yet they can support a payload of up to 66 pounds, and extend from a minimum height of 20.5" to a maximum height of 61" when using the included removable mid-level spreader. Each leg features a single clamping lever that locks and unlocks the sections.

  Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground, and you can snap on the included rubber feet onto the dual spikes for better grip when working on hard or delicate surfaces. Included with the legs are an attachment mount and a carry handle that mount on the side of the bowl using the 3/8"-16 threaded mounting holes.

  Features

  Dual-stage, carbon fiber, 100mm bowl tripod.

  Three 3/8"-16 accessory mounting holes are integrated into the outside of the 100mm bowl.

  The legs by themselves weigh only 7.01 pounds but support up to 66 pounds.

  The design and construction of the legs provide tremendous torsional stability. In other words, the legs resist twisting when you pan the tripod head.

  The included mid-level spreader allows you to work on uneven terrain such as stairs or rocks while preventing the legs from flying apart. When using the mid-level spreader, you can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.

  Each leg features a single clamping lever lock design at the top of the leg, near the 100mm bowl. This allows you to loosen all three leg sections from a single location, saving you time while reducing the wear and tear on your body as you don't have to bend down to loosen a leg lock at the bottom to lower or raise the legs.

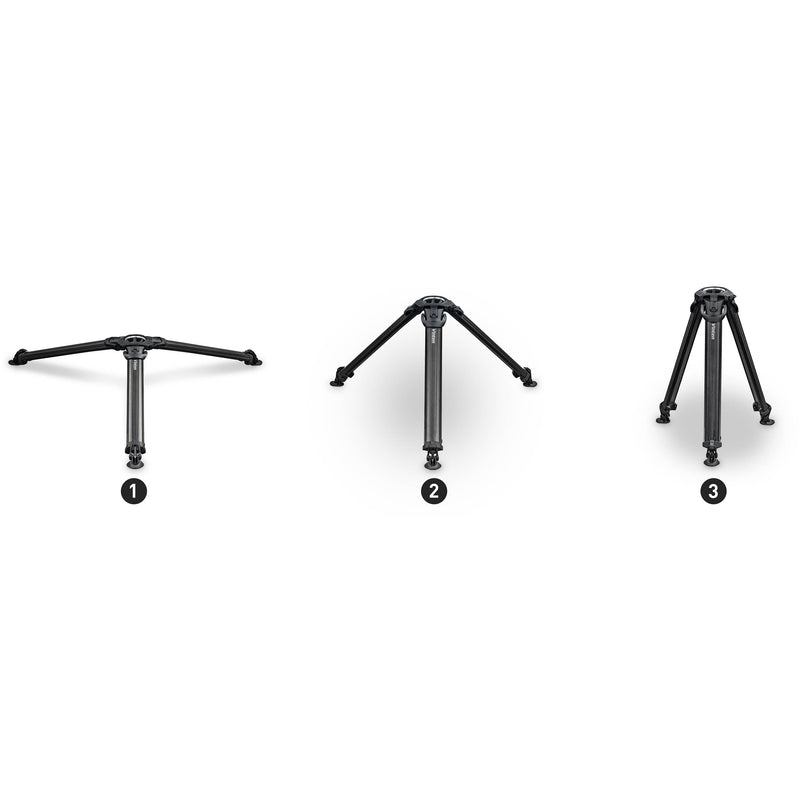

  The legs incorporate a locking mechanism that enables the legs to move freely for working with a spreader, or to lock at one of three angles when working without a spreader.

  With the spreader, the height range is 20.5 to 61". However, if you remove the mid-level spreader and utilize the built-in locking mechanism, the usable height range is 10.2 to 60.2".

  When closing the legs, there is room for the mid-level spreader to be folded up while remaining attached. The legs feature a magnetic locking system strong enough to hold them together during transport, but it also allows you to easily release the legs when you want to set them up.

• 3358-3 Soft Tripod Case

  The Vinten 3358-3 Soft Tripod Case is a padded tripod bag made to carry a Vinten Vision 3, Vision 6, Vision 8, Vision 11 and 2 Stage Tripod Systems. It has interior and exterior pockets for documents and tripod accessories. It has multiple handles and a padded adjustable shoulder strap.

  Durable weather resistant soft padded tripod bag.

  Ribbed padded interior

  Double extra large zip fobs and full length zip for ease of access.

  Pockets;

  • Large clear external pocket for document storage
  • Fully zipped internal pockets for storage of pan bars, camera plates and other accessories
  • Touch fastener pocket for operation guides.

  Captive basic head balance instructions.

  Carrying options;

  • Pair of handles with a touch fastener comfort grip wrap positioned to balance the system.
  • Lightly padded handle at each end.
  • Lightly padded adjustable shoulder strap

  Compatible with;

  • Vinten Vision 3, Vision 6, Vision 8 or Vision 11 2 stage tripod systems

• Fluid Head

• Pan Bar

• Limited 1-Year Warranty

• Mid-Level Spreader for flowtech 100 Tripod

3 x
• Rubber Tripod Feet (Set of 3)

• Attachment Mount for flowtech 75 Tripod

• Carry Handle for flowtech Tripods

• Limited 1-Year Warranty

• Shoulder Strap

• Limited 1-Year Warranty
