- Payload: 4.6-11 lb
- 75mm Ball
- Infinitely Adjustable Perfect Balance
- Lubricated Friction Drag Technology
- Tilt Range: ±90°
- Pan Range: 360°
- Two-Way Sliding Plate with 1/4" Screw
- L/R Pan Handle Rosettes
- LED Illuminated Bubble Level
- Weight: 5.3 lb

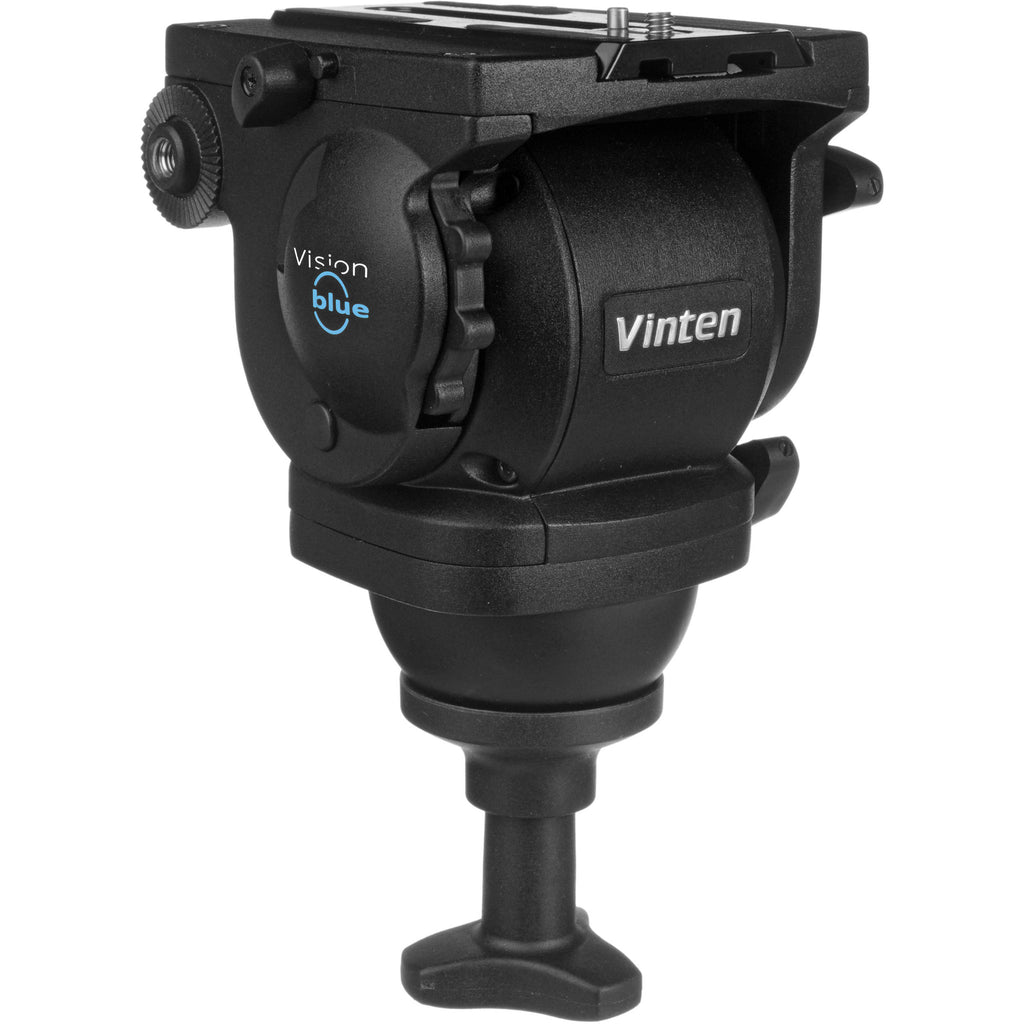

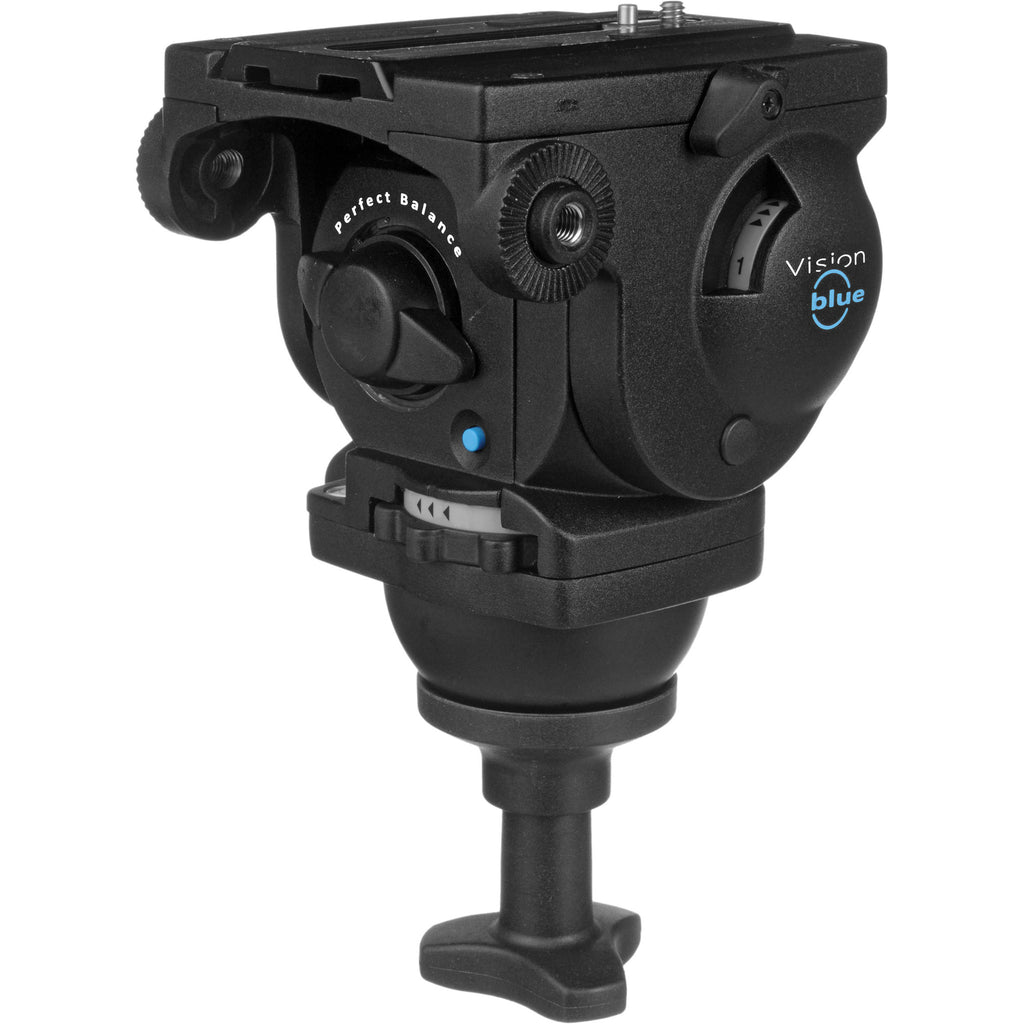

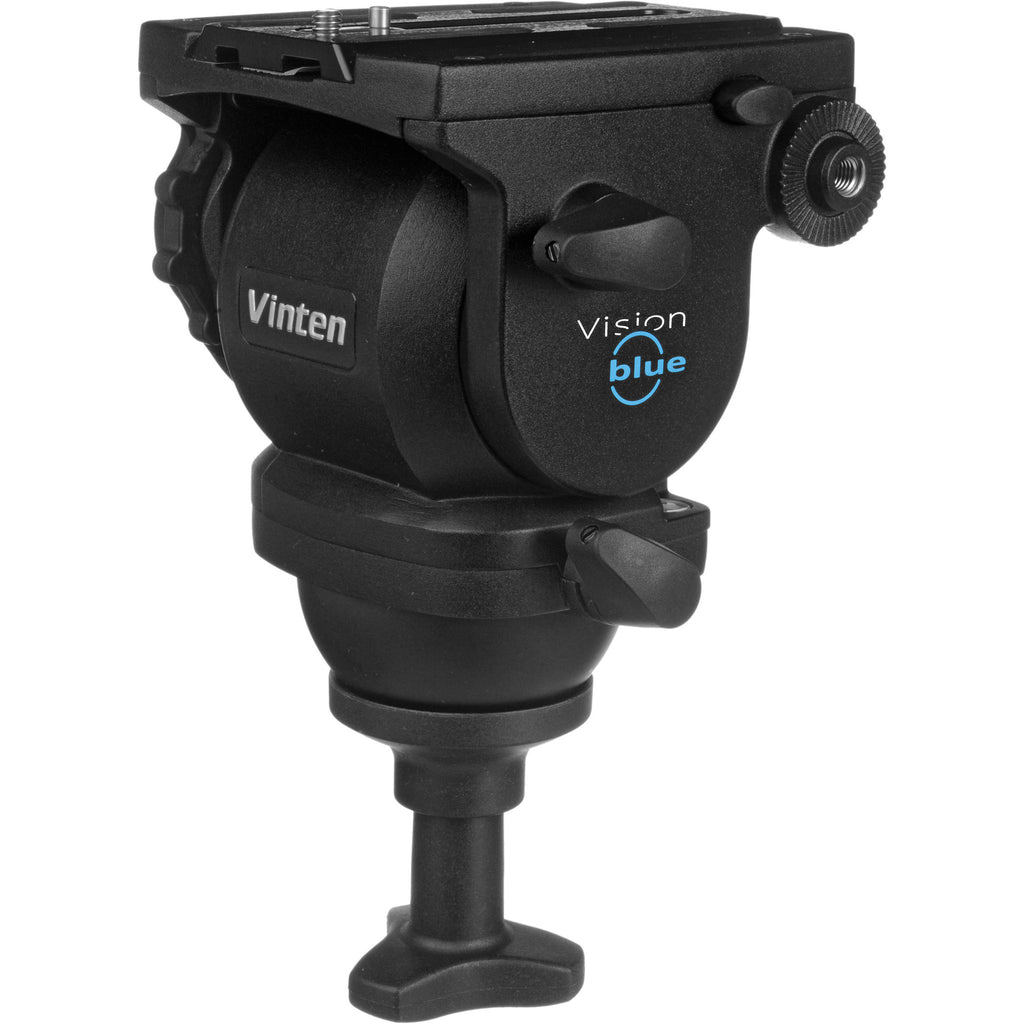

For users desiring exacting control and support for the lightweight camcorders and DSLRs Vinten has developed the Vision blue Pan and Tilt Fluid Video Head . This model can hold a payload of 4.6-11 lb at a 2.2" center of gravity and has a 75mm ball for leveling when mounted on a tripod. Beyond those basic specifications, the Vision blue offers an infinitely adjustable Perfect Balance system that allows users to set the appropriate amount of counterbalance for their camera system. Combined with the calibrated and infinitely adjustable Lubricated Friction, or LF, Drag technology users will have the ultimate control over their pan and tilt movements.

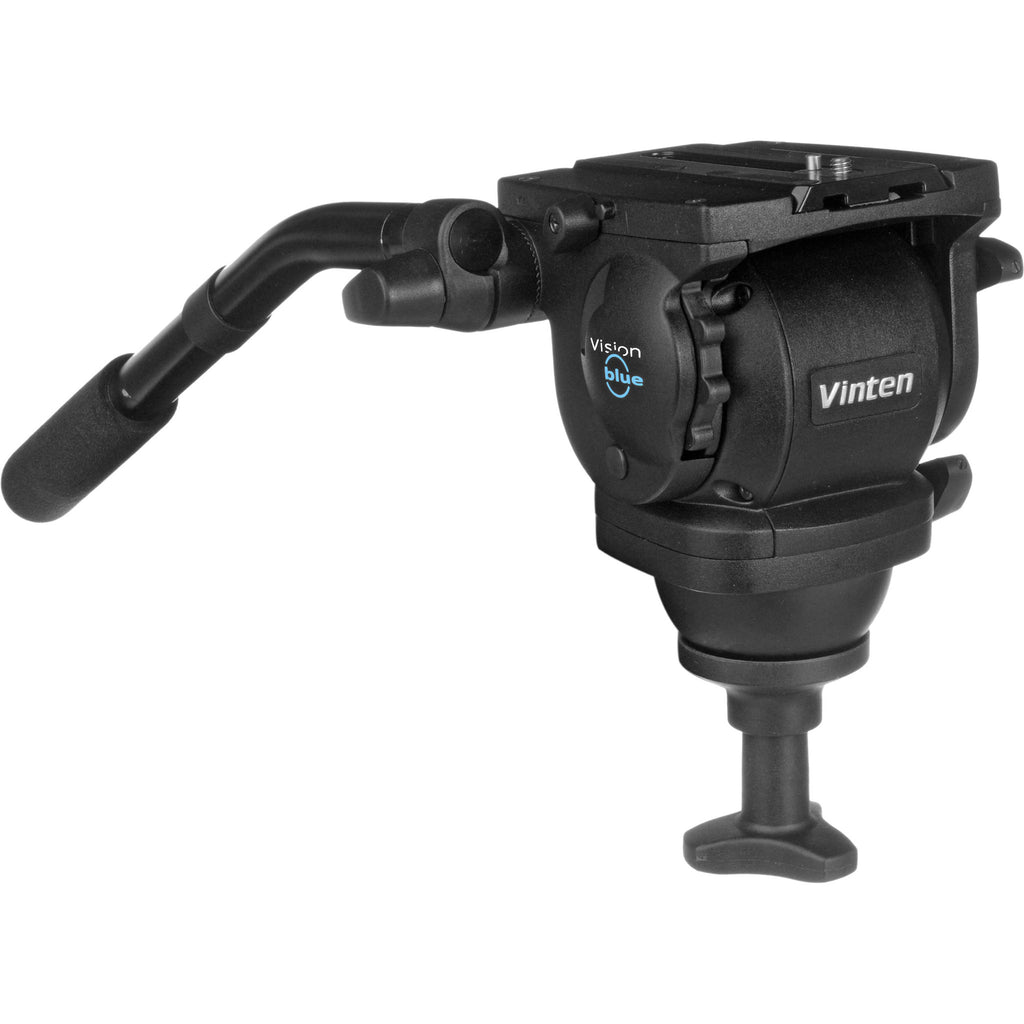

The head can tilt upward or downward 90° and can pan a full 360°. Also, it comes with a two-way sliding plate with a 1/4" screw and pin assembly for quick mounting of your camera. A single fixed length pan handle is included and can be set up on either the left or right side of the head via rosettes. Additionally, the head weighs 5.3 lb and features an LED illuminated bubble level.
- LF Drag technology using a unique lubricant fluid for fine adjustment of drag level to smooth movements as well as allow for a controlled whip pan at any setting.
- Operating temperature range of 5 to 86°F.
- Accepts optional blueBridge accessory to lower the range of payloads for the Vision blue system.
| Load Capacity | 4.6-11.0 lb / 2.1-5.0 kg at 2.2" / 55 mm center of gravity |
| Base | 75 mm ball |
| Tilt Range | ±90° |
| Pan Range | 360° |
| Pan Bar | Single fixed length |
| Drag Control | Calibrated infinitely adjustable LF drag system |
| Counterbalance | Infinitely adjustable Perfect Balance |
| Leveling Bubble | Illuminated high contrast blue LED |
| Operating Temperature | 5 to 86°F / -15 to 30°C |
| Height | 4.8" / 12.1 cm |
| Length | 5.1" / 12.9 cm |
| Width | 5.8" / 14.8 cm |
| Weight | 5.3 lb / 2.4 kg with pan bar, camera plate, and bowl clamp |
| Packaging Info |
| Package Weight | 9.0 lb |
| Box Dimensions (LxWxH) | 18.1 x 10.0 x 8.2" |
In the Box
Vinten Vision blue Pan and Tilt Fluid Video Head
