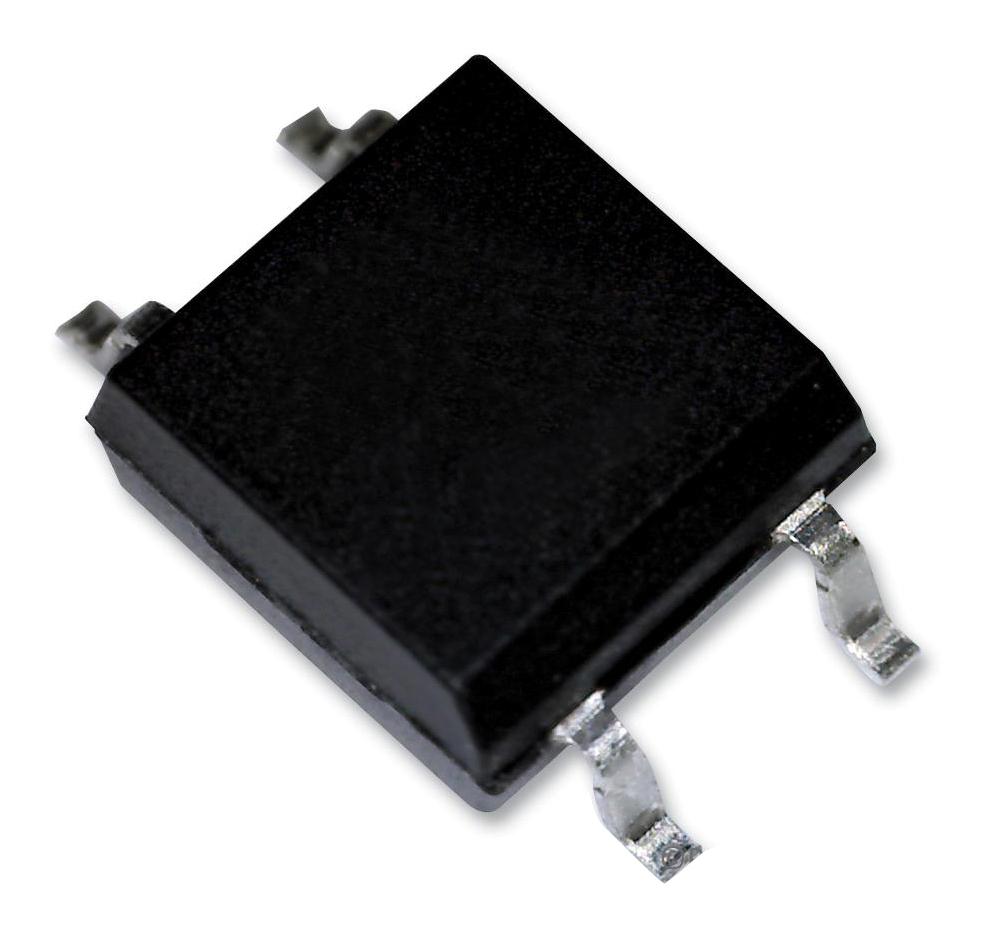

High gain photo Darlington output optocoupler suitable for use in programmable logic, modems, answering machines and general applications.
- Low profile package
- ACIsolation test voltage of 3750VRMS
- Low coupling capacitance of typical 0.3pF
- Low temperature coefficient of CTR
- Wide ambient temperature range
- UL1577, file no. E76222 system code M, double protection approval
- CSA 22.2 bulletin 5A, double protection approval
- DIN EN 60747-5-5 (VDE 0884-5) approval
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
VISHAY |
| Part Number |
TCMD1000 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
