Description

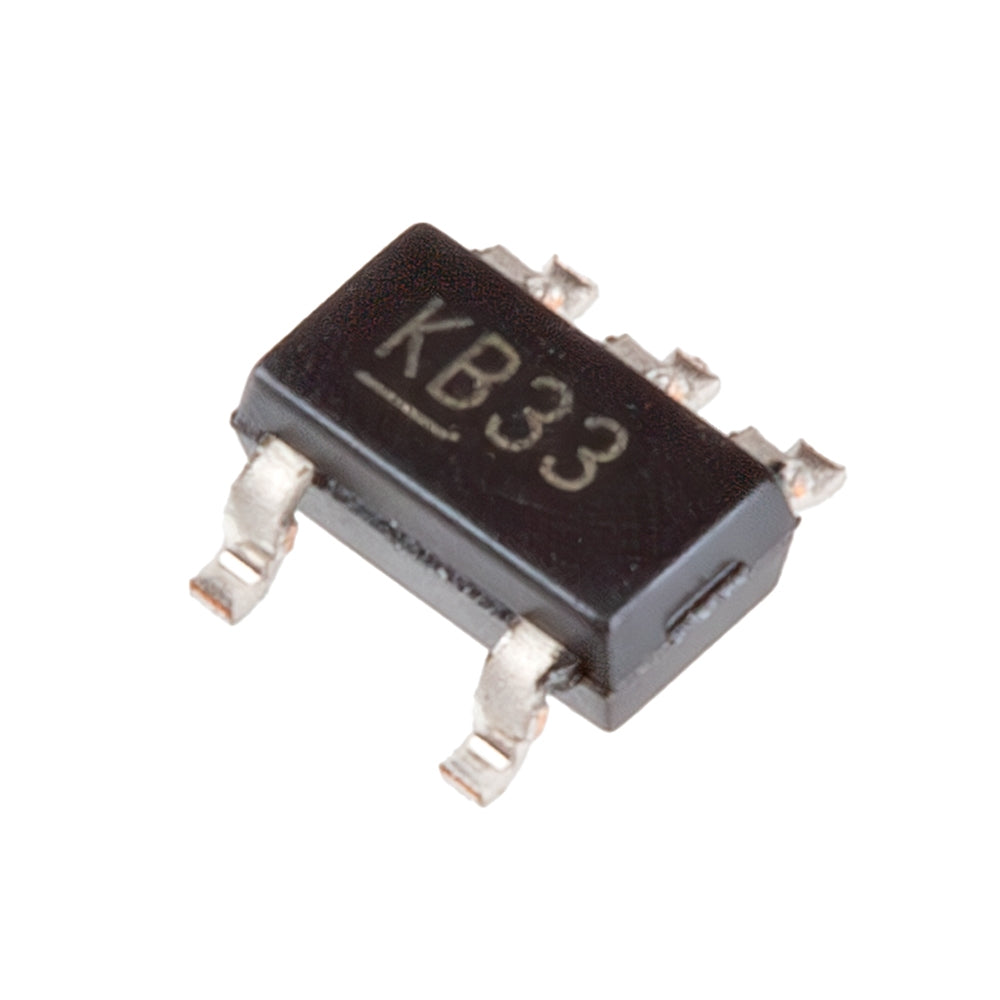

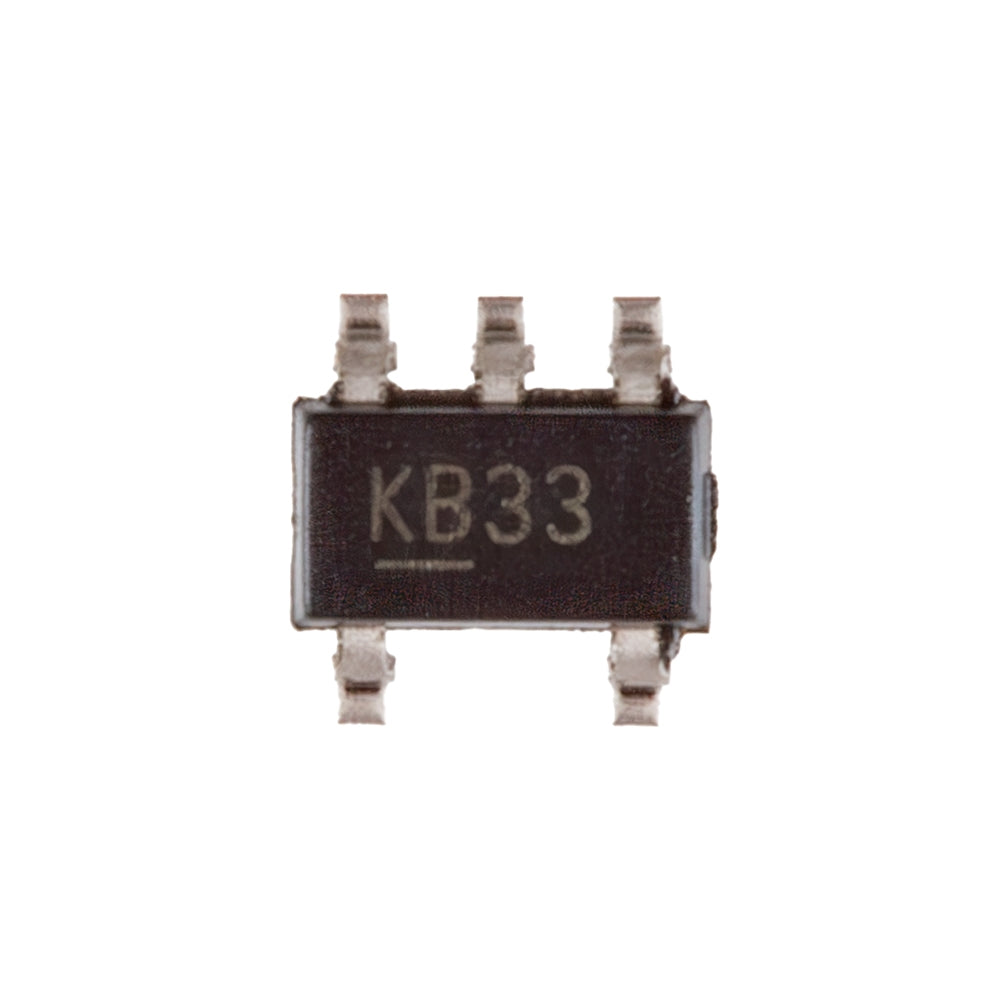

A 3.3V, 150mA low-dropout (LDO) linear voltage regulator in a SOT-23-5 package, featuring ultra-low noise, an enable pin, and reverse battery protection.
Features & Specs
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 16V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage Dropout (Max): 0.35V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 150µA
- Current - Supply (Max): 2.5mA
- PSRR: 75dB (100Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Base Product Number: MIC5205
Features & Specs
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 16V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage Dropout (Max): 0.35V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 150µA
- Current - Supply (Max): 2.5mA
- PSRR: 75dB (100Hz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Base Product Number: MIC5205
