Wago 734-210 734-210 Pluggable Terminal Block 3.81 mm 10 Ways 28AWG to 14AWG 1.5 mm² Clamp A

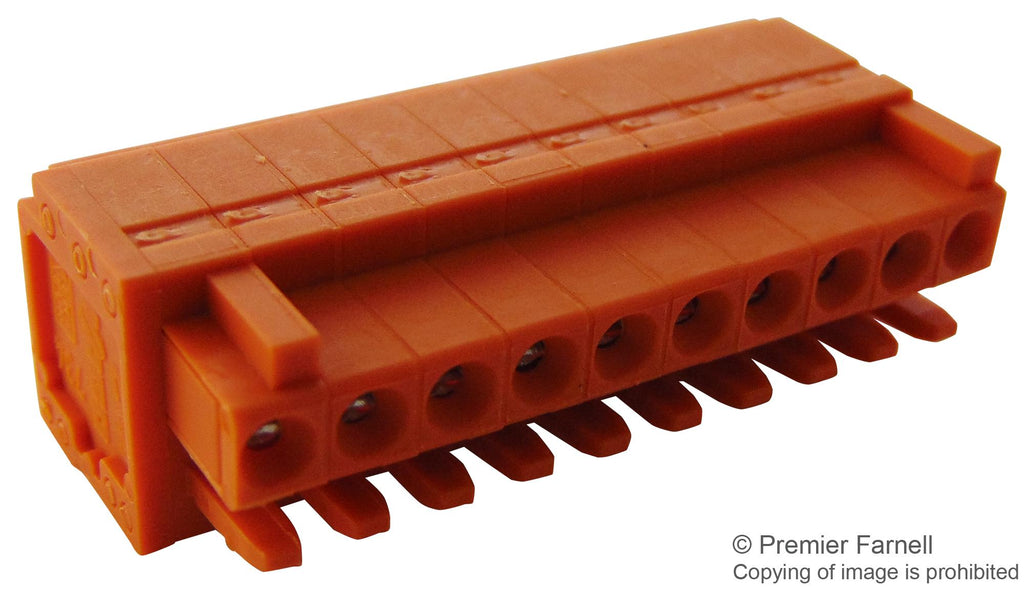

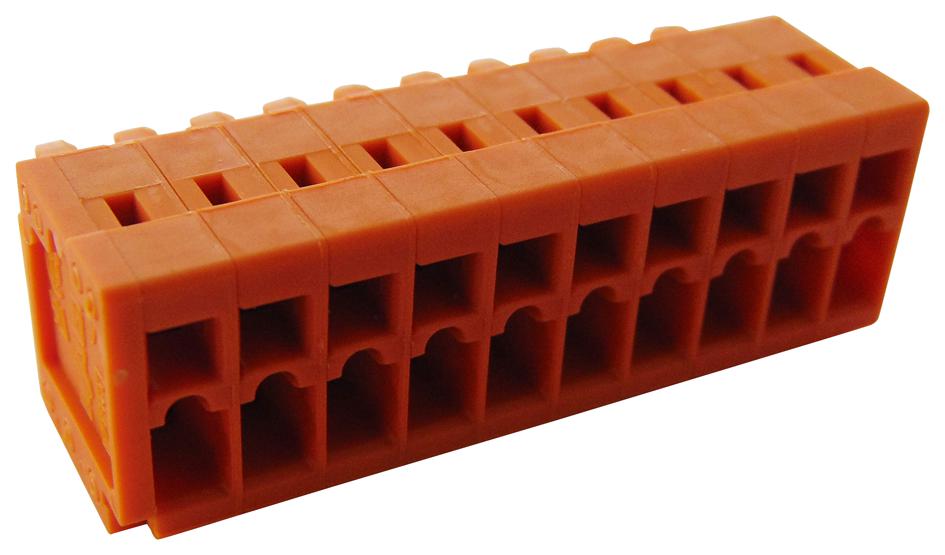

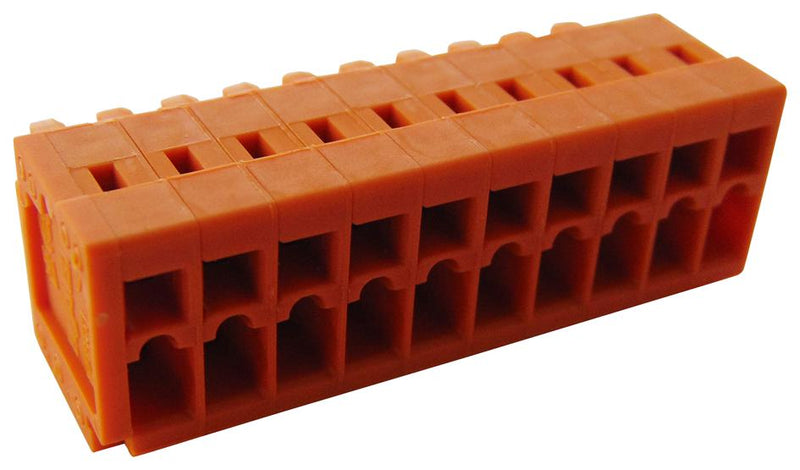

The 734-210 from Wago is an orange colour, 10-pole female connector with 3.81mm (0.15inch) pin spacing. It is 100% protected against mismating, only mating halves with the same pole number can be connected together. This connector features strain relief plates and housings for in-the-field assembly. It has ten connection points, ten potentials and one level. It also has chrome-nickel spring steel (CrNi) lamping spring material, tin plated copper alloy contacts and polyamide 66 (PA 66) insulation. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 (Underwriters Laboratories Inc) and LR approvals. It has 0.146MJ fire load, 8.31g weight and 40.3mm (1.587inch) x 13.4mm (0.528inch) x 18.6mm (0.732inch) dimension (W x H x D).

• Universal connection for all conductor types, codable
• Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
• Ratings per  IEC/EN 60664-1 standards and flammability class per UL94  V0
• Robust housing, shock and vibration resistant
• Rated impulse voltage of 2.5KV (III/3), 2.5KV (III/2) and 2.5KV (II/2)
• Rated voltage of 160V (III/2), 320V (II /2) and rated current of 10A
• 0.08mm² to 1.5mm² (28AWG to 14AWG) solid conductors (tool operated termination)
• 0.08mm² to 1.5mm² (28AWG to 14AWG) fine stranded (tool operated termination)
• 0.25mm² to 1.5mm² fine stranded conductors with insulated ferrule and uninsulated ferrule
• Strip length from 6mm to 7mm (0.24inch to 0.28inch) & limit temperature range from -60°C to 100°C

Applications

Industrial

Other details

Brand	WAGO
Part Number	734-210
Quantity	Each
Technical Data Sheet EN
Manufacturer Product Page EN
