Description
Waves LV1 32 Overview
Mix live shows with up to hundreds of plug-ins with this powerful Waves LV1 32 Core Combo. Featuring a custom computer built for maximum performance and a custom server that relieves your computer of plug-in processing, the Combo effortlessly handles recording and live-sound tasks in concert venues, theaters, houses of worship, clubs, and other live stage applications.

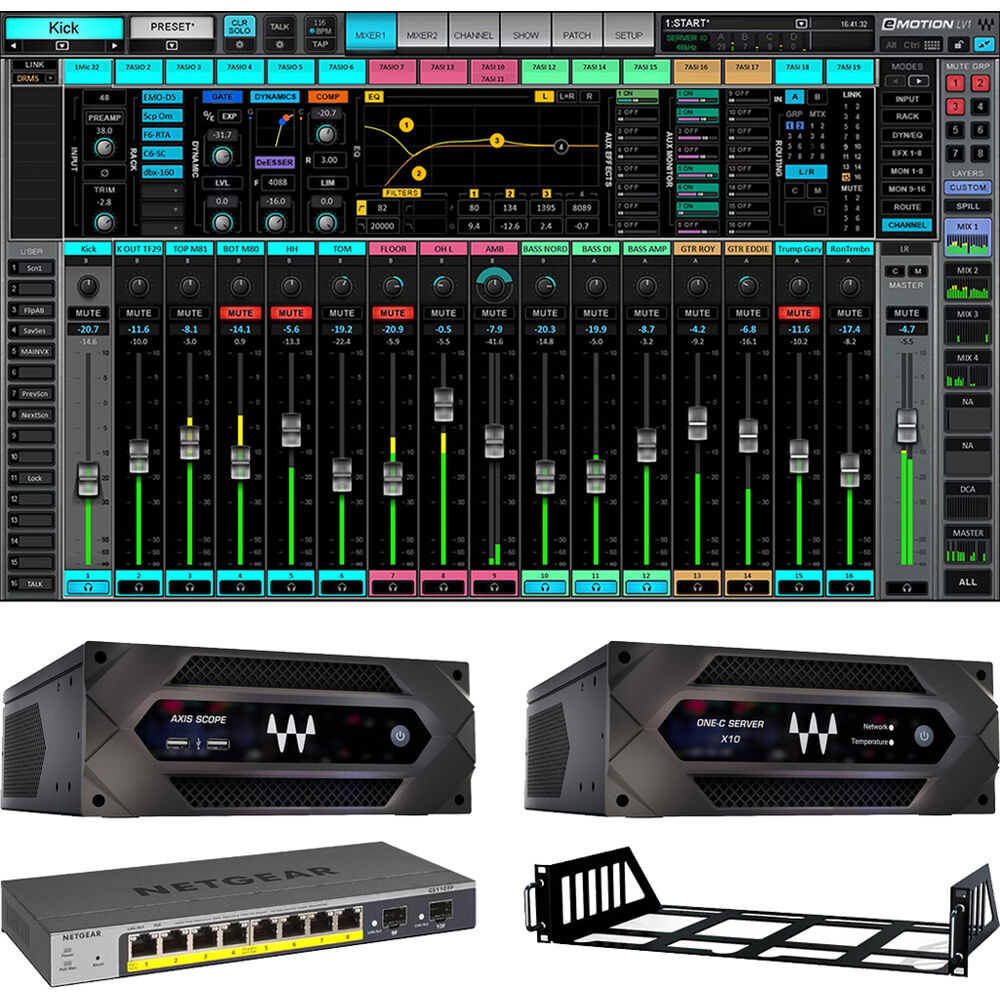

The LV1 32 Core Combo includes an Axis Scope Proton computer (3.3 GHz Intel 10th Generation Core i5 6-Core), One-C SoundGrid server (with Intel 10th Generation Core i3-10300), Netgear GS110TP network switch, eMotion LV1 32-Channel software license, three Ethernet cables, and a rack shelf for both the computer and server (2 RU, full-rack). You also get a Waves Ultimate 1-year subscription, supplying 230+ high-quality audio plug-ins to cover all of your vital audio-processing needs.
Waves eMotion LV1 32 Stereo Channels is a digital software mixer with 32 stereo/mono input channels designed for front-of-house, foldback, and broadcast live sound mixing applications. It employs the SoundGrid infrastructure for audio networking and a 32-bit floating point mix engine to deliver pristine audio at sample rates up to 96 kHz and with latency as low as 0.8 ms, along with an intuitive, flexible, and fast workflow, ideal for demanding live environments.
eMotion LV1 gives you precise control over your live sound mixing with sixteen aux channels (stereo/mono), 8 audio groups, and L/R/C/Mono panning. You can run up to eight SoundGrid-compatible plug-ins directly on each channel (Waves or third-party plug-ins). All saved plug-in presets and chains can be shared with the Waves MultiRack and StudioRack plug-in hosts, enabling you to move seamlessly between live and studio environments.
The main mixer window gives you the most important info you need at a glance including all channel inputs and parameters, routing, plug-in inserts, and more. Additional windows provide more detailed views. You can use the channel window for focused control of your plug-ins, including a Touch-and-Slide slider for quick and easy control of all plug-in parameters.
The software can be configured as a portable or stationary setup, and can connect to any SoundGrid-compatible I/O or server, allowing you to work on your sessions online or offline, at home, in your hotel room, on the tour bus, or at the live venue.
eMotion LV1 provides support for up to four multitouch screens, as well as diverse industry-standard control surfaces. It ships with the eMo D5 Dynamics, eMo F2 Filter, eMo Generator, and eMo Q4 Equalizer plug-ins, optimized for live environments.
- Digital mixing console software for front-of-house and broadcast live sound mixing
- 32 stereo/mono input channels, 28 bus/return channels
- Total portability�can be configured as a portable or stationary setup and can connect to any SoundGrid-compatible I/O or server
- Intuitive workflow with a user interface built for flexibility and speed
- Uses the SoundGrid infrastructure for audio networking
- Run up to 8 SoundGrid-compatible plug-ins directly on each channel (Waves or third-party plug-ins)
- Includes eMo D5 Dynamics, eMo F2 Filter, eMo Generator, and eMo Q4 Equalizer plug-ins, optimized for live environments
- 16 aux channels (stereo/mono), 8 audio groups, L/R/C/Mono panning
- 16 DCA faders, 8 mute groups, 8 user-assignable shortcut keys
- 32-bit floating point mix engine, with latency as low as 0.8 ms
- Sample rate: 44.1 to 96 kHz
- Patch up to 16 hardware and software SoundGrid I/Os
- All processing is done on an external SoundGrid DSP server
- Option to add a redundant DSP server
- Compatible with up to four multitouch screens, as well as diverse hardware control surfaces
- Touch-and-Slide slider for fine control over plug-in parameters
- 6 control windows: Mixer 1, Mixer 2, Channel, Show, Patch, Setup
- Different control windows can run simultaneously on different touchscreens
- Each Mixer window provides 8 layers, each with up to 16 channel strips
- Each channel strip provides control over its channel�s input, dynamics/EQ/filters, plug-in rack, sends, and routing
- Create your own custom layers for a personalized workflow
- Up to 1000 scenes, including recall filters and recall-safe options
- Sends-on-faders mode per Mixer window for each of the 16 aux busses, with auto cue on aux
- MIDI control over scene change
- Preamp control and digital trim per channel input
- Automatic latency compensation on internal mix busses
- Delay groups for output delay alignment
- Multiple outputs available per channel, each with digital trim per output
- Advanced stereo imager, including balance, rotation, width and L/R panning
- 16 link control groups, providing global control over inputs, plug-ins, EQ, dynamics, and sends for assigned channels
- DCA fader per link control group
- DCA spill�populate layers with DCA-linked channels
- 8 mute groups, with an additional Mute All output option
- Global tempo control per scene
- Show Lock option for locking plug-in instantiations, external routing, and complete surface lock
- Comprehensive meter and clip settings
- 8 user-assignable keys for personalization of control over mixer operation�open specific plug-in, tap tempo, recall specific scene)
- Solo-in-place option, with automatic solo-safe sources and destinations
- Copy & paste channel names, processing, and routing
- A/B input options, for quick patch changes
- External insert for outboard gear connection, as part of the plug-in rack chain
- Offline operation mode, including offline configuration and patching of I/O devices
- Complete channel processing presets, compatible with Waves MultiRack and StudioRack presets
- Smooth integration with the separately available Dugan Speech plug-in for auto-mixing multiple mics
- eMotion LV1 video training course available online
- Compatible with Windows and Mac (64-bit)
- Controls the eMotion LV1 mixer as well as the SoundGrid network that connects all devices
- The eMotion LV1 application is located on this computer, as are your plug-ins and preset files
- eMotion LV1 runs on both Mac and Windows and supports multiple displays
- This is where your plugins are being processed
- The power of the server has direct impact on the number of plug-in instances you can run
- At least one SoundGrid I/O ranging from 2-channel preamps to multiple 128-channel audio interfaces (such as the DiGiGrid MGB/MGO SoundGrid-to-MADI I/Os)
- All I/O devices are connected to the SoundGrid network via Ethernet
- SoundGrid-compatible 1 GB Ethernet switch
- Links the host computer, the server, and all I/O devices

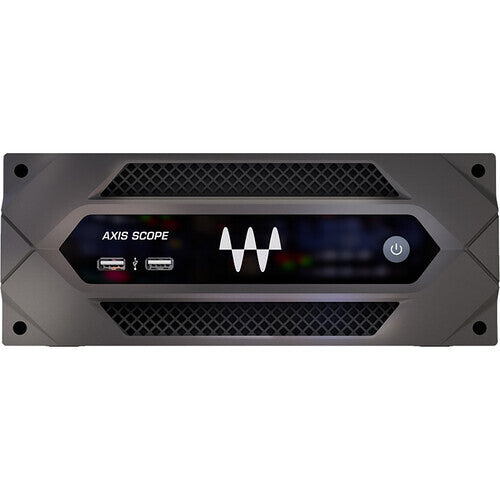

Streamline the performance of your Waves applications with the Axis Scope. Optimized for audio applications such as eMotion LV1 and SuperRack, this desktop system is built from the ground up to reliably support live sound, broadcast, and studio productions. The Axis Scope is equipped with a 10th generation 3.3 GHz Intel Core i5 six-core processor with 16GB of DDR4 memory and a 256GB SSD. The components have undergone rigorous testing to deliver maximum stability and performance to sound engineers using Waves software applications.

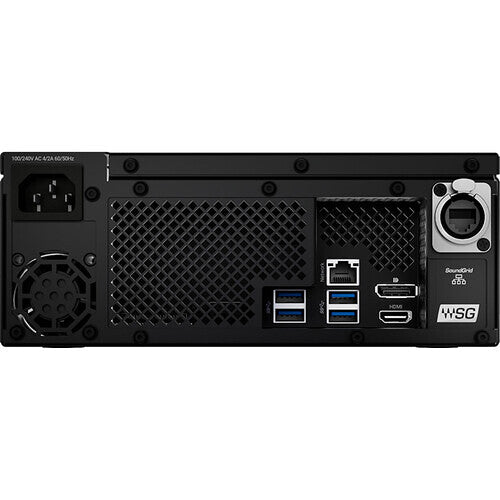

Up to three displays may be connected through the built-in HDMI and DisplayPort outputs along with the included USB to HDMI adapter, which plugs into any of the four rear USB-A 3.1 Gen 1 ports. There are also two front-facing USB-A 2.0 ports for separately purchased keyboards, mice, and other peripherals. Connect to your audio components through the SoundGrid EtherCon Port and your network using the integrated Gigabit Ethernet RJ45 port. Or upgrade the system with Wi-Fi support by installing a separately available M.2 wireless adapter. This system may be mounted onto a rack, taking up 2 RU of space. Windows 10 is pre-installed.Updated with 10th-generation Intel Core CPU, 8GB of RAM, a sleek industrial design, and brand-new features, the Waves One-C SoundGrid Server is a powerful DSP unit that can effortlessly process hundreds of SoundGrid-compatible plug-ins in real time, live, or in the studio. Taking only half the width of a standard 2 RU rack, the One-C Server fits right inside your carry-on, so you can easily take your mixing to number one wherever you go.

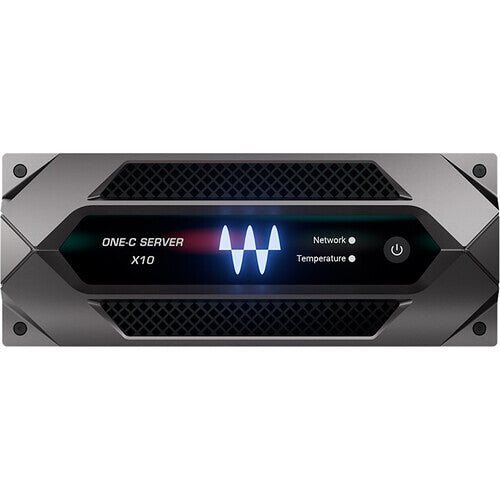

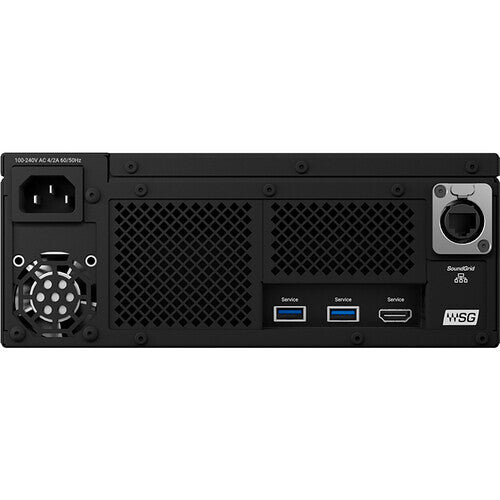

Built for elegance and durability, the One-C SoundGrid Server now features LED indicators for easy network and temperature monitoring, plus sturdy RAM positioning for a reliable mixing experience whatever your project. A single RJ45 port ensures simple connectivity to your host computer or SoundGrid audio network. The server comes with built-in rack ears for quick installation straight out of the box.
- Ultralow latency as low as 0.8 ms at 44.1, 48, 88.2, and 96 kHz
- Quiet fan design�fan speed auto-adjusts based on CPU temperature
- Powerful new Intel 10th Generation Core i3-10300 Processor
- 2 RU half-rack, sleek industrial design
- Enhanced with sturdy RAM positioning for added reliability
- LED indicators for easy network and temperature monitoring
- Rugged Neutrik etherCon connector
- 8GB RAM
- Use with any SoundGrid I/O interface (including DiGiGrid I/Os)
- Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect
- Limited 1-year warranty, extended warranties available
The Waves NETGEAR GS110TP v3 10-Port Switch SoundGrid Gigabit Ethernet is suitable for use in mission critical applications for doing live sound, theater, and other SoundGrid applications. This SoundGrid approved 10-port switch features eight RJ45 and two Small Form-Factor Pluggable (SFP) ports. It supports PoE over its eight RJ45 ports. It features a fanless design for use in noise-sensitive environments.
This 2 RU Rack Shelf for Half-Rack Soundgrid Servers from Waves is a custom rack mounting system for two SoundGrid Servers. This solution fits two of the half-rack sized servers side-by-side in a 2 RU form factor. It is built to be sturdy, so you can take it on the road in a road/flight case or set your servers in a standard 19" rack enclosure. The shelf features cutouts on the bottom and sides for increased airflow to keep your servers cool. The shelf includes mounting hardware.
Items Included
- Waves eMotion LV1 32 Stereo Channels - Live Mixer Software (Download)
- Waves eMO D5 Dynamics - Dynamics Processors Plug-In (Native/SoundGrid, Download)
- Waves eMo F2 - High and Low-Pass Filter Plug-In (Native/SoundGrid, Download)
- Waves eMo Generator - Signal Generator Plug-In (Native/SoundGrid, Download)
- Waves eMo Q4 - 4-Band Paragraphic Equalizer Plug-In (Native/SoundGrid, Download)
- Waves Axis Scope Desktop Computer
- Power Cable
- USB-A to HDMI Adapter
- Limited 1-Year Manufacturer Warranty
- Waves One-C SoundGrid Server DSP Unit (2 RU, Half-Rack)
- Limited 1-Year Manufacturer Warranty
- Waves NETGEAR GS110TP v3 10-Port Switch SoundGrid Gigabit Ethernet
- Waves Rack Shelf for Half-Rack Soundgrid Servers (2 RU)
- Waves Ultimate (12-Months)
- 3 x Ethernet Cable
Additional Resources
No additional resources available
Waves LV1 32 Specs
| Mac System Requirements |
Model/CPU
Mac Pro 4.1 or later MacBook Pro / iMac / Mac Mini with Intel i5 CPU or later Memory 6 GB RAM Operating System 10.10.5 to 10.13 Screen Resolution 1280 x 768 (32-bit) |
| Windows System Requirements |
CPU
Intel i3 or later Memory 8 GB RAM Operating System Windows 8.1 (64-bit) Windows 10 (64-bit) Screen Resolution 1280 x 768 (32-bit) Tablets Windows 8.1 / Windows 10 (64-bit) with Intel i3 and later CPU Windows for Apple via Boot Camp Mac mini 2014 and later, Intel i7, 8 GB RAM, Windows 10 |
| Sample Rate |
44.1, 48, 88.2, 96 kHz
|
| Control Surface |
Supports up to four screens (requires 4-port graphic adapter)
Multitouch support for Windows 8.1 and up, with touchscreens supporting 10-point touch Singletouch support for Mac (using compatible drivers) MIDI fader/knob devices�General MIDI standard mapping for fader pan and mute (control feedback depends on MIDI device) MIDI Show Control�program change for scene automation from any MIDI device iPad App: DAW Remote HD |
| Support |
eMotion LV1 is compatible with all SoundGrid I/Os
All SoundGrid servers are supported Cat 5e, Cat 6, and Cat 7 supported cables |
Waves LV1 32 Specs
| Operating System |
Windows 10 Home
|
| Processor |
Intel Core i5-10600 (10th Gen)
|
| GPU |
Intel UHD Graphics 630
|
| Installed RAM |
16 GB
|
| Total Installed Storage |
256 GB
|
| External Bays |
No
|
| Inputs/Outputs |
4x USB-A 3.0 / 3.1/3.2 Gen 1
2x USB-A 2.0 |
| Display I/O |
1x HDMI
1x DisplayPort |
| Audio I/O |
2x 1/8" / 3.5 mm Line Output
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Keyboard |
No
|
| Pointing Device |
No
|
| Chipset |
Intel H410
|
| Processor |
Intel Core i5-10600 (10th Gen)
|
| CPU Socket |
LGA 1200
|
| CPU |
6-Core: 3.3 to 4.8 GHz
|
| L3 Cache |
12 MB
|
| Graphics Type |
Integrated
|
| GPU |
Intel UHD Graphics 630
|
| Installed RAM |
16 GB
|
| RAM Type |
DDR4 SO-DIMM
|
| RAM Configuration / Capacity |
User-Replaceable 16 GB / 2 Slots Supporting up to 32 GB
|
| Total Installed Storage |
256 GB
|
| Storage Drive Type |
1x 256 GB / M.2 NVMe SSD
|
| Storage Expansion |
