Description

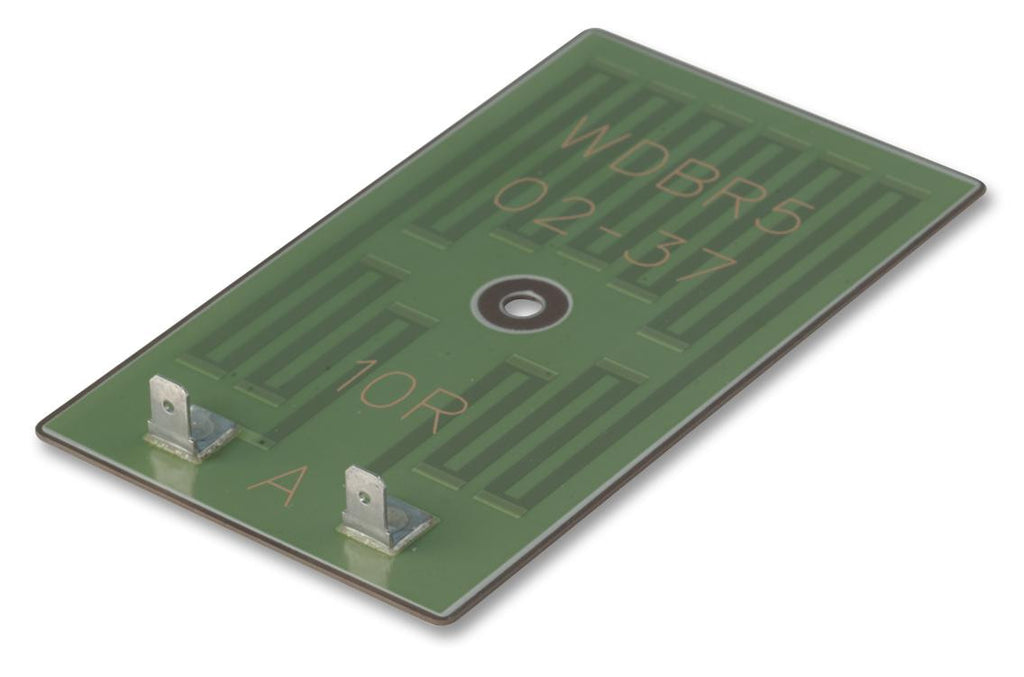

The Welwyn WDBR5 Series are ultra low profile thick film power resistors. These resistors are single fixing heat sink mountable and ideal for dynamic braking, inrush limit and snubber circuits. Resistor terminals available with options of solder pad, flying leads and push-on connectors. WDBR5 Series has low inductance and high isolation even after failsafe overload fusing.
- Resistance value range from 12, 15, 20, 22, 25, 47, 50, 100 and 150 ohm
- �10% tolerance
- Pulse power rating of 5kW
- Power rating on heat sink is 270W
- Operating temperature (element) of 365�C
- Temperature coefficient is resistor (TCR) range from +500 to +600ppm/�C
Applications
Consumer Electronics, Portable Devices, Power Management, Industrial
Product details
| Temperature Coefficient | +500ppm/�C to +600ppm/�C |
| Power Rating | 5kW |
| Resistor Element Material | Thick Film |
| Automotive Qualification Standard | - |
| Resistance | 47ohm |
| Resistance Tolerance | � 10% |
| Product Range | WDBR Series |
| Resistor Case Style | - |
| Voltage Rating | 2.5kV |
Other details
| Brand | WELWYN |
| Part Number | WDBR5-47RKT |
| Quantity | Each |
| Technical Data Sheet EN |  |
