Description

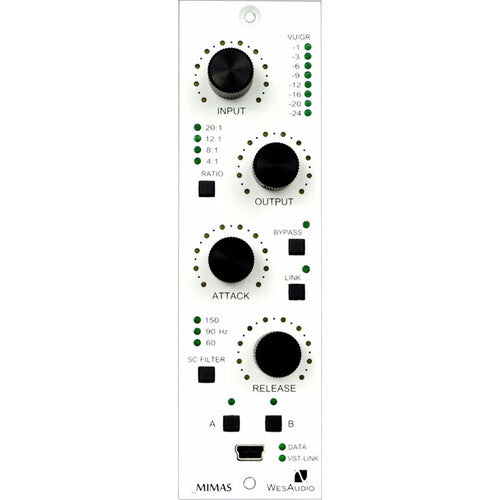

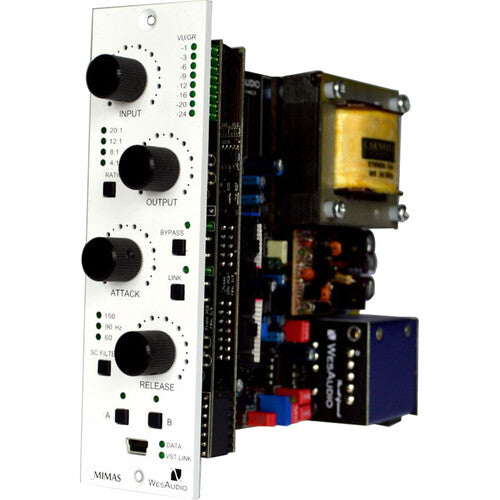

WesAudio MIMAS Overview
- 1Description
- 2New Implementation of a Legend
- 3Carnhill Transformers
- 4Ratio Settings
- 5Saturation Mode
- 6500 Series Compatible
- 7ng500 Series
- 8Hardware A/B
- 9Total Recall and Plug-In Control
- 10Analog Automation
- 11Additional Features
Merging the best of analog and digital worlds, the WesAudio _MIMAS 500 series single-channel compressor offers classic 1176-style dynamic processing and the powerful luxury of digital total recall. On the analog side, it provides high headroom of +24 dBu and Carnhill transformers for big tone that'll help you get pro impact in your tracks and mixes. Plus, there's true bypass and hardware A/B switching, so you can easily compare dry versus compressed or two different configurations of settings.
When it comes to the digital integration, _MIMAS is high-tech with USB connectivity and plug-in control. It has four touch-sensitive encoders that not only adjust the settings of the analog circuitry, but also allow you to write real-time automation from _MIMAS to your DAW. Alternatively, you can draw automation in the DAW and _MIMAS will react accordingly. You can even send a DAW track to the sidechain of _MIMAS over the USB connection; analog compression digitally sidechained from your DAW.
New Implementation of a Legend
Since 1968, this style of compression has dominated hundreds of recordings and remains one of the most commonly used signal processors in the industry. Lightning-fast attack and release times became main companions of audio engineers. WesAudio's _MIMAS implements legendary FET compression into a 500 Series module and brings with it one of the most demanded features in the audio industry�digital recall.

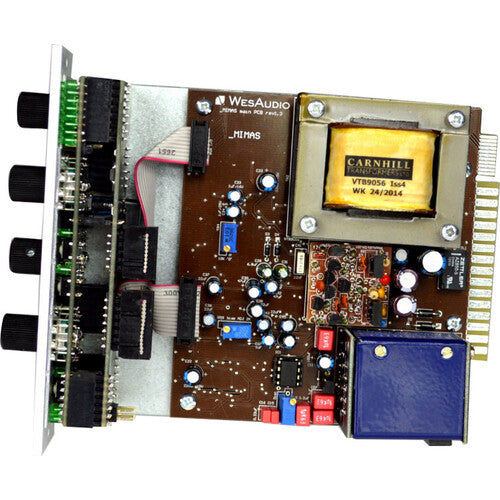

Carnhill Transformers
Carnhill transformers are foundation of its sound. _MIMAS is a fully balanced analog device with +24 dBu of headroom. Regardless of its digital control nature, the fully analog signal path provides top-tier FET compression.
Ratio Settings
_MIMAS provides selectable classic ratios of 4:1 and 8:1 for compression, and 12:1 and 20:1 for limiting. If more aggressive compression is needed, "All Buttons In" mode is right there.
Saturation Mode
Classic implementations of the 1176 provide functionality to disable compression and still add color and character to signals. _MIMAS is no different. However, instead of using input and output knobs to create the desirable effect, you can do it with just one knob, which configures the amount of saturation affecting a signal.
500 Series Compatible
Regardless its extensions, _MIMAS is fully compatible with the 500 series standard. Digital features can be enabled through the mini-USB socket on the front panel.
ng500 Series
Each WesAudio device in ng500 (Next Generation 500 series) product line is equipped with a special connector. This connector is an extension to the 500 series, and allows your device to be managed/recalled through specialized GCon protocol (e.g. _TITAN 500 series 10-slot frame). This extension is compatible with the 500 series standardized plug type; however, some manufacturers apply enormous screws to the plug itself, which prevent the device from fitting in. Based on official research, more than 90% of available 500 series racks will fit just fine. Currently known exceptions include:
- Rupert Neve Designs 500 series Racks (R6 & R10)
- Aphex 500 series rack
- Some older BAE racks (not produced anymore)
- Midas L6 (module won�t fit to the very end on slots 3 and 6)
- Midas L10 (module won�t fit to the very end on slots 4 and 8)
Hardware A/B
Even using _MIMAS as a pure analog signal processor, you can easily switch between two parallel settings with the magic of simple A/B buttons.
Total Recall and Plug-In Control
Along with classic analog compression, you receive one of the most demanded features in the audio industry�total recall. Plus, full plug-in control (VST2, VST3, AU, AAX, and AAX DSP) makes _MIMAS compatible with most, if not all, major DAWs. This total integration with your beloved DAW will change your workflow forever.
Analog Automation
It's very common to want different device settings based on song sections. Now it is possible; just draw automation lines in your DAW and the _MIMAS analog device will follow. And remember, you can use four touch-sensitive encoders to record automation to your DAW.
Additional Features
- Fully digitally controlled analog circuit
- +24 dBu of headroom
- Digital recall can be achieved by connecting directly through the mini-USB socket on the front panel, or using it inside a _TITAN chassis
- Dedicated stereo plug-in to manage two devices at the same time
- Digital sidechain makes it possible to send any track from your DAW as a sidechain signal to the compressor
- Four touch-sensitive encoders, perfect for recording automation of all parameters to your DAW in real time
- True bypass
- Selectable VU (in/out) or gain reduction meter (switch can be accessed on the plug-in)
- Free software and firmware upgrades
In the Box
- WesAudio _MIMAS 500 Series 1176-Style Analog Compressor with Digital Recall
- Limited 2-Year Warranty
Table of Contents
- Description
- New Implementation of a Legend
- Carnhill Transformers
- Ratio Settings
- Saturation Mode
- 500 Series Compatible
- ng500 Series
- Hardware A/B
- Total Recall and Plug-In Control
- Analog Automation
- Additional Features
WesAudio MIMAS Specs
| Function | Compressor |
| Number of Channels | 1 |
| Inputs | 1 x Balanced Line Input via 500 Series Multipin Connector |
| Outputs | 1 x Balanced Line Output via 500 Series Multipin Connector |
| USB | 1 x Mini-USB Port (Front Panel) |
| Plug-In Formats | VST2, VST3, AU, AAX, and AAX DSP |
| Input Impedance | 2.4 Kilohms |
| Output Impedance | 600 Ohms |
| Compression Ratio | 4:1, 8:1, 12:1, 20:1, All-Button Mode |
| Attack Time | 20 to 800 ?s |
| Release Time | 50 ms to 1.1 Seconds |
| Sidechain Filter | 60, 90, 150 Hz |
| Frequency Response | 20 Hz to 20 kHz (±1 dB) |
| Headroom | +24 dBu |
| Signal-to-Noise Ratio | >83 dB |
| THD + N | ?1% |
| Power Consumption | 3 W |
| Dimensions | 1.5 x 5.2 x 6.2" / 3.8 x 13.3 x 15.8 cm |
| Weight | Not Specified by Manufacturer |
