Description
WesAudio NGLEVELER Overview
- 1Description
- 2Analog Automation, Digital Control
- 3Dedicated Plug-In Control
- 4Trim Mode
- 5Channel Groups
- 6HUI Control
- 7THD
- 8Analog Automation
- 9Essential Features
Merging the best of analog and digital worlds, the WesAudio ngLEVELER is a 16-channel Next Generation analog automation system that provides tracking and mixing engineers with multichannel analog level control and the powerful luxury of digital total recall, for a truly special hybrid setup. On the analog side, it provides immense headroom (+25 dBu in and +28 dBu out), DB25 balanced line-level I/O, and selectable THD coloration intensity for big tone that'll help you get professional sonic impact. Plus, the ngLEVELER only occupies 1 RU of rack space, so it is unobtrusive and space-efficient.
When it comes to the digital integration, ngLEVELER is high-tech with USB and Ethernet connectivity and plug-in control. Its dedicated plug-in allows access to a host of in-demand functions, such as multiple channel linking options, solo, mute, pad, channel names, grouping, and trim mode. Use a HUI controller to make automation moves in real time or draw automation in your DAW and ngLEVELER will react accordingly.
Analog Automation, Digital Control

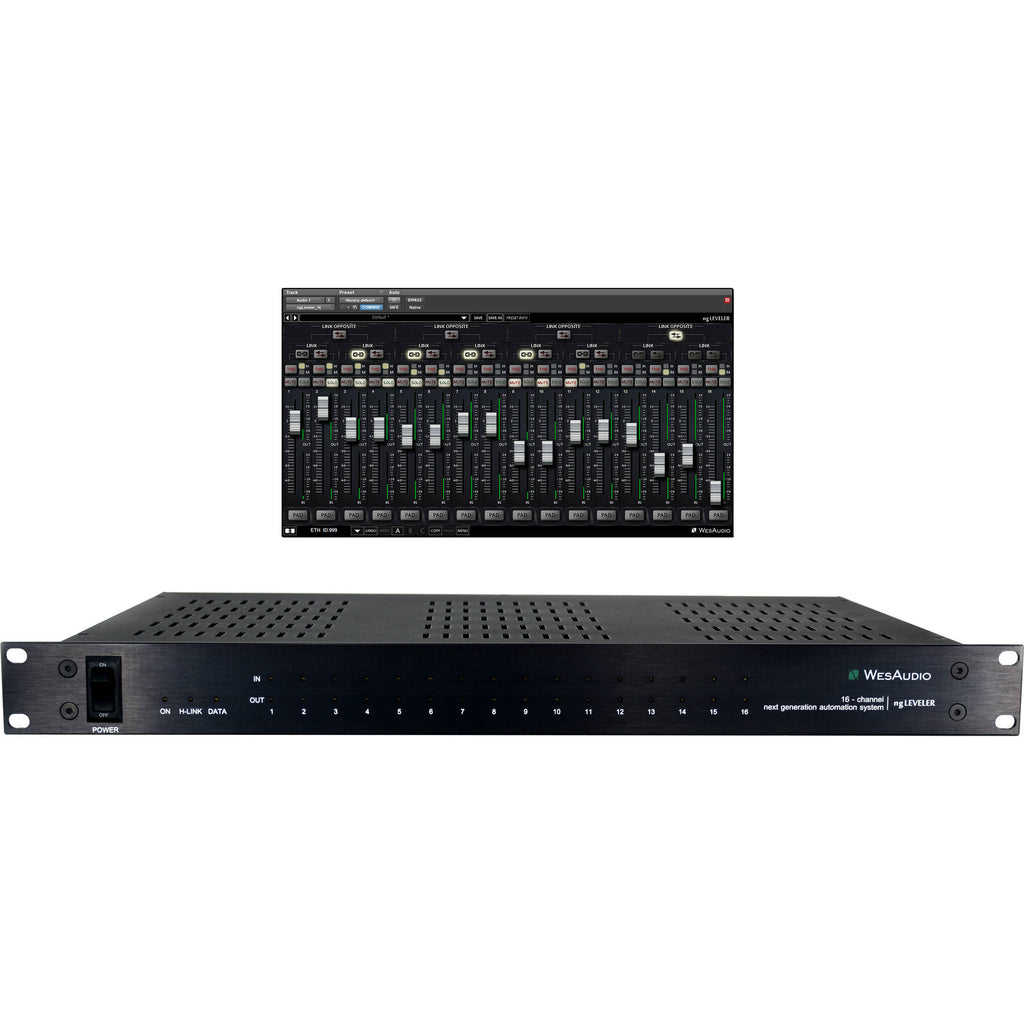

Dedicated Plug-In Control
- Multiple linking options
- THD coloration mode
- I/O metering
- Solo and mute
- Solo safe
- Faders
- Channel names
- Trim / level value
- Group
- Pad
Trim Mode
Channel Groups
HUI Control
THD
Analog Automation
Essential Features
- 16 channels of analog automation with total recall
- Immense headroom (+25 dBu in / +28 dBu out)
- 6 dB passive attenuator for better integration with high-level signals
- Very low noise and distortion
- Mute and solo for each channel
- HUI controller integration
- 16 channels of proprietary THD
- In and Out (before and after signal leveling) metering fully integrated with DAW plug-in
- Flexible DAW/Live plug-in control for instant recall
- DB25 analog connectivity
- Management via Ethernet or USB
- Fully digitally controlled and isolated analog circuit
- Full automation recording via HUI
- Free software and firmware upgrades
In the Box
- WesAudio ngLEVELER 16-Channel Next Generation Automation System
- Power Cable
- Limited 2-Year Warranty
- Description
- Analog Automation, Digital Control
- Dedicated Plug-In Control
- Trim Mode
- Channel Groups
- HUI Control
- THD
- Analog Automation
- Essential Features
WesAudio NGLEVELER Specs

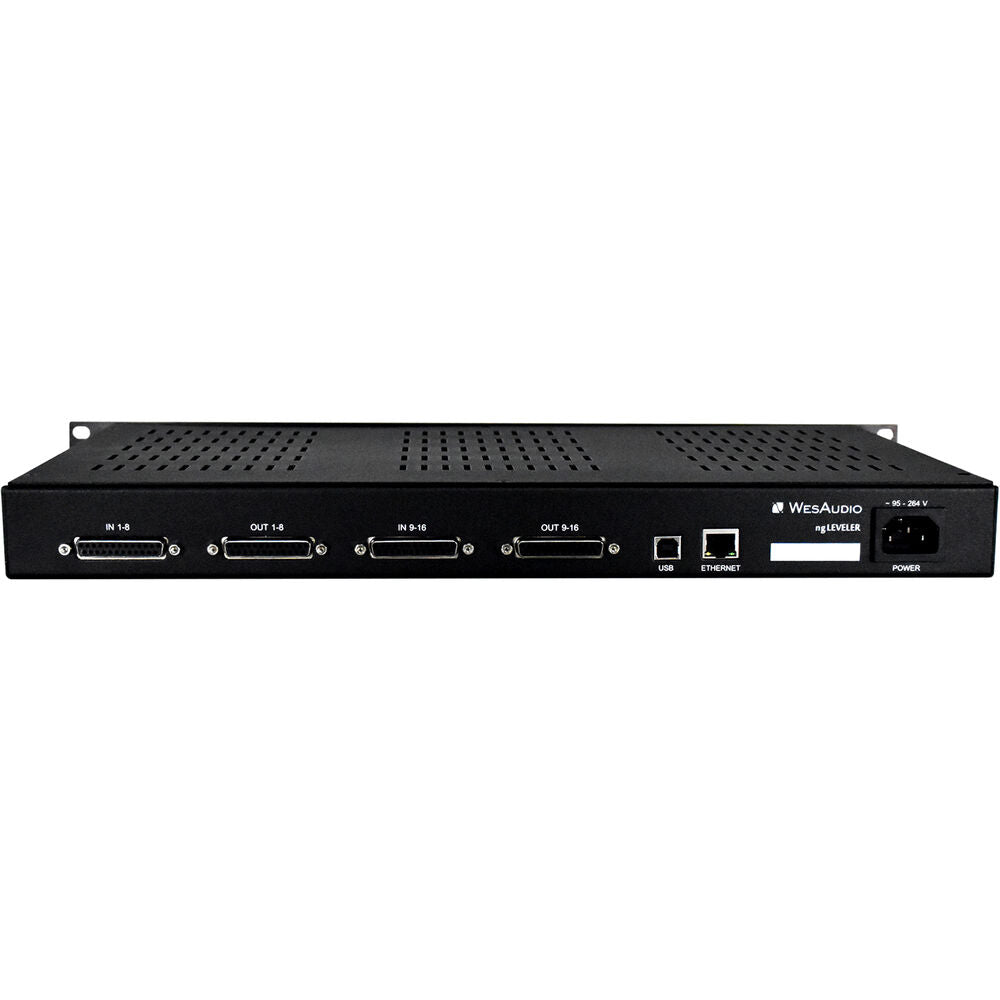

| Input Connections | 2 x DB25 8-Channel Line Inputs (Balanced) |
| Output Connectors | 2 x DB25 8-Channel Line Outputs (Balanced) |
| Control Ports | 1 x USB Type-B 1 x RJ45 Ethernet |
| Maximum Input Level | +25 dBu |
| Maximum Output Level | +28 dBu |
| Pad | -6 dB |
| Input Impedance | >10 Kilohms |
| Output Impedance | <50 Ohms |
| Frequency Response | 0 Hz to 250 kHz (-3 dB) |
| THD + N | <0.008% (20 Hz to 20 kHz at 0 dBu) |
| Crosstalk | >100 dB |
| Dynamic Range | >118 dB |
| Digital Resolution | 2500 Steps per Channel |
| AC Power Requirements | 95 to 264 VAC, 50/60 Hz |
| Dimensions | 19 x 1.8 x 10.3" / 48.3 x 4.4 x 26.2 cm |
| Weight | Not Specified by Manufacturer |
