Description
WyreStorm SW-220-TX Overview
- 1Description
- 2
- 3Wireless Casting
- 4Dual View
- 5USB-C Dongle
- 6USB 3.0
The

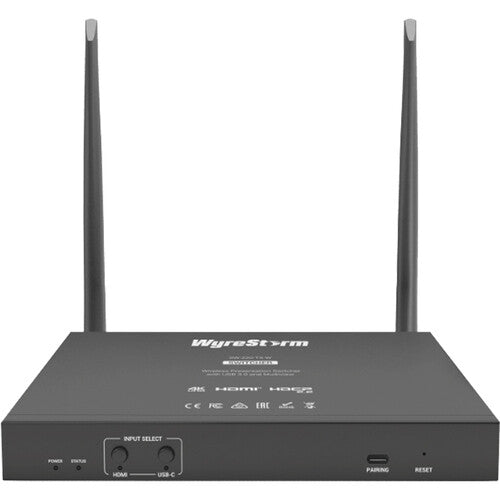

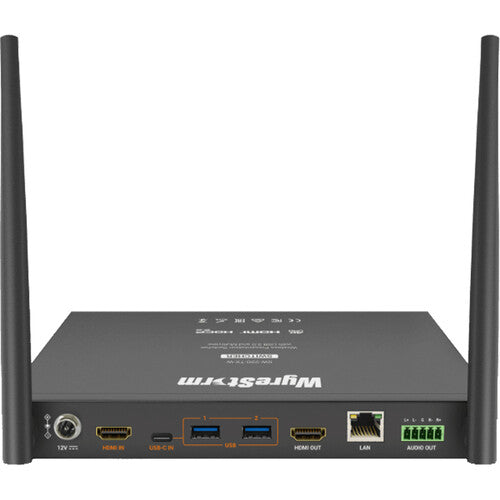

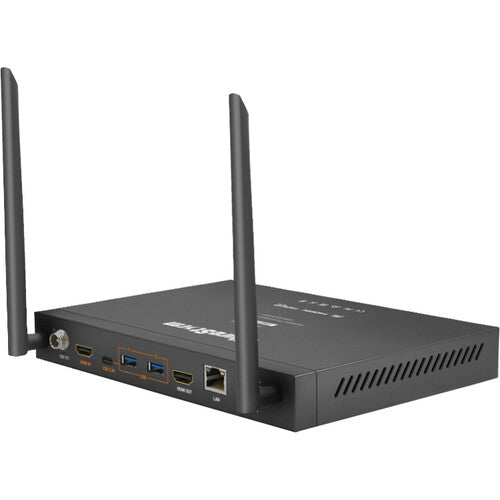

Synergy 2-Input 4K Presentation Switcher with Wireless Casting from
WyreStorm addresses the ever increasing need to connect laptops, tablets, and other devices in conference rooms and small huddle rooms. This switcher is intelligently designed to auto-switch between HDMI and USB-C devices, supports wireless casting to Miracast, Airplay, and APO-DG1 devices, and supports video resolution up to UHD 4K60 4:4:4 8-bit. It also supports device extension by providing USB-A 3.0 ports for host connection to a camera, laptop, or speakerphone for instant conferencing. Audio can be split to analog speakers using the balanced audio terminal output.
Wireless Casting
Wirelessly screen share from your laptop, phone, or tablet by using Apple Airplay or Miracast. Take advantage of the convenience wireless casting has to offer.
Dual View
Display up to two source devices at the same time. This can be a combination of wired and wireless devices, creating a supportive environment for collaboration between colleagues and teams.
USB-C Dongle
Compatible with the Apollo APO-DG1 casting dongle, simply plug the dongle into an available USB-C port on your computer and tap the button.
USB 3.0
A built-in USB 3.0 hub on the switcher connected to the USB-C input allows local connection of peripherals devices such as a conference speakerphone or 4K camera.
In the Box
- WyreStorm Synergy 2-Input 4K Presentation Switcher with Wireless Casting
- 12V Power Adapter
- 5-Pin Terminal Block
- 2 x Mounting Bracket with Screws
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Wireless Casting
- Dual View
- USB-C Dongle
- USB 3.0
WyreStorm SW-220-TX Specs
Processing
| Switching Type |
Pushbutton, Software
|
Input
| Video Inputs |
1x HDMI (1.4) Female
1x USB-C (3.2) Female |
| Input Video Format |
HDMI / USB-C (8-Bit 4:4:4 RGB)
UHD 4K up to 30 fps |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Input |
HDMI: 2-Channel
USB-C: 2-Channel |
Output
| Video Outputs |
1x HDMI (1.4) Female
|
| Output Video Format |
HDMI (8-Bit 4:4:4)
UHD 4K up to 30 fps |
| Audio Outputs |
1x Block 5-Pin Analog
|
| Output Audio Format |
Analog
|
| Embedded Audio Output |
HDMI
|
Connectivity
| Other I/O |
2x USB-A 3.0 / 3.1/3.2 Gen 1 Input
1x RJ45 LAN Input/Output |
| HDCP Support |
Yes, Version 1.4
|
Hardware
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
| Bluetooth |
No
|
Power
| Power I/O |
1x Barrel (12 VDC at 2 A) Input
|
| Power Consumption |
Device: 12 W
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Storage Humidity |
10 to 90%
|
General
| Certifications |
CE, FCC, RoHS, RCM, EAC
|
| Dimensions |
8.5 x 4.7 x 1" / 215 x 120.2 x 25 mm
|
| Weight |
1.5 lb / 680 g
|
